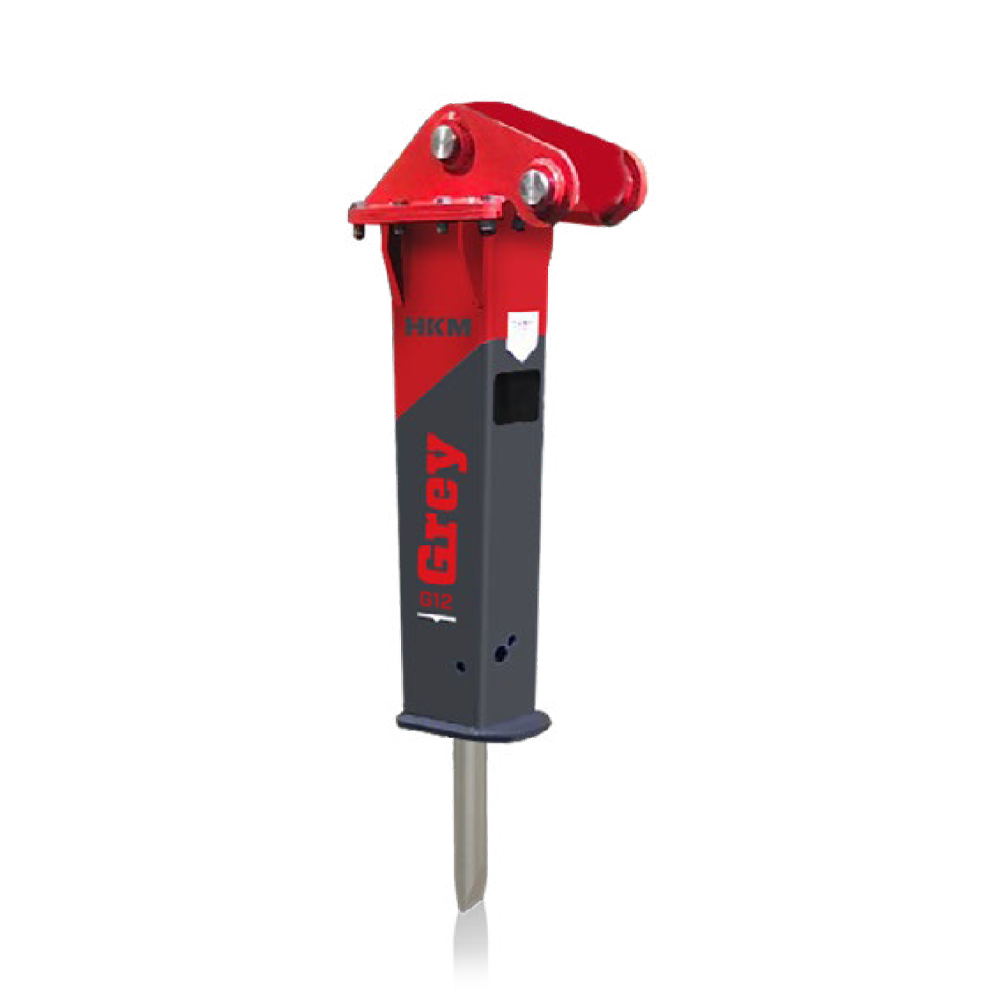

GREY: GAZ SERIES G 12
HKM Grey 12 is engineered for high performance and the most cost-effective breaking power, especially in urban applications.- Wide operating pressure and oil flow range for fuel efficiency
- One-piece enclosed housing for superior wear resistance
- Enclosed body for reduced noise and vibration in city use
- Economical design that saves time during spare part replacement and maintenance
- Compact design that allows transport on backhoe loaders without extra load
G12: SIMPLICITY AND EFFICIENCY IN ONE BREAKER
HKM Grey 12 is developed for effective and easy operation in urban environments such as asphalt breaking, demolition, and trenching.
Its power unit—combining gas and hydraulic operating principles—enables operation within a wide pressure and oil flow range, making your job easier.
Thanks to its slim body, G12 allows easy access in trench work, while the simplified component focus ensures trouble-free operation. Ergonomic details help save time during repairs and part replacements.
HKM Grey 12 is your fast and economical solution for urban breaking needs.
KEY FEATURES
- Low noise and vibration
- Easy part replacement, maintenance, and servicing
- Slim design for easy access to the breaking area
STANDARD EQUIPMENT
- Hybrid Power Unit (Hydraulic-Gas)
- Easy Part Replacement and Servicing
OPTIONAL EQUIPMENT
- Underwater Kit
- Reinforced Outer Housing
- Quick Attachment Coupler
TECHNICAL SPECIFICATIONS
| Operational Weight (kg) | 120 |
| Carrier Weight (ton) | 1,2-3 |
| Tool Diameter (mm) | 45 |
| Operating Pressure (bar) | 90-120 |
| Oil Flow (lt/min) | 20-40 |
| Impact Rate (bpm) | 700-1200 |
