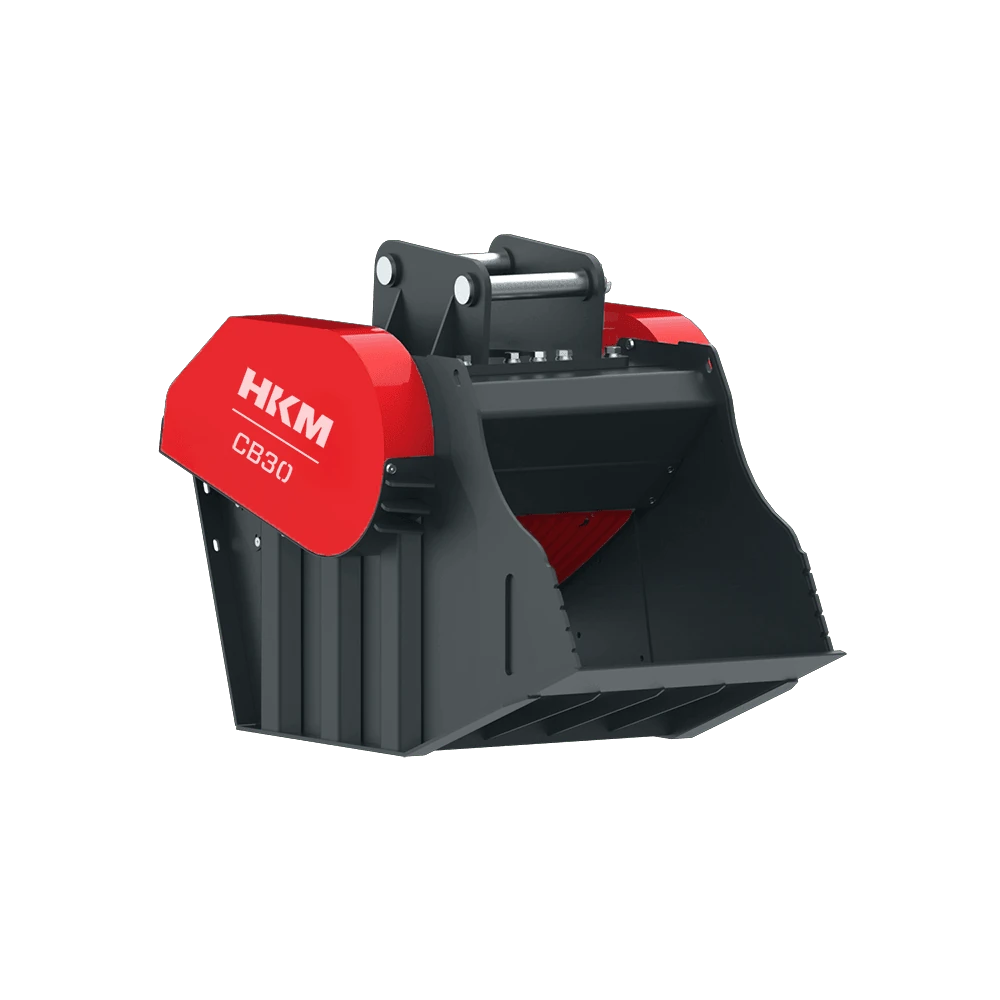

Crusher Bucket

Covers hydraulic crusher bucket attachments used to reduce and recycle material on site.

Technical comparison

Compare models

Technical values of the models in this group, side by side. Enter your machine tonnage and the matching model is highlighted.

Crusher Bucket technical specifications
ModelCB10CB20CB30CB40
Carrier Weight (ton)10-1816-2520-3030-50
Operating Weight (kg)1740229030005000
Load Volume (m³)0.550.7511.5
Load Volume (m³) ER0.50.811.2
Jaw Height (mm)510510550550
Jaw Width (mm)6508009201200
Grain Size (mm)15-13015-13015-14015-145
Oil Flow (l/min)90-140150-220180-240180-265
Estimated Production 80mm (t/h)30.240.150.660.5
Size (L x W x H, mm)1900x1034x12842095x1182x12842230x1304x13352330x1600x1440
Crushing Capacity (t/h) technical specifications
ModelCB10CB20CB30CB40
Ø145 mm–––54,2
Ø140 mm––43,151,5
Ø130 mm24,232,840,748,6
Ø120 mm22,730,838,345,7
Ø110 mm21,328,835,942,8
Ø100 mm19,926,833,539,9
Ø90 mm18,524,831,137,1
Ø80 mm17,122,728,634,2
Ø70 mm15,620,726,231,3
Ø60 mm14,218,723,828,4
Ø50 mm12,816,721,425,5
Ø40 mm11,414,619,022,6
Ø30 mm10,012,616,619,8
Ø20 mm8,510,614,216,9
Ø15 mm7,79,612,915,5

Scroll the table sideways to see all models.
