Crusher Bucket

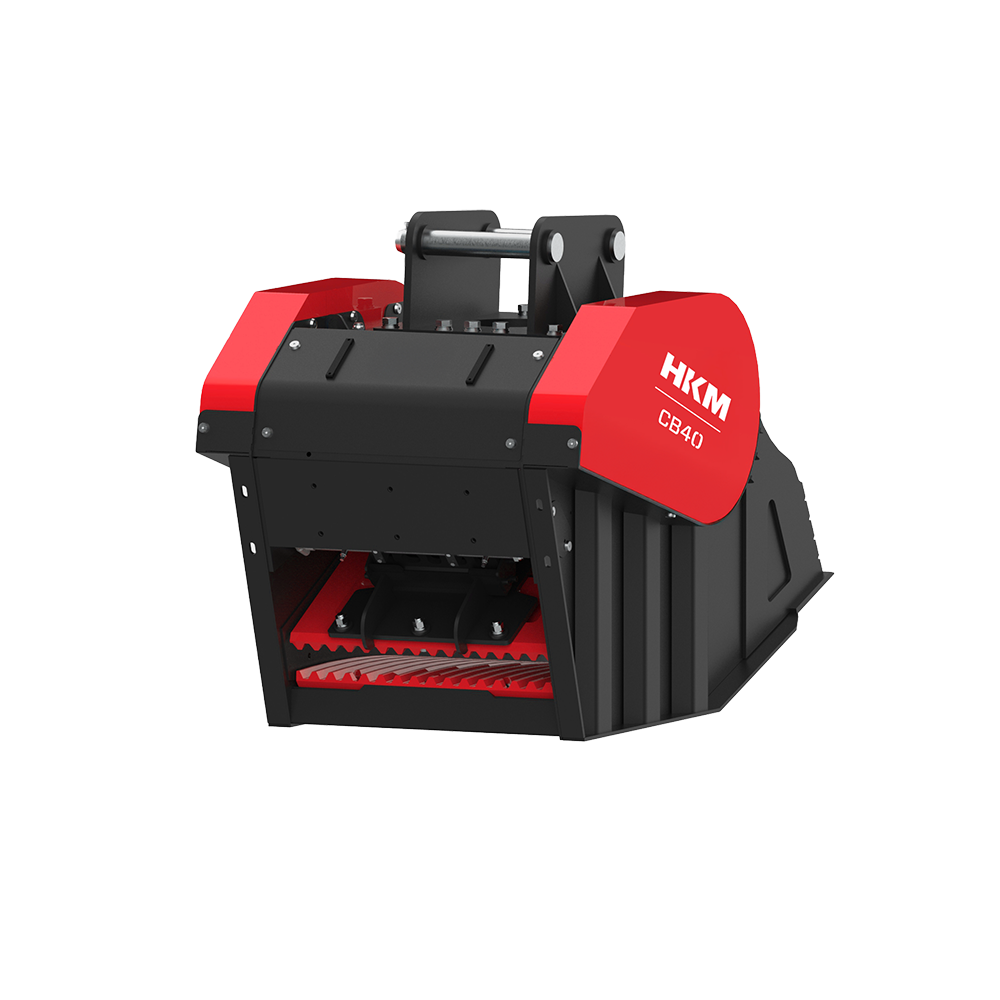

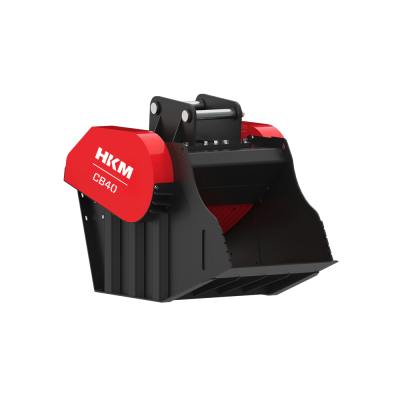

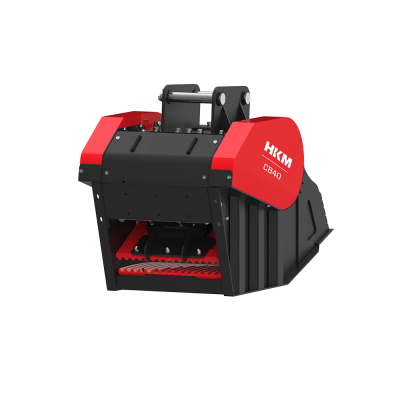

HKM CRUSHER BUCKETS – CB40

HKM CB40 Crusher Bucket is designed for 30–50 ton excavators and engineered to deliver maximum power and volume for demanding applications. With a robust build and advanced hydraulic system, it handles reinforced concrete, rock, and construction debris directly on-site without additional crushing infrastructure.

Featuring a bucket volume of 1.50 m³ and an operating weight of 5,000 kg, the CB40 allows continuous high-load operation. Depending on jaw settings and material type, it delivers output sizes from 15–145 mm. When set to 80 mm, the unit can reach 60.5 tons/hour of estimated production capacity, making it the top performer of the HKM crusher bucket line.

Built to support fast jaw plate replacement and uninterrupted operation, CB40 is an essential tool for high-volume construction and mining environments that demand consistent, efficient material processing.

KEY FEATURES

• Reinforced Steel Housing: Heavy-duty steel body with wear-resistant liners ensures durability.

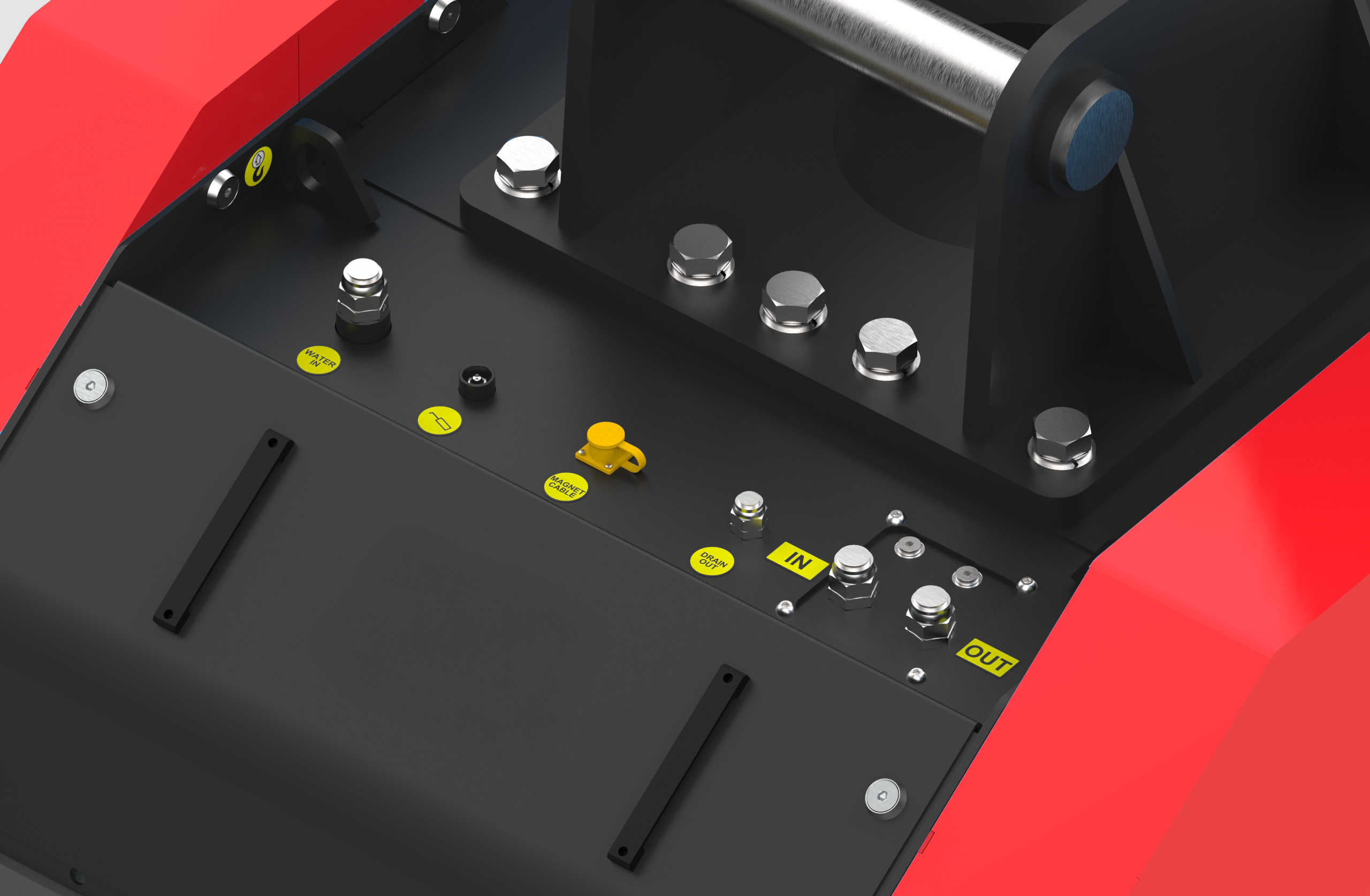

• High-Efficiency Hydraulic Drive: Axial piston motor with protective valve maintains power under full load.
• Quick-Swap Jaw System: Top and bottom jaw plates can be replaced quickly on-site.
• Continuous Feeding System: Ensures non-stop operation even at full bucket capacity.
• Adjustable Output Size: Hydraulic system allows size adjustment from 15–145 mm.
• High Capacity: Delivers up to 60.5 tons/hour at 80 mm output setting.

APPLICATION AREAS

• On-site recycling of concrete, brick, and asphalt into reusable aggregates
• Road construction backfill and trench support
• Pre-crushing of quarry rock and riverbed material
• Urban rehabilitation: sidewalks, curbs, and roadside works
• Submerged concrete removal in marine and infrastructure projects

OPTIONAL ACCESSORIES

• Dust Suppression System: Integrated water-spray unit
• Central Lubrication System: Automatic grease distribution
• Electromagnetic Iron Separator: Operates at 24V directly from the excavator

TECHNICAL SPECIFICATIONS
