Crusher Bucket

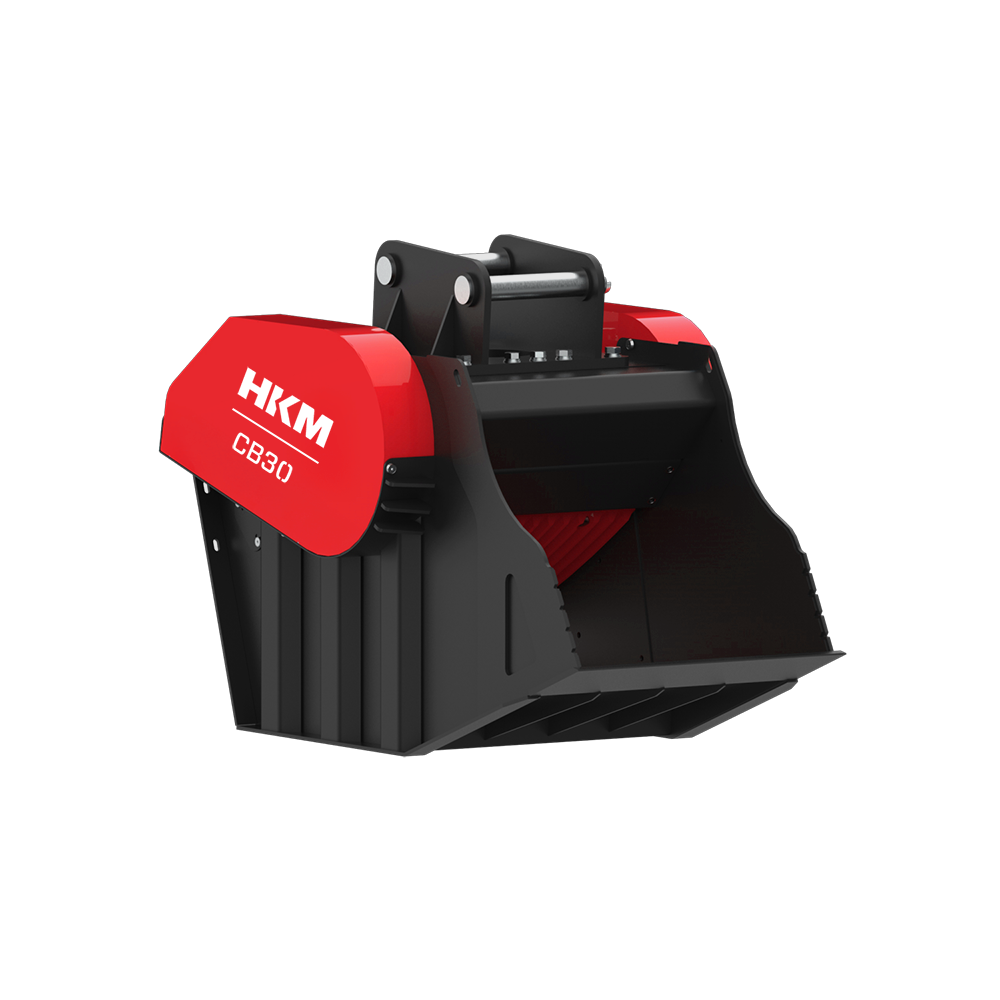

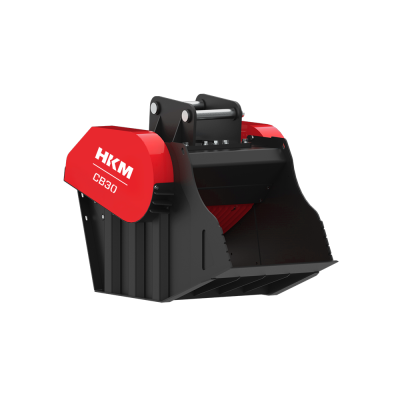

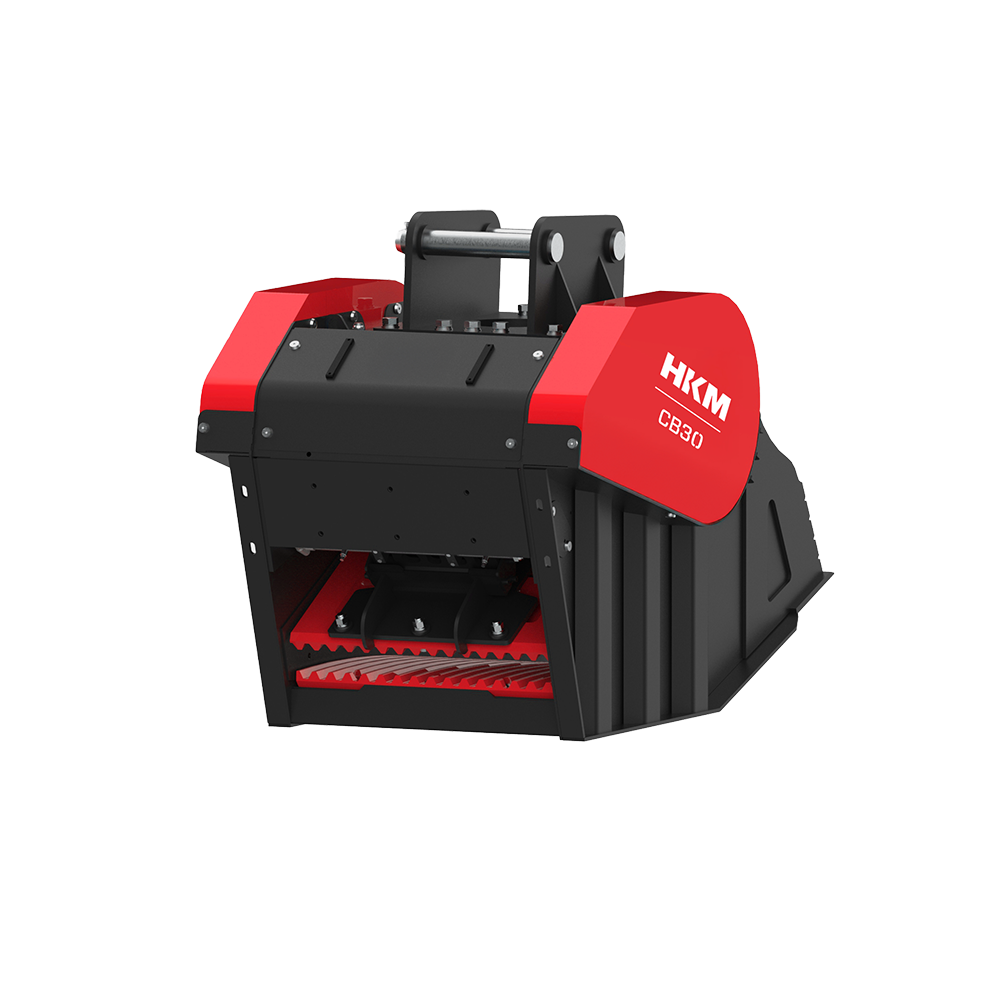

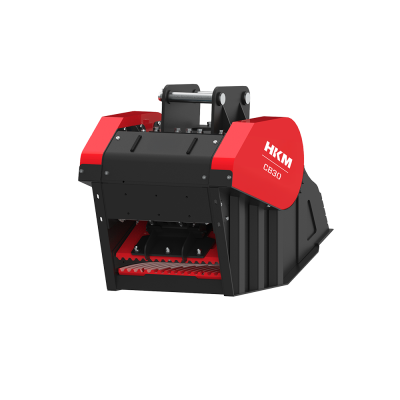

HKM CRUSHER BUCKETS – CB30

HKM CB30 Crusher Bucket is built for 20–30 ton excavators and offers a balanced solution between performance and operating efficiency. Designed to process demolition debris, stone, and concrete directly on-site, the CB30 improves project timelines while significantly reducing transport and material costs.

With a bucket volume of 1.00 m³ and an operating weight of 3,000 kg, this mid-size model delivers strong productivity. The hydraulic adjustable jaw allows for crushed material in the range of 15–140 mm depending on material hardness and jaw setting. At an output size of 80 mm, CB30 achieves an estimated throughput of 50.6 tons/hour.

Its modular build and quick-change jaws maximize uptime. CB30 is ideal for contractors needing a rugged, versatile crusher bucket for civil works, road repairs, quarry pre-crushing, and urban maintenance.

KEY FEATURES

• Reinforced Steel Housing: Heavy-duty steel body with wear-resistant liners ensures durability.
• High-Efficiency Hydraulic Drive: Axial piston motor with protective valve maintains power under full load.
• Quick-Swap Jaw System: Top and bottom jaw plates can be replaced quickly on-site.
• Continuous Feeding System: Ensures non-stop operation even at full bucket capacity.
• Adjustable Output Size: Hydraulic system allows size adjustment from 15–140 mm.
• High Capacity: Delivers up to 50.6 tons/hour at 80 mm output setting.

APPLICATION AREAS

• On-site recycling of concrete, brick, and asphalt into reusable aggregates
• Road construction backfill and trench support
• Pre-crushing of quarry rock and riverbed material
• Urban rehabilitation: sidewalks, curbs, and roadside works
• Submerged concrete removal in marine and infrastructure projects

OPTIONAL ACCESSORIES

• Dust Suppression System: Integrated water-spray unit
• Central Lubrication System: Automatic grease distribution
• Electromagnetic Iron Separator: Operates at 24V directly from the excavator

TECHNICAL SPECIFICATIONS
