Log Grapples
Compare models
6 products

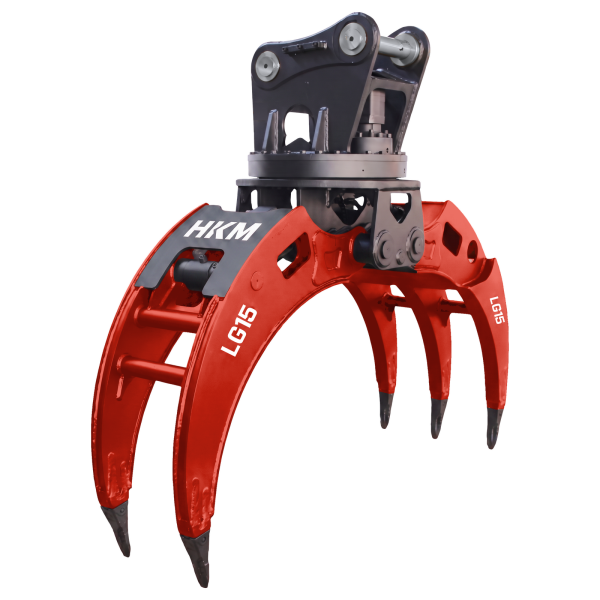

The HKM Log Grapple is developed for forestry and log handling. It offers high durability, control and operating efficiency when gripping, loading and stacking logs.
Technical comparison
Compare models
Technical values of the models in this group, side by side. Enter your machine tonnage and the matching model is highlighted.
| Model | LG05 | LG10 | LG15 | LG25 | LG35 |
|---|---|---|---|---|---|
| Carrier Weight (ton) | 4-5 | 6-9 | 9-16 | 18-26 | 28-35 |
| Operating Weight (kg) | 320 | 435 | 950 | 1800 | 2130 |
| Operating Pressure (bar) | 110-140 | 200-240 | 220-260 | 240-280 | 260-300 |
| Oil Flow (l/min) | 30-55 | 100 | 160 | 200-250 | 220-280 |
| Opening A (mm) | 1060 | 1400 | 1600 | 2100 | 2500 |
| Rotation Diameter (mm) | 360 | 360 | 593 | 752 | 752 |
Scroll the table sideways to see all models.
