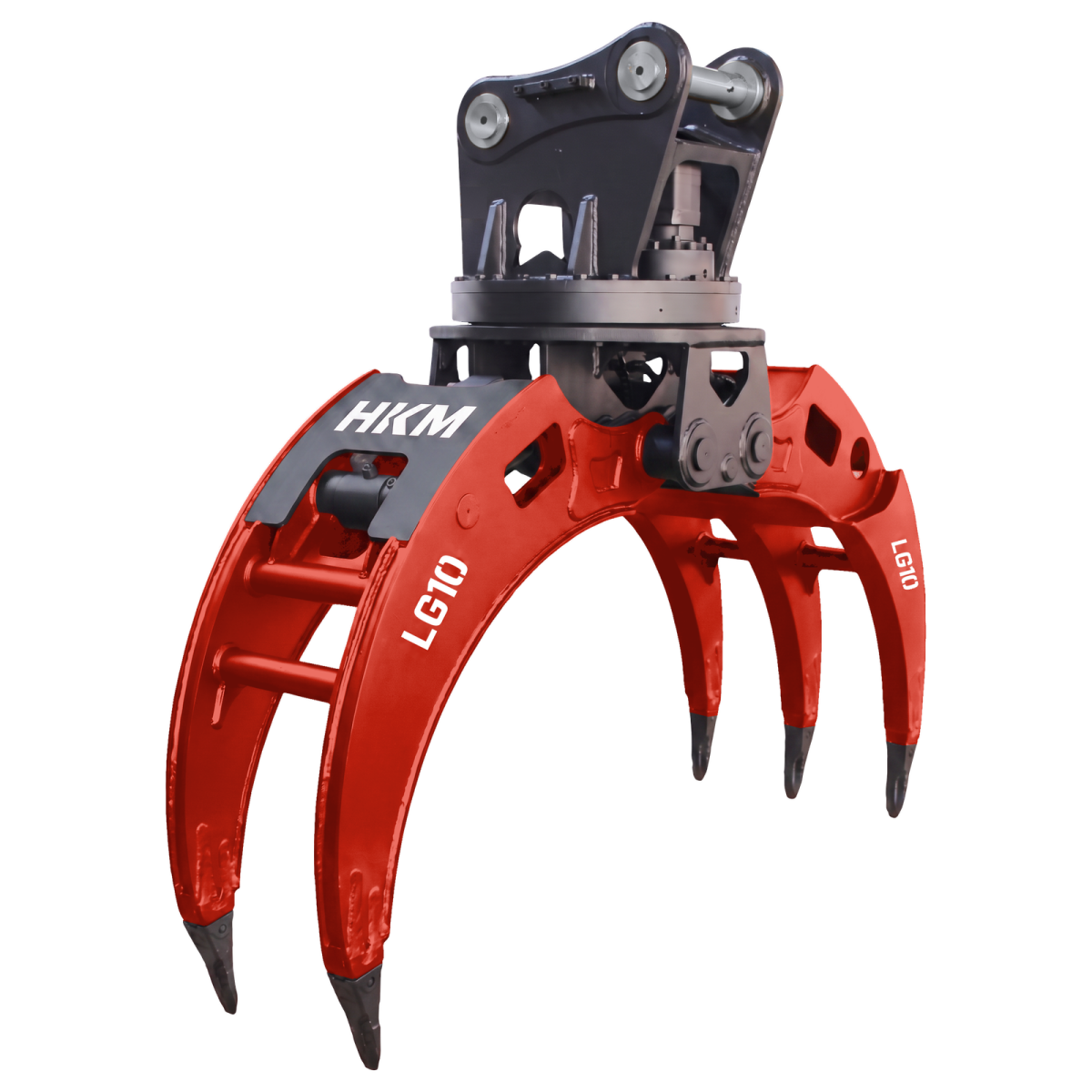

HKM LG10 Log Grapple
Versatile forestry grapple engineered for 6-9 ton midi excavators. With a 1400mm wide opening and continuous 360° rotation, it delivers high efficiency in log loading, sorting, and stacking. Built with high-strength steel to withstand tough woodland conditions and ensure long service life.
Prices are visible to partners
Sign in to see partner pricing and order online.
Prices are visible to partnersPartner Login
Product Features & Benefits
HKM LG10 Log Grapple (also known as Timber Grab or Forestry Grapple) is a versatile attachment designed for 6 to 9-ton midi excavators. It provides a secure grip for lifting, sorting, and loading logs in timber yards and woodland areas.
- ✅ 360° Hydraulic Rotation: Allows for quick alignment of logs, making loading trucks and stacking timber efficient.
- ✅ Multi-Purpose: Ideal for handling logs, timber, brush, and even general forestry debris clearing.
- ✅ Durable Steel: Built to withstand the wear and tear of daily forestry operations.
- ✅ Low Maintenance: Designed with accessible grease points to minimize downtime.
Technical Specifications (HKM LG10)
| Spec | Unit | Values |
|---|---|---|
| Carrier Weight | ton | 6 - 9 |
| Operating Weight | kg | 435 |
| Operating Pressure | bar | 200 - 240 |
| Oil Flow | l/min | 100 |
| Opening (A) | mm | 1400 |
| Rotation Diameter | mm | 360 |
Application Areas
- Forestry Logging: Loading, sorting, and stacking logs.
- Timber Yards: Sorting by diameter and length, feeding lines.
- Land Clearing: Removing brush, limbs, and clearing debris.
HKM GRAPPLE SET INCLUDES
- HKM LG10 Log Grapple
- Mounting Bracket (Pins Included)
- Hydraulic Connection Hoses
- User Manual & Warranty Certificate
FAQ (Frequently Asked Questions)
Q: Is this grapple suitable for an 8-ton machine?A: Yes, the LG10 model is fully compatible with excavators in the 6 to 9-ton weight class.
Q: Can it handle multiple logs?A: Yes, the 2+3 tine design and 1400mm opening allow it to securely grip and carry multiple logs at once.
Product Information
- Warranty
- Covered by a 1-year warranty. For more information; contact info@hkm.com.tr
- Delivery Information
- Delivery time is 25 business days. For more information; contact info@hkm.com.tr
