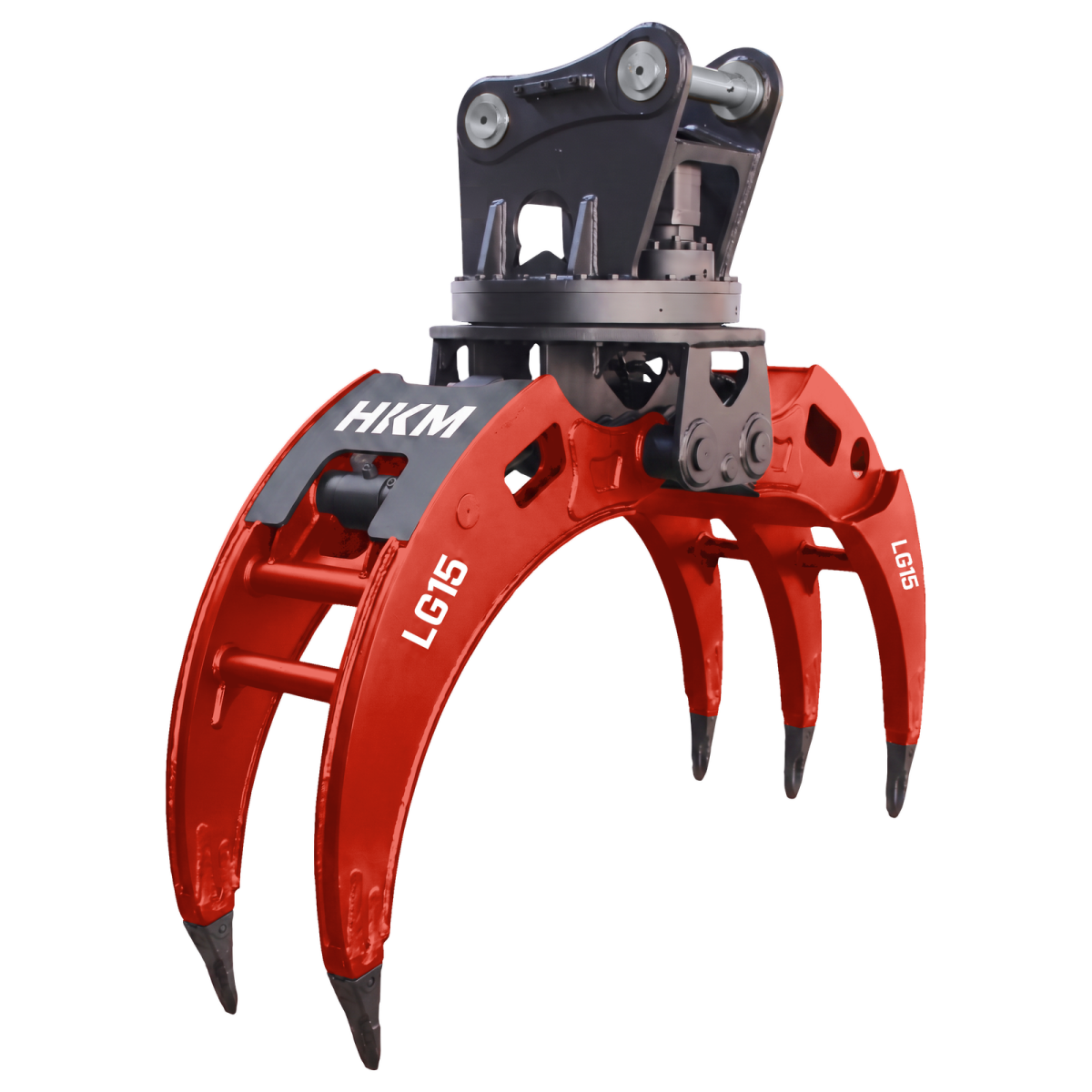

HKM LG15 Log Grapple
High-performance timber loading attachment for 9-16 ton excavators. Featuring a 1600mm jaw capacity and powerful clamping force, it securely handles heavy logs in timber yards and forestry operations. The integrated 360° rotator provides maximum precision for truck loading and decking.
Prices are visible to partners
Sign in to see partner pricing and order online.
Prices are visible to partnersPartner Login
Product Features & Benefits
HKM LG15 Log Grapple (Forestry Timber Grab) is a high-performance attachment designed for 9 to 16-ton excavators. It delivers powerful grip and wide opening capacity, increasing efficiency in timber yards, forest roads, and industrial wood processing facilities.
- ✅ 360° Hydraulic Rotation: Enables fast and precise alignment of logs during loading trucks and stacking.
- ✅ Wide Opening: Capable of grabbing large bundles of timber or single large logs efficiently with its 1600mm opening.
- ✅ Heavy Duty Build: Reinforced steel structure designed to handle the dynamic loads of forestry work.
- ✅ Secure Grip: The 2+3 tine configuration prevents logs from slipping during transport, ensuring safe operation.
Technical Specifications (HKM LG15)
| Spec | Unit | Values |
|---|---|---|
| Carrier Weight | ton | 9 - 16 |
| Operating Weight | kg | 950 |
| Operating Pressure | bar | 220 - 260 |
| Oil Flow | l/min | 160 |
| Opening (A) | mm | 1600 |
| Rotation Diameter | mm | 593 |
Application Areas
- Forestry Logging: Loading, sorting, and stacking logs.
- Timber Yards: Sorting by diameter and length, feeding lines.
- Biomass Handling: Collecting brush and wood waste.
- Grinder Feeding: Controlled feeding for processing equipment.
HKM GRAPPLE SET INCLUDES
- HKM LG15 Log Grapple
- Mounting Bracket (Pins Included)
- Hydraulic Connection Hoses
- User Manual & Warranty Certificate
FAQ (Frequently Asked Questions)
Q: Which excavators is this model compatible with?A: The LG15 is optimized for excavators in the 9 to 16-ton weight class.
Q: Does the rotation require extra lines?A: Yes, you need one pair of lines for the grapple function (open/close) and a second pair for the 360° rotation.
Product Information
- Warranty
- Covered by a 1-year warranty. For more information; contact info@hkm.com.tr
- Delivery Information
- Delivery time is 25 business days. For more information; contact info@hkm.com.tr
