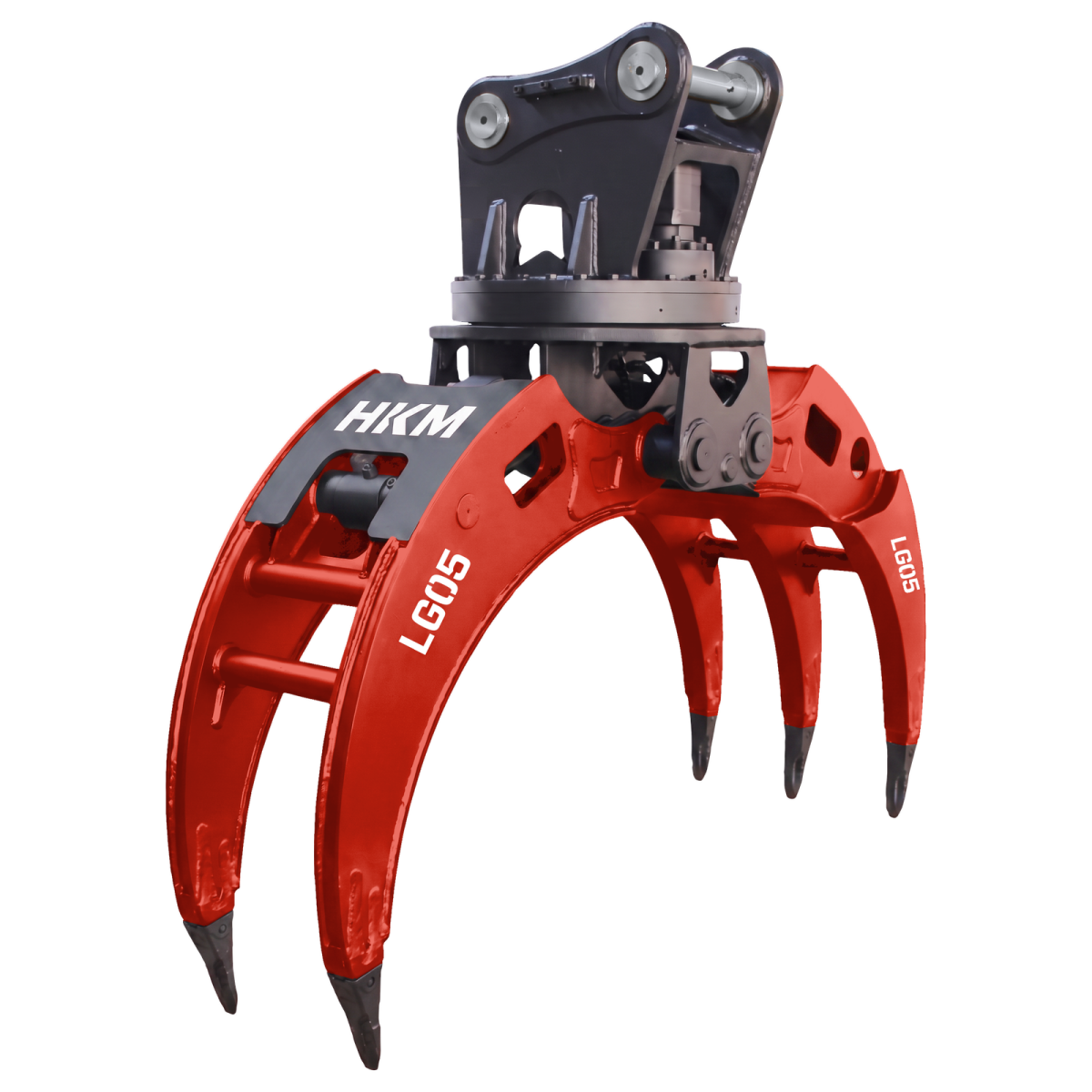

HKM LG05 Log Grapple
Compact log grapple (Timber Grab) designed for 4-5 ton mini excavators. Features 360° hydraulic rotation, a 1060mm jaw opening, and a lightweight yet durable build perfect for maneuvering logs and brush in tight spaces. Its 2+3 tine design ensures a secure grip for landscaping and forestry tasks.
Prices are visible to partners
Sign in to see partner pricing and order online.
Prices are visible to partnersPartner Login
Product Features & Benefits
HKM LG05 Log Grapple (also known as a Forestry Grapple or Timber Grab) is a compact attachment designed for 4 to 5-ton mini excavators. It offers excellent maneuverability for loading logs, clearing brush, and handling wood in tight spaces.
- ✅ 360° Hydraulic Rotation: Allows precise alignment of logs for stacking or loading onto trailers.
- ✅ Secure Grip: The 2+3 tine design ensures a firm hold on single logs or bundles of brush.
- ✅ Durable Build: Made with high-strength steel to withstand forestry work while remaining lightweight.
- ✅ Protected Hydraulics: Hoses are routed to minimize damage from branches and debris.
Technical Specifications (HKM LG05)
| Spec | Unit | Values |
|---|---|---|
| Carrier Weight | ton | 4 - 5 |
| Operating Weight | kg | 320 |
| Operating Pressure | bar | 110 - 140 |
| Oil Flow | l/min | 30 - 55 |
| Opening (A) | mm | 1060 |
| Rotation Diameter | mm | 360 |
Application Areas
- Forestry Logging: Loading, sorting, and stacking logs.
- Land Clearing: Removing brush, limbs, and clearing debris.
- Biomass Handling: Collecting and moving wood waste.
HKM GRAPPLE SET INCLUDES
- HKM LG05 Log Grapple
- Mounting Bracket (Pins Included)
- Hydraulic Connection Hoses
- User Manual & Warranty Certificate
FAQ (Frequently Asked Questions)
Q: Is this grapple suitable for mini excavators?A: Yes, the LG05 model is specifically designed for 4-5 ton mini and compact excavators.
Q: Is rotation standard?A: Yes, all LG series grapples come standard with a 360° hydraulic rotator.
Product Information
- Warranty
- Covered by a 1-year warranty. For more information; contact info@hkm.com.tr
- Delivery Information
- Delivery time is 25 business days. For more information; contact info@hkm.com.tr
