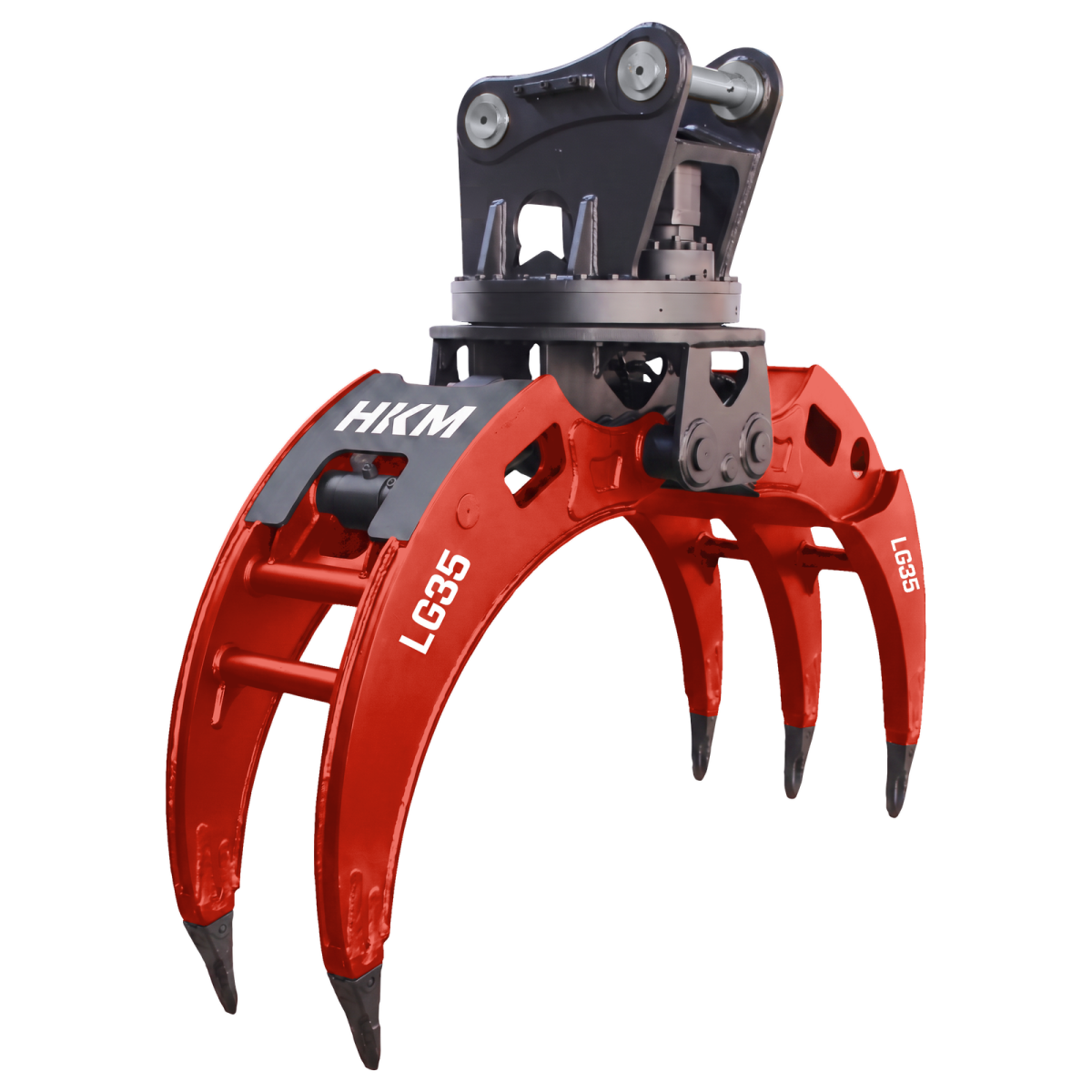

HKM LG35 Log Grapple
Our most powerful forestry grapple for 28-35 ton large excavators. With a massive 2.5-meter (2500mm) jaw opening, it grabs large bundles and heavy logs in a single pass. Features 360° hydraulic rotation and industrial-grade cylinders for unrivaled performance in high-volume logging yards and port loading.
Prices are visible to partners
Sign in to see partner pricing and order online.
Prices are visible to partnersPartner Login
Product Features & Benefits
HKM LG35 Log Grapple (Large Forestry Grapple) is our most powerful attachment, engineered for 28 to 35-ton large excavators. It handles large-diameter logs, heavy forest loads, and industrial timber stacks with maximum efficiency.
- ✅ 360° Hydraulic Rotation: Provides ultimate control for aligning massive logs and loading trucks.
- ✅ Maximum Opening: With a 2.5-meter jaw opening, it grabs the largest bundles and trunks in a single pass.
- ✅ Industrial Durability: Built tough for high-intensity forestry and sawmill operations.
- ✅ Secure Handling: Powerful cylinders ensure the load remains stable during lifting and swinging.
Technical Specifications (HKM LG35)
| Spec | Unit | Values |
|---|---|---|
| Carrier Weight | ton | 28 - 35 |
| Operating Weight | kg | 2130 |
| Operating Pressure | bar | 260 - 300 |
| Oil Flow | l/min | 220 - 280 |
| Opening (A) | mm | 2500 |
| Rotation Diameter | mm | 752 |
Application Areas
- Forestry Logging: Loading, sorting, and stacking logs.
- Timber Yards: Heavy-duty sorting and feeding.
- Land Clearing: Removing large trees and debris.
- Grinder Feeding: Feeding industrial shredders with high capacity.
HKM GRAPPLE SET INCLUDES
- HKM LG35 Log Grapple
- Mounting Bracket (Pins Included)
- Hydraulic Connection Hoses
- User Manual & Warranty Certificate
FAQ (Frequently Asked Questions)
Q: Is this grapple suitable for a 30-ton machine?A: Yes, the LG35 is ideal for excavators ranging from 28 to 35 tons.
Q: What is the maximum opening width?A: The LG35 model features a 2500 mm (2.5 meter) jaw opening, allowing it to grip very large logs or bundles in a single pass.
Product Information
- Warranty
- Covered by a 1-year warranty. For more information; contact info@hkm.com.tr
- Delivery Information
- Delivery time is 25 business days. For more information; contact info@hkm.com.tr
