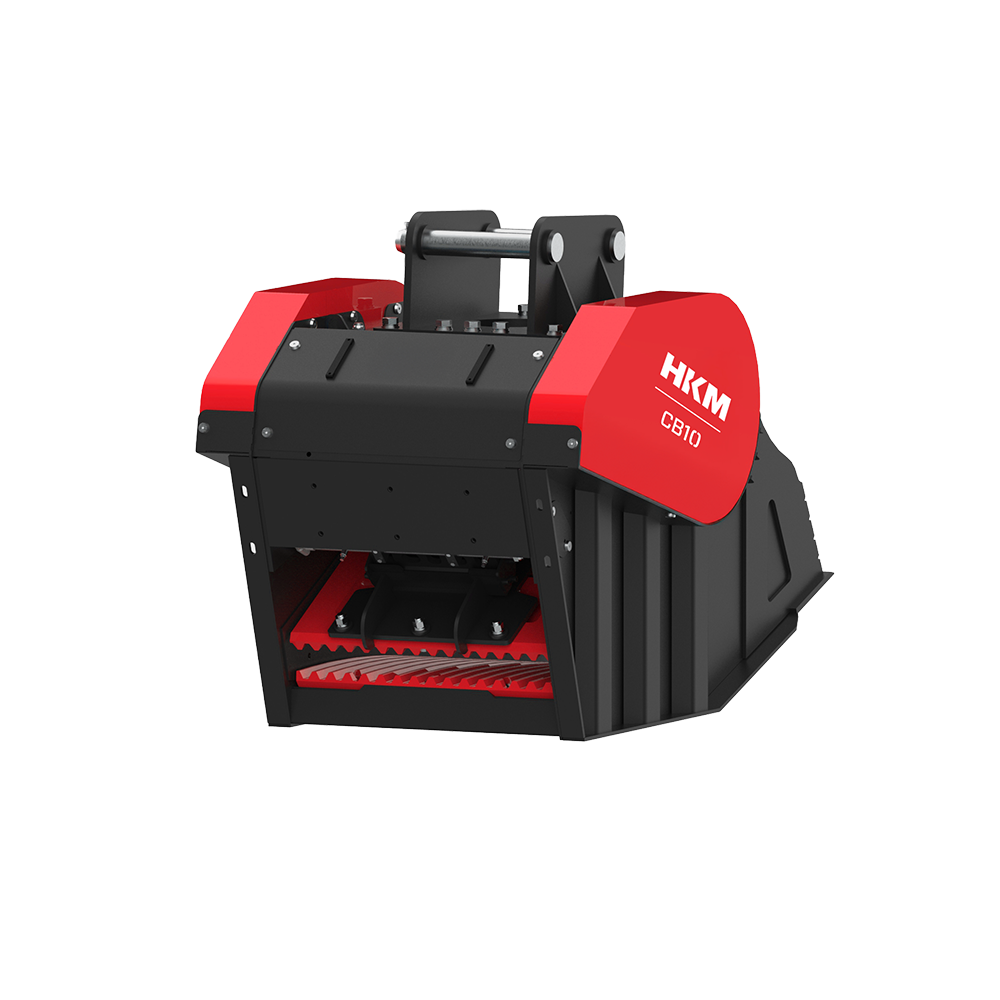

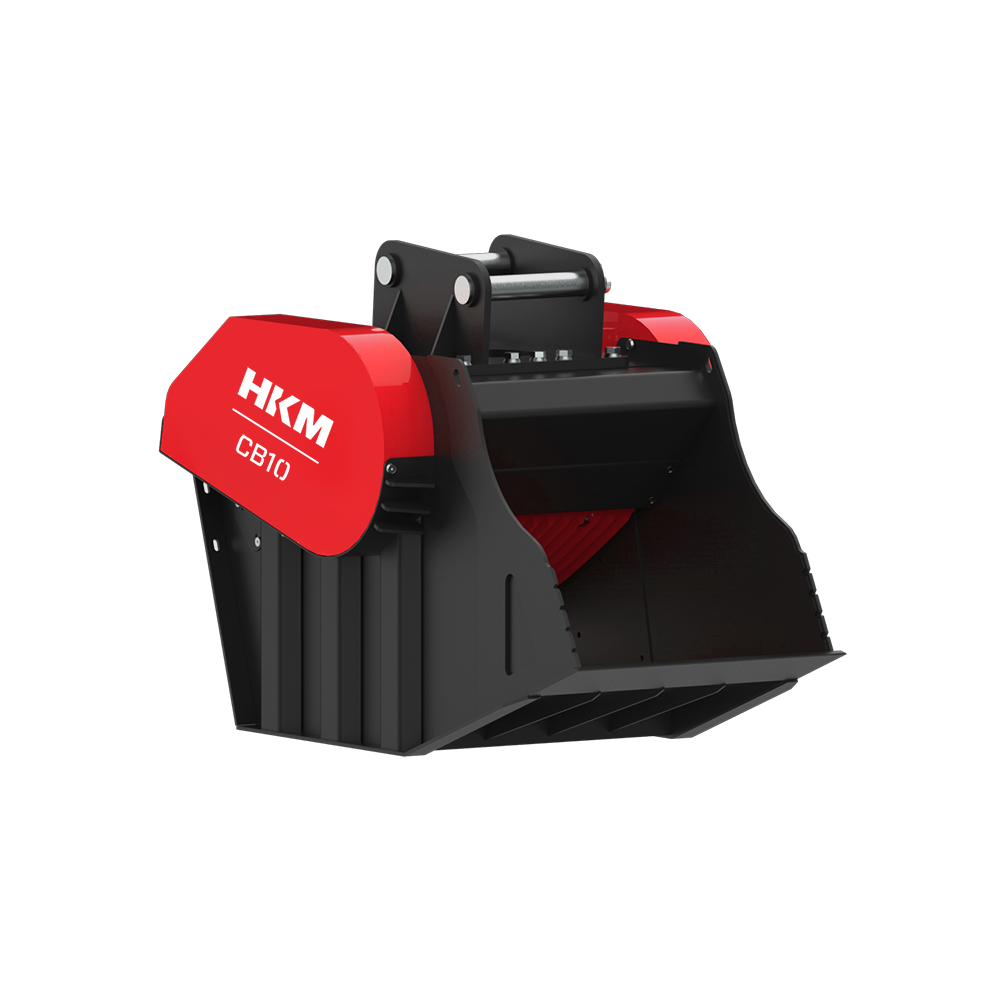

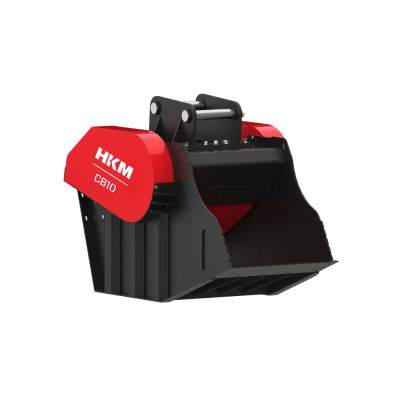

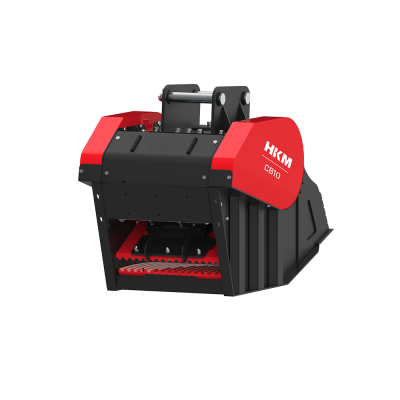

HKM CRUSHER BUCKET – CB10

HKM CB10 Crusher Bucket is a compact-class excavator attachment engineered for 10–18 ton machines.

Its reinforced steel body and high-efficiency hydraulic drive enable direct on-site crushing of concrete, asphalt, bricks, and similar materials. CB10 reduces transport and tipping costs while increasing project efficiency through mobile on-site crushing.

With a bucket capacity of 0.55 m³ and 1,740 kg operating weight, the CB10 offers high material throughput despite its compact structure. Its hydraulically adjustable output size enables crushed material between 15–130 mm, depending on material type and settings. With an output capacity of 30.2 tons/hour at 80 mm, it delivers consistent and powerful jobsite performance.

The quick-change jaw system minimizes maintenance time, while the integrated loading ramp and continuous-feed function ensure seamless operation. It’s a perfect solution for urban construction sites, curb renewal, and light demolition works.

KEY FEATURES

• Reinforced Steel Housing: Thick, wear-resistant body with replaceable liners ensures extended durability

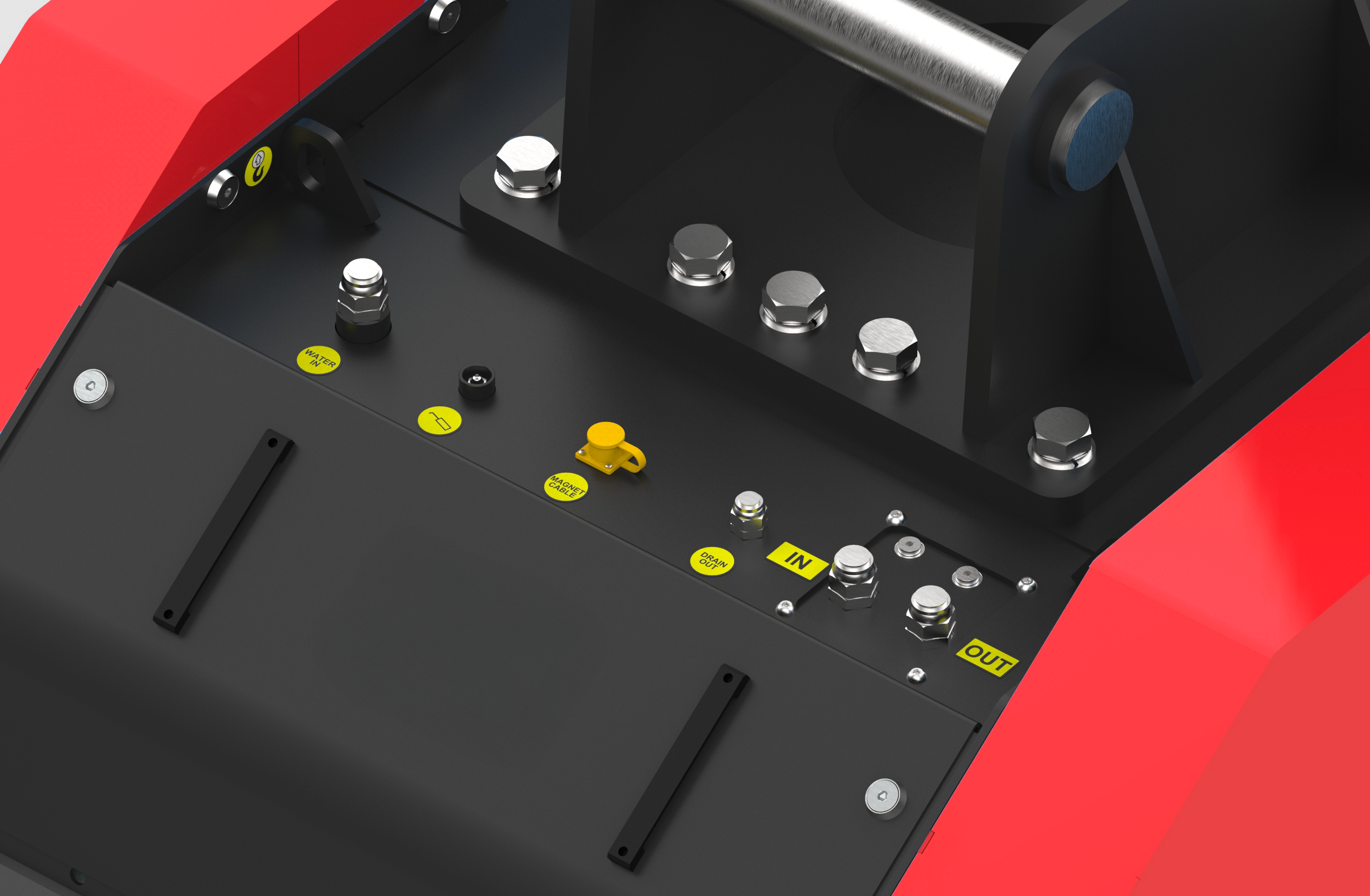

• High-Efficiency Hydraulic Drive: Axial-piston motor and belt protection valve ensure continuous performance
• Quick Jaw Replacement: Upper and lower jaw plates can be changed in minutes
• Uninterrupted Feeding: Optimizes the fill–crush cycle without flow interruption
• Adjustable Output Size: Final aggregate size quickly adjustable via hydraulic system (15–130 mm)
• High Throughput: Up to 30.2 tons/hour at 80 mm output setting

APPLICATION AREAS

• On-site recycling of concrete, brick and asphalt
• Backfill production for roads, trenches, and structural waste reuse
• Primary size reduction of quarried and riverbed stone
• Urban repairs including curbs, sidewalks, and base reinforcements
• Underwater concrete removal in drainage and water structure projects

OPTIONAL EQUIPMENT

• Dust Suppression System: Built-in water spray unit for cleaner and safer jobsite
• Centralized Lubrication Unit: One-button grease distribution system
• Electromagnetic Iron Separator: Automatically removes rebar and scrap steel using 24V from the excavator

TECHNICAL SPECIFICATIONS
