HKM code: T6418

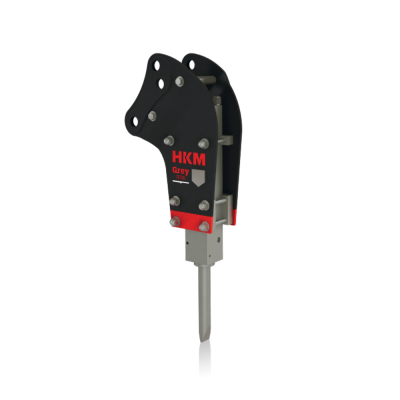

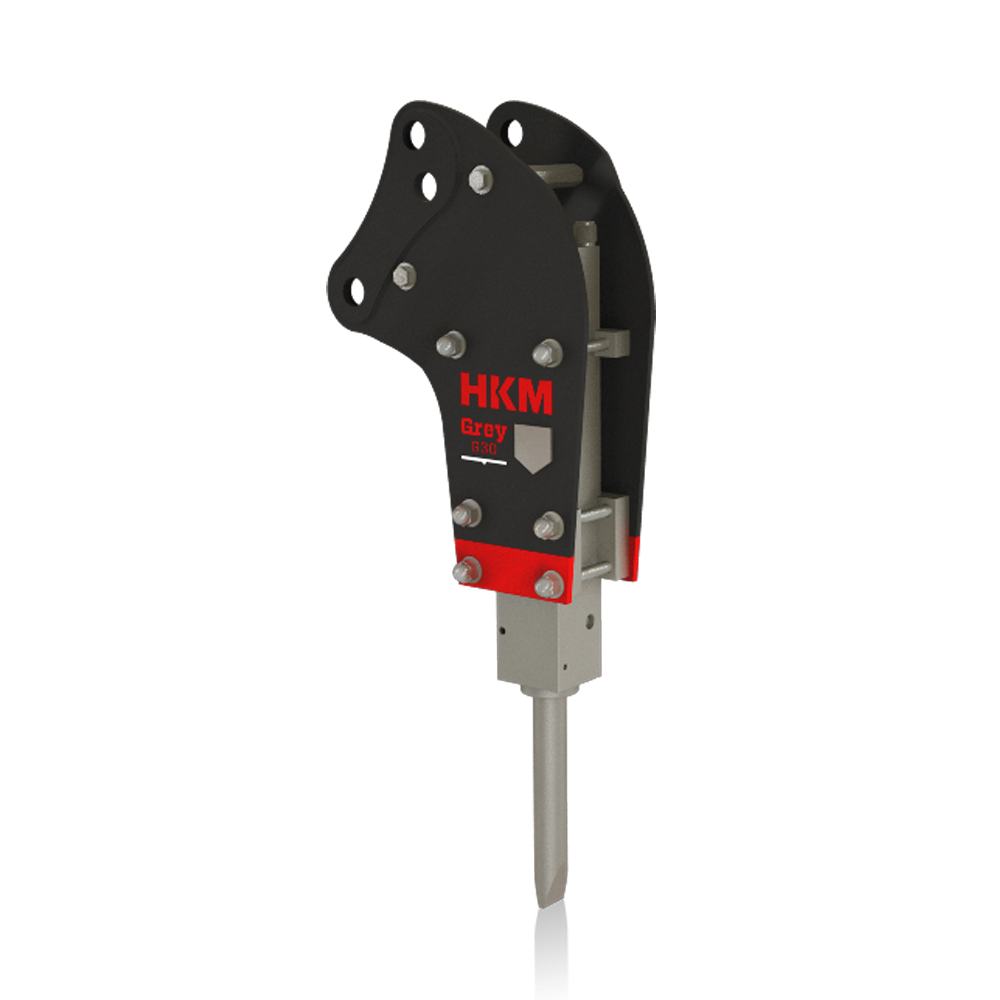

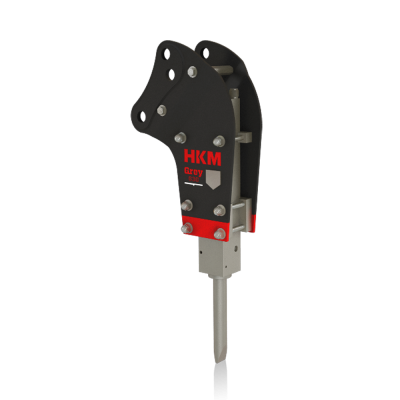

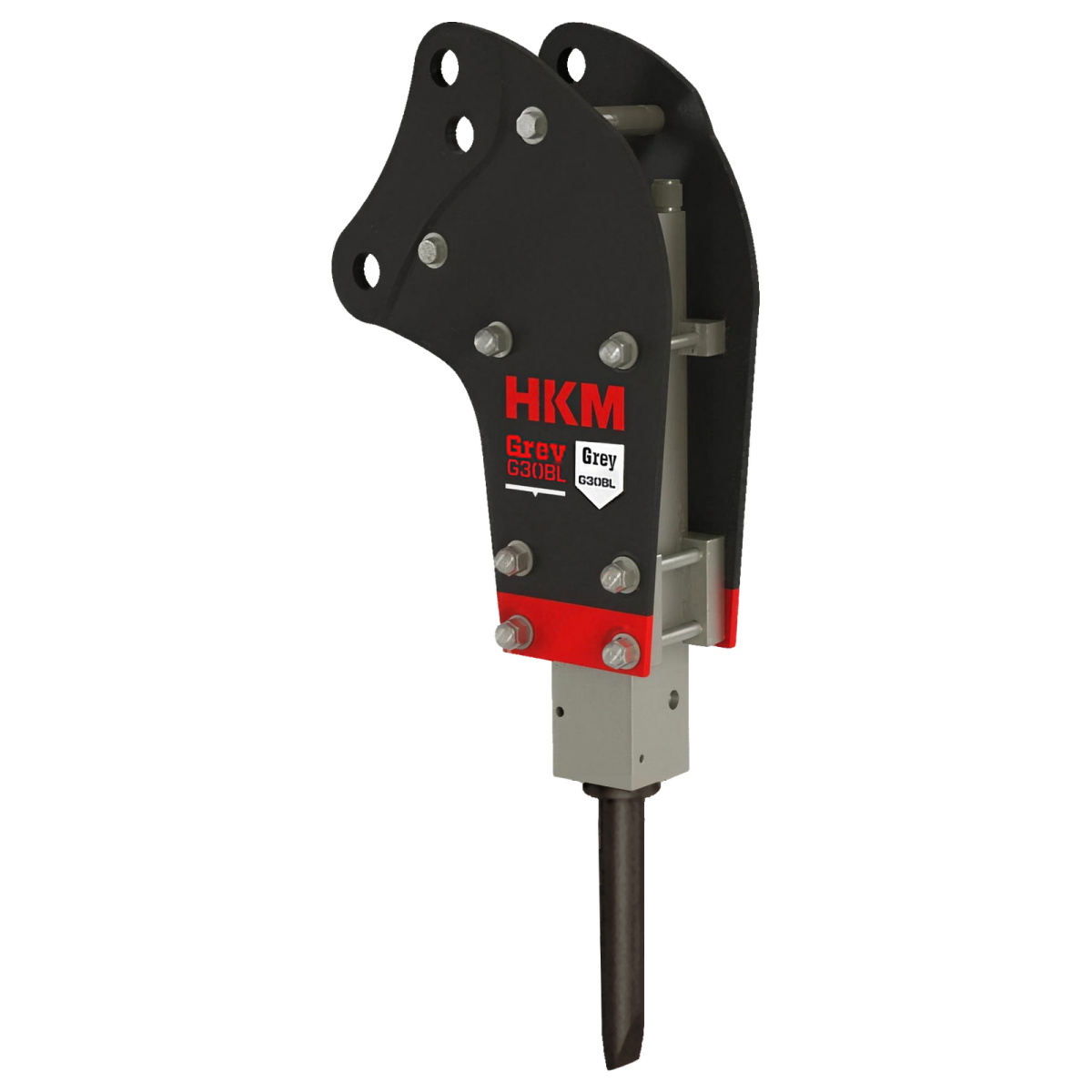

HKM G30BL Hydraulic Breaker
The HKM G30BL is the open frame G30: identical 320 kg mechanism and Ø68 mm tool on 3-9 ton carriers, in a simplified housing. It costs less to buy and puts the wear parts within reach without a teardown in the yard.
- 320 kg operating weight and 68 mm tool diameter for smooth compatibility with compact machines
- 110-140 bar working pressure and 40-70 l/min oil flow for consistent and stable performance
- Open-frame housing allows easier access for maintenance and part replacement
- Slim design enables easy maneuvering in narrow spaces
Prices are visible to partners
Sign in to see partner pricing and order online.
We usually reply within 1 business day.
How to order from abroad
Order online (partners)
- Apply as a partner.
- Once we approve your account, partner prices appear on the site.
- Add products to your cart and pay securely by credit card or bank transfer.
- Our sales team contacts you about the shipping method and cost.
Request a quote
- Send a quote request.
- We email the price (EXW Istanbul), stock and lead time, usually within 1 business day.
- On approval: proforma invoice and payment by bank transfer (USD or EUR).
- Shipping by weight: DHL Express, air freight or road/sea freight.
HKM G30BL Hydraulic Breaker

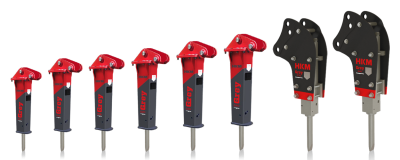

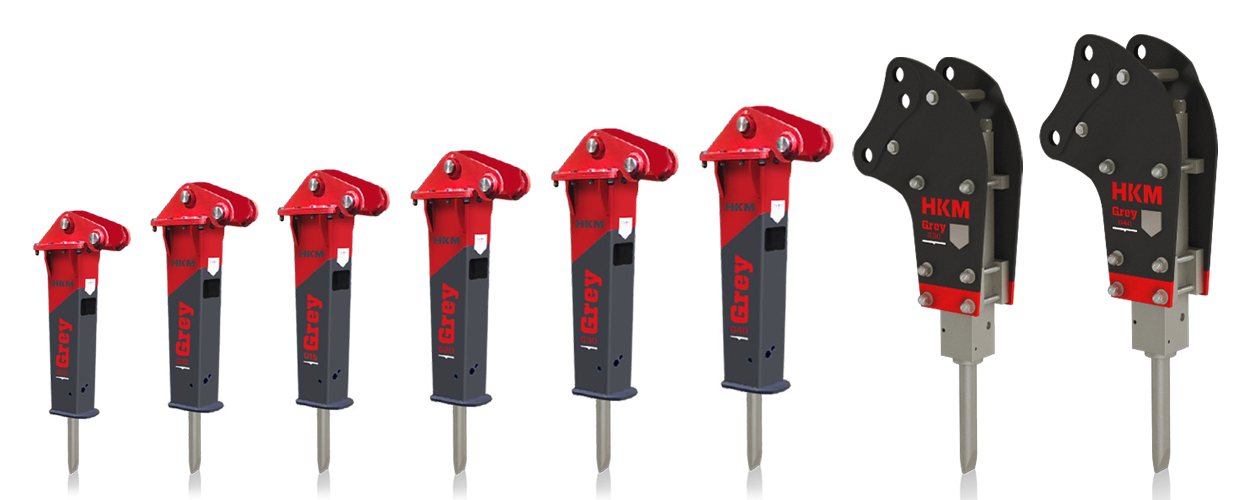

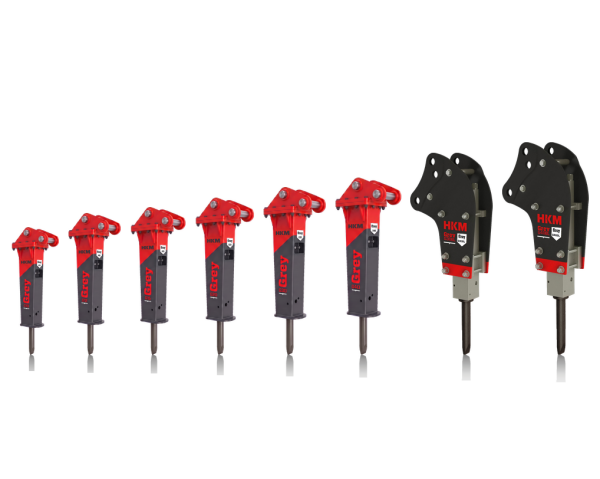

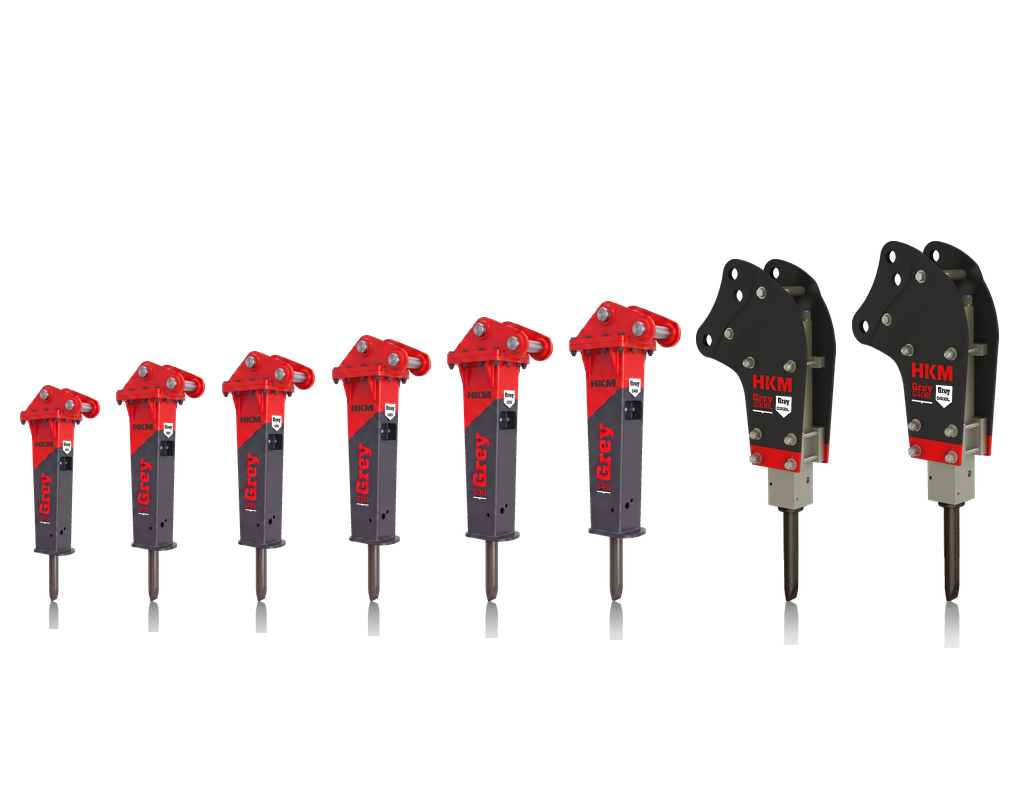

HKM GREY LINE MINI BREAKERS - G30BL
The HKM Grey Line Mini Breakers are designed for efficient, compact performance in tight urban spaces - with maximum operator convenience and reliable breaking power.
As the simplified, cost-effective version of the G30, the G30BL features an open frame design that makes it lighter, more accessible, and ideal for quick maintenance.
G30BL: OPEN FRAME, SAME 68 MM PUNCH
Equipped with a hybrid gas-hydraulic power unit, the G30BL offers operational flexibility across a wide range of pressure settings.

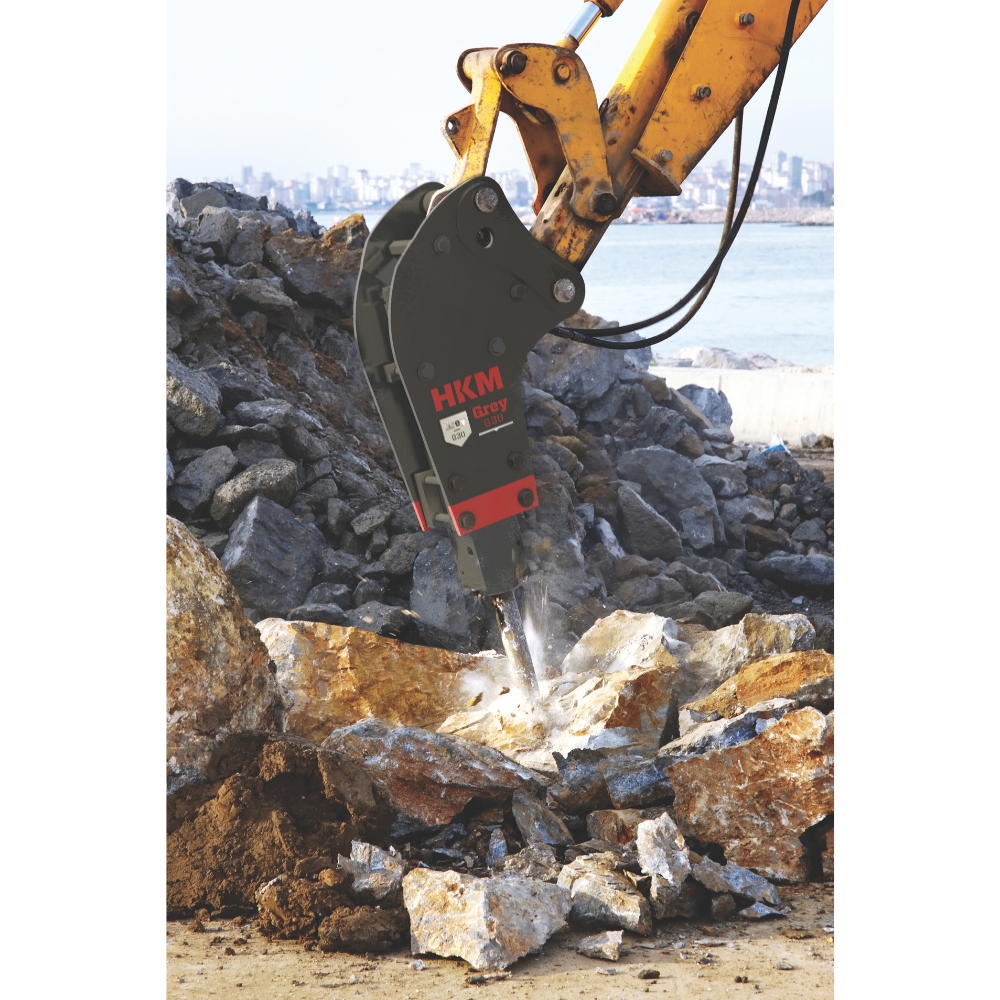

Compared to closed-box models, its lighter structure reduces strain on the carrier while delivering reliable impact in urban and utility applications.
The G30BL is a smart choice for professionals seeking performance and cost-efficiency in a compact, entry-level mini breaker.
KEY FEATURES
- 320 kg operating weight and 68 mm tool diameter for smooth compatibility with compact machines
- 110-140 bar working pressure and 40-70 l/min oil flow for consistent and stable performance
- Open-frame housing allows easier access for maintenance and part replacement
- Slim design enables easy maneuvering in narrow spaces
- Simplified internal components reduce downtime and make servicing faster
- Fully compatible with 3-9 ton carrier machines
INCLUDED IN THE SET
- Hydraulic Breaker Machine
- Mounting Bracket
- Breaker Tools (1 pcs Chisel Tool, 1 pcs Moil Point Tool)
- Hydraulic Connection Hoses
- Carrier Connection Pins
- Tool Box
STANDARD EQUIPMENT
- Hybrid Power Unit (Hydraulic + Gas)
- Easy Part Replacement and Service Access
OPTIONAL EQUIPMENT
- Underwater Kit
- Reinforced Outer Housing
- Quick Coupler for Attachment Change
TECHNICAL SPECIFICATIONS
| Operational Weight (kg) | 320 |
| Carrier Weight (ton) | 3-9 |
| Tool Diameter (mm) | 68 |
| Operating Pressure (bar) | 110-140 |
| Oil Flow (lt/min) | 40-70 |
| Impact Rate (bpm) | 500-900 |
Frequently Asked Questions (FAQ)
Q: What is the main difference between G30 and G30BL?
A: The G30BL features an "Open Frame" design. This makes it lighter and more affordable than the standard enclosed G30, and it offers easier access for maintenance.
Q: Does the open design reduce breaking power?
A: No, the internal breaking mechanism and impact energy are identical to the G30. The difference is solely in the external housing.
Q: Which machines can use this breaker?

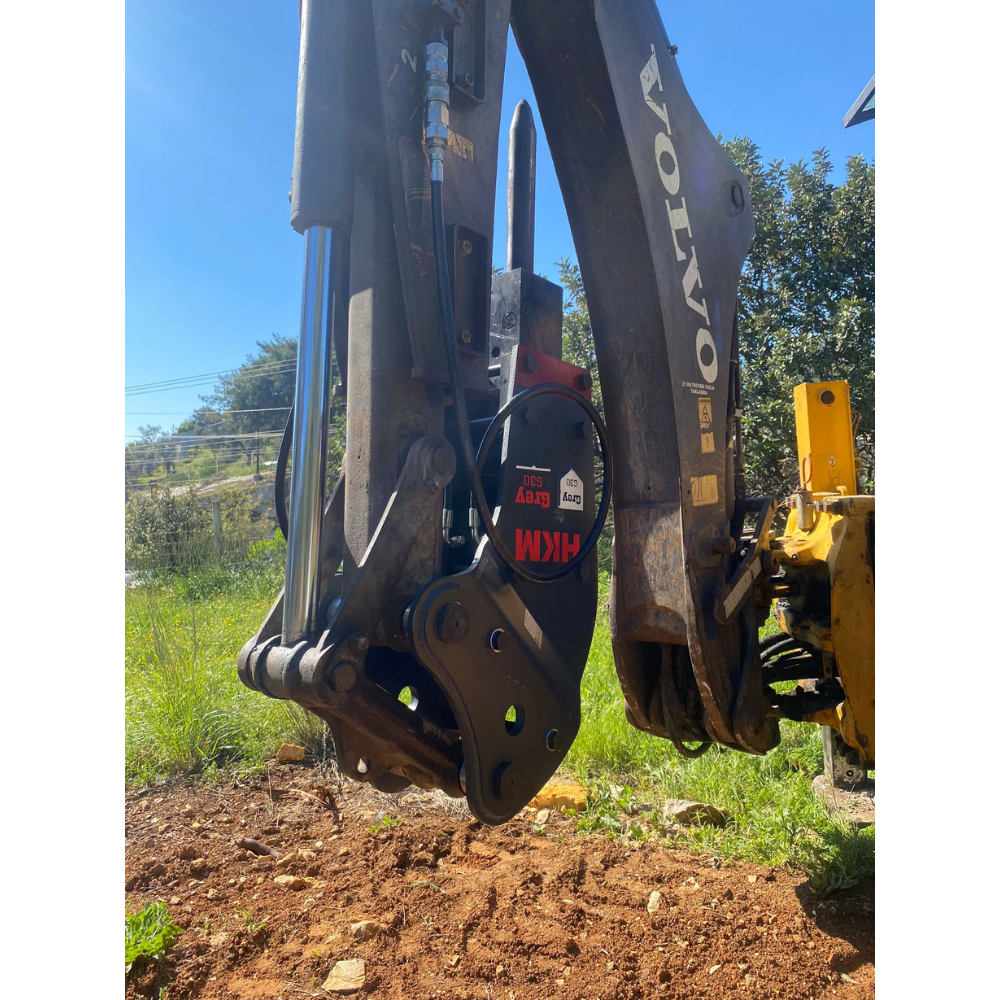

A: The G30BL is designed for all compact excavators and backhoe loaders in the 3 to 9-ton range.
🤔 Not Sure Which Breaker Fits?
If you are unsure whether this breaker is the right match for your machine, we are here to help.
Simply send us your excavator's or carrier's brand and model details. Our expert sales team will identify the perfect match for you and share a personalized offer.
Product Information
- Weight (kg)
- 320
- Warranty
- All hydraulic breakers you purchase are protected by a 1-Year Comprehensive Warranty against manufacturing defects. At HKM, we prioritize the continuity of your business with our dedicated after-sales support. In case of any malfunction, we are at your side with our extensive spare parts inventory and expert technical team.
- Delivery Information
- Shipping costs are excluded from the price, but we are here to assist with logistics! Upon placing your order, we research the fastest and most economical shipping method to your location (domestic or international) and present it for your approval. Your products are carefully packaged to ensure they arrive safely without damage.
