HKM G160 Hydraulic Breaker

HKM G160 Hydraulic Breaker

HKM Grey Line Medium Breakers are the choice of professionals seeking not just power, but "Smart Power".
The G160, one of the most demanded models in the series, utilizes the hydraulic capacity of 16–21 ton class excavators most efficiently, producing more work with less fuel compared to its competitors.

G160: THE SILENT LEADER OF INFRASTRUCTURE

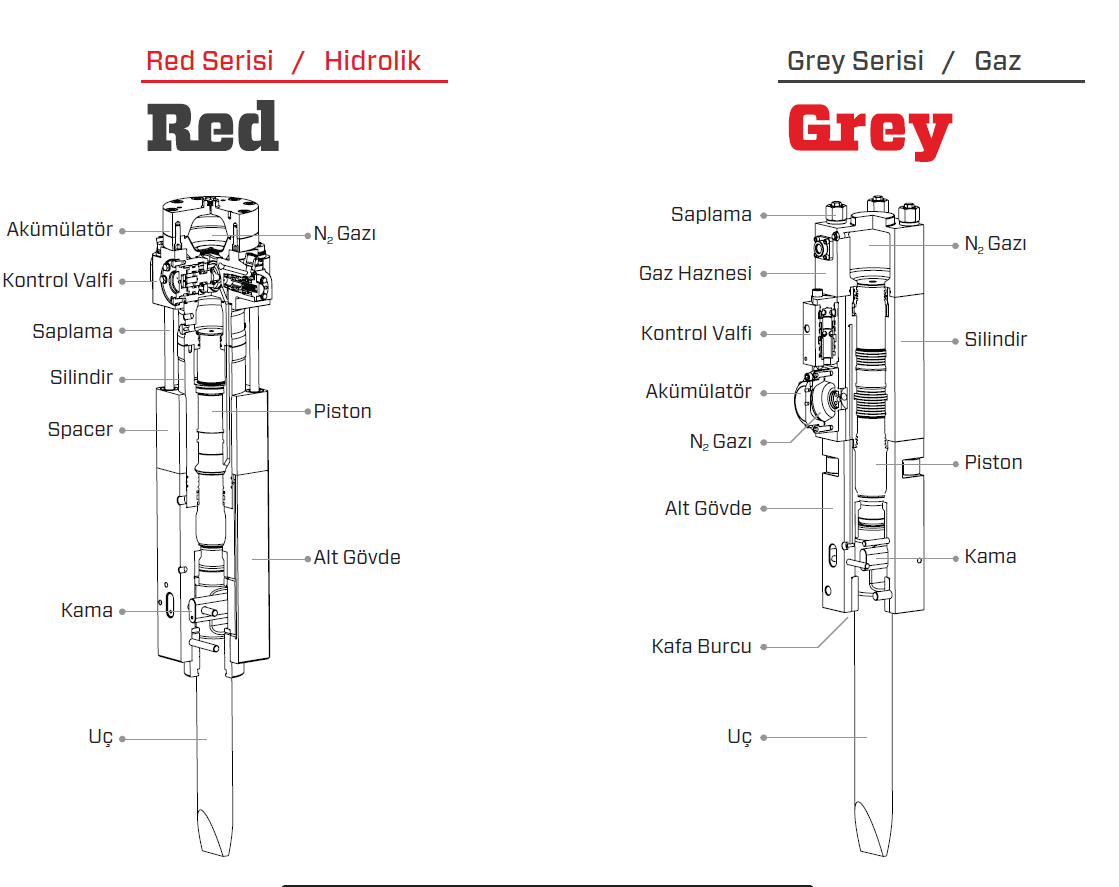

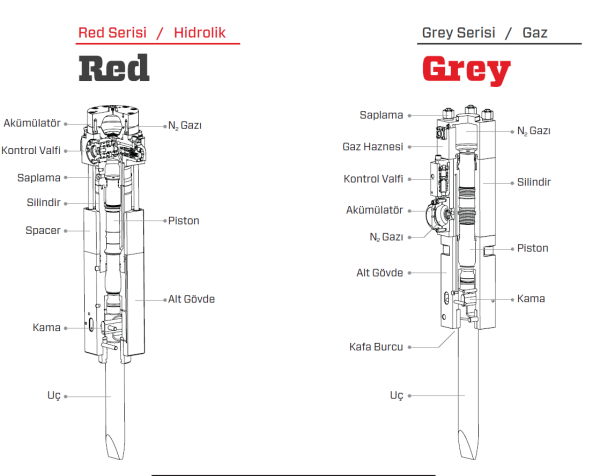

The gas-assisted hybrid piston design optimizes the G160's hydraulic oil flow requirement. This allows it to drive the 135 mm diameter tool into concrete and rock using the expansion power of nitrogen gas, without straining your excavator's engine.
Its ideal weight of 1,610 kg provides maximum stability and ground holding without unbalancing your machine.

Monoblock Body Technology buries the tie-rod shearing problems seen in classic breakers in history. This design, with fewer parts, reduces maintenance costs while increasing on-site durability.
Developed for building demolitions and trenching in city centers, its advanced noise insulation makes the G160 an eco-friendly business partner.

G160 is the reference breaker of the medium class, combining speed, power, and economy in a single body.

HIGHLIGHTED FEATURES

• Versatile use with 1610 kg weight and 16–21 ton carrier compatibility
• Ø135 mm tool diameter for deep cracking in hard ground
• Hybrid technology (Gas+Oil) for high impact coefficient
• Monoblock body structure eliminates tie-rod issues
• Low noise and vibration levels (Urban Approved)
• Wide flow range (100-150 l/min) for full compatibility with different machine brands

INCLUDED IN THE SET

• Hydraulic Breaker Machine
• Mounting Bracket
• Breaker Tools (1 pcs Chisel Tool, 1 pcs Moil Point Tool)
• Hydraulic Connection Hoses
• Carrier Connection Pins
• Tool Box

STANDARD EQUIPMENT

• Hybrid Power Unit (Hydraulic + Gas)
• Monoblock Cabin Design
• Vibration Damping Polyurethane Cushions
• Noise Insulation System

OPTIONAL EQUIPMENT

• Automatic Lubrication System
• Underwater Working Kit
• Reinforced Hardox Outer Casing
• Quick Coupler for Attachment Change

TECHNICAL SPECIFICATIONS

Frequently Asked Questions (FAQ)

Q: Can I use the G160 on a 22-ton machine?
A: The G160 is optimized for the 16-21 ton range. While it can work on a 22-ton machine, we recommend evaluating the next model up, the G190, for higher performance and durability.

Q: Is the maintenance of the Gas (Hybrid) system difficult?
A: On the contrary, the maintenance of the G160 is much simpler because its monoblock design reduces the number of parts. It operates trouble-free for years with just periodic gas checks and greasing.

Q: How does it save fuel?
A: The breaker derives a significant portion of its impact energy from compressed nitrogen gas. This demands less hydraulic oil from the excavator, allowing the engine to complete the job at lower RPMs.
