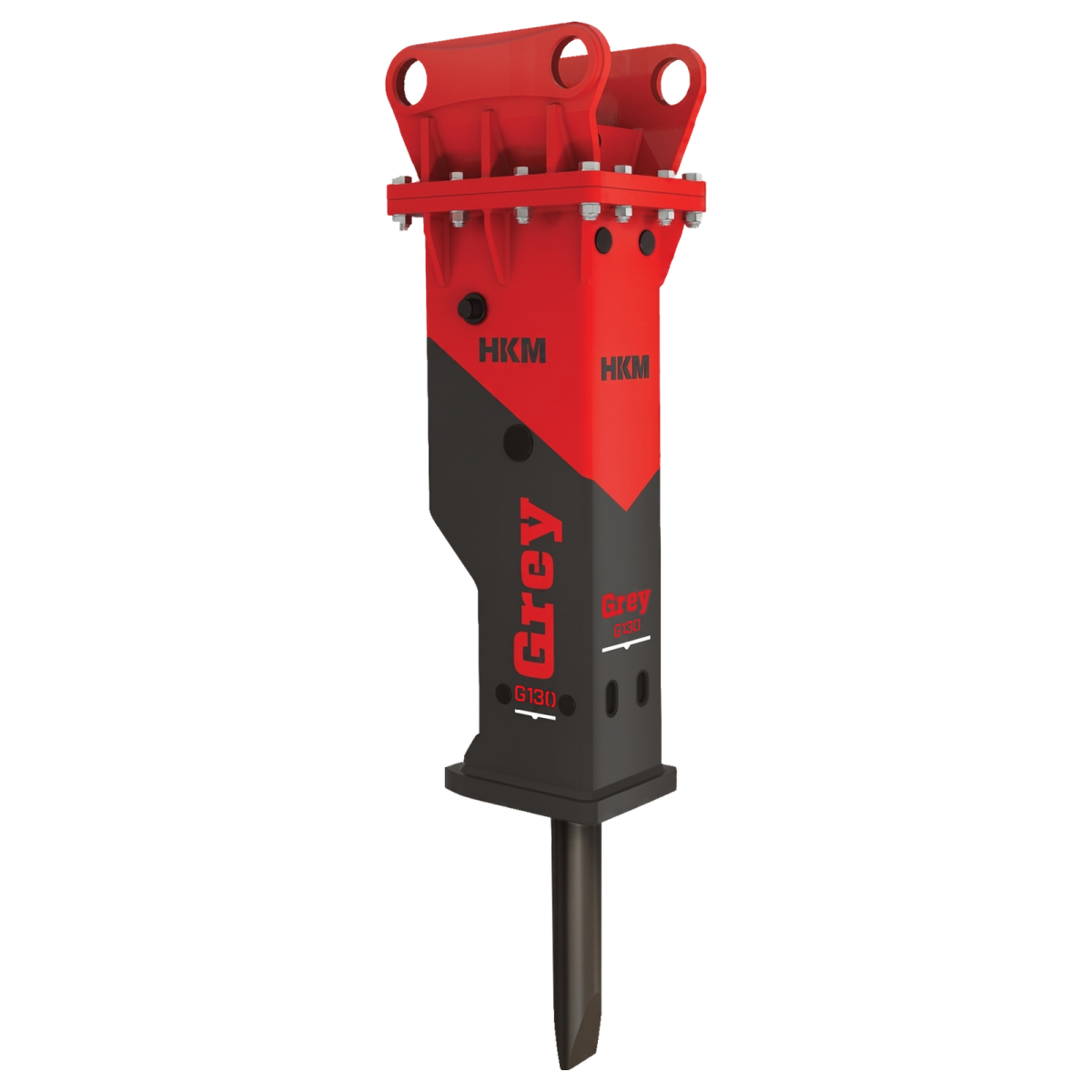

HKM G130 Hydraulic Breaker

HKM G130 Hydraulic Breaker

HKM Grey Line Medium Breakers are the solution partners for construction sites that need to get a lot of work done in limited time.
The G130, the most compact and rapid model of the series, combines the maneuverability of 15–18 ton class excavators with the impact power of hybrid technology, ensuring maximum efficiency even in the tightest spaces.

G130: THE SILENT POWER OF URBAN SITES

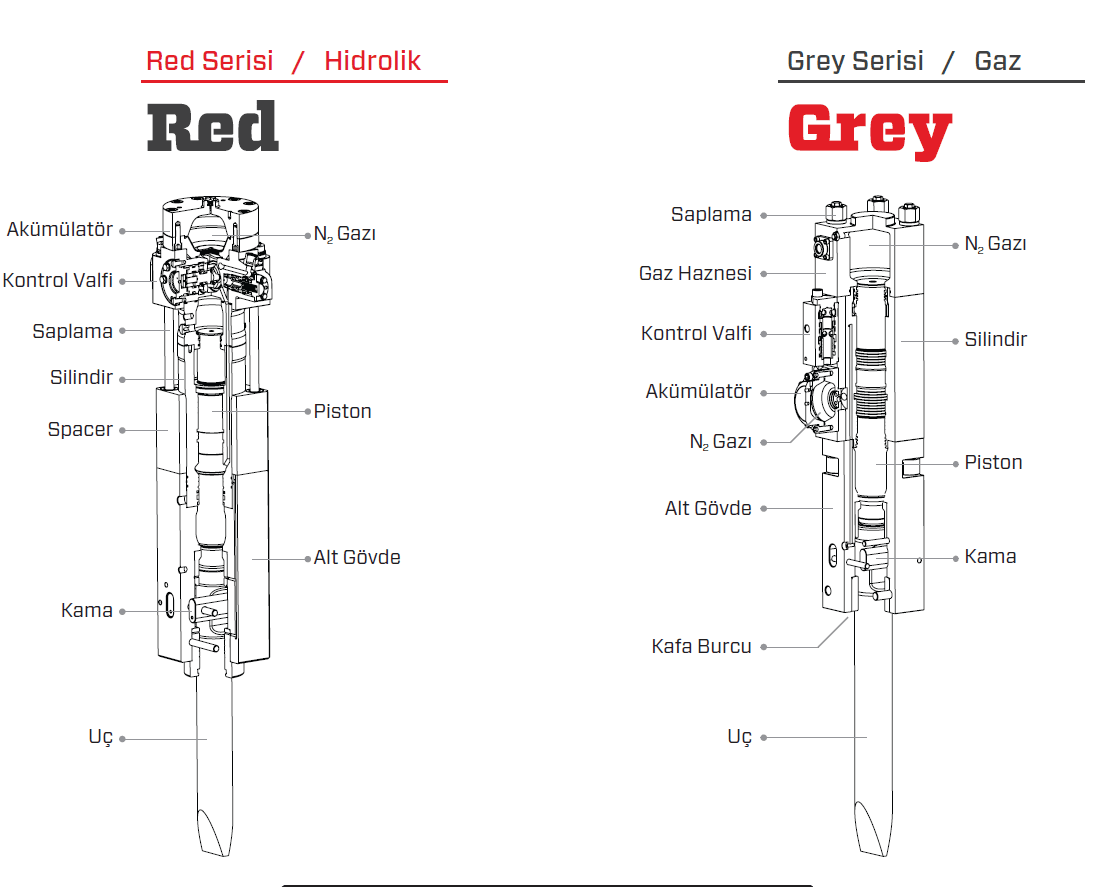

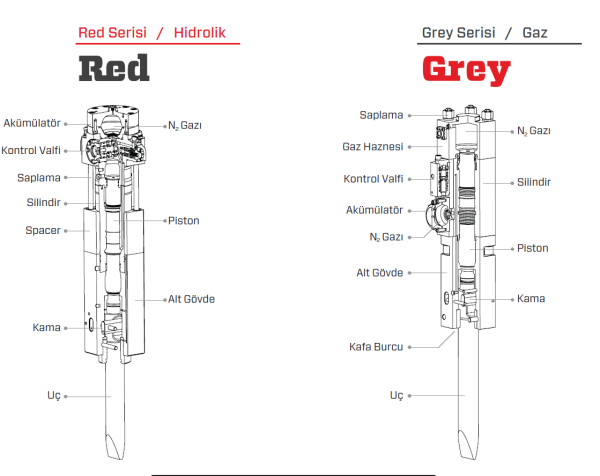

The hybrid piston system blending gas and hydraulic power is the G130's ace in the hole. Instead of relying solely on hydraulic pump pressure, it uses the propulsion force of compressed nitrogen gas to deliver harder strikes with less fuel.
Its 1,313 kg operating weight offers a balanced operation without tiring your machine, while the 125 mm diameter tool yields effective results on concrete and rock grounds.

The Monoblock Body Structure eliminates parts that tend to loosen, such as bolts and tie rods. This minimizes vibration-induced failures, keeping your machine working on the field rather than waiting in the service shop.
The sound-insulated cabin, developed especially for projects near hospitals, schools, or residential areas, prevents noise pollution and allows for uninterrupted work.

G130 is the perfect balance of speed, silence, and economy.

HIGHLIGHTED FEATURES

• Flawless balance on 15–18 ton machines with 1313 kg weight
• Rapid and powerful impact generation with hybrid system (Gas+Oil)
• Zero tie-rod shearing issues thanks to monoblock body design
• Low noise level compliant with urban regulations
• Fast demolition with high impact frequency (350-650 bpm)
• Low maintenance cost due to simple internal structure

INCLUDED IN THE SET

• Hydraulic Breaker Machine
• Mounting Bracket
• Breaker Tools (1 pcs Chisel Tool, 1 pcs Moil Point Tool)
• Hydraulic Connection Hoses
• Carrier Connection Pins
• Tool Box

STANDARD EQUIPMENT

• Hybrid Power Unit (Hydraulic + Gas)
• Monoblock Cabin Design
• Vibration Damping Polyurethane Cushions
• Noise Insulation System

OPTIONAL EQUIPMENT

• Automatic Lubrication System
• Underwater Working Kit
• Reinforced Outer Casing
• Quick Coupler for Attachment Change

TECHNICAL SPECIFICATIONS

Frequently Asked Questions (FAQ)

Q: What jobs is the G130 most efficient for?
A: The G130 provides maximum efficiency on 15-18 ton machines for trenching, asphalt removal, building renovation/demolition works, and medium-hard ground excavations.

Q: What is the benefit of hybrid technology?
A: The hybrid system supports the hydraulic power from the excavator with nitrogen gas energy. This allows your machine to strike harder without straining the engine, creating fuel savings.

Q: What does monoblock body mean?
A: Classic breakers have long tie rods holding parts together, which can loosen and break over time. The G130's monoblock body does not have these tie rods, eliminating this risk of failure.
