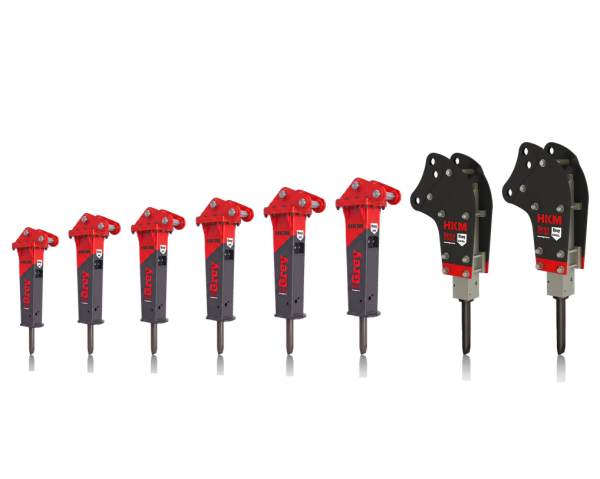

HKM G12 Hydraulic Breaker

HKM Grey Series G12 is built for users who need higher impact energy on 1.2–3 ton compact machines. Its 120 kg operating weight and 45 mm tool diameter provide efficient and controlled breaking for concrete removal, curb extraction and small foundation jobs.

HKM Grey Line Mini Series Brochure

HKM Grey Serisi_Mini_Kiricilar_Brosur

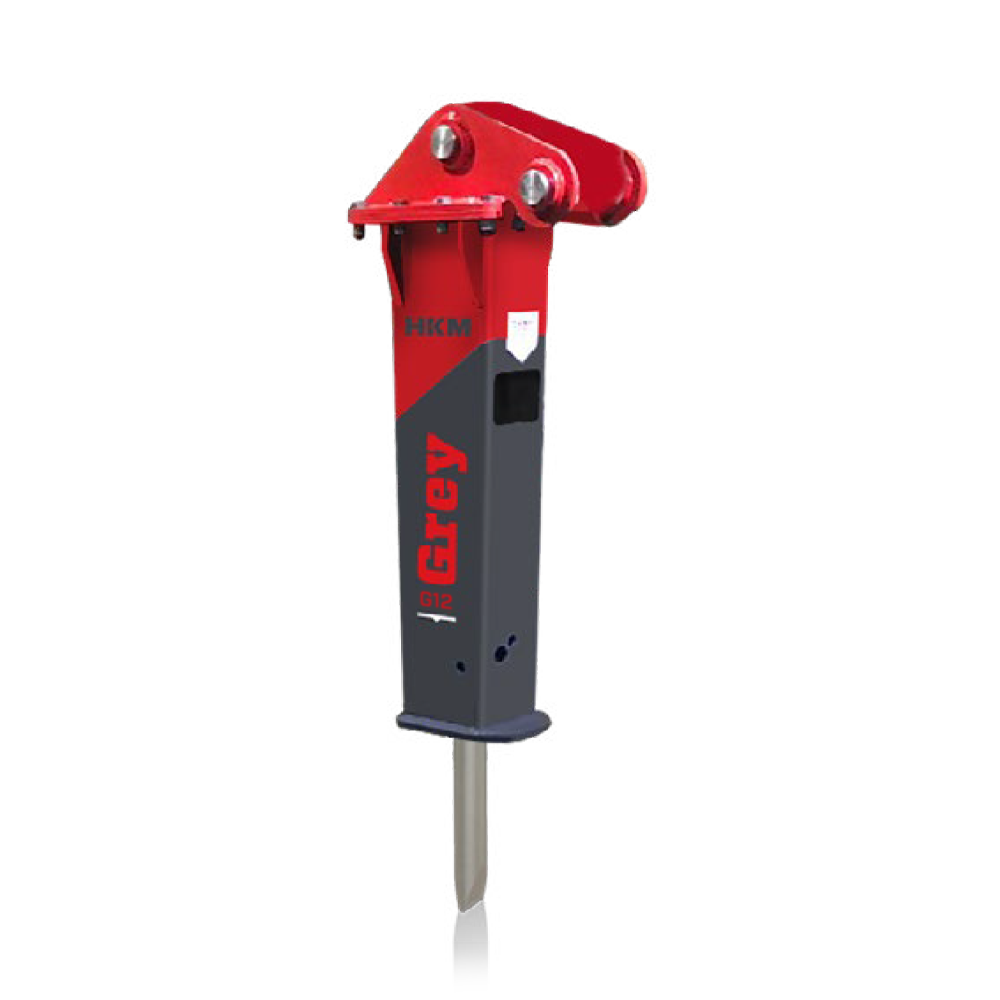

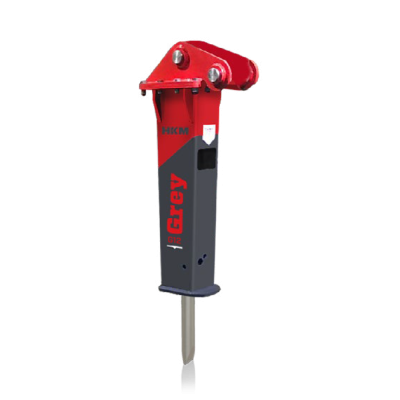

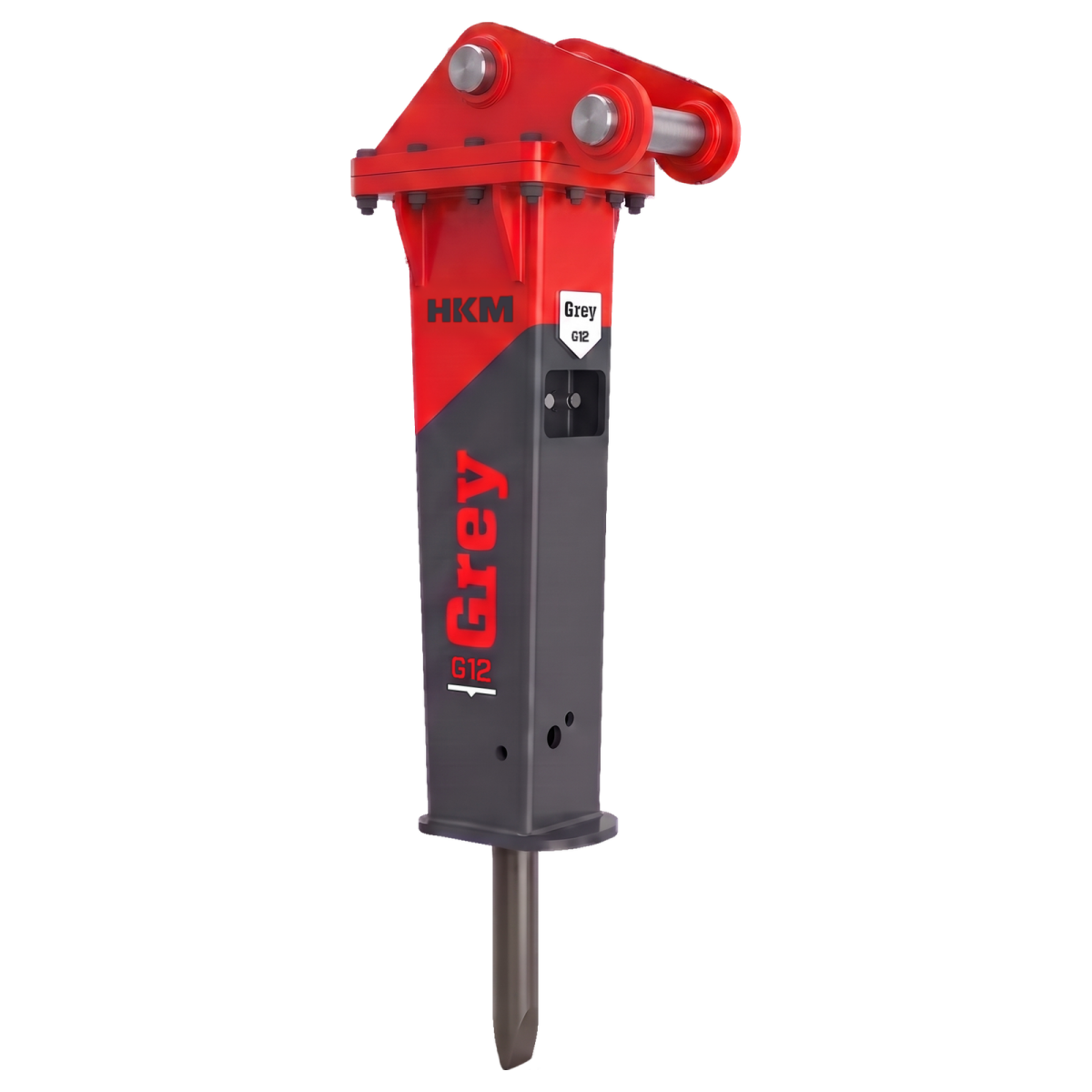

HKM G12 Mini Hydraulic Breaker

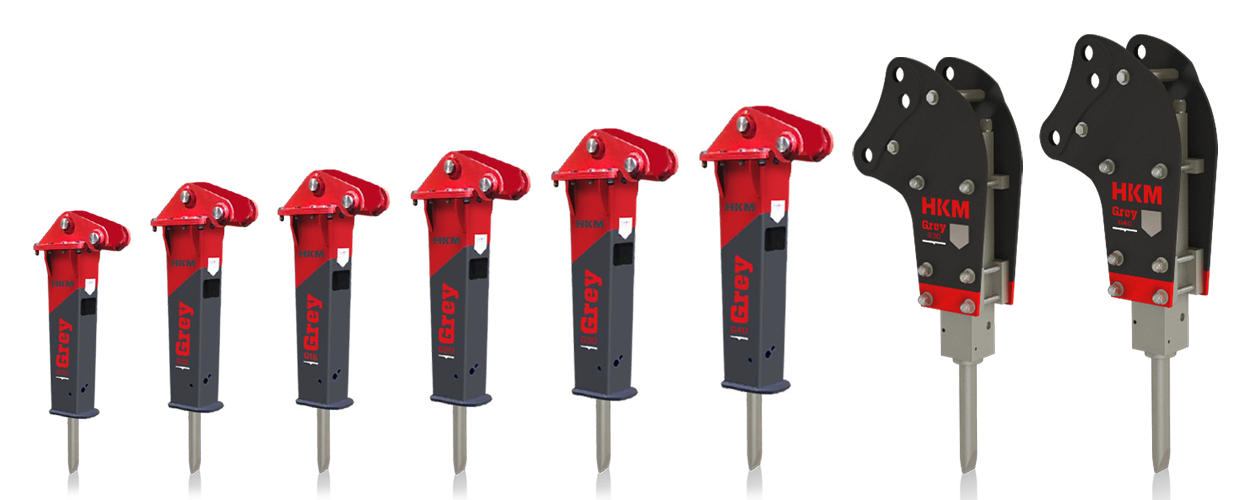

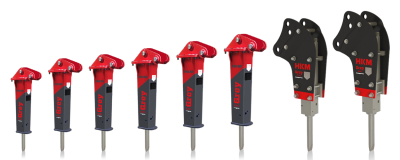

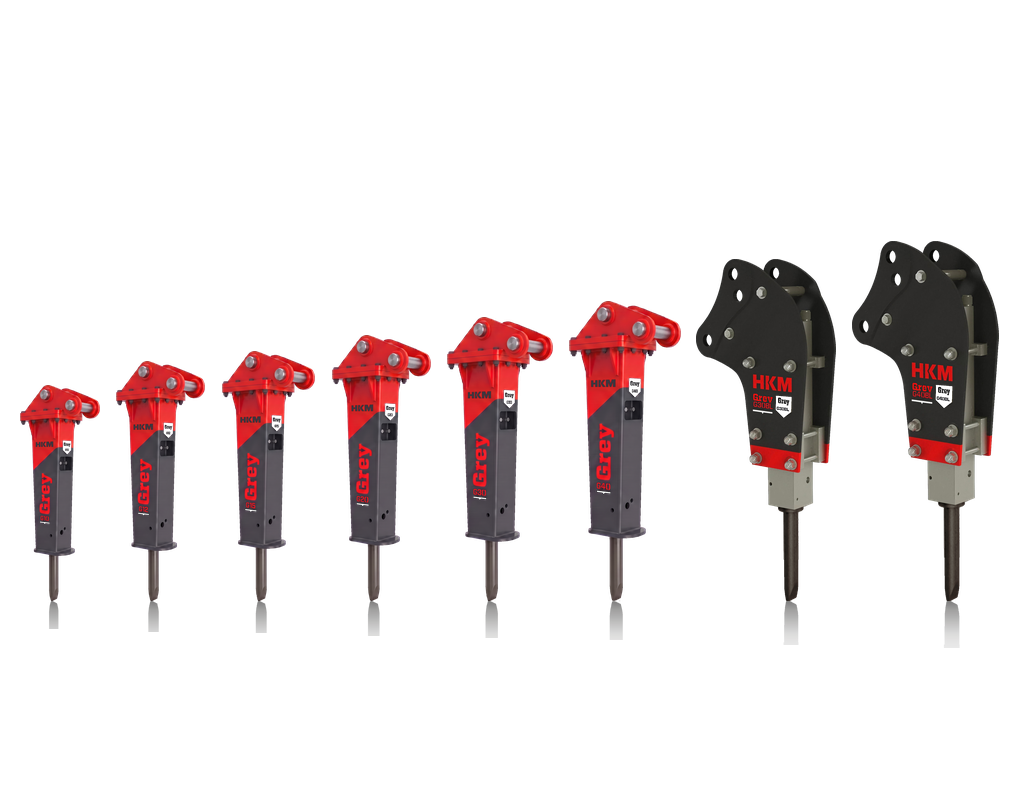

HKM GREY LINE MINI BREAKERS – G12

Developed as part of HKM’s urban-focused Grey Line Series, the G12 offers a perfect balance of compact structure and powerful performance.
Positioned within the HKM Grey Line Mini Breakers category, G 12 is ideal for asphalt breaking, light demolition, and trenching in tight spaces.

See All HKM G12 Spare Parts → All Grey Series Breakers →

SMALL SIZE, STRONG RESULTS

Equipped with a hybrid power unit that combines gas and hydraulic technologies, the G 12 provides operational flexibility across various machines.
Its streamlined body design ensures accessibility in trench and confined-area work, while the simplified mechanics help reduce maintenance time.

The G 12 is the ideal solution for those seeking cost-effective power in a compact package.

KEY FEATURES

120 kg operating weight and 45 mm tool diameter, compatible with mini excavators
Operating pressure range of 90–120 bar and oil flow of 20–40 l/min for efficient fuel use
Enclosed body design minimizes noise and vibration, making it perfect for city operations
Slim and ergonomic frame allows better access in narrow working areas
Simplified internal structure reduces downtime during part replacement and servicing
Lightweight design allows for easy transportation with backhoe loaders or compact machines

INCLUDED IN THE SET

Hydraulic Breaker Machine
Mounting Bracket
Breaker Tools (1 pcs Chisel Tool, 1 pcs Moil Point Tool)
Hydraulic Connection Hoses
Carrier Connection Pins
Tool Box

STANDARD EQUIPMENT

Hybrid Power Unit (Hydraulic-Gas)
Easy Part Replacement and Service Access

OPTIONAL EQUIPMENT

Underwater Kit
Reinforced Outer Housing
Quick Coupler for Attachment Change

TECHNICAL SPECIFICATIONS

Operational Weight (kg)	120
Carrier Weight (ton)	1,2-3
Tool Diameter (mm)	45
Operating Pressure (bar)	90-120
Oil Flow (lt/min)	20-40
Impact Rate (bpm)	700-1200

Frequently Asked Questions (FAQ)

Q: What size excavator does the G12 fit?
A: The HKM G12 fits mini excavators weighing between 1.2 and 3 tons. It offers slightly more power than the G10 model for slightly heavier tasks.

Q: What is the tool diameter?
A: The G12 uses a 45mm diameter tool, providing strong impact force for asphalt breaking and light demolition.

Q: Is it loud?
A: No, the Grey Series features an "Enclosed Body Design" which significantly reduces noise and vibration levels, making it suitable for urban environments.

🤔 Not Sure Which Breaker Fits?

If you are unsure whether this breaker is the right match for your machine, we are here to help.

Simply send us your excavator's or carrier's brand and model details. Our expert sales team will identify the perfect match for you and share a personalized offer.
