HKM G30BL Hydraulic Breaker

HKM Grey Series G30 is designed for applications that require higher impact energy on 3–9 ton excavators. With 320 kg operating weight and a 68 mm tool diameter it delivers productive breaking on concrete slabs, small rock blocks and infrastructure projects.

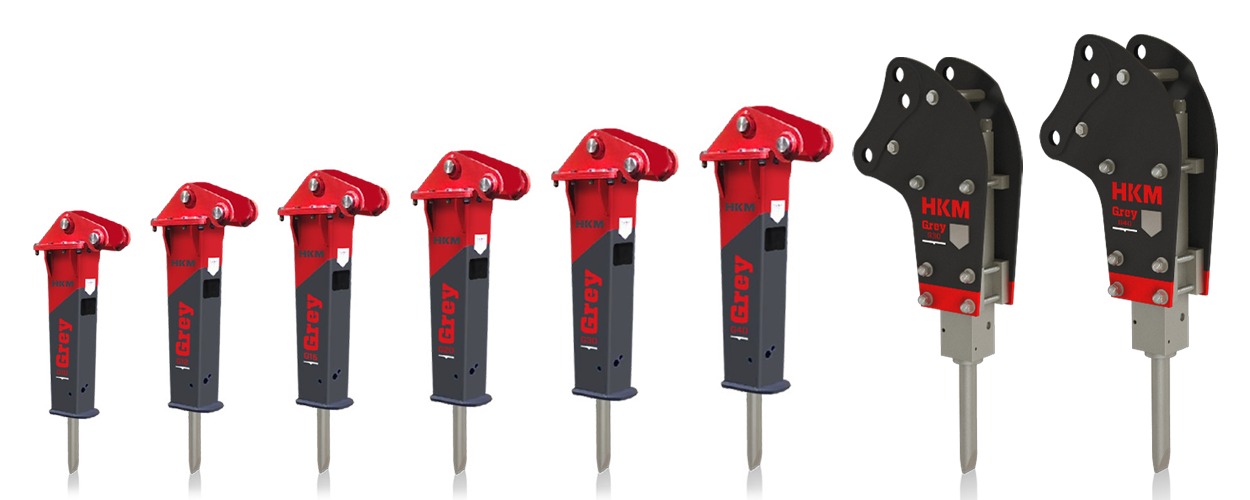

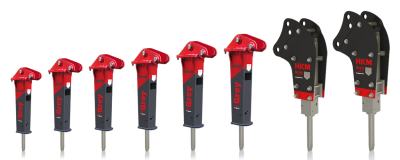

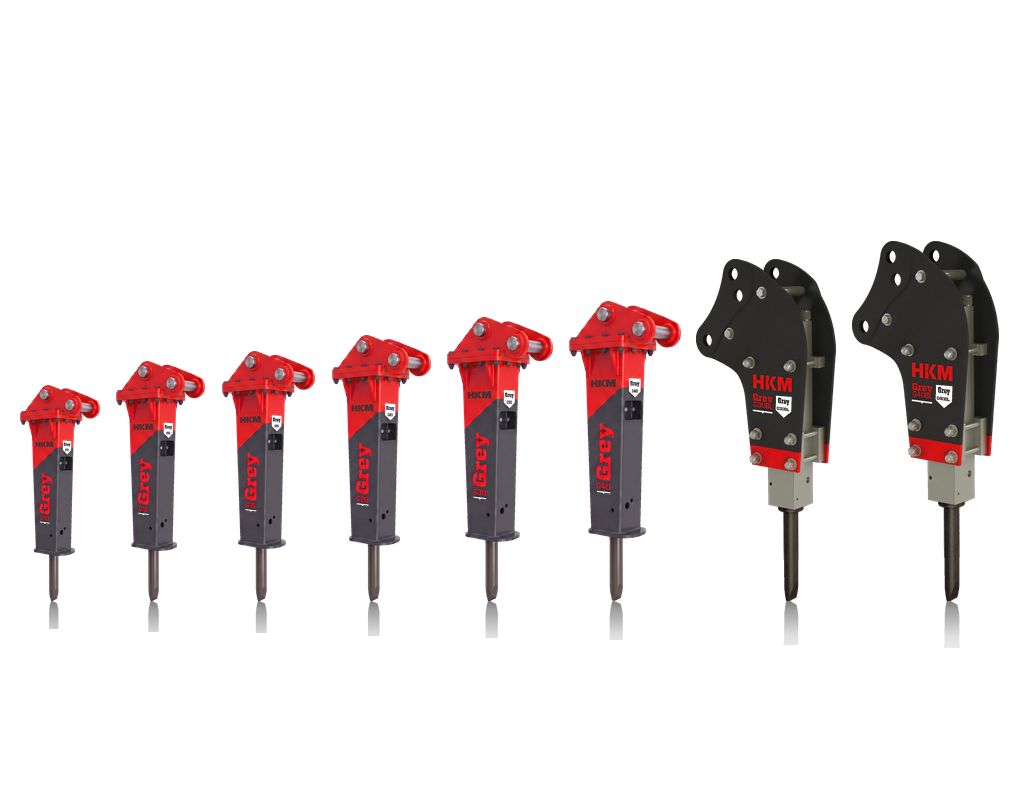

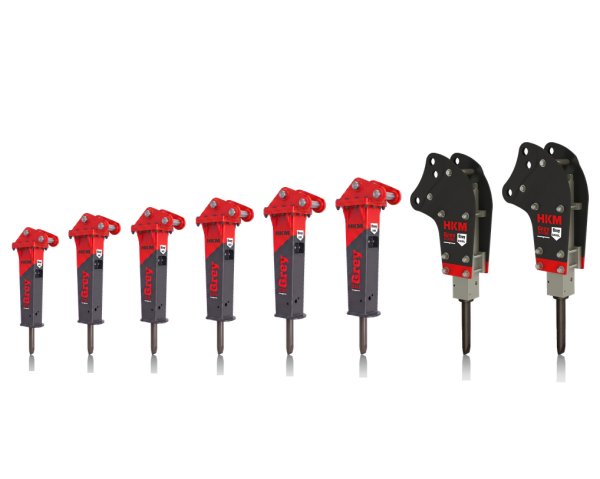

HKM Grey Line Mini Series Brochure

HKM Grey Serisi_Mini_Kiricilar_Brosur

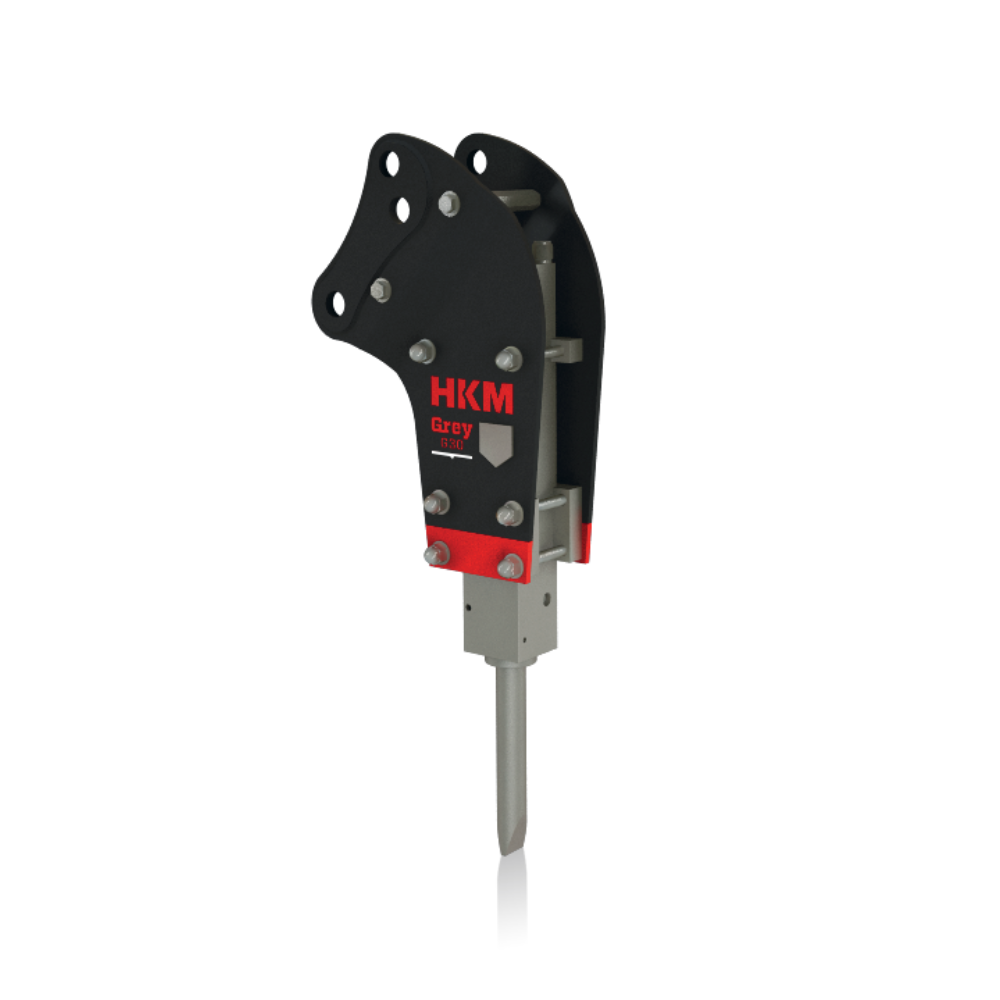

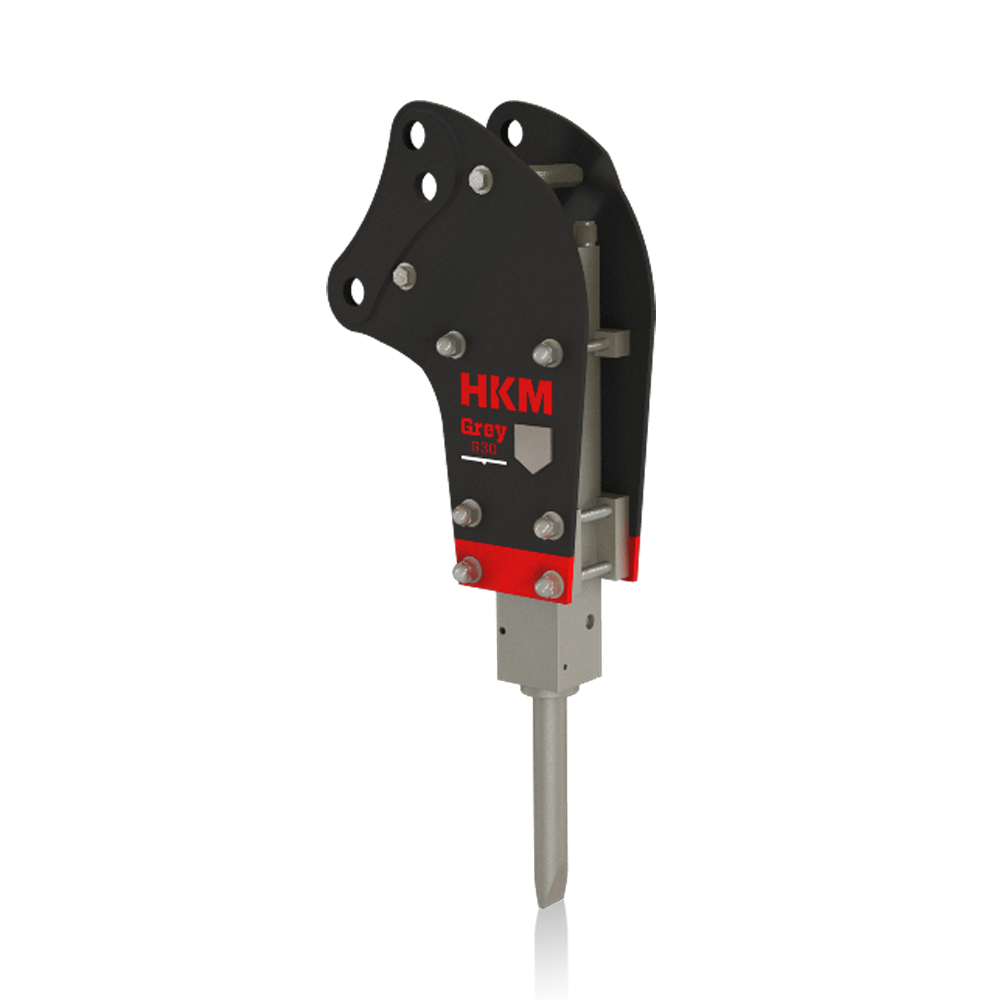

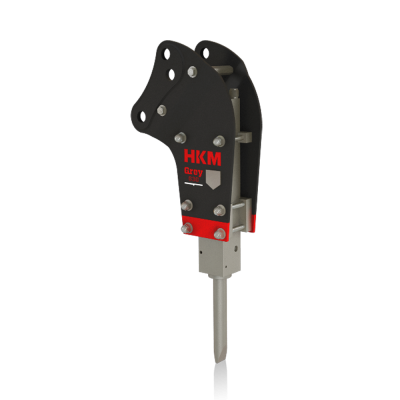

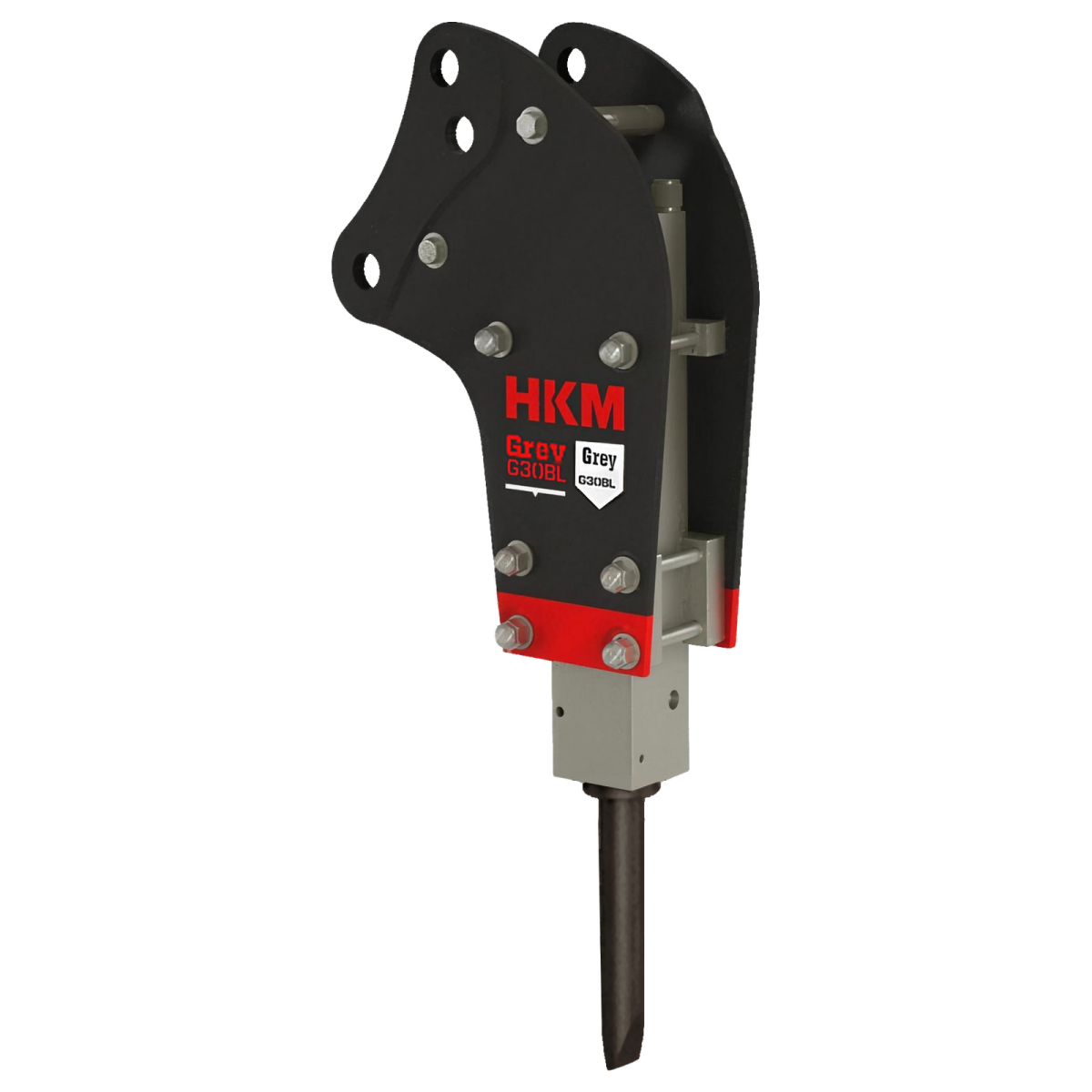

HKM G30BL Open Frame Mini Hydraulic Breaker

HKM GREY LINE MINI BREAKERS – G30BL

The HKM Grey Line Mini Breakers are designed for efficient, compact performance in tight urban spaces — with maximum operator convenience and reliable breaking power.
As the simplified, cost-effective version of the G 30, the G30BL features an open frame design that makes it lighter, more accessible, and ideal for quick maintenance.

See All HKM G30BL Spare Parts → All Grey Series Breakers →

OPEN FRAME. EASY SERVICE. SMART PERFORMANCE.

Equipped with a hybrid gas-hydraulic power unit, the G 30 BL offers operational flexibility across a wide range of pressure settings.
Compared to closed-box models, its lighter structure reduces strain on the carrier while delivering reliable impact in urban and utility applications.

The G 30 BL is a smart choice for professionals seeking performance and cost-efficiency in a compact, entry-level mini breaker.

KEY FEATURES

320 kg operating weight and 68 mm tool diameter for smooth compatibility with compact machines
110–140 bar working pressure and 40–70 l/min oil flow for consistent and stable performance
Open-frame housing allows easier access for maintenance and part replacement
Slim design enables easy maneuvering in narrow spaces
Simplified internal components reduce downtime and make servicing faster
Fully compatible with 3–9 ton carrier machines

INCLUDED IN THE SET

Hydraulic Breaker Machine
Mounting Bracket
Breaker Tools (1 pcs Chisel Tool, 1 pcs Moil Point Tool)
Hydraulic Connection Hoses
Carrier Connection Pins
Tool Box

STANDARD EQUIPMENT

Hybrid Power Unit (Hydraulic + Gas)
Easy Part Replacement and Service Access

OPTIONAL EQUIPMENT

Underwater Kit
Reinforced Outer Housing
Quick Coupler for Attachment Change

TECHNICAL SPECIFICATIONS

Operational Weight (kg)	320
Carrier Weight (ton)	3-9
Tool Diameter (mm)	68
Operating Pressure (bar)	110-140
Oil Flow (lt/min)	40-70
Impact Rate (bpm)	500-900

Frequently Asked Questions (FAQ)

Q: What is the main difference between G30 and G30BL?
A: The G30BL features an "Open Frame" design. This makes it lighter and more affordable than the standard enclosed G30, and it offers easier access for maintenance.

Q: Does the open design reduce breaking power?
A: No, the internal breaking mechanism and impact energy are identical to the G30. The difference is solely in the external housing.

Q: Which machines can use this breaker?
A: The G30BL is designed for all compact excavators and backhoe loaders in the 3 to 9-ton range.

🤔 Not Sure Which Breaker Fits?

If you are unsure whether this breaker is the right match for your machine, we are here to help.

Simply send us your excavator's or carrier's brand and model details. Our expert sales team will identify the perfect match for you and share a personalized offer.

Weight (Kg) 320
