HKM R350M Hydraulic Breaker

HKM R350M Madencilik Serisi Hidrolik Kırıcı - HKM R350M Mining Series Hydraulic Breaker

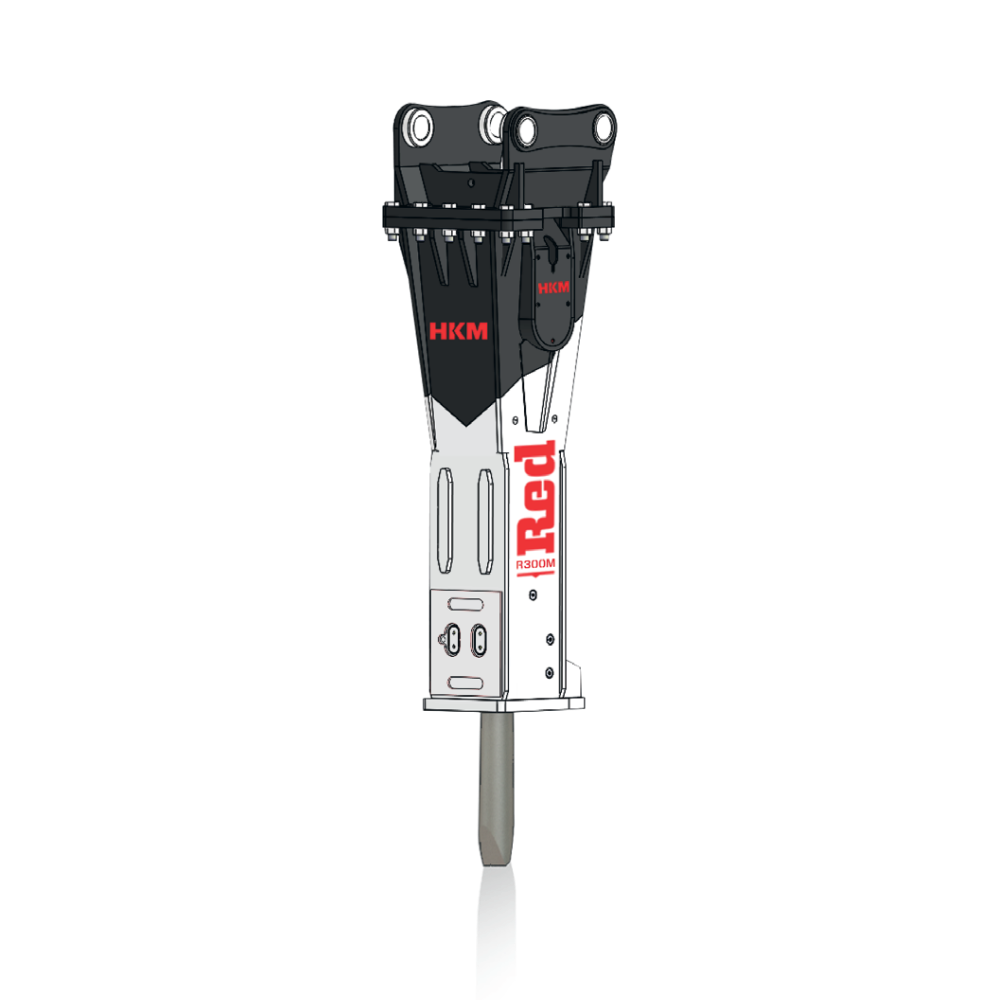

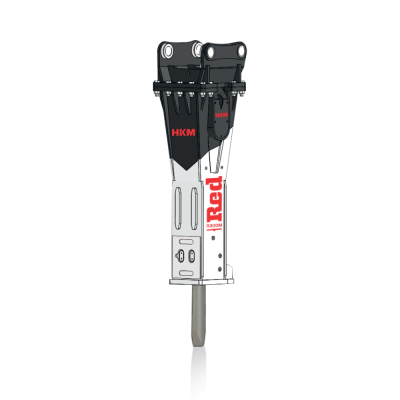

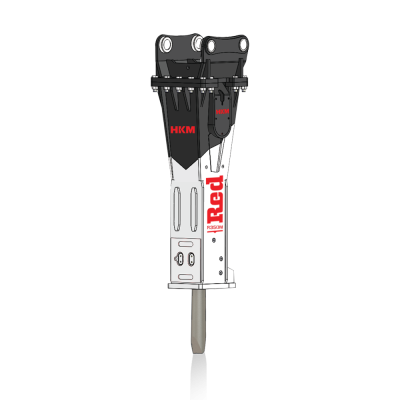

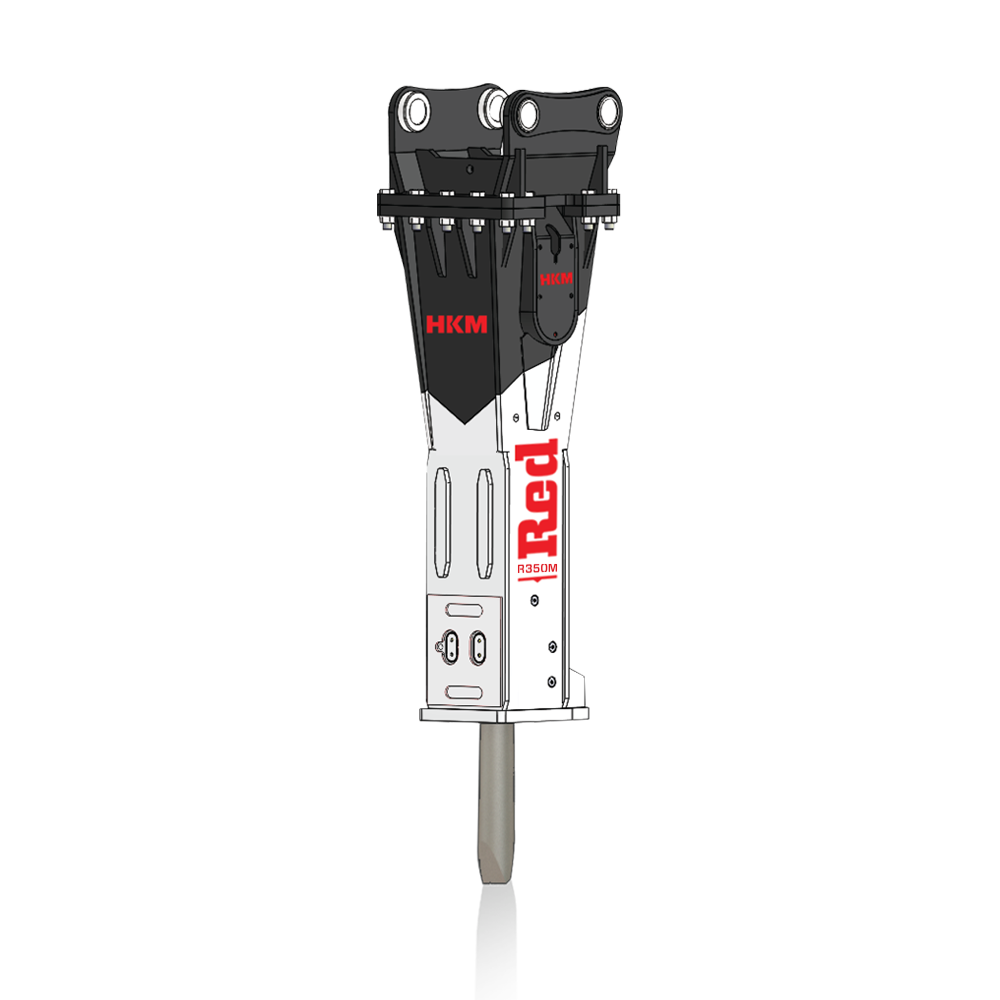

HKM RED LINE BREAKERS – R350M (Mining Series – Engineered for Extreme Duty)

The HKM Red Line R350M is a mining-specialized heavy-duty hydraulic breaker designed for 40–55 ton class excavators.
With its distinctive white-red housing and reinforced body structure, the R 350 M delivers maximum impact power and durability in the harshest excavation and mining environments.

R350M: BUILT TO GO DEEP. ENGINEERED TO LAST.

Operating at 130–150 bar pressure with 210–240 l/min oil flow, the R 350 M ensures continuous and efficient impact force, even in high-resistance materials.
Weighing 3,750 kg and equipped with a 175 mm tool diameter, it’s built for deep quarrying, heavy rock breaking, and large-scale mining operations.

The high-pressure diaphragm accumulator, mounted directly on the main valve block, guarantees powerful and reliable energy delivery throughout prolonged shifts.
The nut-free tie rod system uses short rods directly fastened to the front head, absorbing vibration before it spreads, significantly extending spare part life and reducing maintenance costs.

With a solid housing, dust protection, and integrated vibration/noise damping, the R 350 M offers operator comfort and internal durability.
It can be customized with automatic lubrication, underwater kits, and mining-grade reinforced housing, making it the go-to breaker for operations in the deepest, most abrasive, and demanding conditions.

KEY FEATURES

• White-red design: signature mining series appearance
• Compatible with 40–55 ton class carriers
• High impact power with energy-efficient performance
• Reinforced structure for highly abrasive applications
• Customizable with advanced equipment for mining sites

INCLUDED IN THE SET

• Hydraulic Breaker Machine
• Mounting Bracket
• Breaker Tools (1 pcs Chisel Tool, 1 pcs Moil Point Tool)
• Hydraulic Connection Hoses
• Carrier Connection Pins
• Tool Box

STANDARD EQUIPMENTS

• High Pressure Diaphragm Accumulator
• High Efficiency & Performance
• Dust Protection
• Solid Housing Design
• Vibration Absorption
• Noise Absorption
• Nut-Free Tie Rod Design

OPTIONAL EQUIPMENTS

• Automatic Lubrication
• Underwater Equipment
• Reinforced Housing
• Fast Attachment Replacement Device

TECHNICAL SPECIFICATIONS

Frequently Asked Questions (FAQ)

Q: What makes the R350M suitable for mining?
A: The R350M features a "Reinforced Housing" specifically designed to withstand abrasive mining conditions. Its white-red color scheme ensures high visibility, and the nut-free design handles the extreme vibrations of mining operations.

Q: Is it compatible with a 50-ton excavator?
A: Yes, the R350M is engineered for excavators in the 40 to 55-ton range, providing the perfect weight-to-power ratio for 50-ton machines.

Q: How durable is the tool (chisel)?
A: The R350M uses a massive 175mm diameter tool made from special heat-treated alloy steel, designed to break the hardest rock formations found in quarries.
