Axial Drum Cutter

Quiet, high-torque vertical drum attachment ideal for urban infrastructure and curb projects.

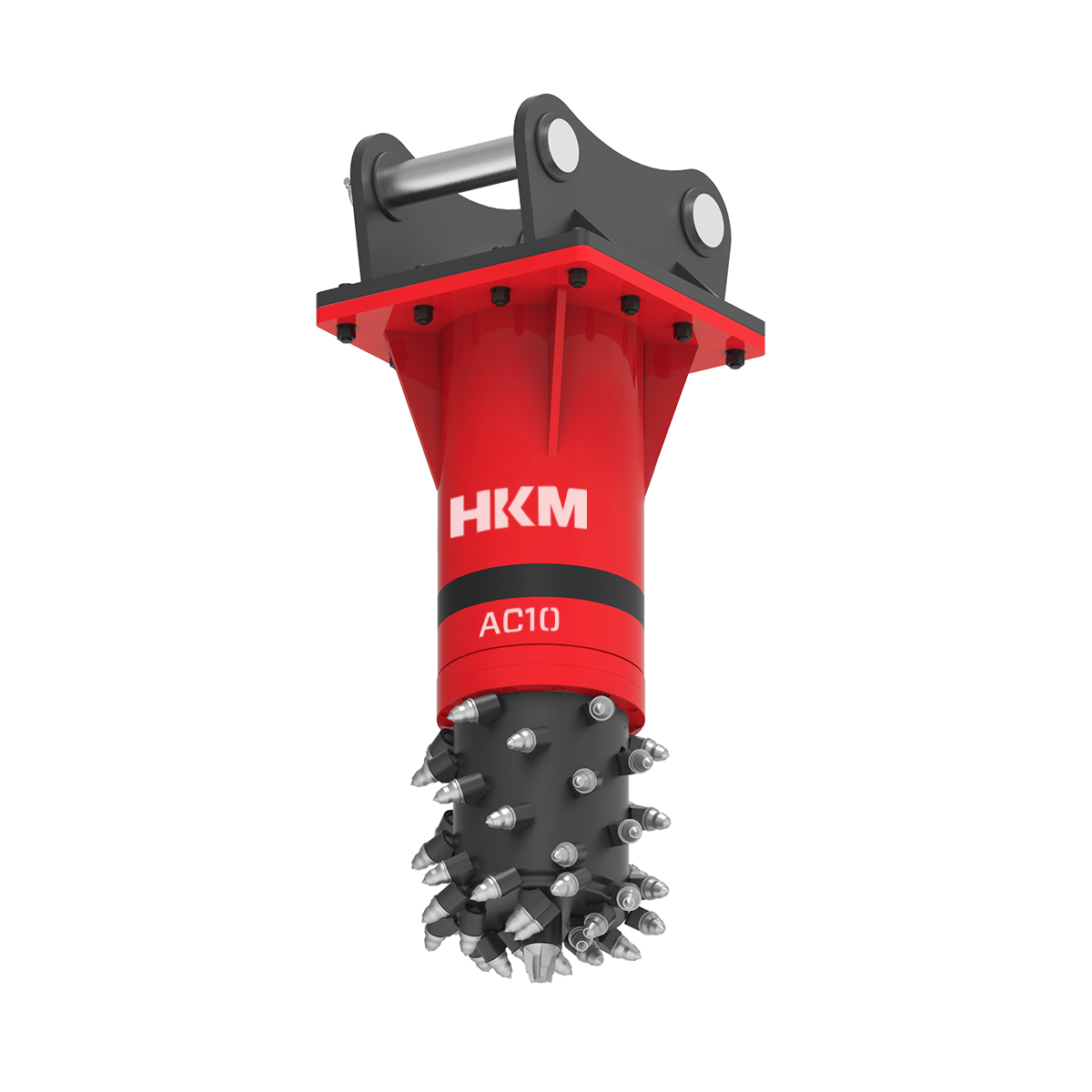

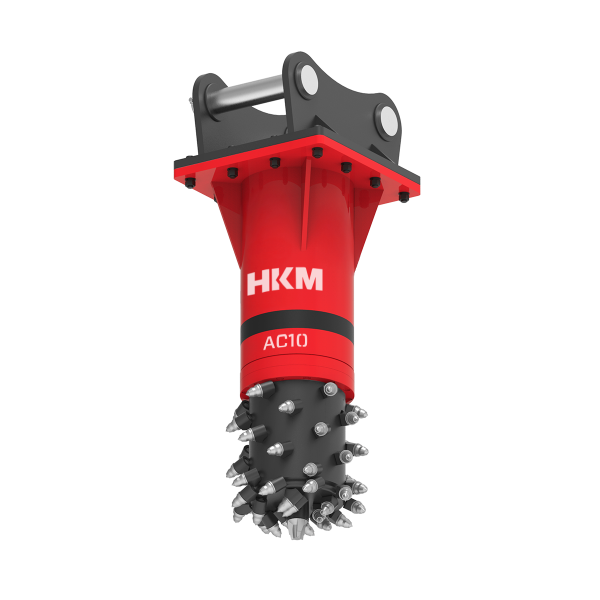

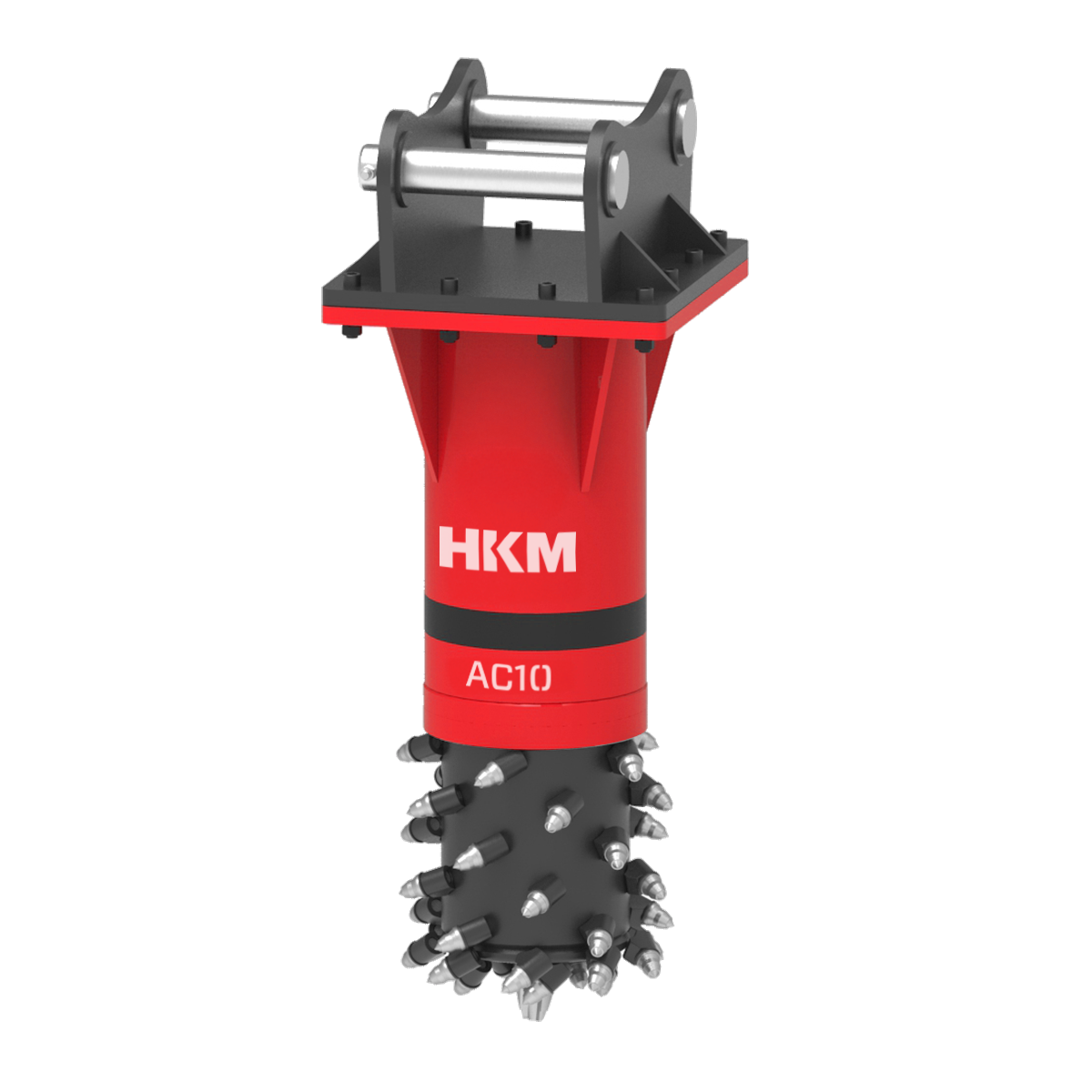

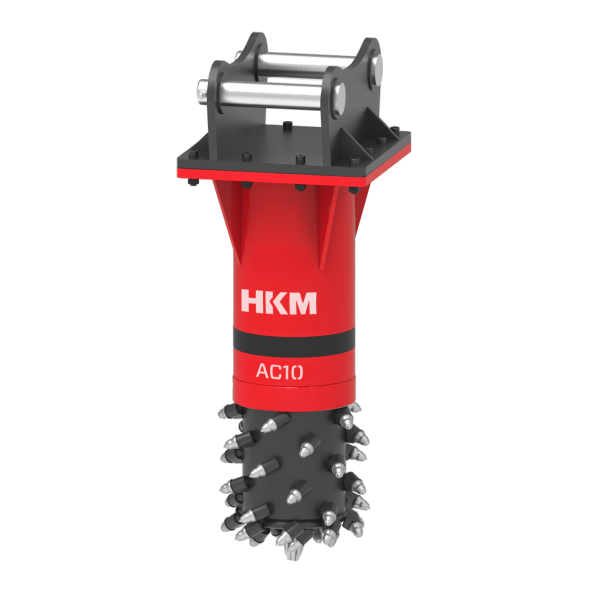

HKM AXIAL DRUM CUTTERS – AC10

HKM AC10 Axial Drum Cutter is a low-noise, high-torque milling attachment for 8–15 t carriers. The single-axis vertical drum concentrates power along the cutting axis to deliver clean, controlled results in narrow trenching, curb/gutter profiling and vertical surface finishing.

With an operating weight of 360 kg, AC10 offers short cycle times and enhanced operator comfort thanks to its low-vibration behavior—ideal for urban jobsites.

KEY FEATURES

High-torque drive with optimized bit layout
Low vibration and noise for city works
Precise control in confined areas and on vertical faces
Service-friendly: quick bit change, protected hose routing
Produces homogeneous, backfill-ready material

APPLICATIONS

Curb, gutter and wall profiling
Utility trenching and slot cutting
Vertical surface finishing / concrete preparation
Selective demolition and repairs

OPTIONAL EQUIPMENT

Underwater Application Kit: Fully sealed electrical/hydraulic interfaces, corrosion-resistant components
High-Wear Protection Kit: Hardox™/AR400 liners, zirconium-coated bits
Extended-Reach Module: +500 mm extension pipe for deeper/steeper profiles

TECHNICAL DATA

Carrier Weight (t)	8–15
Operating Weight (kg)	360
Max Operating Pressure (bar)	270
Oil Flow (L/min)	100–140
Required Operating Power (kW)	63
Torque @320 bar (Nm)	6220
RPM @40 L/min	97
Output Torque @320 bar (Nm)	8455
Cutter Bit (pcs)	40
Drum Diameter (mm)	440
Drum Width (mm)	480
