Toku TNB4E Pyramid ToolToku TNB4E Pyramid Tool - 2Toku TNB4E Pyramid Tool - 3
Brand:TokuModel:TNB4EHKM code:238020930

Toku TNB4E Pyramid Tool

  • Breaker: Toku TNB4E
  • Tool type: Pyramid tool
  • Diameter: 75 mm
  • Length: 710 mm
  • Weight: 26 kg
  • Material: OEM quality, heat-treated alloy steel
  • Delivery: fast delivery from stock or made in 5 working days

Other breaker models using a Ø75 x 710 mm tool

Prices are visible to partners

Sign in to see partner pricing and order online.

We usually reply within 1 business day.

Ask on WhatsApp
How to order from abroad

Order online (partners)

  1. Apply as a partner.
  2. Once we approve your account, partner prices appear on the site.
  3. Add products to your cart and pay securely by credit card or bank transfer.
  4. Our sales team contacts you about the shipping method and cost.

Request a quote

  1. Send a quote request.
  2. We email the price (EXW Istanbul), stock and lead time, usually within 1 business day.
  3. On approval: proforma invoice and payment by bank transfer (USD or EUR).
  4. Shipping by weight: DHL Express, air freight or road/sea freight.

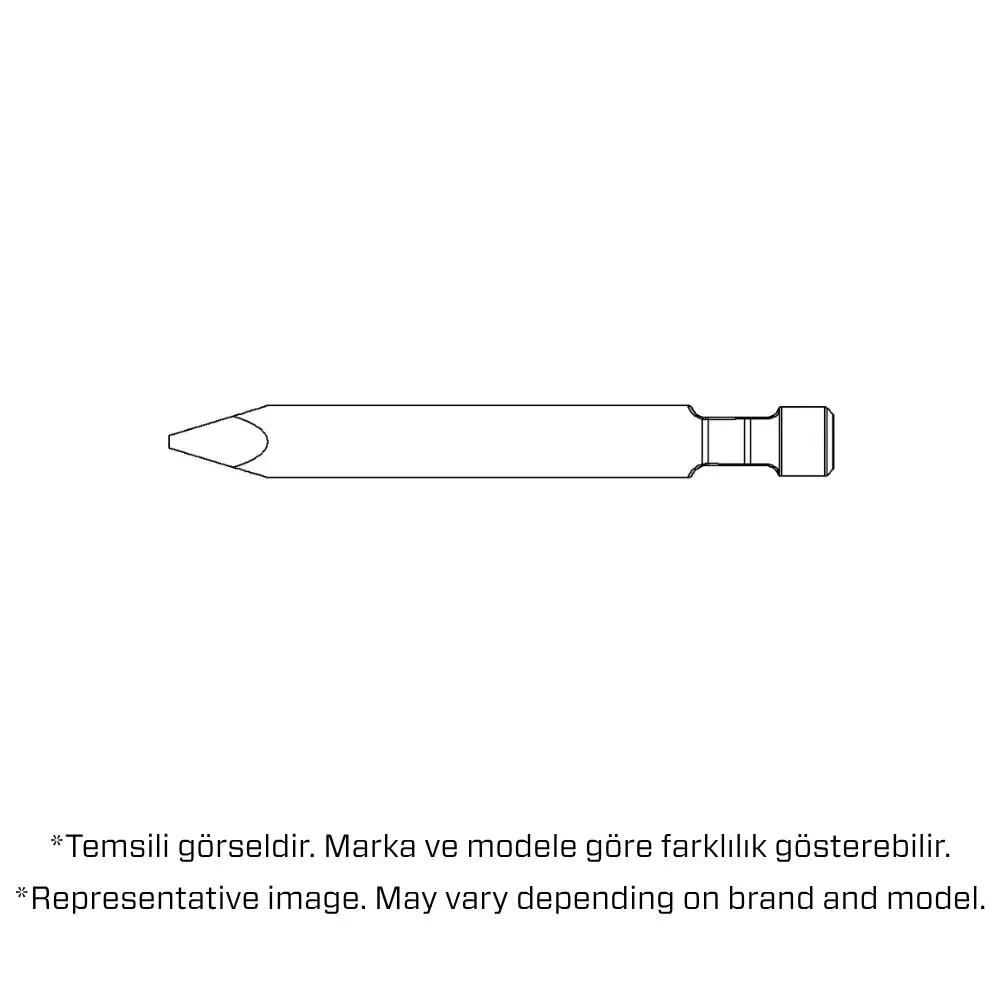

*Representative image. May vary depending on brand and model.

Pyramid tool for the Toku TNB4E hydraulic breaker: Ø75 mm diameter, 710 mm length, 26 kg. OEM quality, made from heat-treated alloy steel; fast delivery from stock or made in 5 working days.

Technical Data

Breaker Brand / ModelToku TNB4E
Tool TypePyramid Tool
OptionStandard
Diameter75 mm
Overall Length710 mm
Weight26 kg
MaterialHeat-treated alloy steel
Product Code238020930
DeliveryFast delivery from stock or made in 5 working days

Where Is a Pyramid Tool Used?

Pyramid tools penetrate non-abrasive materials of varying strength quickly. The pointed geometry and cutting angle give high penetration rates with little effort in concrete and similar materials.

  • Primary demolition
  • Secondary demolition
  • Trenching
  • Recycling
  • Tunneling
  • Primary breaking
  • Landscaping

According to the material table in our manual, it is recommended for massive (monolithic) sedimentary rock.

The standard tool is made for general demolition, construction and quarry work. In very hard and abrasive rock the hard rock version, and in dusty conditions the dust grooved version, lasts longer.

Correct Use: Three Rules

  • Work perpendicular. Keep the breaker at a right angle to the surface and avoid side loads. Angled pushing wears the bushings and moves the piston off the tool axis.
  • Do not pry. Rocking the tool like a lever before it is fully seated, or rotating the breaker while the tool is embedded, is the most common cause of tool breakage.
  • Do not blank fire. If the breaker strikes without the tool touching the surface, all the energy goes into the retaining pins and the tool's pin slots; pins break and slots are destroyed.

Breakage caused by ignoring these rules is not covered by the warranty. See our tool selection guide, the tool use section and the Tool User Manual and Warranty Terms.

Other Tool Types for Toku TNB4E

Tool Type and SizeOptions
Moil Point ToolØ75 x 710 mmStandard · Dust Grooved · Hard Rock · Dust Grooved + Hard Rock
Chisel ToolØ75 x 710 mmStandard · Dust Grooved · Hard Rock · Dust Grooved + Hard Rock
Pyramid ToolØ75 x 710 mmStandard (this page) · Dust Grooved · Hard Rock · Dust Grooved + Hard Rock
Blunt ToolØ75 x 710 mmStandard · Hard Rock

Wide chisel, tarmac cutter and driving tools are made to order; if you need one of these for your Toku TNB4E, write to sales@hkm.com.tr.

Toku TNB4E Spare Parts

Check the bushings when you change the tool: worn lower and upper bushings can break both the tool and the piston.

For other Toku models see Toku tools and spare parts.

Manufacturing, Delivery and Warranty

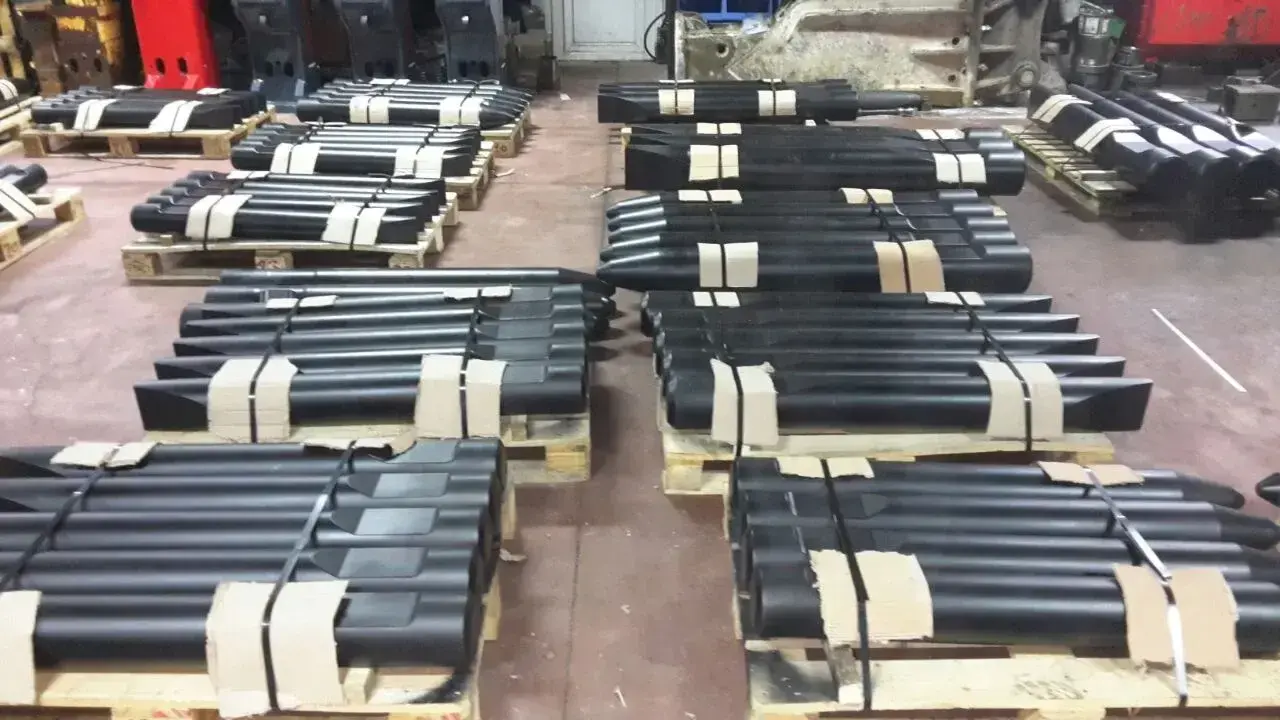

HKM manufactures this tool to OEM quality from heat-treated alloy steel. Tools in stock ship quickly; if not in stock, the tool is made in 5 working days. Transport time is added depending on the method (road, air, sea).

Tools are warranted against manufacturing defects only; breakage caused by improper use is not covered.

Frequently Asked Questions

Q: What are the dimensions of the Toku TNB4E pyramid tool?

A: The Toku TNB4E pyramid tool is made for the Toku TNB4E hydraulic breaker: diameter 75 mm, overall length 710 mm, weight 26 kg. Just state your breaker brand and model when you order.

Q: Will another tool with the same diameter and length fit my Toku TNB4E?

A: Not always. The position and shape of the retaining pin slot change with brand and model; a tool with the same diameter and length may not fit. This tool is made to the slot dimensions of the Toku TNB4E.

Q: What is the Toku TNB4E pyramid tool used for?

A: The Toku TNB4E pyramid tool is mainly used for: primary demolition, secondary demolition, trenching, recycling, tunneling, primary breaking, landscaping. According to the material table in our manual, it is recommended for massive (monolithic) sedimentary rock.

Q: What is the difference between Toku TNB4E standard, dust grooved and hard rock pyramid tools?

A: The standard tool is for general demolition and construction. On the dust grooved tool the grooves guide dust away from the breaking zone and reduce wear and heat. The hard rock tool is made from a high-nickel alloy with a special hardening process, for quarrying and mining.

Q: Which other tool types are available for the Toku TNB4E?

A: We make 14 different tools for the Toku TNB4E: moil point tools, chisel tools, pyramid tools, blunt tools, with dust grooved and hard rock options. You can reach all of them from the Other Tool Types table on this page.

Q: How long is the delivery time for the Toku TNB4E pyramid tool?

A: If the Toku TNB4E pyramid tool is in stock, it ships quickly. If not, it is made in 5 working days; transport time is added depending on the shipping method.

Q: Is the Toku TNB4E pyramid tool covered by warranty?

A: Like all HKM breaker tools, the Toku TNB4E pyramid tool is warranted against manufacturing defects only. The fracture surface is examined; if the fracture started from a flaw inside the material, the tool is covered. Breakage from prying, blank firing, rotating the embedded tool or working with worn bushings is not covered.

Q: What shortens the life of the Toku TNB4E pyramid tool the most?

A: Prying before the tool is fully seated, blank firing, striking one spot for too long, insufficient or wrong grease, and working with worn bushings.

Q: What else should I check when I change the tool on my Toku TNB4E?

A: Compare the inner diameters of the lower and upper bushings and the thrust bushing surface with the tolerances in your breaker's service manual. Worn bushings move the tool and piston off axis. The Toku TNB4E bushings are listed in the Spare Parts section on this page.

Q: What other names is the Toku TNB4E pyramid tool known by?

A: It is also called “pyramidal point”, “pyramidal moil point”, “pyramid moil”. Toku documents use “working tool”. Breaker tools in general are also known as breaker chisels, working tools or hammer tools.

Product Information

Weight (kg)
26
Dimensions
75x710x75 mm
Warranty
Please review the Tool User Manual and Warranty Terms document on this page. HKM breaker tools are warranted against manufacturing defects only. If a tool breaks, the fracture surface is examined; if the fracture started from a flaw inside the material, the tool is covered by the warranty. Damage caused by improper use is not covered: prying before the tool is fully seated, blank firing, rotating or side-loading the breaker while the tool is embedded, striking the surface with the tool using the boom, and working with worn bushings.
Delivery Information
Approx. 1 week

Other parts for Toku TNB4E

All parts for Toku TNB4E
