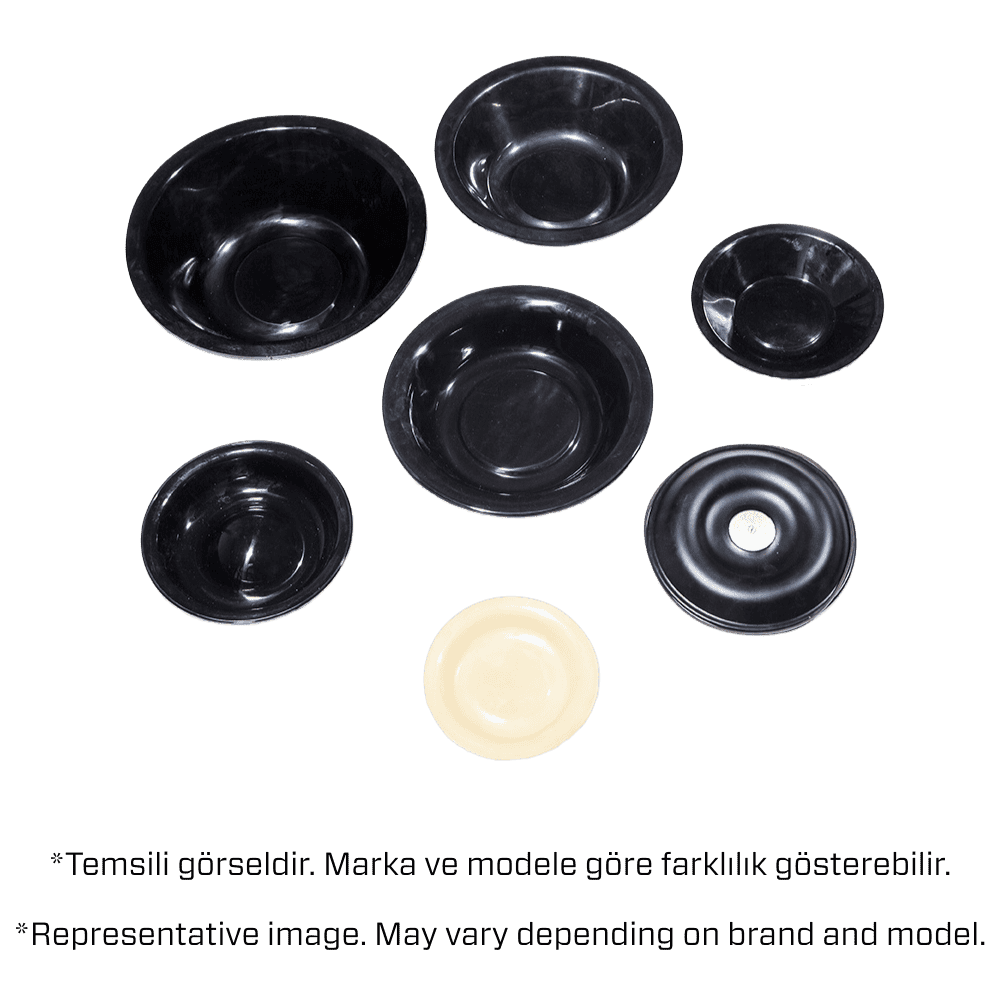

MSB MS550 Diaphragm
Brand:MSBModel:MS550HKM code:221009360

MSB MS550 Diaphragm

Aftermarket diaphragm for the MSB MS550 hydraulic breaker accumulator. Oil-resistant elastomer (NBR/HNBR), precision-molded profile, low gas permeability, and long cycle life. Direct OEM-compatible replacement.

Dimensions:
Height: 62 mm
Diameter: 237 mm
Weight: 0.25 kg

Prices are visible to partners

Sign in to see partner pricing and order online.

We usually reply within 1 business day.

Ask on WhatsApp
How to order from abroad

Order online (partners)

  1. Apply as a partner.
  2. Once we approve your account, partner prices appear on the site.
  3. Add products to your cart and pay securely by credit card or bank transfer.
  4. Our sales team contacts you about the shipping method and cost.

Request a quote

  1. Send a quote request.
  2. We email the price (EXW Istanbul), stock and lead time, usually within 1 business day.
  3. On approval: proforma invoice and payment by bank transfer (USD or EUR).
  4. Shipping by weight: DHL Express, air freight or road/sea freight.

MSB MS550 Hydraulic Breaker Diaphragm

The MSB MS550 diaphragm is a high-quality aftermarket spare part used in the nitrogen accumulator of hydraulic breakers. It separates nitrogen gas from hydraulic oil, stabilizes impact energy, and dampens pressure spikes to protect seals and valves. The compound and geometry are optimized for low gas permeability, reliable sealing, and long cycle life under high-frequency operation.

🛡️ Warranty Disclaimer: Please note that diaphragms are highly stressed consumable parts subject to natural wear and tear during operation. Therefore, they are not covered under warranty.

FEATURES

  • Oil-resistant elastomer (typically NBR/HNBR) formulated for nitrogen service and low permeability.
  • Precision-molded profile and sealing bead to match the accumulator cap/groove for leak-tight fit.
  • Controlled thickness and tolerance for consistent precharge behavior and energy return.
  • Optional fabric-reinforced construction (model dependent) for improved fatigue strength.
  • Excellent fatigue resistance under high cycling; maintains sealing over temperature and pressure variations.

TECHNICAL SPECIFICATIONS

Compatible BrandMSB
Compatible ModelMS550
MaterialHigh-Strength Elastomer (NBR/HNBR)
Height62 mm
Diameter237 mm
Weight0.25 kg

COMPATIBILITY & QUALITY

This diaphragm is designed as a direct replacement, fully compatible with the original accumulator design of the related brand and model. Produced under strict QC: compound hardness (Shore A) verification, cure control, dimensional inspection, and leakage tests to ensure durability and OEM-level fit.
Also referred to as membrane or accumulator diaphragm by different manufacturers.

WHAT IS INCLUDED?

Diaphragm (single piece)

Depending on the breaker brand and model, some versions may be sold with a small sealing set (e.g., cap O-ring / backup ring). This is general information; the product you are viewing may or may not include additional seals.

INSTALLATION & SAFETY NOTES

  • Charge with nitrogen only—never air or oxygen.
  • Always relieve system pressure before service; follow OEM precharge values/procedures.
  • Use clean hydraulic oil and replace aged/damaged seals during reassembly.

Frequently Asked Questions (FAQ)

Q: Is this diaphragm compatible with MSB MS550?
A: Yes, this product is specifically manufactured according to MSB MS550 hydraulic breaker specifications for a 100% fit.

Q: Are spare parts like O-rings included?
A: It depends on the model. While the diaphragm is always included, O-rings are included only if standard for that specific model.

Q: Are shipping costs included in the price?
A: No, shipping is not included in our prices. Please contact our sales team to get a quote for the best delivery options to your location.

🤔 Not Sure Which Diaphragm Fits?

If you are unsure whether this part is the right match for your breaker, we are here to help.

Simply send us your breaker's brand and model details. Our expert team will identify the perfect match for you and share a personalized offer.

Contact Us Now →

Product Information

Weight (kg)
0.25
Dimensions
237x237x62 mm
Warranty
Warranty Disclaimer: Please note that diaphragms are highly stressed consumable parts subject to natural wear and tear during operation. Therefore, they are not covered under warranty
Delivery Information
Approx. 1 week
