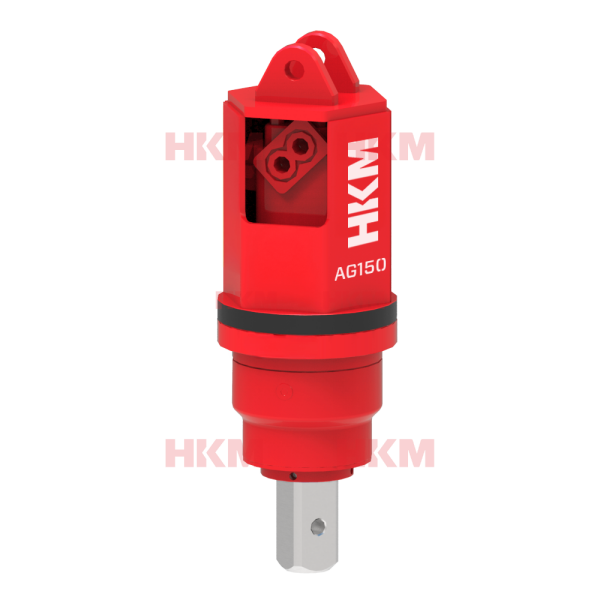

HKM AG150
Drive Unit, Hydraulic Auger
AG150 drive unit is suitable for 13–17 ton carriers. Delivers 15,000 Nm torque with 20–43 RPM range. With 160–240 bar operating pressure and 167 kg unit weight, it’s a compact and reliable solution for demanding drilling operations.
Campaign
HKM AG150 – Drive Unit
Optimized Power for High-Flow Hydraulic Systems
The HKM AG150 Drive Unit is tailored for 13–17 ton class excavators requiring high torque and robust performance. With 15,000 Nm of torque and an operating range of 20–43 RPM, it is ideal for challenging terrain and deep drilling operations.
The heavy-duty planetary gearbox ensures long-term durability, while the 75 mm square LockSecure shaft enables efficient torque delivery in high-demand environments. Perfect for hard rock drilling, infrastructure, and foundation works.
Key Specifications:
- Torque: 15,000 Nm
- Speed: 20–43 RPM
- Oil Flow: 80–170 L/min
- Operating Pressure: 160–240 bar
- Output Shaft: 75 mm square
Why Choose AG150:
- Heavy-duty design for intense drilling tasks
- Stable performance under high hydraulic flow
- Reinforced gearbox for long service life
- Reliable torque transfer with LockSecure shaft
- Excellent choice for deep and tough ground conditions
