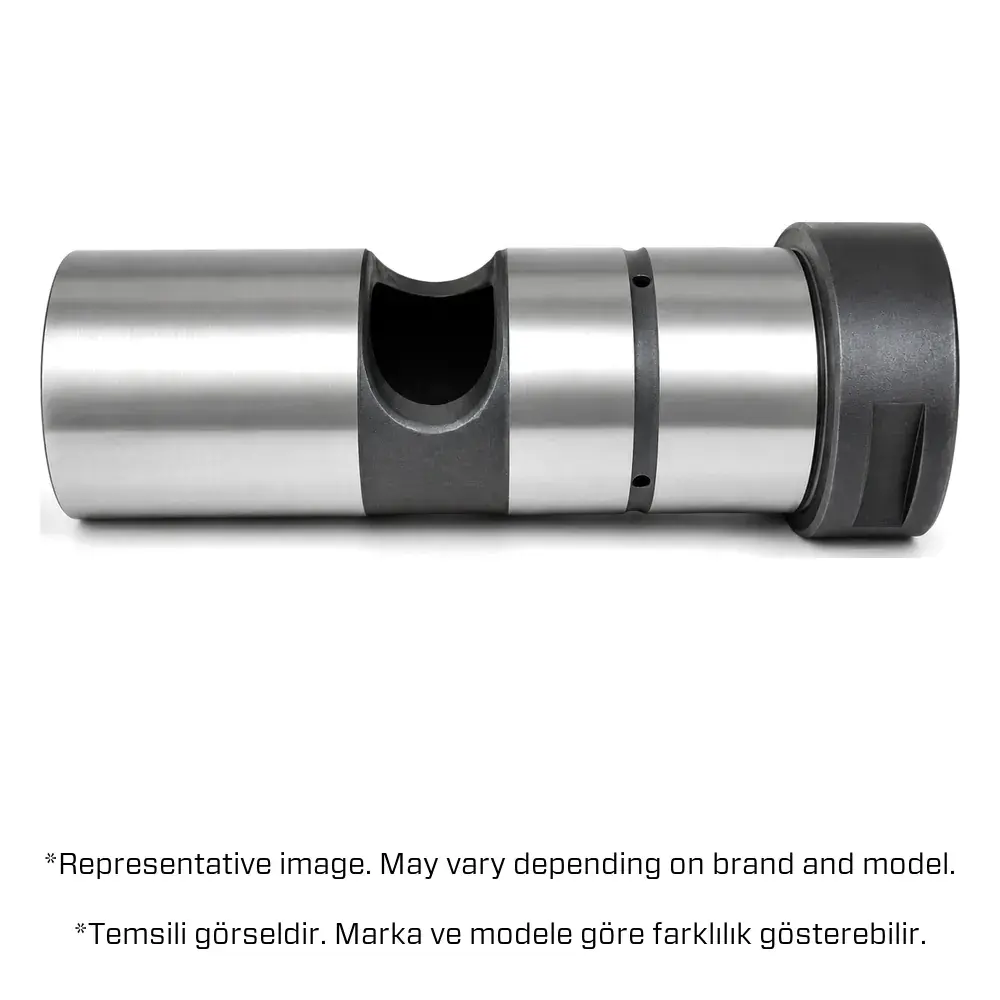

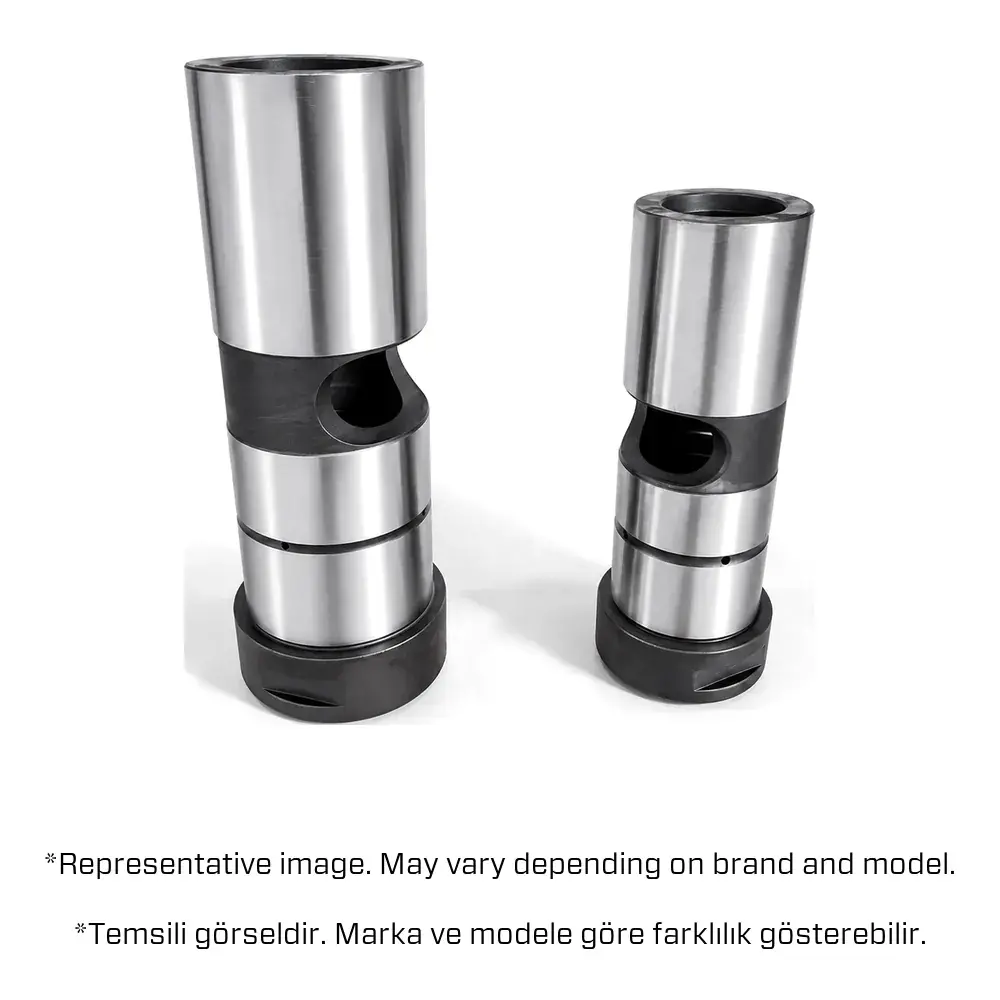

Atlas Copco SBC410IIS Combined Bushing (Upper + Lower Bushing)
Aftermarket combined bushing in OEM quality for the Atlas Copco SBC410IIS hydraulic breaker, OEM part no 3315 2779 80 (Ø100 x 295 mm). A combined bushing is a single piece that combines the upper bushing and the lower bushing in one body. It takes on the functions of both the upper bushing and the lower bushing: it centers the tool in the upper region, guides it at the front head outlet and absorbs lateral loads to reduce wear on the tool and body. Precision-machined from wear-resistant, heat-treated steel. Bushing dimensions can differ even within the same model depending on production year and housing type, so compare them with your existing bushing before ordering.
Specifications:
Consists of: Upper bushing + Lower bushing
OEM Part No: 3315 2779 80
Outer Diameter (max.): 100 mm
Length: 295 mm
Weight: 6.22 kg
Prices are visible to partners
Sign in to see partner pricing and order online, or request a quotation for this product.
Atlas Copco SBC410IIS Hydraulic Breaker Combined Bushing (Upper + Lower Bushing)
The Atlas Copco SBC410IIS combined bushing is a single-piece bushing that combines the upper and lower bushing, and centers and guides the tool in both the upper and lower regions of the front head. It is manufactured as an aftermarket replacement part for Atlas Copco SBC410IIS hydraulic breakers. It replaces OEM part number 3315 2779 80. It is precision-machined from wear-resistant, heat-treated steel.
A combined bushing is a single piece that combines the upper bushing and the lower bushing in one body.
TECHNICAL SPECIFICATIONS
| Compatible Brand | Atlas Copco |
| Compatible Model | SBC410IIS |
| Part Type | Combined bushing |
| Consists of | Upper bushing + Lower bushing |
| OEM Part No | 3315 2779 80 |
| Outer Diameter (max.) | 100 mm |
| Length | 295 mm |
| Weight | 6.22 kg |
| Material | Wear-resistant, heat-treated steel |
Before ordering, compare the dimensions of your existing part with these values.
Important: design differences by model and production year
Bushing designs vary by brand and model, and even by the production year of the same model and by whether the breaker is a silenced (box type) or tunnel type unit. Two breakers with the same model name can use bushings of different size and shape.
If you send the technical drawing of your part to sales@hkm.com.tr, we can manufacture it to your drawing.
WHICH BUSHINGS DOES THIS PART INCLUDE?
- Upper bushing
- Lower bushing
FEATURES
- Single-piece design: upper and lower bushing in one body
- Wear-resistant, heat-treated steel
- Precise bore tolerance
- Made to OEM dimensions
- Produced with bore, concentricity and hardness control
WHAT DOES A COMBINED BUSHING DO?
It takes on the functions of both the upper bushing and the lower bushing: it centers the tool in the upper region, guides it at the front head outlet and absorbs lateral loads to reduce wear on the tool and body.
Other names used for this part include combine bushing.
INSTALLATION AND MAINTENANCE NOTES
- Check the tool's lateral play regularly; increasing play is the first sign of bushing wear.
- If the play exceeds the wear limit in your manual, replace the bushing and the seal kit together; replacing only the seal is a temporary fix.
Detailed guide: Bushing wear: why seal replacement alone fails
WHAT IS INCLUDED?
Quantity: 1 combined bushing (upper and lower bushing in one piece). If you also need a seal kit, contact our sales team.
Frequently Asked Questions
Q: What is the OEM part number of this part?
A: OEM part number: 3315 2779 80. You can compare it with the number in your breaker's parts catalog or on the removed part. If your number is different, contact us and we will check for an equivalent.
Q: Does this combined bushing fit my Atlas Copco SBC410IIS breaker?
A: It is manufactured for the Atlas Copco SBC410IIS. The same model may have been built with different designs in different production years or housing types, so please compare the outer diameter and length with your existing bushing and check the OEM part number (3315 2779 80) against your breaker's parts catalog before ordering.
Q: Which bushings does a combined bushing consist of?
A: A combined bushing is a single piece that combines the upper bushing and the lower bushing in one body, so you do not need to order these two bushings separately. Compare the dimensions with your existing part.
Q: When should the combined bushing be replaced?
A: When the tool's lateral play exceeds the wear limit in your breaker's manual. If the breaker leaks oil at the tool end, measure the play first: above the limit, replace the bushing and the seal kit together; below the limit, replacing only the seal kit is enough. The limit depends on the model, so check your manual or send us the model code.
Q: What other names are used for the combined bushing?
A: Other names used for this part include combine bushing.
Q: What if the part in my breaker does not match these dimensions?
A: Send the dimensions or the technical drawing of your current part to sales@hkm.com.tr. We will identify the right part with you and, if needed, manufacture it to your drawing.
Q: Is shipping included in the price?
A: No, shipping is not included in our prices. Please contact our sales team for the best delivery option to your location.
Not sure which bushing fits?
Send us your breaker's brand and model, the OEM part number if you have it, the dimensions of your current part or its technical drawing, and we will prepare the matching part and a quote. We can manufacture to your drawing. We ship spare parts to more than 70 countries.
Atlas Copco and the model names shown are trademarks of their respective owners and are used only to indicate compatibility. OEM part numbers are given for reference only.
