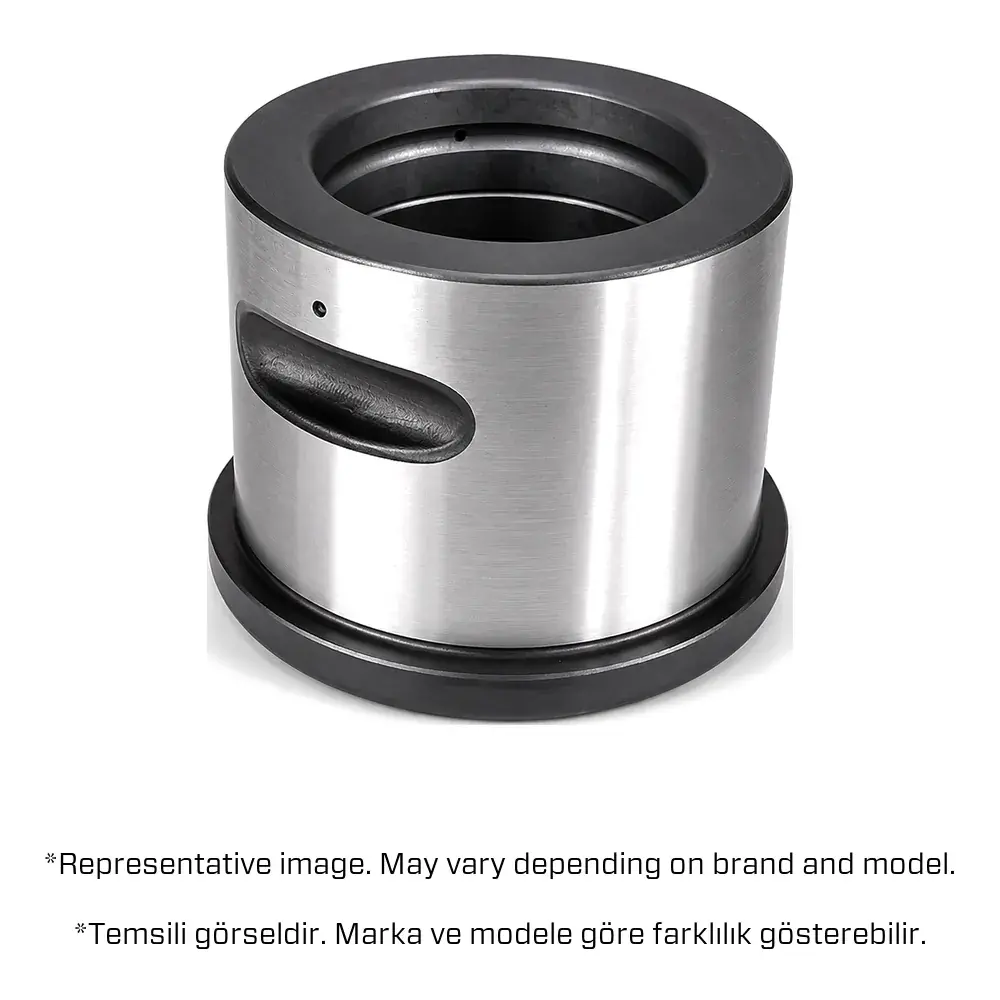

Komatsu JTHB230 Shank Bushing
Aftermarket shank bushing in OEM quality for the Komatsu JTHB230 hydraulic breaker (Ø180.04 x 216 mm). Together with the lower bushing it helps keep the tool on axis, absorbs lateral loads and reduces wear on the tool and body. Precision-machined from wear-resistant, heat-treated steel. Bushing dimensions can differ even within the same model depending on production year and housing type, so compare them with your existing bushing before ordering.
Specifications:
Outer Diameter (max.): 180.04 mm
Length: 216 mm
Weight: 14.94 kg
Prices are visible to partners
Sign in to see partner pricing and order online, or request a quotation for this product.
Komatsu JTHB230 Hydraulic Breaker Shank Bushing
The Komatsu JTHB230 shank bushing is a separate wear part, used in some breakers, that guides the tool inside the front head together with the lower bushing. It is manufactured as an aftermarket replacement part for Komatsu JTHB230 hydraulic breakers. It is precision-machined from wear-resistant, heat-treated steel.
TECHNICAL SPECIFICATIONS
| Compatible Brand | Komatsu |
| Compatible Model | JTHB230 |
| Part Type | Shank bushing |
| Outer Diameter (max.) | 180.04 mm |
| Length | 216 mm |
| Weight | 14.94 kg |
| Material | Wear-resistant, heat-treated steel |
Before ordering, compare the dimensions of your existing part with these values.
Important: design differences by model and production year
Bushing designs vary by brand and model, and even by the production year of the same model and by whether the breaker is a silenced (box type) or tunnel type unit. Two breakers with the same model name can use bushings of different size and shape.
If you send the technical drawing of your part to sales@hkm.com.tr, we can manufacture it to your drawing.
FEATURES
- Wear-resistant, heat-treated steel
- Precise bore for accurate tool guidance
- Made to OEM dimensions
- Long-lasting surface quality
- Produced with bore tolerance, hardness and surface quality control
WHAT DOES A SHANK BUSHING DO?
Together with the lower bushing it helps keep the tool on axis, absorbs lateral loads and reduces wear on the tool and body. Where it is used, it is a separate part from the lower bushing.
INSTALLATION AND MAINTENANCE NOTES
- Check the tool's lateral play regularly; increasing play is the first sign of bushing wear.
- If the play exceeds the wear limit in your manual, replace the bushing and the seal kit together; replacing only the seal is a temporary fix.
Detailed guide: Bushing wear: why seal replacement alone fails
WHAT IS INCLUDED?
Quantity: 1 shank bushing. If you also need a seal kit, contact our sales team.
Frequently Asked Questions
Q: Does this shank bushing fit my Komatsu JTHB230 breaker?
A: It is manufactured for the Komatsu JTHB230. The same model may have been built with different designs in different production years or housing types, so please compare the outer diameter and length with your existing bushing, or send us the OEM part number before ordering.
Q: When should the shank bushing be replaced?
A: Increasing lateral play of the tool is the first sign of bushing wear. On some breakers that use a shank bushing, the manufacturer requires it to be replaced together with the lower bushing; check your breaker's manual.
Q: Is the shank bushing the same part as the lower bushing?
A: No. Where it is used, the shank bushing is a separate part from the lower bushing and has different dimensions. Check it whenever you replace the lower bushing.
Q: What if the part in my breaker does not match these dimensions?
A: Send the dimensions or the technical drawing of your current part to sales@hkm.com.tr. We will identify the right part with you and, if needed, manufacture it to your drawing.
Q: Is shipping included in the price?
A: No, shipping is not included in our prices. Please contact our sales team for the best delivery option to your location.
Not sure which bushing fits?
Send us your breaker's brand and model, the OEM part number if you have it, the dimensions of your current part or its technical drawing, and we will prepare the matching part and a quote. We can manufacture to your drawing. We ship spare parts to more than 70 countries.
Komatsu and the model names shown are trademarks of their respective owners and are used only to indicate compatibility.
