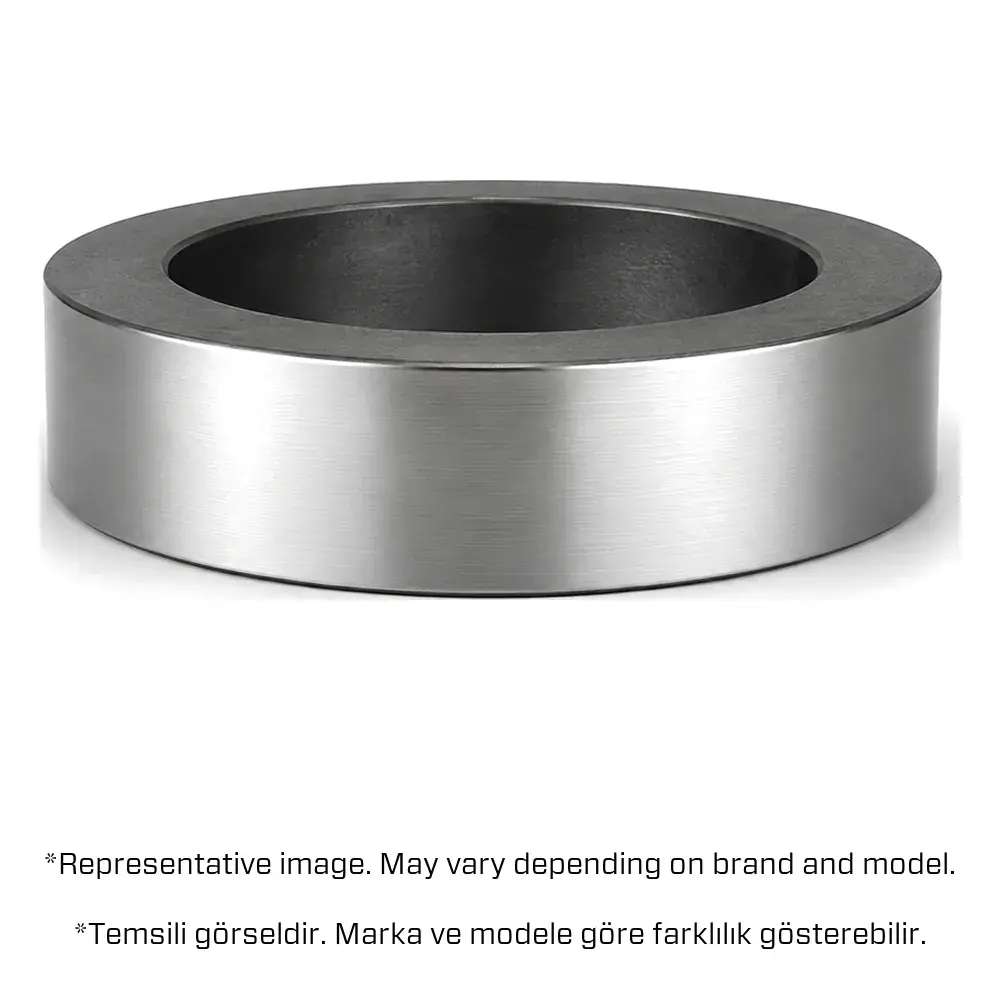

Soosan SB150 Thrust Bushing
Aftermarket thrust bushing in OEM quality for the Soosan SB150 hydraulic breaker (Ø214 x 70 mm). It absorbs the tool's recoil and axial loads and distributes the load over the retaining pin area and the body to reduce wear. Precision-machined from wear-resistant, heat-treated steel. Bushing dimensions can differ even within the same model depending on production year and housing type, so compare them with your existing bushing before ordering.
Specifications:
Outer Diameter (max.): 214 mm
Length: 70 mm
Weight: 10.36 kg
Prices are visible to partners
Sign in to see partner pricing and order online, or request a quotation for this product.
Soosan SB150 Hydraulic Breaker Thrust Bushing
The Soosan SB150 thrust bushing is a precision-machined wear part inside the front head that absorbs and distributes the tool's axial (thrust) loads. It is manufactured as an aftermarket replacement part for Soosan SB150 hydraulic breakers. It is precision-machined from wear-resistant, heat-treated steel.
TECHNICAL SPECIFICATIONS
| Compatible Brand | Soosan |
| Compatible Model | SB150 |
| Part Type | Thrust bushing |
| Outer Diameter (max.) | 214 mm |
| Length | 70 mm |
| Weight | 10.36 kg |
| Material | Wear-resistant, heat-treated steel |
Before ordering, compare the dimensions of your existing part with these values.
Important: design differences by model and production year

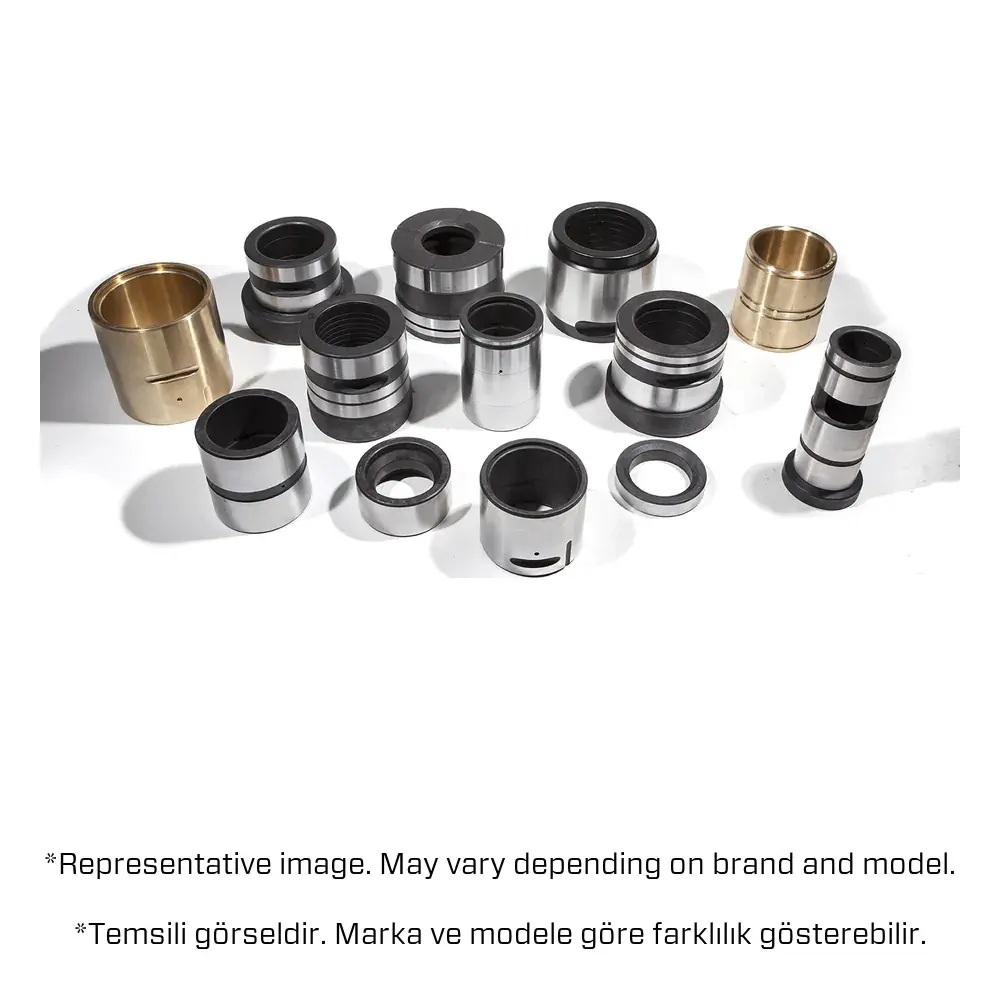

Bushing designs vary by brand and model, and even by the production year of the same model and by whether the breaker is a silenced (box type) or tunnel type unit. Two breakers with the same model name can use bushings of different size and shape.
If you send the technical drawing of your part to sales@hkm.com.tr, we can manufacture it to your drawing.
FEATURES
- High surface hardness (heat treated)
- Precise geometry that distributes axial loads
- Durability that protects the retaining pin area
- Made to OEM dimensions
- Produced to withstand axial load with hardness and geometry control
WHAT DOES A THRUST BUSHING DO?
It absorbs the tool's recoil and axial loads and distributes the load over the retaining pin area and the body to reduce wear. High surface hardness and accurate geometry safely carry the loads around the retaining pin area.
Other names used for this part include thrust ring and impact ring.
INSTALLATION AND MAINTENANCE NOTES
- Avoid blank firing; it damages the thrust bushing and the diaphragm.
- At every service check, evaluate the thrust bushing together with the retaining pin area.

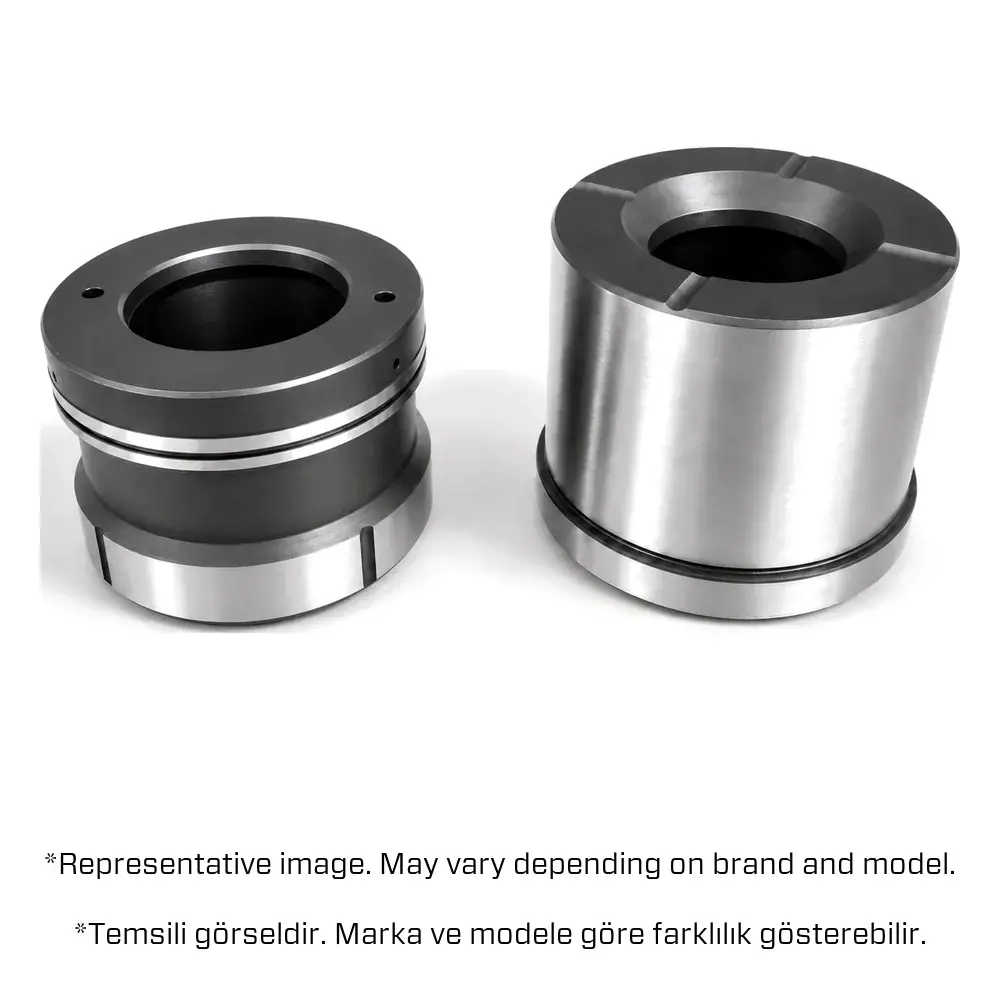

- The lower bushing and the thrust bushing work together; when one reaches its wear limit, check the other as well.
Detailed guide: Bushing wear: why seal replacement alone fails
WHAT IS INCLUDED?
Quantity: 1 thrust bushing. If you also need a seal kit, contact our sales team.
Frequently Asked Questions
Q: Does this thrust bushing fit my Soosan SB150 breaker?
A: It is manufactured for the Soosan SB150. The same model may have been built with different designs in different production years or housing types, so please compare the outer diameter and length with your existing bushing, or send us the OEM part number before ordering.
Q: When should the thrust bushing be checked?
A: At every service check. Blank firing sends the impact energy back into the body and the bushings, and the thrust bushing and diaphragm are among the parts it damages.
Q: What other names are used for the thrust bushing?
A: Other names used for this part include thrust ring and impact ring.
Q: What if the part in my breaker does not match these dimensions?
A: Send the dimensions or the technical drawing of your current part to sales@hkm.com.tr. We will identify the right part with you and, if needed, manufacture it to your drawing.
Q: Is shipping included in the price?
A: No, shipping is not included in our prices. Please contact our sales team for the best delivery option to your location.
Not sure which bushing fits?
Send us your breaker's brand and model, the OEM part number if you have it, the dimensions of your current part or its technical drawing, and we will prepare the matching part and a quote. We can manufacture to your drawing. We ship spare parts to more than 70 countries.
Soosan and the model names shown are trademarks of their respective owners and are used only to indicate compatibility.
