Wimmer WH5 Hard Rock Blunt ToolWimmer WH5 Hard Rock Blunt Tool - 2Wimmer WH5 Hard Rock Blunt Tool - 3
Brand:WimmerModel:WH5HKM code:221317944

Wimmer WH5 Hard Rock Blunt Tool

  • Breaker: Wimmer WH5
  • Tool type: Hard rock blunt tool
  • Diameter: 70 mm
  • Length: 680 mm
  • Weight: 20 kg
  • Material: OEM quality, heat-treated alloy steel
  • Delivery: fast delivery from stock or made in 5 working days

Other breaker models using a Ø70 x 680 mm tool

Prices are visible to partners

Sign in to see partner pricing and order online.

We usually reply within 1 business day.

Ask on WhatsApp
How to order from abroad

Order online (partners)

  1. Apply as a partner.
  2. Once we approve your account, partner prices appear on the site.
  3. Add products to your cart and pay securely by credit card or bank transfer.
  4. Our sales team contacts you about the shipping method and cost.

Request a quote

  1. Send a quote request.
  2. We email the price (EXW Istanbul), stock and lead time, usually within 1 business day.
  3. On approval: proforma invoice and payment by bank transfer (USD or EUR).
  4. Shipping by weight: DHL Express, air freight or road/sea freight.

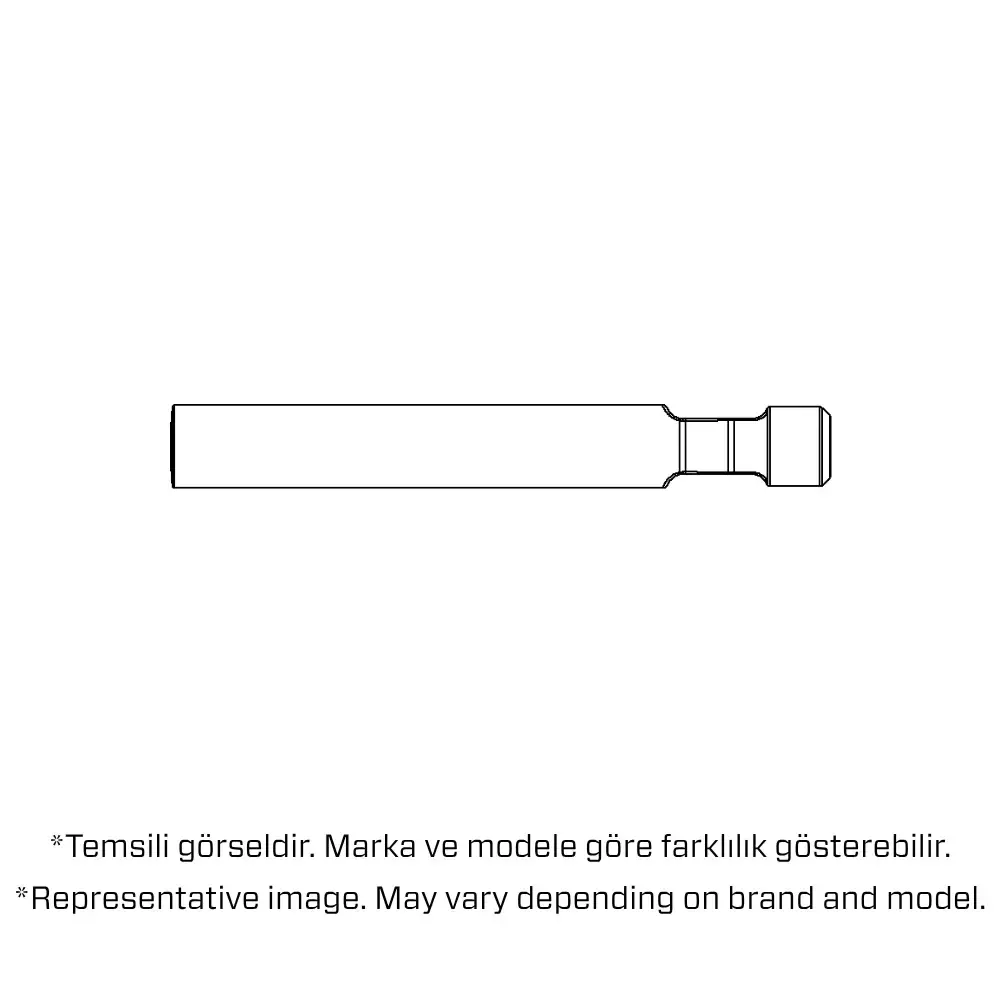

*Representative image. May vary depending on brand and model.

Hard rock blunt tool for the Wimmer WH5 hydraulic breaker: Ø70 mm diameter, 680 mm length, 20 kg. OEM quality, made from heat-treated alloy steel; fast delivery from stock or made in 5 working days.

Technical Data

Breaker Brand / ModelWimmer WH5
Tool TypeBlunt Tool
OptionHard Rock
Diameter70 mm
Overall Length680 mm
Weight20 kg
MaterialHigh-nickel alloy steel, special hardening
Product Code221317944
DeliveryFast delivery from stock or made in 5 working days

Where Is a Blunt Tool Used?

Blunt tools are designed to channel the full impact energy of the breaker straight into the toughest materials. They are built for maximum energy transfer and durability.

  • Primary demolition
  • Secondary demolition
  • Secondary breaking
  • Boom mounted applications
  • Tunneling

According to the material table in our manual, it is recommended for large block breaking, crystalline rock such as granite and gabbro, and recycling of demolition debris.

The hard rock version is made from a high-nickel alloy and goes through a special hardening process. It withstands extreme impact forces and abrasive rock, and is the preferred choice for heavy quarrying and mining.

Correct Use: Three Rules

  • Work perpendicular. Keep the breaker at a right angle to the surface and avoid side loads. Angled pushing wears the bushings and moves the piston off the tool axis.
  • Do not pry. Rocking the tool like a lever before it is fully seated, or rotating the breaker while the tool is embedded, is the most common cause of tool breakage.
  • Do not blank fire. If the breaker strikes without the tool touching the surface, all the energy goes into the retaining pins and the tool's pin slots; pins break and slots are destroyed.

Breakage caused by ignoring these rules is not covered by the warranty. See our tool selection guide, the tool use section and the Tool User Manual and Warranty Terms.

Other Tool Types for Wimmer WH5

Tool Type and SizeOptions
Moil Point ToolØ70 x 680 mmStandard · Dust Grooved · Hard Rock · Dust Grooved + Hard Rock
Chisel ToolØ70 x 680 mmStandard · Dust Grooved · Hard Rock · Dust Grooved + Hard Rock
Pyramid ToolØ70 x 680 mmStandard · Dust Grooved · Hard Rock · Dust Grooved + Hard Rock
Blunt ToolØ70 x 680 mmStandard · Hard Rock (this page)

Wide chisel, tarmac cutter and driving tools are made to order; if you need one of these for your Wimmer WH5, write to sales@hkm.com.tr.

Manufacturing, Delivery and Warranty

HKM manufactures this tool to OEM quality from heat-treated alloy steel. Tools in stock ship quickly; if not in stock, the tool is made in 5 working days. Transport time is added depending on the method (road, air, sea).

Tools are warranted against manufacturing defects only; breakage caused by improper use is not covered.

Frequently Asked Questions

Q: What are the dimensions of the Wimmer WH5 hard rock blunt tool?

A: The Wimmer WH5 hard rock blunt tool is made for the Wimmer WH5 hydraulic breaker: diameter 70 mm, overall length 680 mm, weight 20 kg. Just state your breaker brand and model when you order.

Q: Will another tool with the same diameter and length fit my Wimmer WH5?

A: Not always. The position and shape of the retaining pin slot change with brand and model; a tool with the same diameter and length may not fit. This tool is made to the slot dimensions of the Wimmer WH5.

Q: What is the Wimmer WH5 hard rock blunt tool used for?

A: The Wimmer WH5 hard rock blunt tool is mainly used for: primary demolition, secondary demolition, secondary breaking, boom mounted applications, tunneling. According to the material table in our manual, it is recommended for large block breaking, crystalline rock such as granite and gabbro, and recycling of demolition debris.

Q: When should I choose a hard rock blunt tool for the Wimmer WH5?

A: The hard rock version is made from a high-nickel alloy and goes through a special hardening process. It withstands extreme impact forces and abrasive rock, and is the preferred choice for heavy quarrying and mining. For general demolition and construction the standard tool is enough.

Q: Which other tool types are available for the Wimmer WH5?

A: We make 14 different tools for the Wimmer WH5: moil point tools, chisel tools, pyramid tools, blunt tools, with dust grooved and hard rock options. You can reach all of them from the Other Tool Types table on this page.

Q: How long is the delivery time for the Wimmer WH5 hard rock blunt tool?

A: If the Wimmer WH5 hard rock blunt tool is in stock, it ships quickly. If not, it is made in 5 working days; transport time is added depending on the shipping method.

Q: Is the Wimmer WH5 hard rock blunt tool covered by warranty?

A: Like all HKM breaker tools, the Wimmer WH5 hard rock blunt tool is warranted against manufacturing defects only. The fracture surface is examined; if the fracture started from a flaw inside the material, the tool is covered. Breakage from prying, blank firing, rotating the embedded tool or working with worn bushings is not covered.

Q: What shortens the life of the Wimmer WH5 hard rock blunt tool the most?

A: Prying before the tool is fully seated, blank firing, striking one spot for too long, insufficient or wrong grease, and working with worn bushings.

Q: What else should I check when I change the tool on my Wimmer WH5?

A: Compare the inner diameters of the lower and upper bushings and the thrust bushing surface with the tolerances in your breaker's service manual. Worn bushings move the tool and piston off axis.

Q: What other names is the Wimmer WH5 hard rock blunt tool known by?

A: It is also called “blunt”, “flat end”, “blunt point”. Breaker tools in general are also known as breaker chisels, working tools or hammer tools.

Product Information

Weight (kg)
20
Dimensions
70x680x70 mm
Warranty
Please review the Tool User Manual and Warranty Terms document on this page. HKM breaker tools are warranted against manufacturing defects only. If a tool breaks, the fracture surface is examined; if the fracture started from a flaw inside the material, the tool is covered by the warranty. Damage caused by improper use is not covered: prying before the tool is fully seated, blank firing, rotating or side-loading the breaker while the tool is embedded, striking the surface with the tool using the boom, and working with worn bushings.
Delivery Information
Approx. 1 week
