Atlas Copco MB1600 Dust Grooved Moil Point Tool
- Breaker: Atlas Copco MB1600
- Tool type: Dust grooved moil point tool
- Diameter: 135 mm
- Length: 1142 mm
- Weight: 129 kg
- Material: OEM quality, heat-treated alloy steel
- Delivery: fast delivery from stock or made in 5 working days
Prices are visible to partners
Sign in to see partner pricing and order online.
Prices are visible to partnersPartner Login

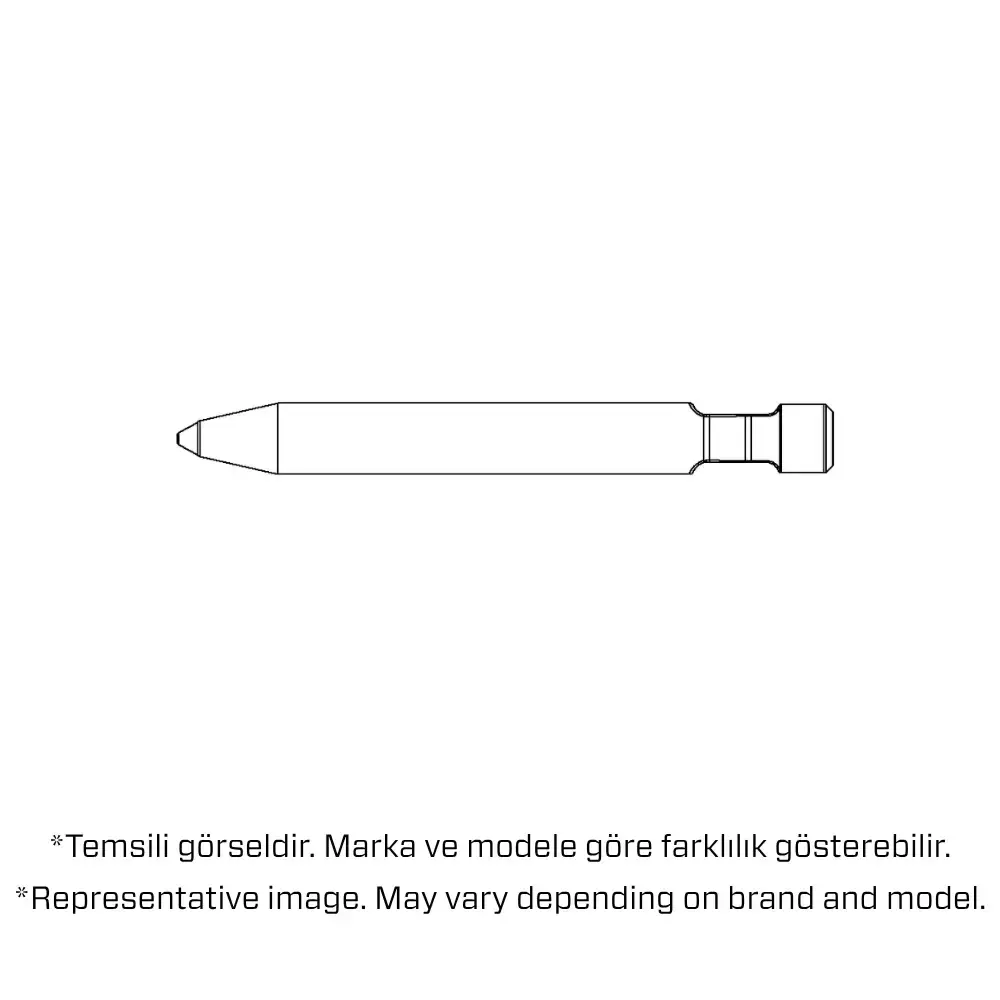

*Representative image. May vary depending on brand and model.
Dust grooved moil point tool for the Atlas Copco MB1600 hydraulic breaker: Ø135 mm diameter, 1142 mm length, 129 kg. OEM quality, made from heat-treated alloy steel; fast delivery from stock or made in 5 working days.
Technical Data
| Breaker Brand / Model | Atlas Copco MB1600 |
|---|---|
| Tool Type | Moil Point Tool |
| Option | Dust Grooved |
| Diameter | 135 mm |
| Overall Length | 1142 mm |
| Weight | 129 kg |
| Material | Heat-treated alloy steel |
| Product Code | 220265922 |
| Delivery | Fast delivery from stock or made in 5 working days |
Where Is a Moil Point Tool Used?
Moil point tools are made for loosely bound or easily separable materials. Their slender, tapered profile allows pinpoint tip placement, so each impact drives the tool into the material without deflection, with less chatter and slippage.
- Primary demolition
- Primary breaking
- Trenching
- Scaling
- Recycling
According to the material table in our manual, it is recommended for non-reinforced concrete slabs, walls and foundations, and for lightly fractured or massive sedimentary rock (limestone, sandstone).
The dust grooves guide dust and fine particles away from the breaking zone. Visibility and precision improve, tool wear and heat build-up drop, and the tool keeps its performance longer.
Correct Use: Three Rules
- Work perpendicular. Keep the breaker at a right angle to the surface and avoid side loads. Angled pushing wears the bushings and moves the piston off the tool axis.
- Do not pry. Rocking the tool like a lever before it is fully seated, or rotating the breaker while the tool is embedded, is the most common cause of tool breakage.
- Do not blank fire. If the breaker strikes without the tool touching the surface, all the energy goes into the retaining pins and the tool's pin slots; pins break and slots are destroyed.
Breakage caused by ignoring these rules is not covered by the warranty. See our tool selection guide, the tool use section and the Tool User Manual and Warranty Terms.
Other Tool Types for Atlas Copco MB1600
| Tool Type and Size | Options |
|---|---|
| Moil Point ToolØ135 x 1142 mm | Standard · Dust Grooved (this page) · Hard Rock · Dust Grooved + Hard Rock |
| Chisel ToolØ135 x 1142 mm | Standard · Dust Grooved · Hard Rock · Dust Grooved + Hard Rock |
| Pyramid ToolØ135 x 1142 mm | Standard · Dust Grooved · Hard Rock · Dust Grooved + Hard Rock |
| Blunt ToolØ135 x 950 mm | Standard · Hard Rock |
Wide chisel, tarmac cutter and driving tools are made to order; if you need one of these for your Atlas Copco MB1600, write to sales@hkm.com.tr.
Atlas Copco MB1600 Spare Parts
Check the bushings when you change the tool: worn lower and upper bushings can break both the tool and the piston.
- Atlas Copco MB1600 Lower Bushing
- Atlas Copco MB1600 Upper Bushing
- Atlas Copco MB1600 Thrust Bushing
- Atlas Copco MB1600 Retaining Pin
- Atlas Copco MB1600 Piston
- Atlas Copco MB1600 Tie Rod
- Atlas Copco MB1600 Diaphragm
- Atlas Copco MB1600 Front Head
- Atlas Copco MB1600 Seal Kit
For other Atlas Copco models see Atlas Copco tools and spare parts.
Manufacturing, Delivery and Warranty
HKM manufactures this tool to OEM quality from heat-treated alloy steel. Tools in stock ship quickly; if not in stock, the tool is made in 5 working days. Transport time is added depending on the method (road, air, sea).
Tools are warranted against manufacturing defects only; breakage caused by improper use is not covered.
Frequently Asked Questions
Q: What are the dimensions of the Atlas Copco MB1600 dust grooved moil point tool?
A: The Atlas Copco MB1600 dust grooved moil point tool is made for the Atlas Copco MB1600 hydraulic breaker: diameter 135 mm, overall length 1142 mm, weight 129 kg. Just state your breaker brand and model when you order.
Q: Will another tool with the same diameter and length fit my Atlas Copco MB1600?
A: Not always. The position and shape of the retaining pin slot change with brand and model; a tool with the same diameter and length may not fit. This tool is made to the slot dimensions of the Atlas Copco MB1600.
Q: What is the Atlas Copco MB1600 dust grooved moil point tool used for?
A: The Atlas Copco MB1600 dust grooved moil point tool is mainly used for: primary demolition, primary breaking, trenching, scaling, recycling. According to the material table in our manual, it is recommended for non-reinforced concrete slabs, walls and foundations, and for lightly fractured or massive sedimentary rock (limestone, sandstone).
Q: What do the dust grooves on the Atlas Copco MB1600 dust grooved moil point tool do?
A: The dust grooves guide dust and fine particles away from the breaking zone. Visibility and precision improve, tool wear and heat build-up drop, and the tool keeps its performance longer.
Q: Which other tool types are available for the Atlas Copco MB1600?
A: We make 14 different tools for the Atlas Copco MB1600: moil point tools, chisel tools, pyramid tools, blunt tools, with dust grooved and hard rock options. You can reach all of them from the Other Tool Types table on this page.
Q: How long is the delivery time for the Atlas Copco MB1600 dust grooved moil point tool?
A: If the Atlas Copco MB1600 dust grooved moil point tool is in stock, it ships quickly. If not, it is made in 5 working days; transport time is added depending on the shipping method.
Q: Is the Atlas Copco MB1600 dust grooved moil point tool covered by warranty?
A: Like all HKM breaker tools, the Atlas Copco MB1600 dust grooved moil point tool is warranted against manufacturing defects only. The fracture surface is examined; if the fracture started from a flaw inside the material, the tool is covered. Breakage from prying, blank firing, rotating the embedded tool or working with worn bushings is not covered.
Q: What shortens the life of the Atlas Copco MB1600 dust grooved moil point tool the most?
A: Prying before the tool is fully seated, blank firing, striking one spot for too long, insufficient or wrong grease, and working with worn bushings.
Q: What else should I check when I change the tool on my Atlas Copco MB1600?
A: Compare the inner diameters of the lower and upper bushings and the thrust bushing surface with the tolerances in your breaker's service manual. Worn bushings move the tool and piston off axis. The Atlas Copco MB1600 bushings are listed in the Spare Parts section on this page.
Q: What other names is the Atlas Copco MB1600 dust grooved moil point tool known by?
A: It is also called “moil”, “moil point”, “moil tool”. Atlas Copco documents use “conical moil point”, “working tool”. Breaker tools in general are also known as breaker chisels, working tools or hammer tools.
Product Information
- Weight (kg)
- 129
- Dimensions
- 135x1142x135 cm
- Warranty
- Please review the Tool User Manual and Warranty Terms document on this page. HKM breaker tools are warranted against manufacturing defects only. If a tool breaks, the fracture surface is examined; if the fracture started from a flaw inside the material, the tool is covered by the warranty. Damage caused by improper use is not covered: prying before the tool is fully seated, blank firing, rotating or side-loading the breaker while the tool is embedded, striking the surface with the tool using the boom, and working with worn bushings.
- Delivery Information
- Delivery time is 7 business days for orders within Turkiye. For orders outside Turkiye, the transport time will be added. But for the products that we have in stock, the delivery time will be shortened significantly. For more information; contact sales@hkm.com.tr
