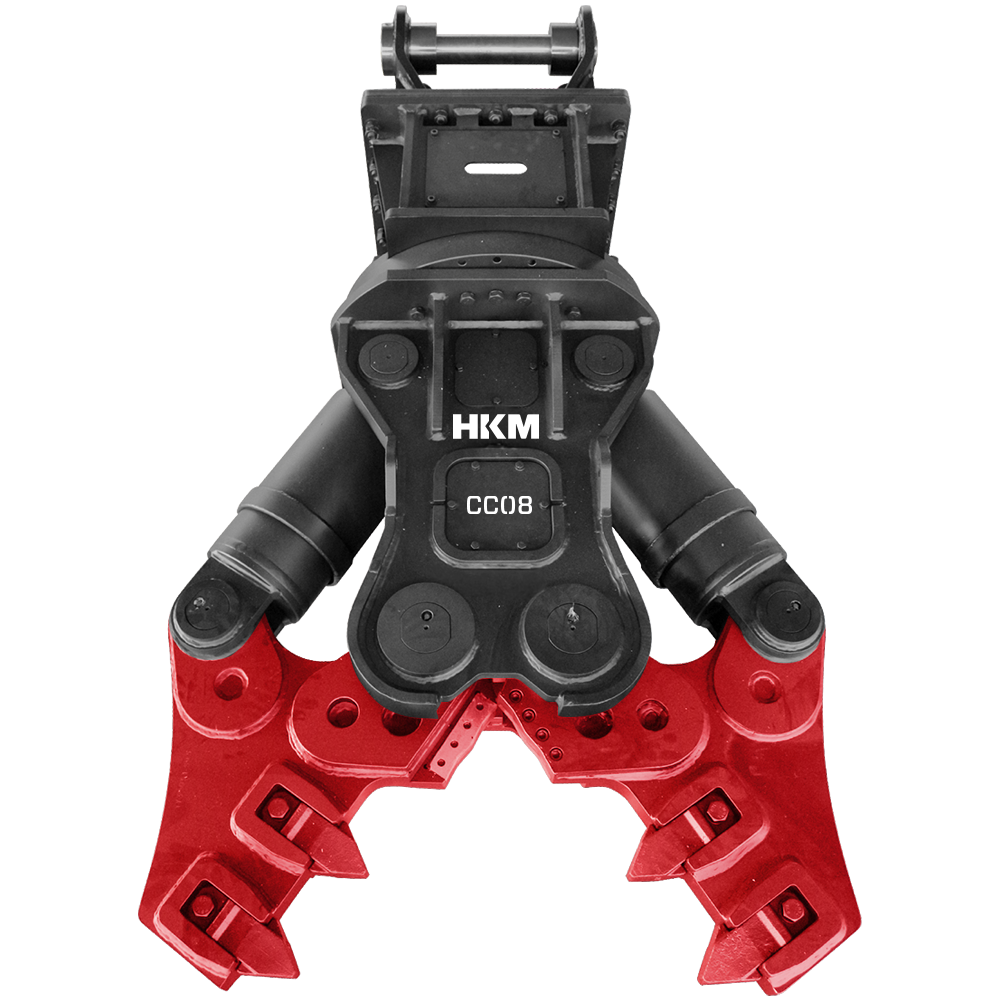

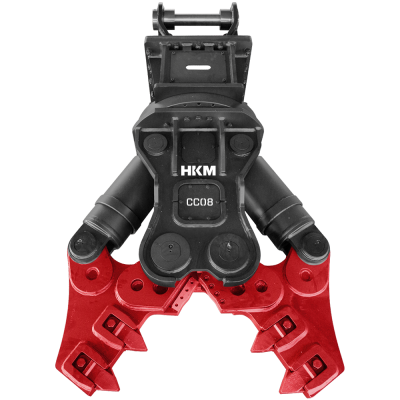

HKM CC08
Concrete Cutter
The HKM CC08 Concrete Cutter is a compact and effective solution for 6–9 ton class excavators. With a 390 mm jaw opening, 50-ton cutting force, and 20-ton crushing power, it ensures precision in light demolition and concrete trimming tasks. Weighing 360 kg, operating at 250 bar pressure with a 5.5-second cycle, it's the perfect fit for urban and repair projects.
Campaign
HKM CONCRETE CUTTERS – CC08
HKM CC08 Concrete Cutter is a compact cutting attachment designed for 6–9 ton excavators. With 250 bar operating pressure, 120 L/min oil flow, and an operating weight of just 360 kg, it offers excellent performance in urban construction and confined job sites. Its 390 mm jaw opening allows for controlled cutting of reinforced concrete, bricks, and asphalt blocks with minimal effort.
Despite its size, the CC08 delivers fast operation with a 5.5-second stroke cycle. Durable blades and a sealed body make it a low-maintenance, operator-friendly solution for light demolition, repairs, and infrastructure work.
Benefits
- Speed & Efficiency: Fast stroke open/close cycle times and powerful cutting reduce project durations.
- Cost Savings: Low maintenance and durable components cut repair and replacement expenses.
- Versatility: From heavy demolition to fine-tuning repairs, handles a broad range of concrete tasks.
- Operator Comfort: Optimized hydraulic controls minimize vibration and operator fatigue.
- Safety & Precision: Controlled cuts reduce collateral damage to adjacent structure.
Application Areas
- Industrial Demolition: Precision cutting of slabs, beams and walls in heavy-duty structures
- Infrastructure Works: Trenching, manhole entry, bridge abutment and barrier footing preparation
- Road & Rail Maintenance: Cutting concrete pavement joints, barrier installation and track base removal
- Repair & Retrofit: Targeted cutting for patch repairs, expansion joint creation and partial removal of damaged sections
- Modular Construction: On-site trimming of precast panels, block removal and custom penetration cutting
Key Features
- High-Pressure Hydraulic System
- Rapid Open/Close Cycle
- Wear-Resistant Alloy Blades
- Stroke Opening
- Sealed, Low-Maintenance Design
- Smooth Rotation
TECHNICAL SPECIFICATIONS
| Carrier Weight (ton) | 6–9 |
| Operating Weight (kg) | 360 |
| Operating Pressure (bar) | 250 |
| Oil Flow (l/min) | 120 |
| Open/Close Cycle (secs) | 5.50 |
| Opening A (mm) | 390 |
| Blade Length D (mm) | 100 |
| Height B (mm) | 1280 |
| Width C (mm) | 850 |
| Crushing Force b (ton) | 20 |
| Cutting Force a (ton) | 50 |
| Rotation Diameter (mm) | 360 |
