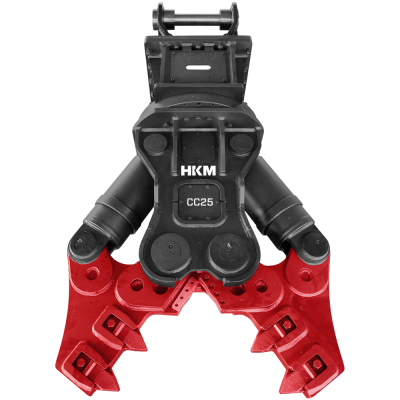

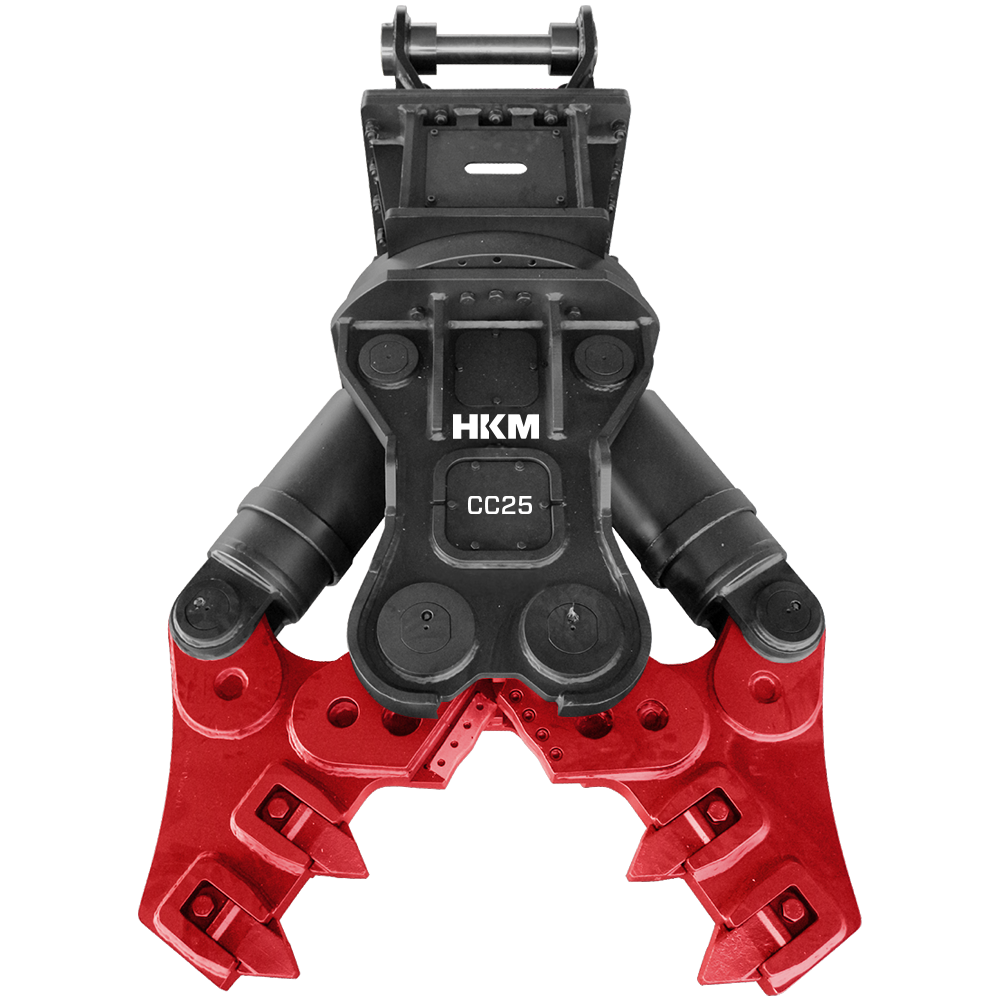

HKM CC25
Concrete Cutter
The HKM CC25 Concrete Cutter is a heavy-duty model built for 25–40 ton excavators. With a 900 mm jaw opening, 260-ton cutting force, and 120-ton crushing strength, it handles reinforced concrete with ease. Weighing 2320 kg, operating under 300 bar pressure with a 3.0-second stroke cycle, it excels in infrastructure, roadwork, and industrial demolition projects.
Campaign
HKM CONCRETE CUTTERS – CC25
HKM CC25 Concrete Cutter is a heavy-duty attachment designed for 25–40 ton excavators. With 300 bar operating pressure, 250 L/min oil flow, and a robust weight of 2320 kg, it delivers powerful and consistent performance even in dense structural concrete. A wide jaw opening of 900 mm enables fast, precise cutting of large structural elements with ease.
With a stroke cycle of just 3.0 seconds, the CC25 maximizes job site productivity. Its reinforced blades and impressive crushing and cutting forces make it ideal for infrastructure works, road maintenance, and demanding demolition environments.
Benefits
- Speed & Efficiency: Fast stroke open/close cycle times and powerful cutting reduce project durations.
- Cost Savings: Low maintenance and durable components cut repair and replacement expenses.
- Versatility: From heavy demolition to fine-tuning repairs, handles a broad range of concrete tasks.
- Operator Comfort: Optimized hydraulic controls minimize vibration and operator fatigue.
- Safety & Precision: Controlled cuts reduce collateral damage to adjacent structure.
Application Areas
- Industrial Demolition: Precision cutting of slabs, beams and walls in heavy-duty structures
- Infrastructure Works: Trenching, manhole entry, bridge abutment and barrier footing preparation
- Road & Rail Maintenance: Cutting concrete pavement joints, barrier installation and track base removal
- Repair & Retrofit: Targeted cutting for patch repairs, expansion joint creation and partial removal of damaged sections
- Modular Construction: On-site trimming of precast panels, block removal and custom penetration cutting
Key Features
- High-Pressure Hydraulic System
- Rapid Open/Close Cycle
- Wear-Resistant Alloy Blades
- Stroke Opening
- Sealed, Low-Maintenance Design
- Smooth Rotation
TECHNICAL SPECIFICATIONS
| Carrier Weight (ton) | 25–40 |
| Operating Weight (kg) | 2320 |
| Operating Pressure (bar) | 300 |
| Oil Flow (l/min) | 250 |
| Open/Close Cycle (secs) | 3.00 |
| Opening A (mm) | 900 |
| Blade Length D (mm) | 180 |
| Height B (mm) | 2120 |
| Width C (mm) | 1500 |
| Crushing Force b (ton) | 120 |
| Cutting Force a (ton) | 260 |
| Rotation Diameter (mm) | 752 |
