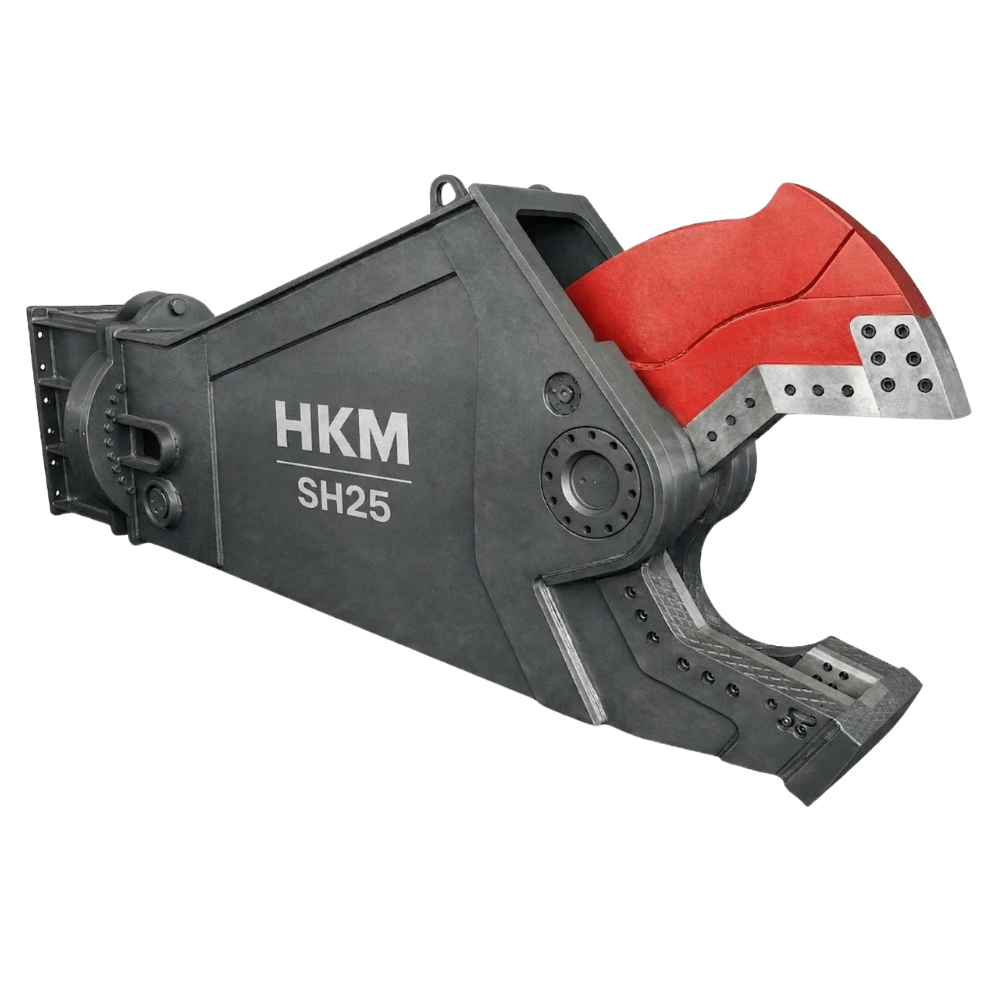

HKM SH25 Hydraulic Shear
Professional scrap and demolition shear designed for 20-28 ton excavators. Features 360° hydraulic rotation, a 2450 kg operating weight, and a replaceable blade system for maximum efficiency in steel structure demolition and scrap metal processing. Its reinforced body and integrated speed valve ensure continuous performance in tough job site conditions.
Prices are visible to partners
Sign in to see partner pricing and order online.
Prices are visible to partnersPartner Login
Product Features & Benefits
HKM SH25 Hydraulic Shear (also known as Eagle Shear) is a heavy-duty demolition and scrap processing attachment designed for 20 to 28-ton excavators. With its reinforced body structure and specific jaw geometry, it delivers clean cuts and stable control on structural steel, beams, and mixed scrap metals.
- ✅ 360° Hydraulic Rotation: Allows the operator to instantly align jaws for the most efficient bite, reducing repositioning time.
- ✅ Straight Lower Jaw Geometry: Facilitates steel spreading along the jaw length to maximize effective cutting force.
- ✅ Speed Valve: Supports faster cycle performance for higher productivity throughout the day.
- ✅ Reverse Mounted Cylinder: The main cylinder is protected from impacts and debris, ensuring longer service life.
- ✅ Wear Resistance: Jaw and blade zones are designed with high-strength steel to withstand abrasive work.
- ✅ Service Friendly: Access-oriented grease points and interchangeable blades support easy routine maintenance.
Technical Specifications (HKM SH25)
| Spec | Unit | Values |
|---|---|---|
| Carrier Weight | ton | 20 - 28 |
| Operating Weight | kg | 2450 |
| Operating Pressure | bar | 280 - 320 |
| Oil Flow | l/min | 180 - 220 |
| Opening (A) | mm | 500 |
| Cutting Depth (B) | mm | 530 |
| Total Length | mm | 3030 |
| Rotation Pressure | bar | 100 - 115 |
| Rotation Oil Flow | l/min | 30 - 40 |
Application Areas
- Steel Structure Demolition: Cutting and dismantling beams, columns, and heavy steel assemblies.
- Scrap Metal Processing: Size reduction and preparation of mixed scrap for recycling.
- Heavy Equipment Dismantling: Processing truck bodies, frames, and industrial components.
- Industrial Demolition: Controlled cutting for safe removal in confined areas.
HKM SHEAR SET INCLUDES
- HKM SH25 Hydraulic Shear (Eagle Shear)
- Mounting Bracket (Pins Included)
- Hydraulic Connection Hoses
- User Manual & Warranty Certificate
FAQ (Frequently Asked Questions)
Q: Is the HKM SH25 compatible with my excavator?A: This model is compatible with all excavator brands and models (CAT, Komatsu, Volvo, Hitachi, etc.) in the 20 to 28-ton weight class.
Q: Are the blades replaceable?A: Yes, SH series eagle shears feature bolt-on, interchangeable blades. You can rotate the blades to use all 4 cutting edges before replacing them.
Q: Does it require extra hydraulic lines?A: Yes, you need a double-acting line (breaker/shear line) for the open/close function and a rotation line on your carrier for the 360° rotation feature.
Product Information
- Warranty
- Covered by a 1-year warranty. For more information; contact info@hkm.com.tr
- Delivery Information
- Delivery time is 25 business days. For more information; contact info@hkm.com.tr
