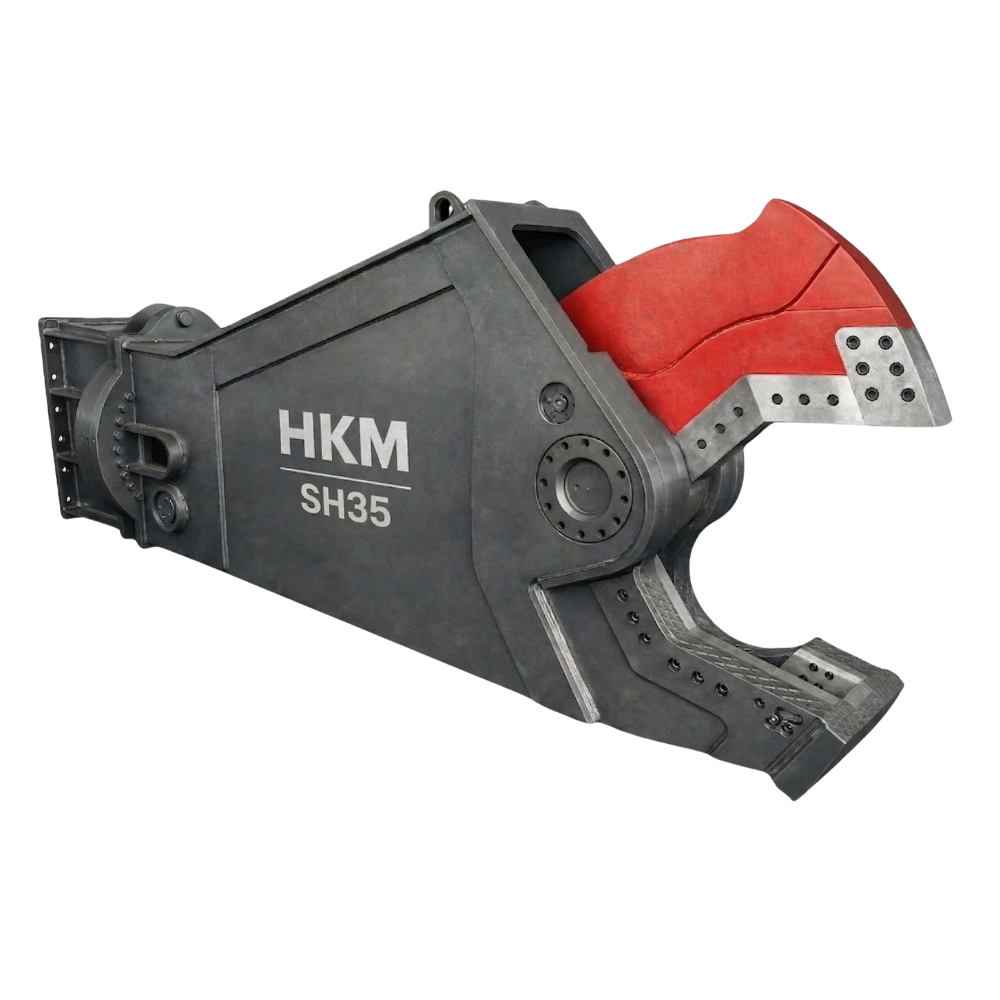

HKM SH35 Hydraulic Shear
High-capacity hydraulic scrap shear (Eagle Shear) engineered for 30-38 ton excavators. With 360° continuous hydraulic rotation, an operating weight of over 4000 kg, and an optimized hawkbill jaw design, it effortlessly cuts heavy steel beams, pipes, and industrial scrap. The ideal steel cutter solution for recycling yards and heavy demolition projects.
Prices are visible to partners
Sign in to see partner pricing and order online.
Prices are visible to partnersPartner Login
Product Features & Benefits
HKM SH35 Hydraulic Shear (often referred to as an Eagle Shear or Scrap Shear) is a robust demolition attachment designed for 30 to 38-ton excavators. It provides immense cutting power for processing I-beams, steel structures, and heavy scrap metal in recycling yards and demolition sites.
- ✅ 360° Hydraulic Rotation: Allows precise positioning for the "Steel Cutter" to grab material from any angle.
- ✅ Optimized Jaw Geometry: The hawkbill design ensures material is pulled into the throat for maximum cutting force.
- ✅ Speed Valve: Increases cycle speed for high-volume scrap processing.
- ✅ Protected Cylinder: Reverse-mounted cylinder design prevents damage during heavy demolition.
- ✅ Replaceable Blades: 4-way indexable blades reduce maintenance costs and downtime.
- ✅ Heavy Duty: Built with abrasion-resistant steel for long-lasting performance in scrap yards.
Technical Specifications (HKM SH35)
| Spec | Unit | Values |
|---|---|---|
| Carrier Weight | ton | 30 - 38 |
| Operating Weight | kg | 3800 / 4200 |
| Operating Pressure | bar | 300 - 320 |
| Oil Flow | l/min | 200 - 250 |
| Opening (A) | mm | 1400 |
| Cutting Depth (B) | mm | 630 |
| Total Length | mm | 3450 / 4600 |
| Rotation Pressure | bar | 100 - 115 |
| Rotation Oil Flow | l/min | 30 - 40 |
Application Areas
- Steel Structure Demolition: Cutting and dismantling beams, columns, and heavy steel assemblies.
- Scrap Metal Processing: Size reduction and preparation of mixed scrap for recycling.
- Heavy Equipment Dismantling: Processing truck bodies, frames, and industrial components.
HKM SHEAR SET INCLUDES
- HKM SH35 Hydraulic Shear (Eagle Shear)
- Mounting Bracket (Pins Included)
- Hydraulic Connection Hoses
- User Manual & Warranty Certificate
FAQ
Q: Is this a rotating shear?A: Yes, the SH35 features continuous 360° hydraulic rotation for precise positioning.
Q: Can it cut concrete?A: While it's powerful enough to crush concrete, it's designed specifically for cutting steel. We recommend our Pulverizers for concrete demolition to prolong the blade life of the shear.
Product Information
- Warranty
- Covered by a 1-year warranty. For more information; contact info@hkm.com.tr
- Delivery Information
- Delivery time is 25 business days. For more information; contact info@hkm.com.tr
