JCB HM380Chisel Tool
Part code: 218033910
Bobcat B700 Chisel Tool
- Breaker: Bobcat B700
- Tool type: Chisel tool
- Diameter: 50 mm
- Length: 510 mm
- Weight: 8 kg
- Material: OEM quality, heat-treated alloy steel
- Delivery: fast delivery from stock or made in 5 working days
Prices are visible to partners
Sign in to see partner pricing and order online.
Prices are visible to partnersPartner Login

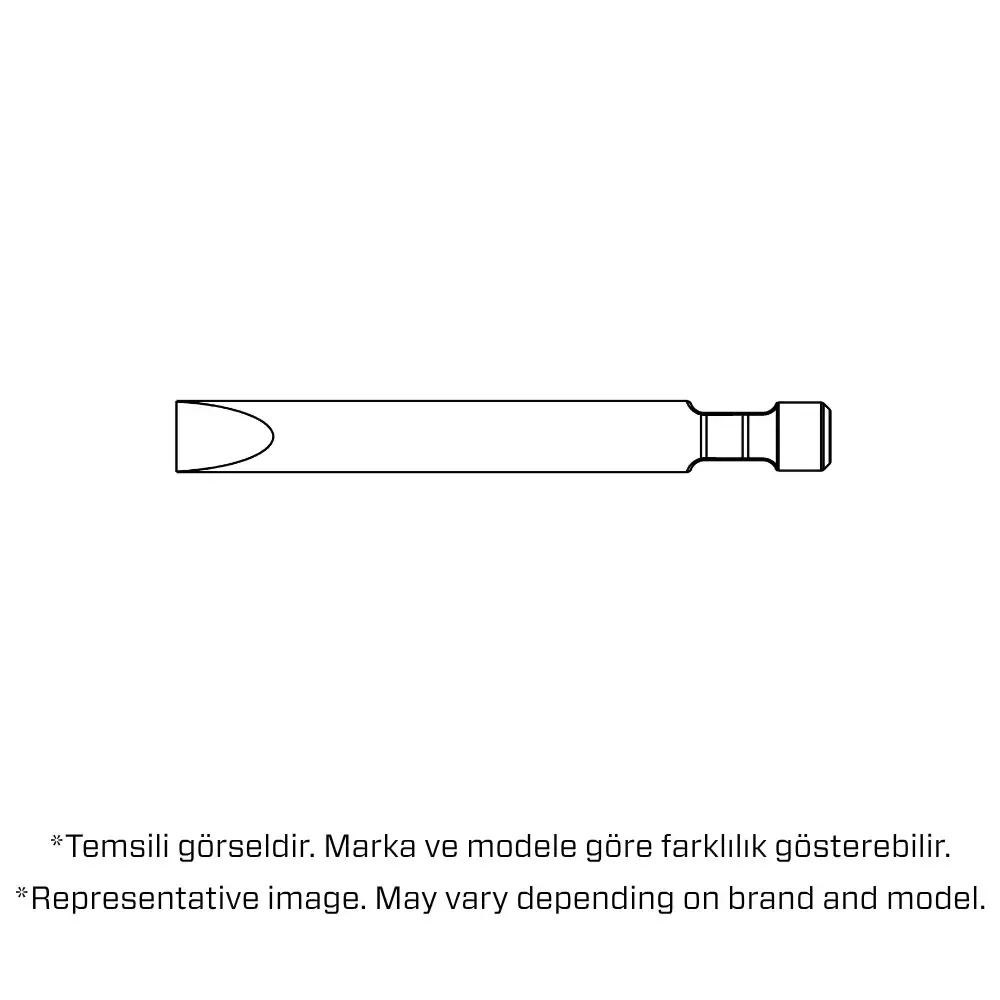

*Representative image. May vary depending on brand and model.
Chisel tool for the Bobcat B700 hydraulic breaker: Ø50 mm diameter, 510 mm length, 8 kg. OEM quality, made from heat-treated alloy steel; fast delivery from stock or made in 5 working days.
Technical Data
| Breaker Brand / Model | Bobcat B700 |
|---|---|
| Tool Type | Chisel Tool |
| Option | Standard |
| Diameter | 50 mm |
| Overall Length | 510 mm |
| Weight | 8 kg |
| Material | Heat-treated alloy steel |
| Product Code | 210325910 |
| Delivery | Fast delivery from stock or made in 5 working days |
Where Is a Chisel Tool Used?
Chisel tools are versatile, general-purpose tools that combine cutting action with controlled fracturing in medium-hard and veined materials. The sharpened edge penetrates reinforced concrete and hard rock easily.
- Primary demolition
- Secondary demolition
- Trenching
- Recycling
- Scaling
- Primary breaking
- Boom mounted applications
According to the material table in our manual, it is recommended for reinforced concrete slabs, walls, columns and foundations, heavily fractured rock, asphalt and frozen ground.
The standard tool is made for general demolition, construction and quarry work. In very hard and abrasive rock the hard rock version, and in dusty conditions the dust grooved version, lasts longer.
Correct Use: Three Rules
- Work perpendicular. Keep the breaker at a right angle to the surface and avoid side loads. Angled pushing wears the bushings and moves the piston off the tool axis.
- Do not pry. Rocking the tool like a lever before it is fully seated, or rotating the breaker while the tool is embedded, is the most common cause of tool breakage.
- Do not twist the chisel. A chisel tends to rotate along its path. This twisting wears the retaining pin slots and makes the tool break at the slot.
Breakage caused by ignoring these rules is not covered by the warranty. See our tool selection guide, the tool use section and the Tool User Manual and Warranty Terms.
Other Tool Types for Bobcat B700
| Tool Type and Size | Options |
|---|---|
| Moil Point ToolØ50 x 510 mm | Standard · Dust Grooved · Hard Rock · Dust Grooved + Hard Rock |
| Chisel ToolØ50 x 510 mm | Standard (this page) · Dust Grooved · Hard Rock · Dust Grooved + Hard Rock |
| Pyramid ToolØ50 x 510 mm | Standard · Dust Grooved · Hard Rock · Dust Grooved + Hard Rock |
| Blunt ToolØ50 x 510 mm | Standard · Hard Rock |
Wide chisel, tarmac cutter and driving tools are made to order; if you need one of these for your Bobcat B700, write to sales@hkm.com.tr.
Manufacturing, Delivery and Warranty
HKM manufactures this tool to OEM quality from heat-treated alloy steel. Tools in stock ship quickly; if not in stock, the tool is made in 5 working days. Transport time is added depending on the method (road, air, sea).
Tools are warranted against manufacturing defects only; breakage caused by improper use is not covered.
Frequently Asked Questions
Q: What are the dimensions of the Bobcat B700 chisel tool?
A: The Bobcat B700 chisel tool is made for the Bobcat B700 hydraulic breaker: diameter 50 mm, overall length 510 mm, weight 8 kg. Just state your breaker brand and model when you order.
Q: Will another tool with the same diameter and length fit my Bobcat B700?
A: Not always. The position and shape of the retaining pin slot change with brand and model; a tool with the same diameter and length may not fit. This tool is made to the slot dimensions of the Bobcat B700.
Q: What is the Bobcat B700 chisel tool used for?
A: The Bobcat B700 chisel tool is mainly used for: primary demolition, secondary demolition, trenching, recycling, scaling, primary breaking, boom mounted applications. According to the material table in our manual, it is recommended for reinforced concrete slabs, walls, columns and foundations, heavily fractured rock, asphalt and frozen ground.
Q: What is the difference between Bobcat B700 standard, dust grooved and hard rock chisel tools?
A: The standard tool is for general demolition and construction. On the dust grooved tool the grooves guide dust away from the breaking zone and reduce wear and heat. The hard rock tool is made from a high-nickel alloy with a special hardening process, for quarrying and mining.
Q: Which other tool types are available for the Bobcat B700?
A: We make 14 different tools for the Bobcat B700: moil point tools, chisel tools, pyramid tools, blunt tools, with dust grooved and hard rock options. You can reach all of them from the Other Tool Types table on this page.
Q: How long is the delivery time for the Bobcat B700 chisel tool?
A: If the Bobcat B700 chisel tool is in stock, it ships quickly. If not, it is made in 5 working days; transport time is added depending on the shipping method.
Q: Is the Bobcat B700 chisel tool covered by warranty?
A: Like all HKM breaker tools, the Bobcat B700 chisel tool is warranted against manufacturing defects only. The fracture surface is examined; if the fracture started from a flaw inside the material, the tool is covered. Breakage from prying, blank firing, rotating the embedded tool or working with worn bushings is not covered.
Q: What shortens the life of the Bobcat B700 chisel tool the most?
A: Prying before the tool is fully seated, blank firing, striking one spot for too long, insufficient or wrong grease, and working with worn bushings. On a chisel, twisting also wears the retaining pin slots.
Q: What else should I check when I change the tool on my Bobcat B700?
A: Compare the inner diameters of the lower and upper bushings and the thrust bushing surface with the tolerances in your breaker's service manual. Worn bushings move the tool and piston off axis.
Q: What other names is the Bobcat B700 chisel tool known by?
A: It is also called “wedge”, “wedge tool”, “flat chisel”. Breaker tools in general are also known as breaker chisels, working tools or hammer tools.
Product Information
- Weight (kg)
- 8
- Dimensions
- 50x510x50 cm
- Warranty
- Please review the Tool User Manual and Warranty Terms document on this page. HKM breaker tools are warranted against manufacturing defects only. If a tool breaks, the fracture surface is examined; if the fracture started from a flaw inside the material, the tool is covered by the warranty. Damage caused by improper use is not covered: prying before the tool is fully seated, blank firing, rotating or side-loading the breaker while the tool is embedded, striking the surface with the tool using the boom, and working with worn bushings.
- Delivery Information
- Delivery time is 7 business days for orders within Turkiye. For orders outside Turkiye, the transport time will be added. But for the products that we have in stock, the delivery time will be shortened significantly. For more information; contact sales@hkm.com.tr
