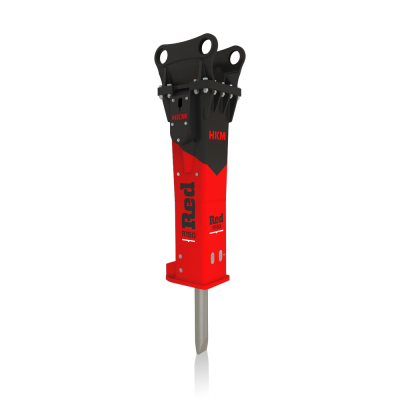

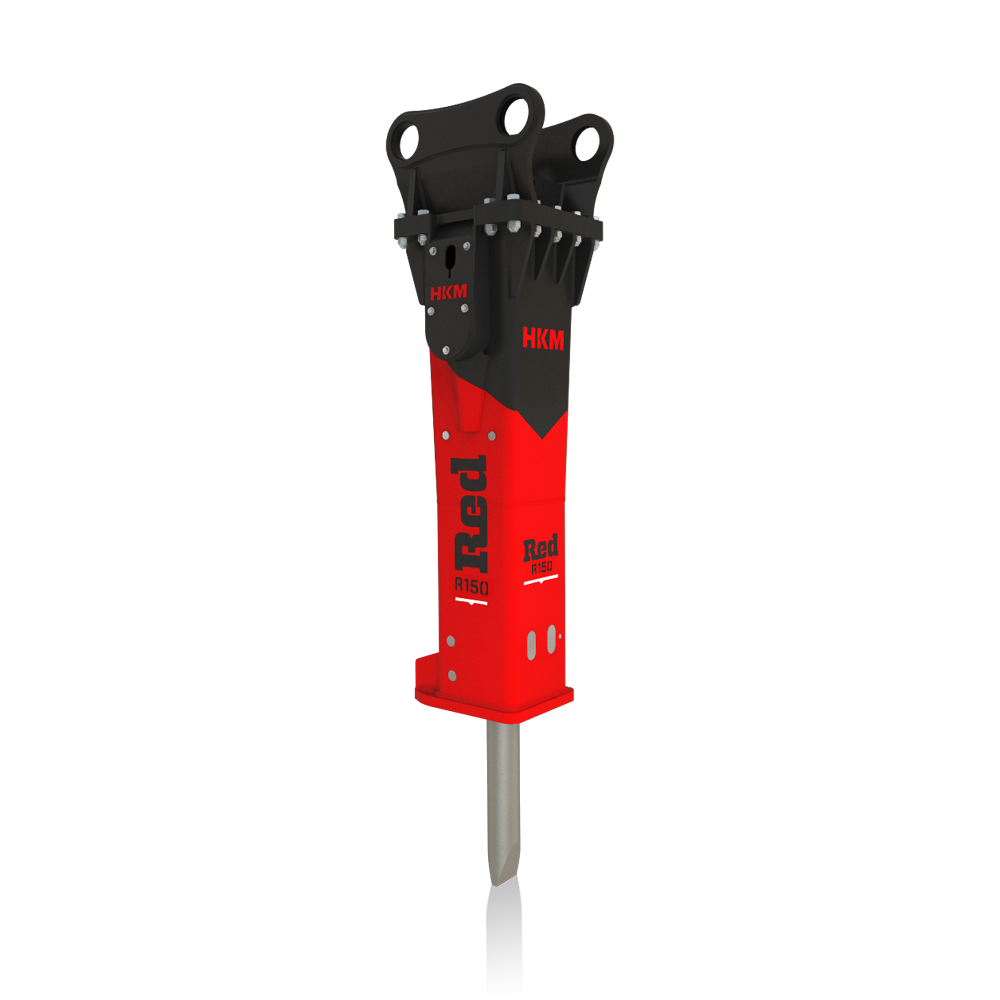

HKM RED LINE BREAKERS – R150
HKM Red Line R150 is built to deliver powerful impact force in the most demanding environments — while keeping maintenance and spare part costs under control.
Compatible with 18–26 ton excavators, R 150 combines a high-pressure accumulator, nut-free tie rod design, and multiple customization options for outstanding adaptability and long-term performance.
R150: EXCEED PERFORMANCE, SERVICE-FRIENDLY STRUCTURE
Operating at 120–140 bar pressure with an oil flow of 100–180 l/min, the R 150 delivers high-impact power while maintaining stability and carrier protection.
Its 1,650 kg operating weight and 120 mm tool diameter make it an ideal solution for mid-sized and heavy-duty applications.
The high-pressure accumulator positioned on top of the main valve body ensures uninterrupted impact energy during operation.
Its nut-free tie rod system eliminates traditional fastening methods by tightening directly to the front head — reducing wear, simplifying maintenance, and lowering operational downtime.
For more demanding jobs, a single long bushing option improves wear resistance during vertical tunnel applications.

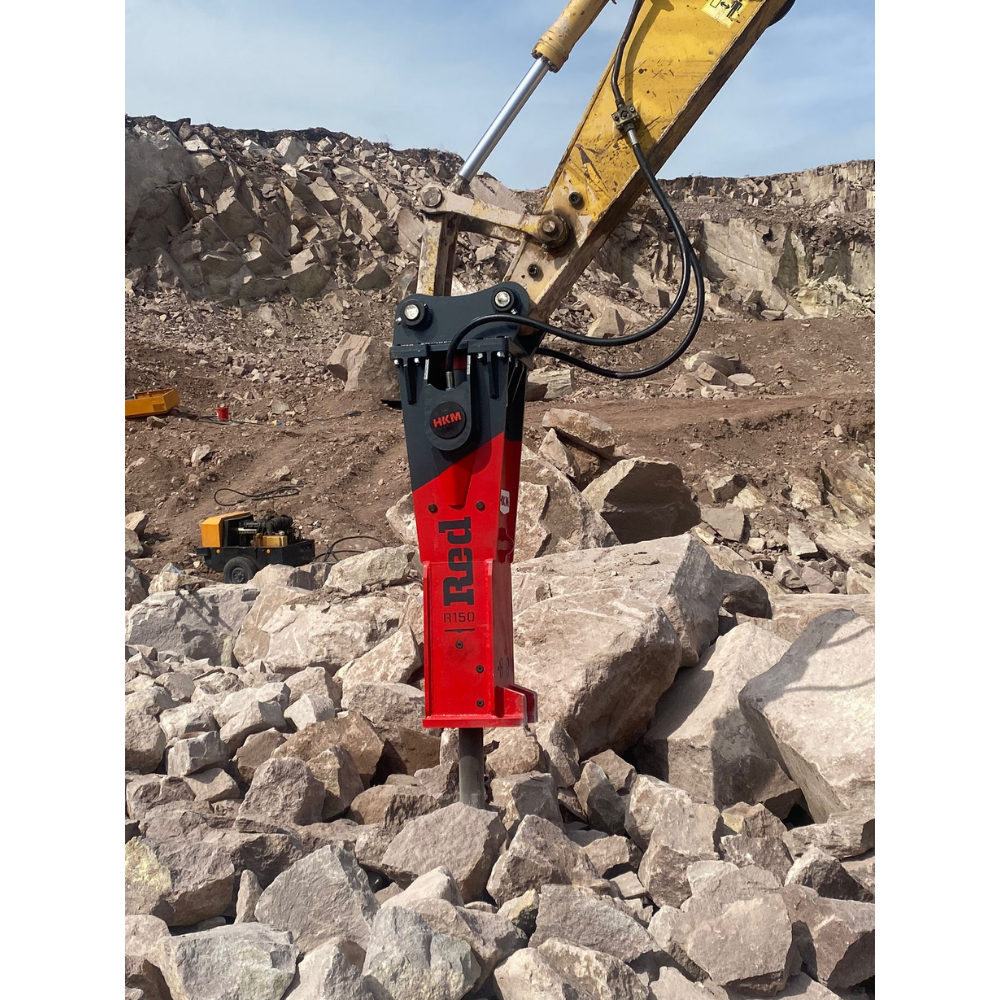

Reinforced housing enhances durability in highly abrasive mining conditions, while the optional underwater kit expands usability in marine and submerged environments.
HKM R 150 is a trusted partner for professionals who demand high power, smart design, and field flexibility.
KEY FEATURES
- Strong demolition force with long-term performance
- Nut-free tie rod system for easier maintenance
- Lower spare part costs through smart, durable design
- Customizable for tunneling, mining, and underwater applications
- Efficient and adaptable for mid-heavy class excavators
STANDARD EQUIPMENTS
- High-Pressure Accumulator
- High Efficiency & Performance
- Dust Protection
- Solid Housing Design
- Vibration Absorption
- Noise Absorption
- Nut-Free Tie Rod Design
OPTIONAL EQUIPMENTS
- Automatic Lubrication System
- Underwater Equipment
- Reinforced Housing
- Fast Attachment Replacement Device
TECHNICAL SPECIFICATIONS
| Operational Weight (kg) | 1650 |
| Carrier Weight (ton) | 18-26 |
| Tool Diameter (mm) | 120 |
| Operating Pressure (bar) | 120-140 |
| Oil Flow (lt/min) | 100-180 |
| Impact Rate (bpm) | 350-600 |
