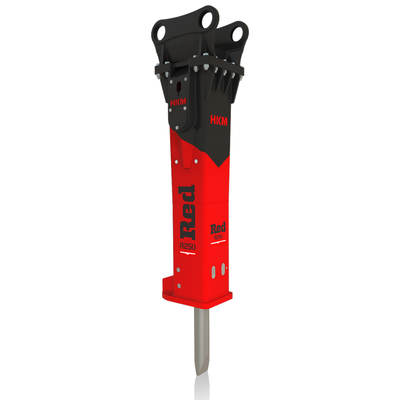

HKM R300 Hydraulic Breaker

HKM R300 Hydraulic Breaker

HKM RED LINE BREAKERS – R300

Engineered for Relentless Performance

HKM Red Line R300 is purpose-built to deliver uninterrupted, high-impact performance for 33–45 ton class excavators.
Whether it’s mining, heavy demolition, quarry operations, or large-scale infrastructure work — R 300 ensures maximum efficiency under extreme conditions.

R300: TAKE CONTROL OF RAW POWER

With an operating pressure of 130–150 bar and oil flow of 170–250 l/min, the R 300 delivers smooth, high-performance impact energy in every strike.
Its 2,960 kg operating weight and 160 mm tool diameter make it a high-end solution for your toughest jobsite challenges.

The high-pressure accumulator, mounted on top of the main valve body, ensures reliable and consistent power across long operational hours.
Thanks to its nut-free, short tie rod system, vibration is absorbed before it spreads, eliminating fastener loosening issues and extending service life.

The solid housing design, with integrated dust, noise, and vibration protection, helps keep internal components safe while improving operator comfort.
With its superior strength and low maintenance needs, R 300 becomes the go-to tool for maximum uptime and productive performance.

KEY FEATURES

• Designed for 33–45 ton class excavators in extreme work conditions
• High-pressure accumulator ensures continuous and powerful impact
• Nut-free short tie rod design reduces maintenance and downtime
• Integrated damping for noise and vibration control
• Optional reinforced housing available for abrasive work zones

INCLUDED IN THE SET

• Hydraulic Breaker Machine
• Mounting Bracket
• Breaker Tools (1 pcs Chisel Tool, 1 pcs Moil Point Tool)
• Hydraulic Connection Hoses
• Carrier Connection Pins
• Tool Box

STANDARD EQUIPMENTS

• High Pressure Accumulator
• High Efficiency & Performance
• Dust Protection
• Solid Housing Design
• Vibration Absorption
• Noise Absorption
• Nut-Free Tie Rod Design

OPTIONAL EQUIPMENTS

• Automatic Lubrication
• Underwater Equipment
• Reinforced Housing
• Fast Attachment Replacement Device

TECHNICAL SPECIFICATIONS

Frequently Asked Questions (FAQ)

Q: What size excavator is the HKM R300 compatible with?
A: The R300 is designed for large-scale excavators ranging from 33 to 45 tons. It is an ideal attachment for quarries, mining, and heavy infrastructure projects.

Q: How does this breaker handle vibration in heavy-duty tasks?
A: The R300 features a "Nut-Free Short Tie Rod" design and a vibration-damping system. These technologies absorb impact shock at the source, preventing damage to both the breaker and the carrier.

Q: Is it suitable for continuous mining operations?
A: Yes, with a weight of 2,960 kg and a solid, dust-protected housing, the R300 is built specifically for the continuous and high-impact demands of mining environments.
