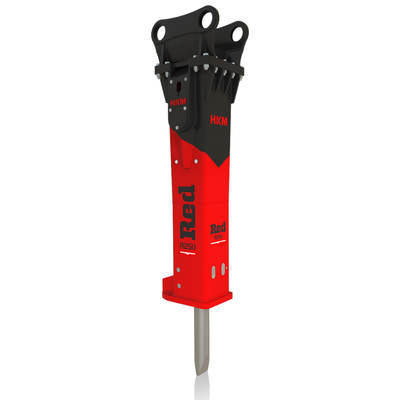

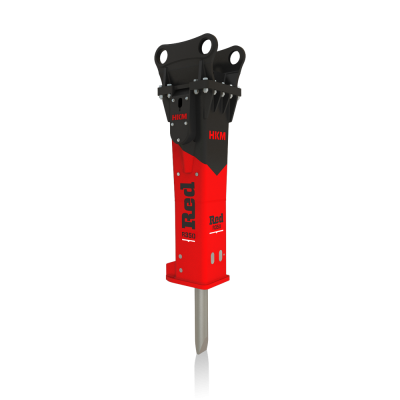

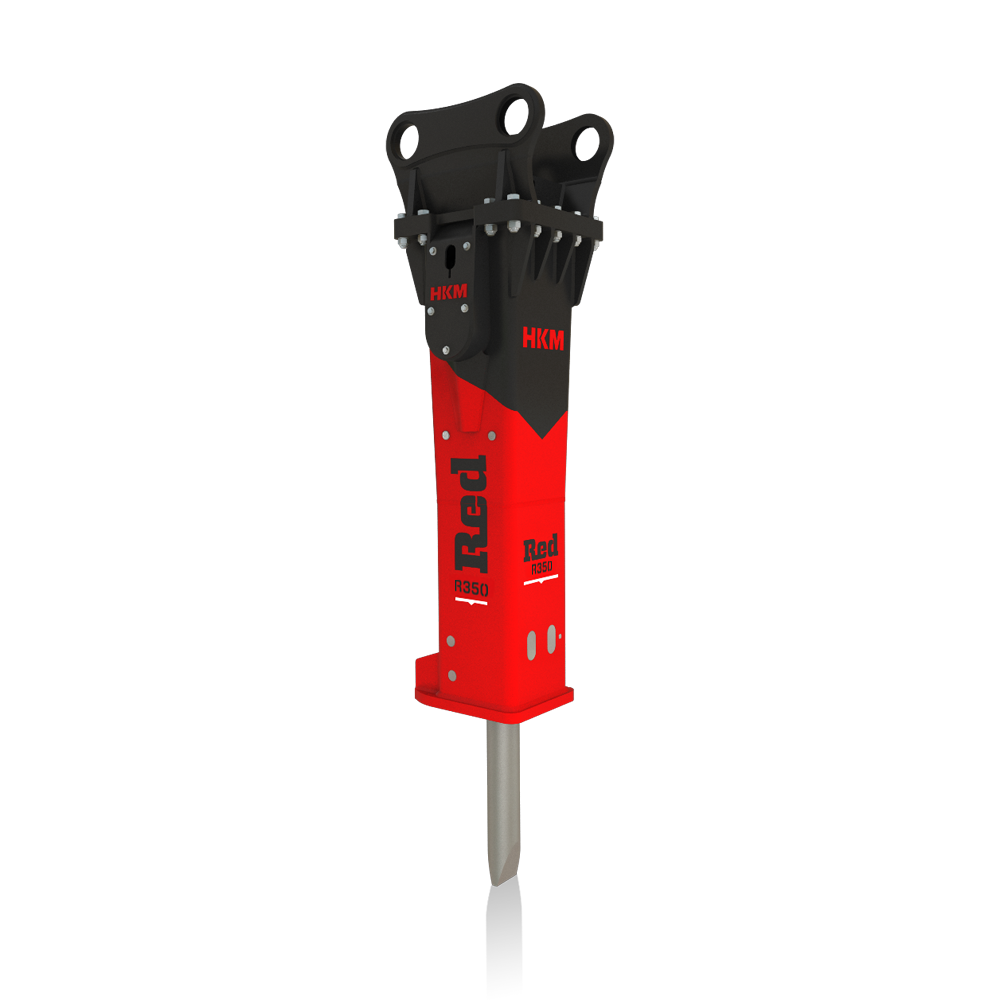

HKM R350 Hydraulic Breaker

HKM R350 Hydraulic Breaker

HKM RED LINE BREAKERS – R350

Unstoppable in Heavy Duty Operations. Power that Goes Deep. Performance that Lasts.

The HKM Red Line R350 is engineered to dominate the heaviest demolition jobs in mining, quarrying, and large-scale infrastructure projects.
Compatible with 40–55 ton class excavators, this model delivers massive impact power while maintaining a long service life even under the most punishing conditions.

R350: BUILT FOR THE DEPTHS OF MINING

With an operating pressure of 130–150 bar and oil flow of 210–240 l/min, the R 350 delivers maximum performance without compromise.
Weighing 3,750 kg and equipped with a 175 mm tool diameter, it is built to crush the hardest materials efficiently and consistently.

The high-pressure accumulator, mounted directly above the main valve block, provides optimal energy delivery with every blow.
Its nut-free tie rod design uses shortened, directly tightened rods to absorb vibration before it spreads — minimizing mechanical stress, reducing downtime, and extending spare part life.

The solid housing, equipped with dust protection, vibration and noise absorption, ensures both internal durability and a more comfortable operating environment.
Customizable with optional features such as reinforced housing for abrasive conditions, underwater equipment, and automatic lubrication systems, the R 350 is ready for any mission — deep, harsh, or complex.

KEY FEATURES

• Built for 40–55 ton class excavators
• High breaking force with minimal stress on the carrier
• Short nut-free tie rods for superior vibration control
• Rugged, dust-sealed housing for long service life
• Optional mining-specific enhancements

INCLUDED IN THE SET

• Hydraulic Breaker Machine
• Mounting Bracket
• Breaker Tools (1 pcs Chisel Tool, 1 pcs Moil Point Tool)
• Hydraulic Connection Hoses
• Carrier Connection Pins
• Tool Box

STANDARD EQUIPMENTS

• High Pressure Accumulator
• High Efficiency & Performance
• Dust Protection
• Solid Housing Design
• Vibration Absorption
• Noise Absorption
• Nut-Free Tie Rod Design

OPTIONAL EQUIPMENTS

• Automatic Lubrication
• Underwater Equipment
• Reinforced Housing
• Fast Attachment Replacement Device

TECHNICAL SPECIFICATIONS

Frequently Asked Questions (FAQ)

Q: Can the R350 break hard rock in quarries?
A: Absolutely. With a massive operating weight of 3,750 kg and a 175 mm tool diameter, the R350 is specifically engineered for high-impact performance in marble and stone quarries.

Q: What size excavator is required?
A: The R350 is designed for heavy-duty excavators in the 40 to 55-ton class, ensuring optimal balance and hydraulic flow.

Q: How does it handle abrasive mining environments?
A: The R350 comes with a dust-protected solid housing as standard. For extreme conditions, we also offer an optional "Reinforced Housing" to further protect the breaker body from wear and tear.
