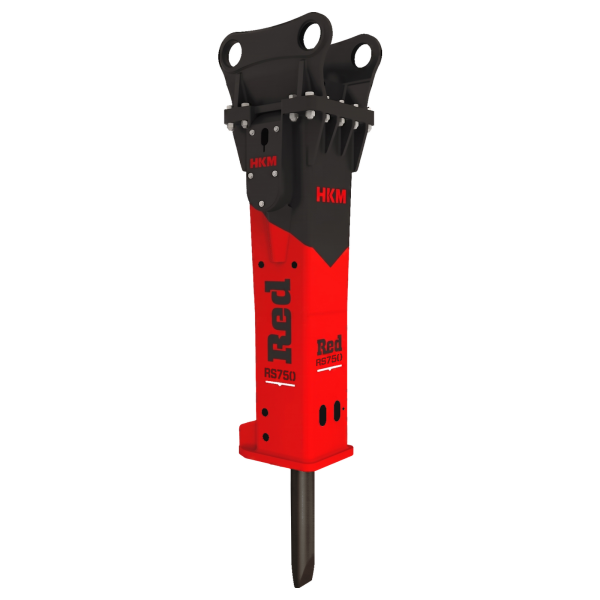

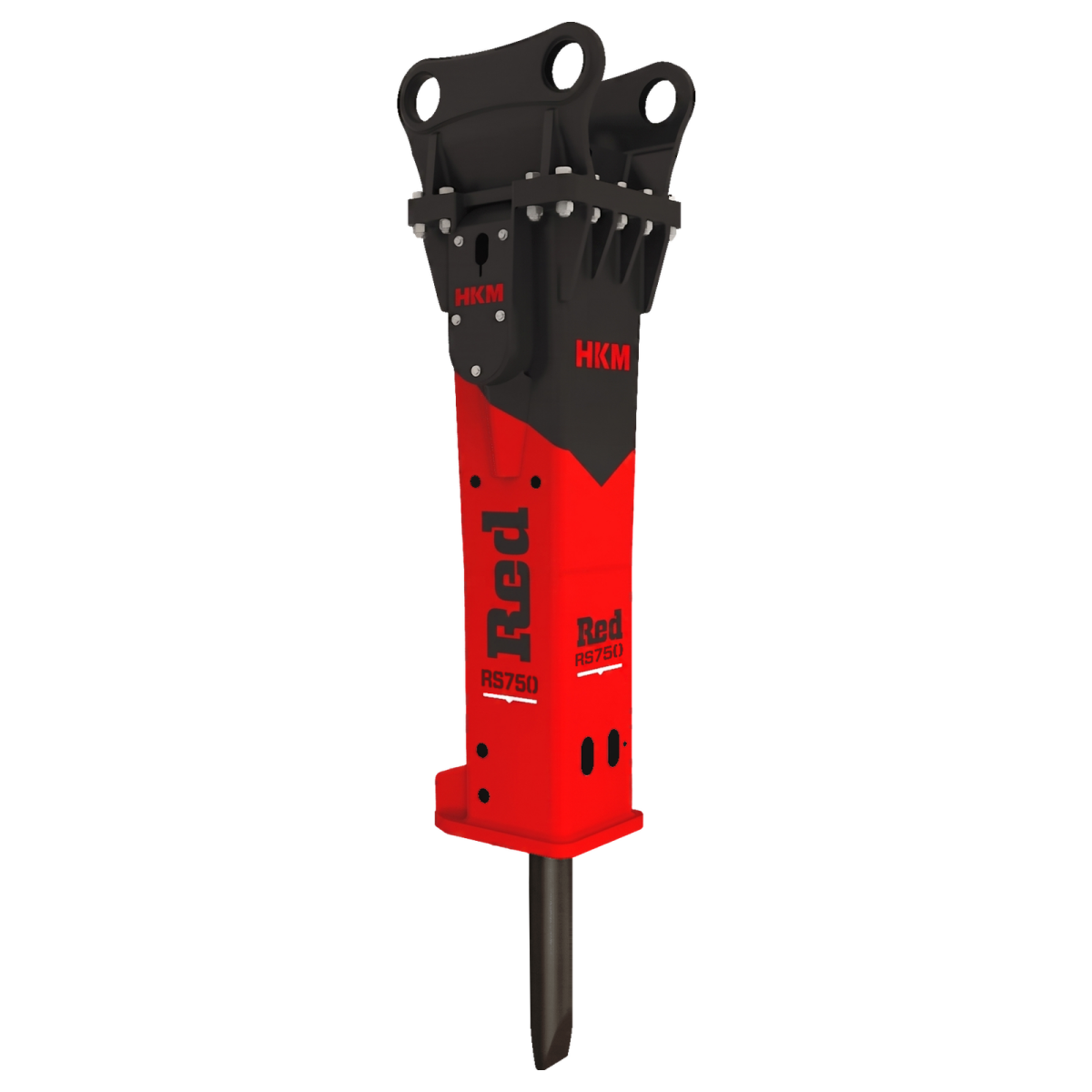

HKM RS750 Hydraulic Breaker

HKM RS750 Hydraulic Breaker

HKM RED LINE – RS750: THE PEAK OF POWER, LEADER OF MEGA PROJECTS

HKM Red Line RS750 is an engineering marvel designed for the world's largest 70–100 ton class excavators, pushing the boundaries of what's possible.
It rewrites the rules in massive dam constructions, highway excavations, and bulk mining sites where ordinary breakers fall short.

RS750: REDEFINING DEMOLITION WITH 205 MM CHISEL

Requiring an operating pressure of 140–160 bar and a massive oil flow of 300–400 l/min, the RS750 applies tons of impact force to the ground with every strike.
With its 7,500 kg operating weight and 205 mm tool diameter, it doesn't just break rocks; it obliterates them. Even the hardest granites and reinforced concrete structures cannot stand in its way.

The advanced hydraulic accumulator system developed to control such immense power protects the carrier machine from hydraulic shocks.
The nut-free short tie rod technology spreads the vibration stress across the components in this massive body, preventing metal fatigue and extending the breaker's life.

The solid housing with dust and noise isolation ensures operator comfort while protecting the breaker's internal components like armor against external factors.
RS750 is the symbol of power from HKM, built for the largest projects that accept no errors.

KEY FEATURES

• Optimized design for 70–100 ton class mega machines
• Unique breaking capacity with 205 mm tool diameter
• Maximum durability with nut-free short tie rod system
• Stable power output with high-flow accumulator
• Continuous operation performance for massive projects

INCLUDED IN THE SET

• Hydraulic Breaker Machine
• Mounting Bracket
• Breaker Tools (1 pcs Chisel Tool, 1 pcs Moil Point Tool)
• Hydraulic Connection Hoses
• Carrier Connection Pins
• Tool Box

STANDARD EQUIPMENTS

• High Pressure Accumulator
• High Efficiency & Performance
• Dust Protection
• Solid Housing Design
• Vibration Absorption
• Noise Absorption
• Nut-Free Tie Rod Design

OPTIONAL EQUIPMENTS

• Automatic Lubrication
• Underwater Equipment
• Reinforced Housing
• Fast Attachment Replacement Device

TECHNICAL SPECIFICATIONS

Frequently Asked Questions (FAQ)

Q: Which machines is the RS 750 suitable for?
A: The RS 750 is manufactured for "Mega" class excavators between 70 and 100 tons. These machines are typically found in large dam constructions and massive mining sites.

Q: What is the tool diameter?
A: The RS 750 uses a special alloy heat-treated steel chisel with a diameter of 205 mm, one of the largest in the industry.

Q: Can my machine handle such a large breaker?
A: If your machine's tonnage is 70 tons or above (e.g., CAT 374, 390, Hitachi ZX870, Komatsu PC800, etc.), the RS 750 fits perfectly. You can send us your machine model to be sure.
