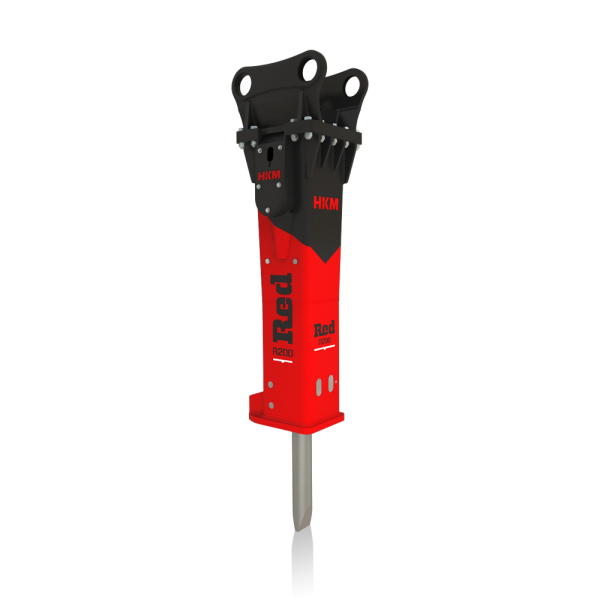

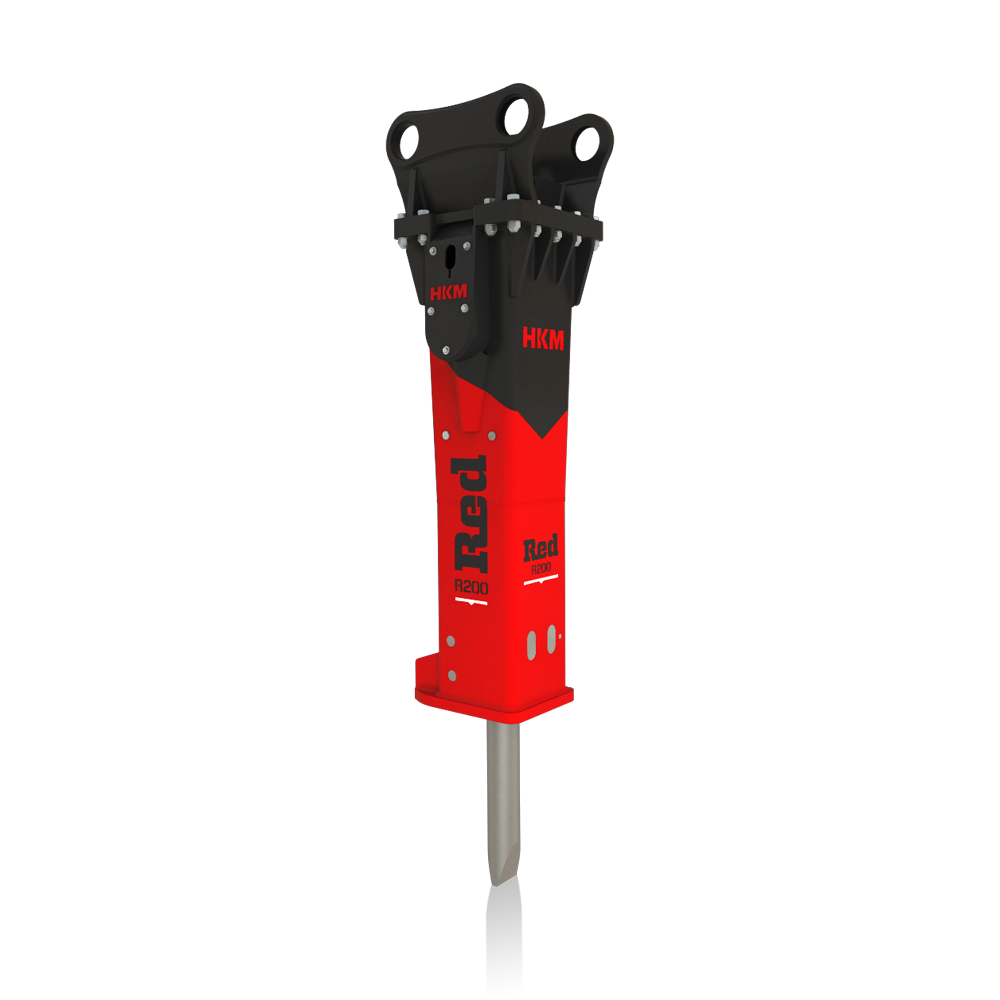

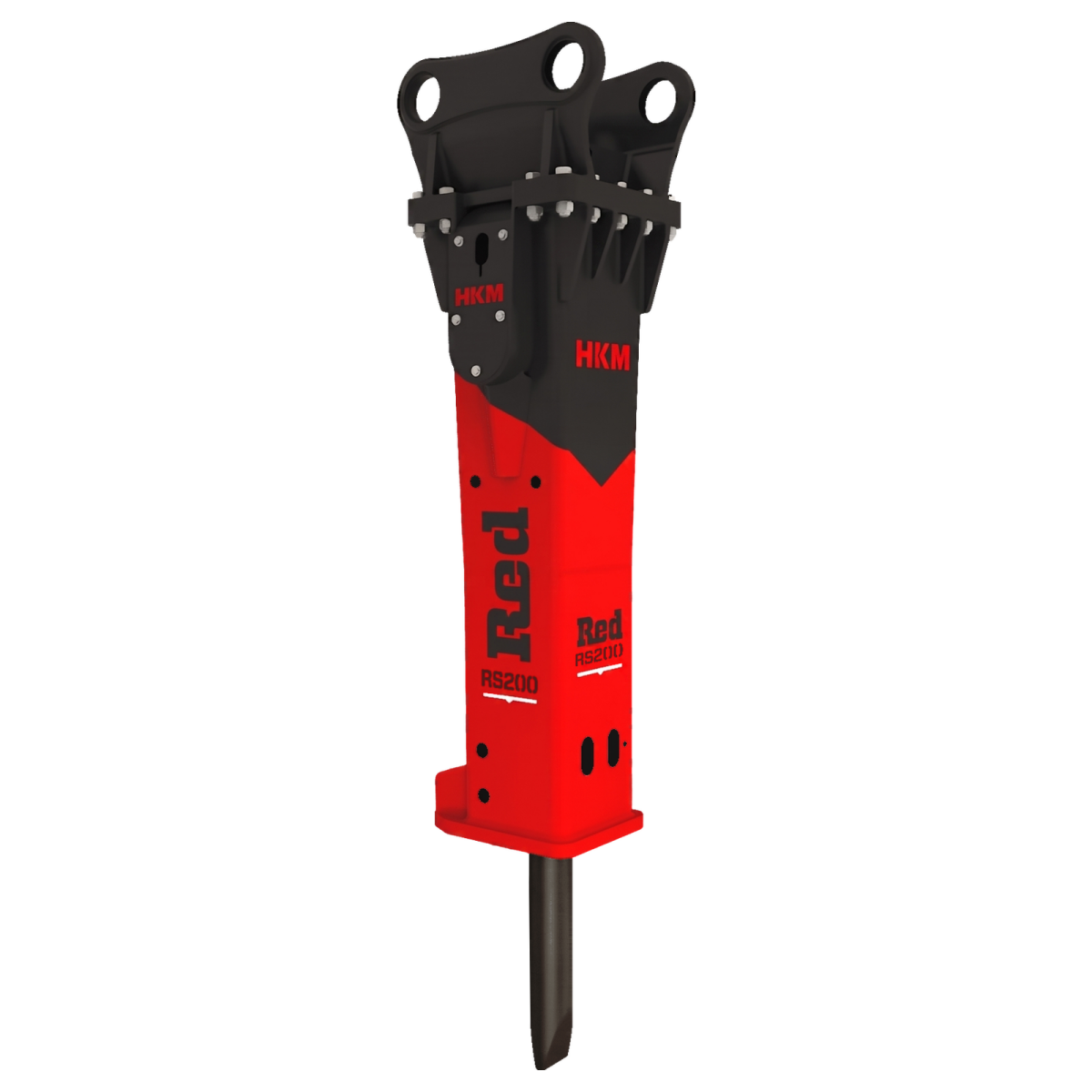

HKM RS200 Hydraulic Breaker

HKM RS200 Hydraulic Breaker

HKM RED LINE - RS200: ALL-SHIFT POWER WITHOUT THE UPKEEP BILL

HKM Red Line RS200 is built to deliver continuous, high-performance breaking power in demanding jobsite conditions.
Compatible with 22-29 ton class carriers, the RS200 features a high-pressure accumulator, nut-free tie rod design, and a solid, dust-protected cabin structure, ensuring maximum durability with reduced maintenance needs.

RS200: POWER THAT KEEPS ITS PACE

Operating at 120-140 bar pressure with 120-180 l/min oil flow, the RS200 delivers strong, reliable impact energy.

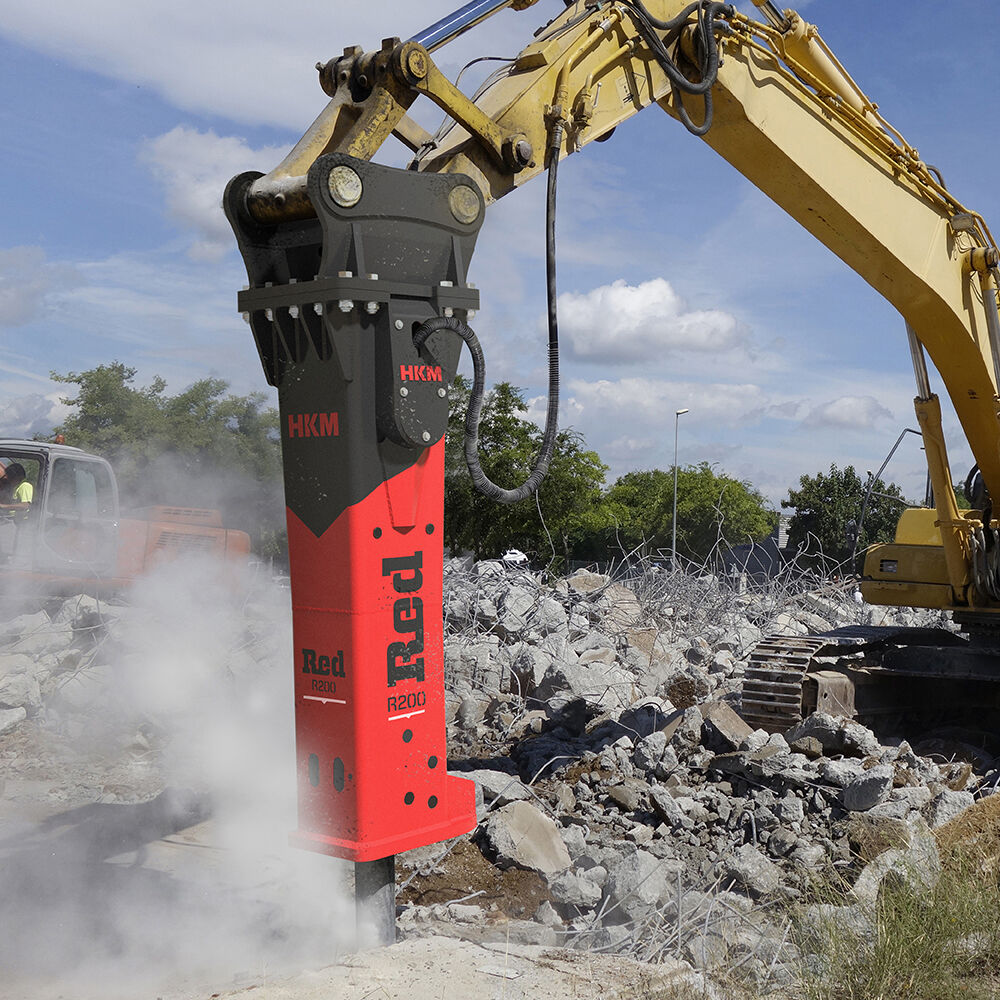

With its 1,842 kg operating weight and 130 mm tool diameter, it is ideal for heavy-duty demolition, foundation work, and large-scale trenching.

The high-pressure accumulator, mounted directly on top of the main valve body, ensures consistent performance throughout long working hours.
Thanks to its short and nut-free tie rod system, internal stresses are absorbed more efficiently, reducing the likelihood of loosening and dramatically extending spare part life.

Optional features such as a long single-piece bushing for extended wear in tunneling, a reinforced outer housing for extreme mining conditions, and an underwater kit for submerged applications make RS200 a versatile and powerful solution for every challenge.

RS200 combines durability, field adaptability, and ease of maintenance - making it a top choice for professionals seeking strength and reliability in every strike.

KEY FEATURES

• Continuous demolition power with high-pressure accumulator
• Nut-free tie rod system minimizes maintenance and loosening
• Solid cabin and dust protection for extended durability
• Optional long bushing ideal for vertical applications like tunneling
• Configurable for mining, underwater, and abrasive environments

INCLUDED IN THE SET

• Hydraulic Breaker Machine
• Mounting Bracket
• Breaker Tools (1 pcs Chisel Tool, 1 pcs Moil Point Tool)
• Hydraulic Connection Hoses
• Carrier Connection Pins
• Tool Box

STANDARD EQUIPMENTS

• High-Pressure Accumulator
• High Efficiency & Performance
• Dust Protection
• Solid Cabin Design
• Vibration Absorption
• Noise Absorption
• Nut-Free Tie Rod Design

OPTIONAL EQUIPMENTS

• Automatic Lubrication System
• Underwater Equipment
• Reinforced Outer Cabin
• Fast Attachment Replacement Device

TECHNICAL SPECIFICATIONS

Frequently Asked Questions (FAQ)

Q: Is the HKM RS200 suitable for heavy-duty mining work?
A: Yes, the RS200 is built with a "Solid Cabin" design and dust protection, making it highly durable for mining and quarry applications. We also offer a reinforced outer housing option for extreme conditions.

Q: What is the benefit of the nut-free tie rod design?
A: The nut-free design eliminates the risk of tie rods loosening due to vibration, which is a common issue in standard breakers. This ensures lower maintenance costs and longer service life.

Q: What excavators is this breaker compatible with?

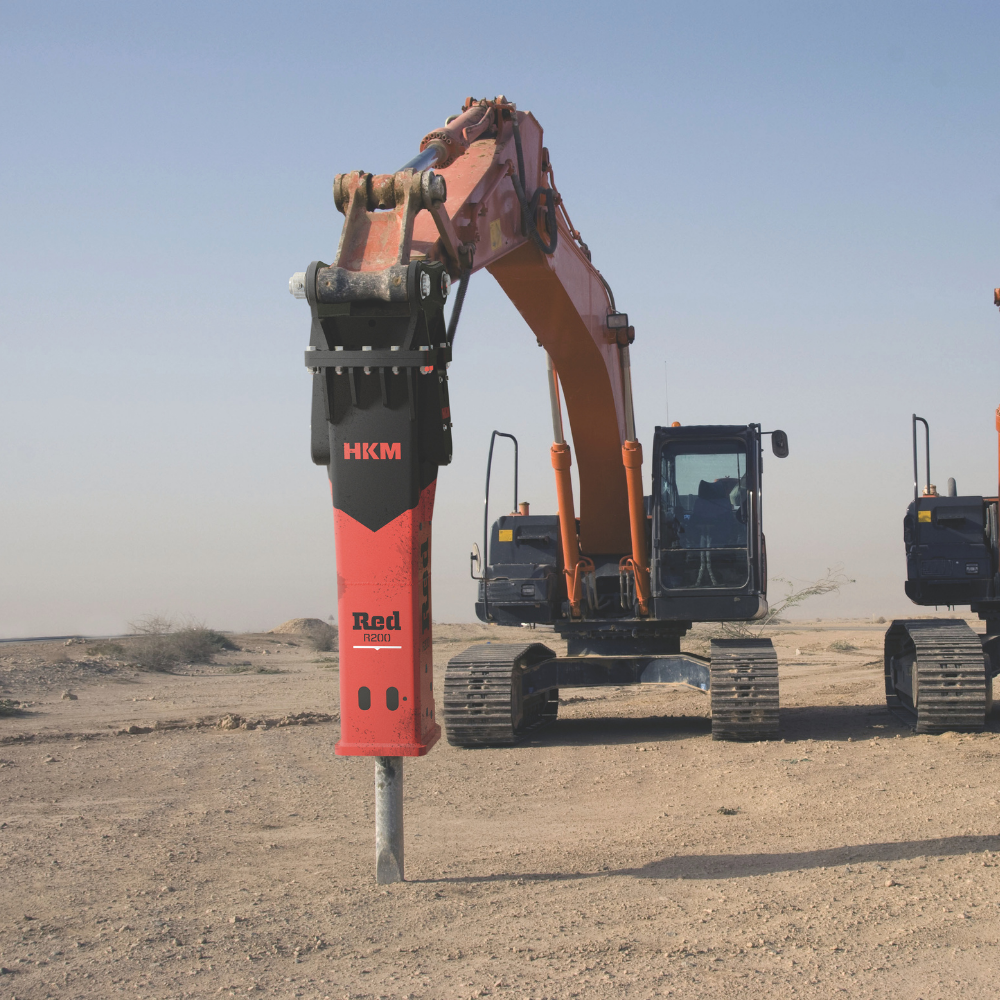

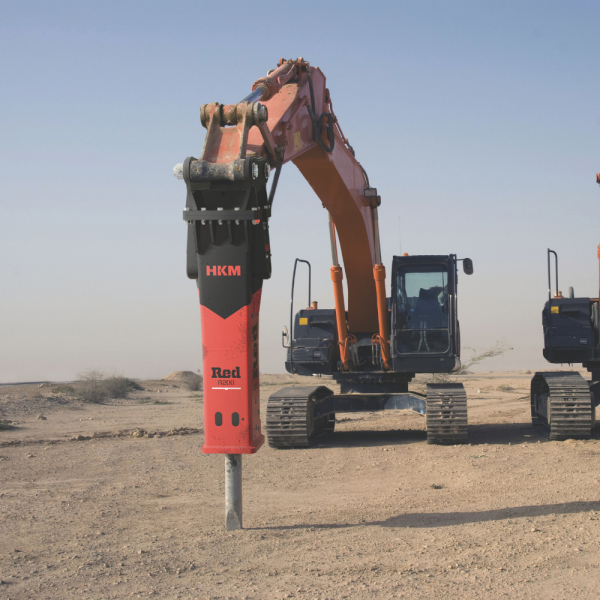

A: The HKM RS200 is designed for 22 to 29-ton excavators, providing optimal power and balance for this weight class.

Q: I know this breaker as the R200. Has anything changed?
A: No. R200 is now RS200 because the whole Red Line range was renamed from R to RS. It is the same machine: 1842 kg operating weight, Ø130 mm tool diameter, same mounting and same hydraulic settings. R200 chisels, bushings and seal kits fit the RS200 without any modification.
