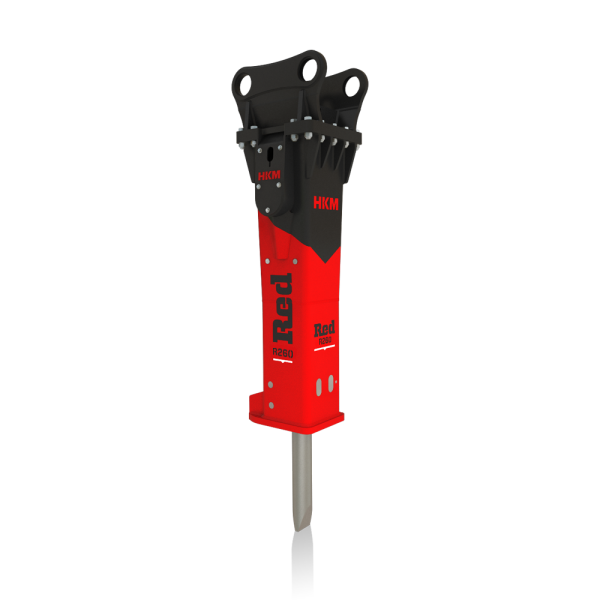

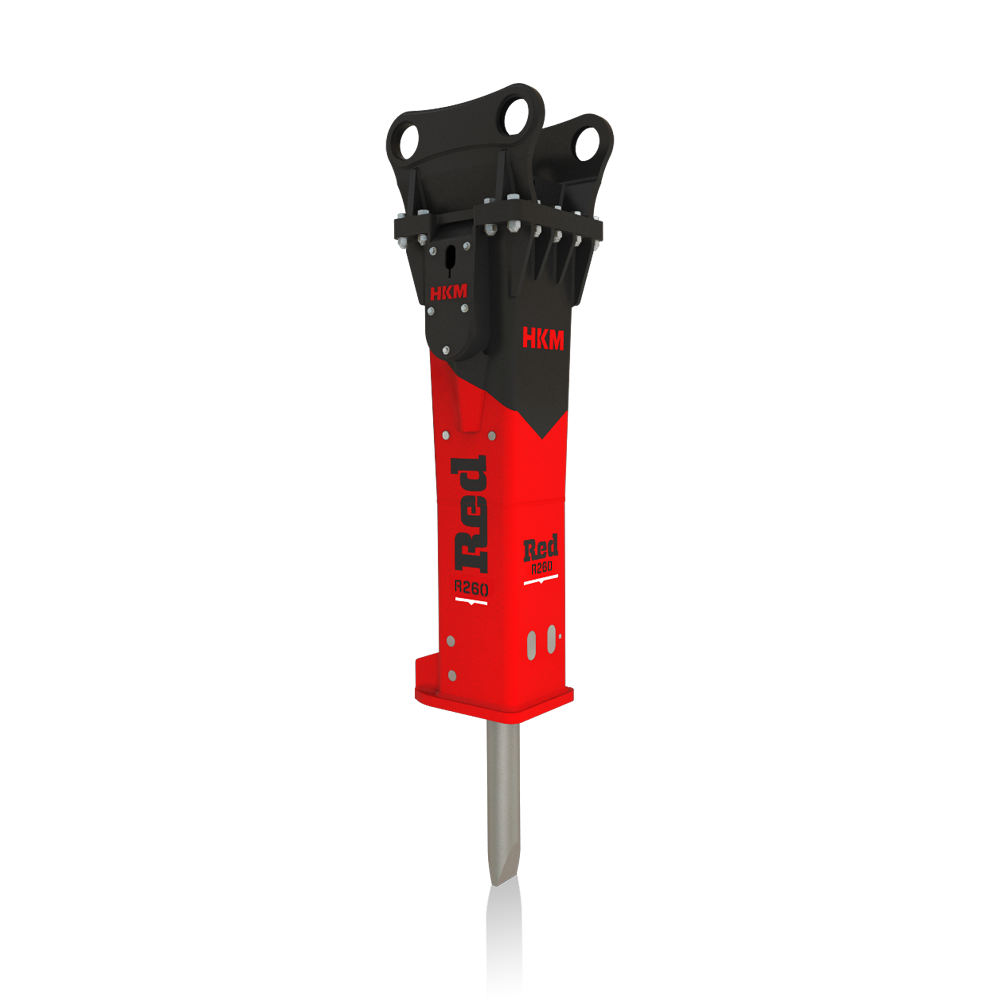

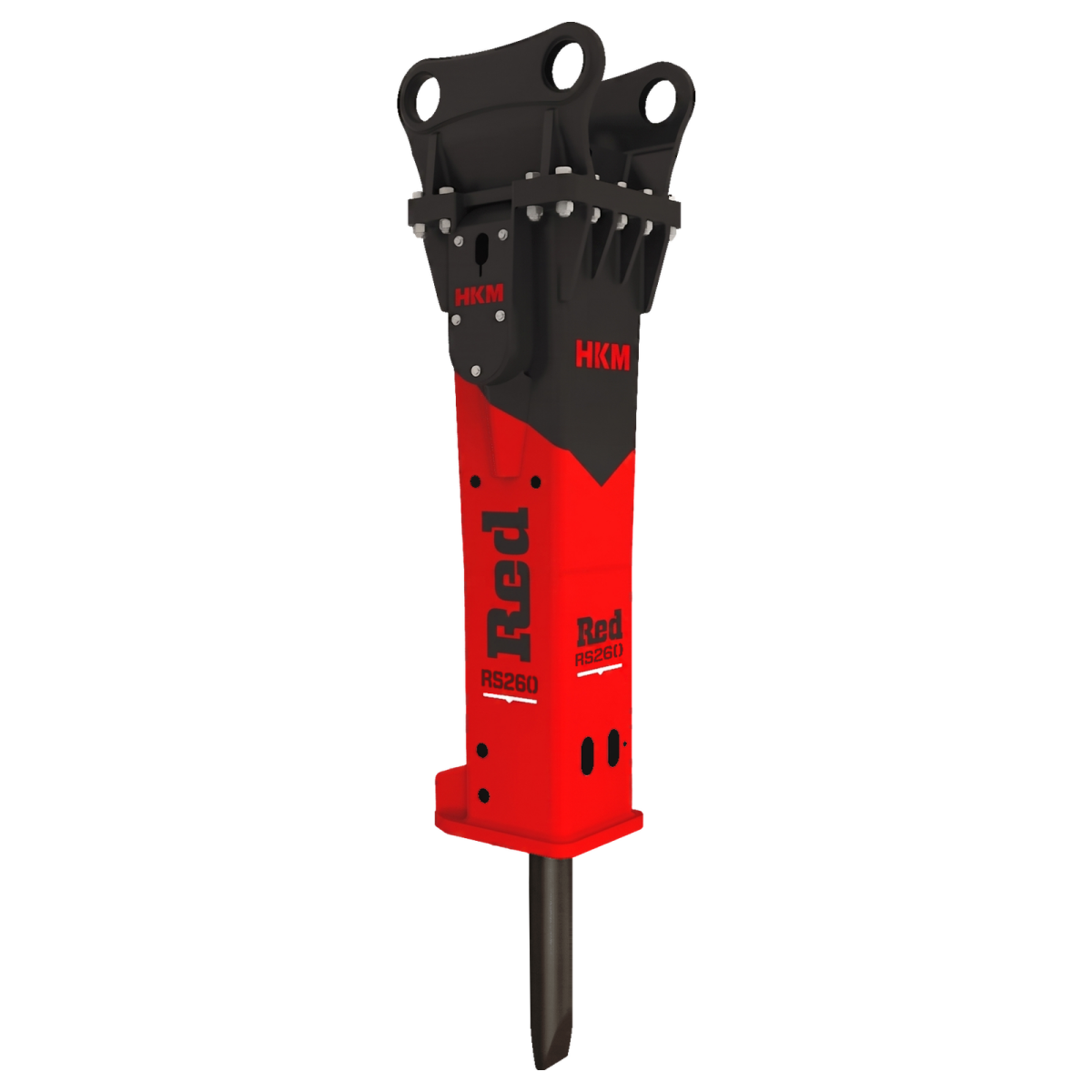

HKM RS260 Hydraulic Breaker

HKM RS260 Hydraulic Breaker

HKM RED LINE - RS260: EVERY BLOW LANDS ON ROCK, NEVER ON AIR

HKM Red Line RS260 is designed for high-efficiency performance in the harshest working conditions.
Fully compatible with 29-40 ton class excavators, RS260 combines a high-pressure accumulator, anti-blank firing system, nut-free tie rod design, and reinforced outer cabin - ensuring reliable power, extended durability, and superior equipment protection.

RS260: BLANK FIRING STOPS HERE

With an operating pressure of 130-150 bar and oil flow of 170-240 l/min, RS260 delivers powerful yet stable performance.
Its 2,510 kg operating weight and 150 mm tool diameter make it an excellent choice for heavy demolition, tunneling, and mining operations.

The full hydraulic working principle and top-mounted high-pressure accumulator provide uninterrupted impact energy across long shifts.
The short, nut-free tie rod system absorbs vibration at its source, reducing the chance of loosening and drastically increasing spare part life.

Anti-blank firing system protects both the breaker and the carrier by preventing dry hits when the tool is not in contact with a surface.
Dust-protected solid cabin and noise/vibration reduction systems help extend equipment life while offering greater comfort and safety.

Additional features such as a long bushing for tunnel work, reinforced outer housing for abrasive conditions, underwater kit, flow secure valve, and impact clock for preventative maintenance make RS260 a top-tier choice for professionals working in extreme conditions.

KEY FEATURES

• Strong and consistent demolition power
• Anti-blank firing system to protect the tool and carrier
• Nut-free tie rod design for extended part life
• Reinforced structure for abrasive and mining environments
• Fully customizable for tunneling, underwater, and heavy-duty applications

INCLUDED IN THE SET

• Hydraulic Breaker Machine
• Mounting Bracket
• Breaker Tools (1 pcs Chisel Tool, 1 pcs Moil Point Tool)
• Hydraulic Connection Hoses
• Carrier Connection Pins
• Tool Box

STANDARD EQUIPMENTS

• High-Pressure Accumulator
• High Efficiency & Performance
• Dust Protection
• Solid Cabin Design
• Vibration Absorption
• Noise Absorption
• Nut-Free Tie Rod Design
• Anti-Blank Firing System

OPTIONAL EQUIPMENTS

• Automatic Lubrication System
• Underwater Equipment
• Reinforced Outer Cabin
• Fast Attachment Replacement Device
• Flow Secure Valve
• Impact Clock - Preventative Maintenance System

TECHNICAL SPECIFICATIONS

Frequently Asked Questions (FAQ)

Q: What is the "Anti-Blank Firing" system?
A: This system prevents the breaker from striking when the tool is not in firm contact with the material (dry firing). This protects the piston, cylinder, and other internal components from damage and reduces stress on the excavator arm.

Q: Is the RS260 suitable for marble or stone quarries?
A: Yes, with a 2,510 kg weight and 150mm tool diameter, the RS260 provides the high impact energy required for mining and quarrying. We recommend the optional "Reinforced Outer Cabin" for such abrasive environments.

Q: How does the "Nut-Free Tie Rod" design help with maintenance?
A: Traditional tie rods with nuts can loosen under heavy vibration. The nut-free design screws directly into the head, offering a more secure fit, reducing maintenance downtime, and extending the life of the tie rods.

Q: Is the RS260 the same breaker as the HKM R260 I bought before?
A: Yes. Only the name changed: every R model in the Red Line range is now written RS, so R260 became RS260. The breaker itself is untouched, with the same 2510 kg operating weight, the same 150 mm tool diameter, the same mounting dimensions and the same Anti Blank Firing system. Every chisel, seal kit, tie rod and wear part you already order for the R260 fits the RS260 without any change.
