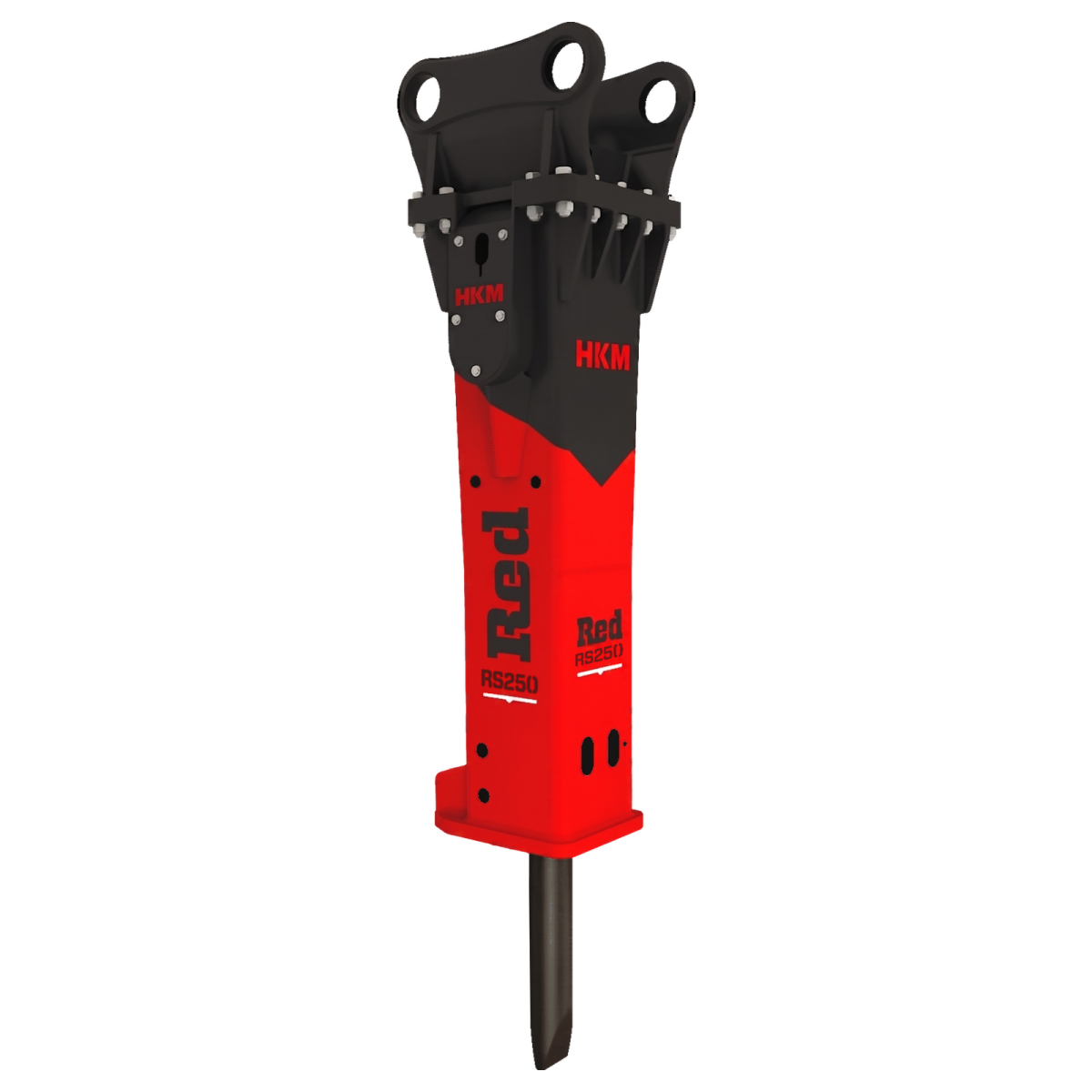

HKM RS250 Hydraulic Breaker

HKM RS250 Hydraulic Breaker

HKM RED LINE - RS250: THE FIRST STEP INTO TRUE HEAVY DUTY BREAKING

HKM Red Line RS250 delivers unstoppable power and durability for your heavy-duty demolition needs.
Fully compatible with 25-34 ton class excavators, RS250 combines a high-pressure accumulator, nut-free tie rod system, and a solid, dust-protected cabin to provide extended service life with reduced maintenance.

RS250: FULL ENERGY, EVERY BLOW

Operating at 130-150 bar pressure with 160-230 l/min oil flow, RS250 offers high-impact performance while protecting your carrier.
With an operating weight of 2,250 kg and a 140 mm tool diameter, it's a reliable powerhouse for demanding tasks like mining, foundation removal, and heavy demolition.

Its high-pressure accumulator, located on top of the main valve, ensures consistent impact delivery.
The short, nut-free tie rod design absorbs vibrations before they amplify - reducing internal stress, preventing loosening, and significantly extending component life.

The fully enclosed housing protects internal parts from external wear, while vibration and noise dampening components enhance operator comfort and overall system longevity.

RS250 is also highly adaptable - whether for tunnel jobsites, abrasive mining conditions, or underwater demolition, its optional kits and reinforced structure make it a reliable, versatile tool in any environment.

KEY FEATURES

• Continuous high impact force with full hydraulic system
• Nut-free tie rod system for extended spare part life
• Solid cabin design with advanced dust, noise & vibration protection
• Customizable for tunneling, underwater, and abrasive work conditions
• Maximum efficiency with reduced downtime

INCLUDED IN THE SET

• Hydraulic Breaker Machine
• Mounting Bracket
• Breaker Tools (1 pcs Chisel Tool, 1 pcs Moil Point Tool)
• Hydraulic Connection Hoses
• Carrier Connection Pins
• Tool Box

STANDARD EQUIPMENTS

• High-Pressure Accumulator
• High Efficiency & Performance
• Dust Protection
• Solid Cabin Design
• Vibration Absorption
• Noise Absorption
• Nut-Free Tie Rod Design

OPTIONAL EQUIPMENTS

• Automatic Lubrication System
• Underwater Equipment
• Reinforced Outer Cabin
• Fast Attachment Replacement Device

TECHNICAL SPECIFICATIONS

Frequently Asked Questions (FAQ)

Q: What size excavator is the HKM RS250 designed for?
A: The RS250 is perfectly matched with 25 to 34-ton heavy-duty excavators, providing superior balance and breaking power for this class.

Q: How does the "Nut-Free Tie Rod" design help?
A: This design eliminates the nuts found in traditional tie rods, which often loosen under heavy vibration. The nut-free system screws directly into the head, ensuring tighter assembly, less maintenance, and longer lifespan.

Q: Is it suitable for mining and quarrying?
A: Absolutely. The RS250 features a solid, dust-protected cabin and reinforced housing options specifically designed to withstand the abrasive and harsh conditions of mining sites.

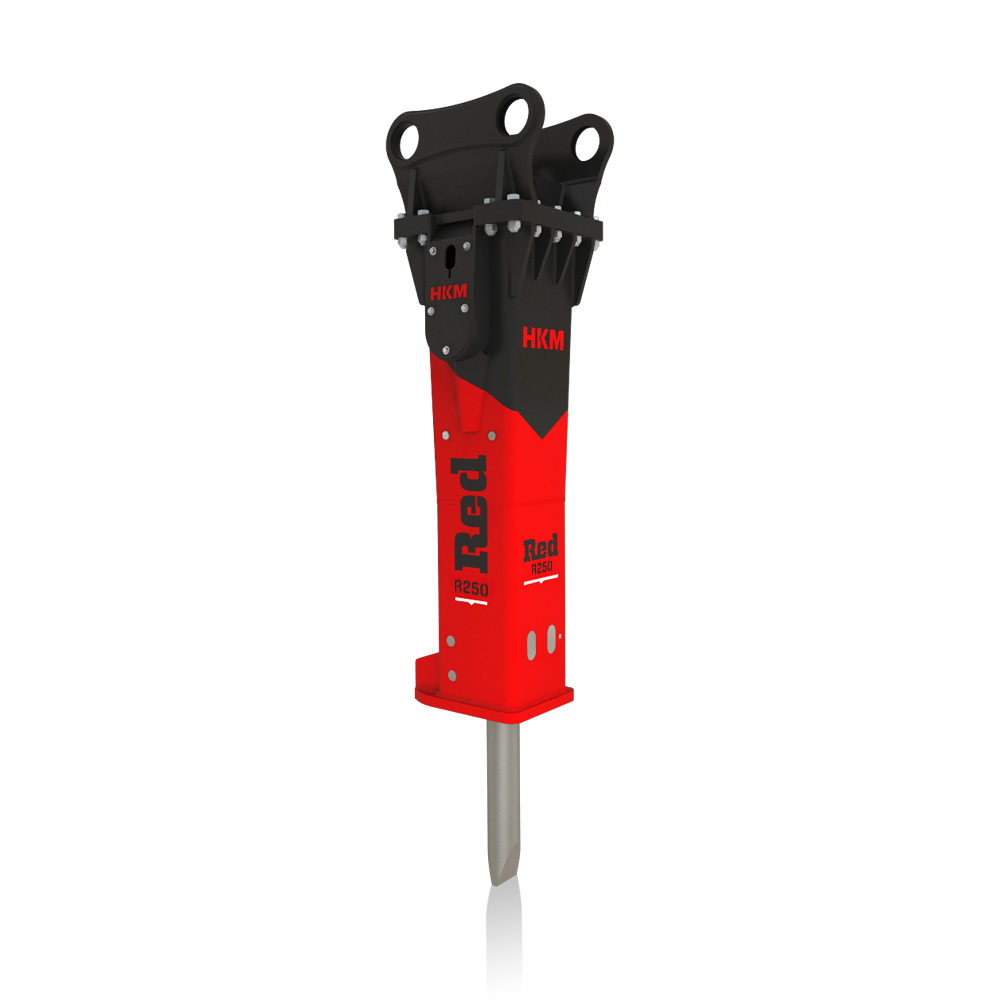

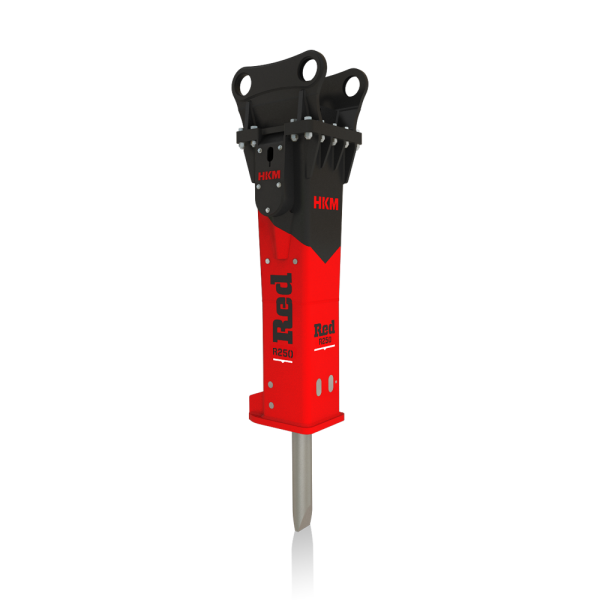

Q: Is the RS250 different from the HKM R250 I used before?
A: It is the same breaker under a new name. The Red Line range moved from R to RS, so R250 became RS250 while the 2250 kg operating weight, the Ø140 mm tool diameter and the mounting dimensions stayed identical. All R250 spare parts, chisels and seals still fit.
