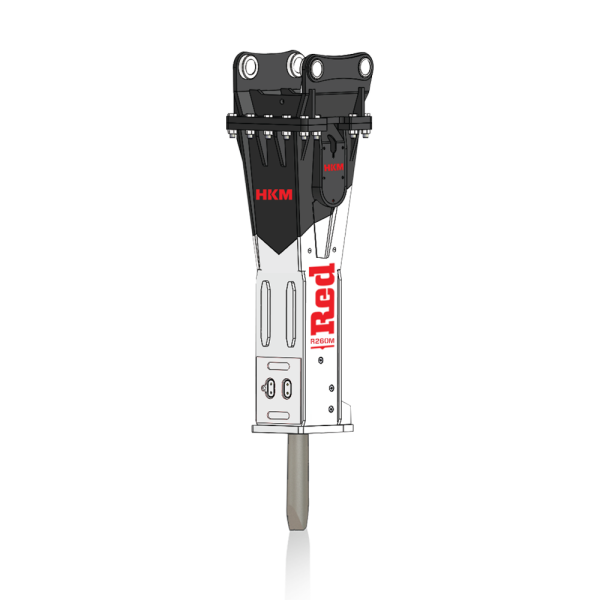

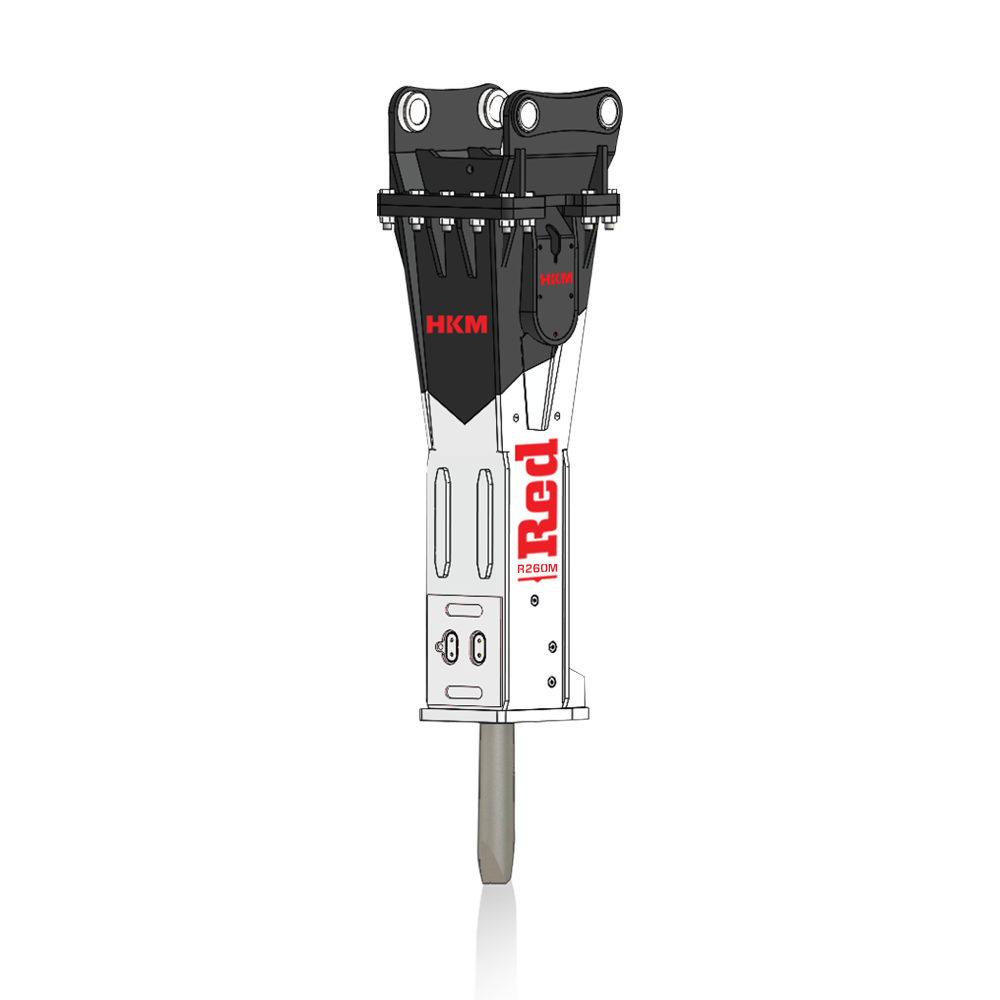

HKM RS260M Mining Series Hydraulic Breaker

HKM RS260M Mining Series Hydraulic Breaker

HKM RED LINE - RS260M: BUILT TO CUT THE OVERSIZE DOWN

HKM Red Line RS260M is purpose-built for high-impact performance and extreme durability in abrasive mining conditions.
Designed for 29-40 ton class excavators, this Mining Series model stands out with its reinforced white-red housing, superior component protection, and nonstop power delivery even in the toughest job sites.

RS260M: NO SHIFT IT CANNOT FINISH

With an operating pressure of 130-150 bar and oil flow of 170-240 l/min, RS260M ensures a smooth and efficient demolition process.
Its 2,510 kg operating weight and 150 mm tool diameter make it an ideal solution for surface mines, hard rock zones, and quarry projects.

The high-pressure accumulator, mounted directly on the main valve body, provides constant force with every strike.
Its nut-free, short tie rod system effectively absorbs vibration before it escalates - minimizing maintenance needs and extending service life.

Equipped with an Anti-Blank Firing system, RS260M prevents idle strikes that could harm both the breaker and the carrier, especially under heavy loads in sensitive terrain.

Its dust-protected solid cabin ensures long-term internal integrity, while integrated vibration and noise absorption systems enhance both safety and operator comfort.

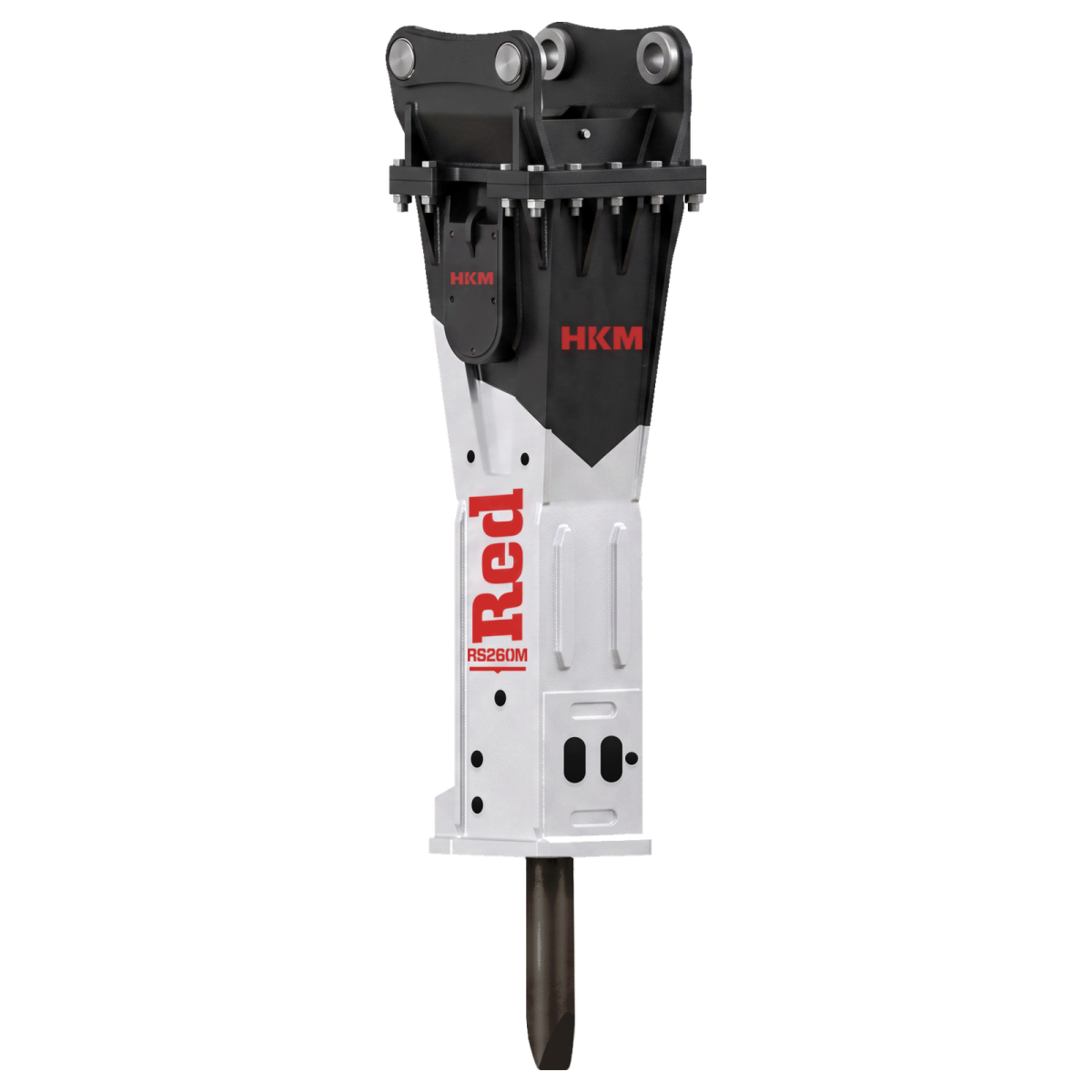

Finished with a distinctive white-red color scheme, RS260M is engineered to meet the demanding challenges of mining environments while maximizing uptime and breaker lifespan.

KEY FEATURES

• Specially reinforced structure for mining and quarry conditions
• Anti-Blank Firing system protects tool and carrier from idle impact
• Nut-free tie rod design for maximum uptime and durability
• Mining Series color scheme: high-visibility red & white
• Long-lasting performance in extreme and abrasive operations

INCLUDED IN THE SET

• Hydraulic Breaker Machine
• Mounting Bracket
• Breaker Tools (1 pcs Chisel Tool, 1 pcs Moil Point Tool)
• Hydraulic Connection Hoses
• Carrier Connection Pins
• Tool Box

STANDARD EQUIPMENTS

• High-Pressure Accumulator
• High Efficiency & Performance
• Dust Protection
• Solid Cabin Design
• Vibration Absorption
• Noise Absorption
• Nut-Free Tie Rod Design
• Anti-Blank Firing System

OPTIONAL EQUIPMENTS

• Automatic Lubrication System
• Underwater Equipment
• Reinforced Outer Cabin
• Fast Attachment Replacement Device
• Flow Secure Valve
• Impact Clock - Preventative Maintenance System

TECHNICAL SPECIFICATIONS

Frequently Asked Questions (FAQ)

Q: Why choose the RS260M over the standard model?
A: The RS260M is the specialized "Mining Series" version. It offers a reinforced outer housing for better resistance against abrasion in mines and includes the Anti-Blank Firing system as a standard for extra protection.

Q: What is the significance of the White and Red color?
A: This color scheme is unique to HKM's Mining Series. It is designed to provide high visibility in dusty mining environments, ensuring safer operation.

Q: What is "Anti-Blank Firing"?
A: It is a safety system that prevents the breaker from firing if the tool is not pressed against the material. This prevents internal damage to the breaker and protects the excavator arm from shock.

Q: Is the RS260M the same breaker as the R260M we ordered before?
A: Yes, only the name changed: R260M became RS260M with the switch to RS coding. Operating weight stays at 2510 kg and the tool diameter at Ø150 mm. Mining Series units use the spare parts list of the standard RS260, so your existing chisels, bushings and seal kits fit without any change.
