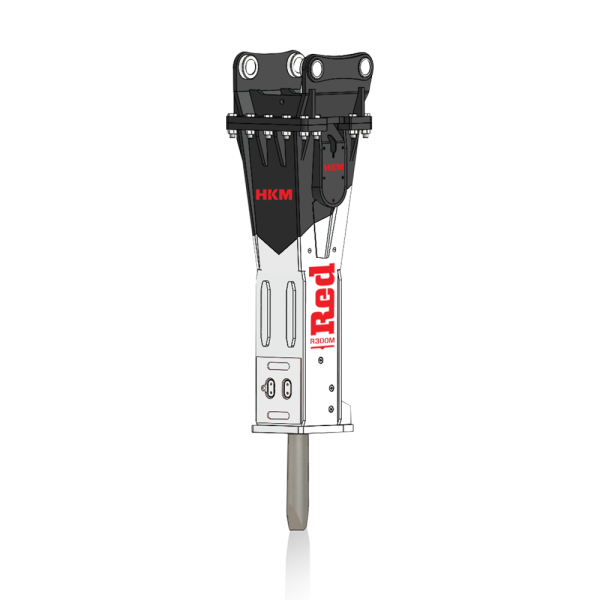

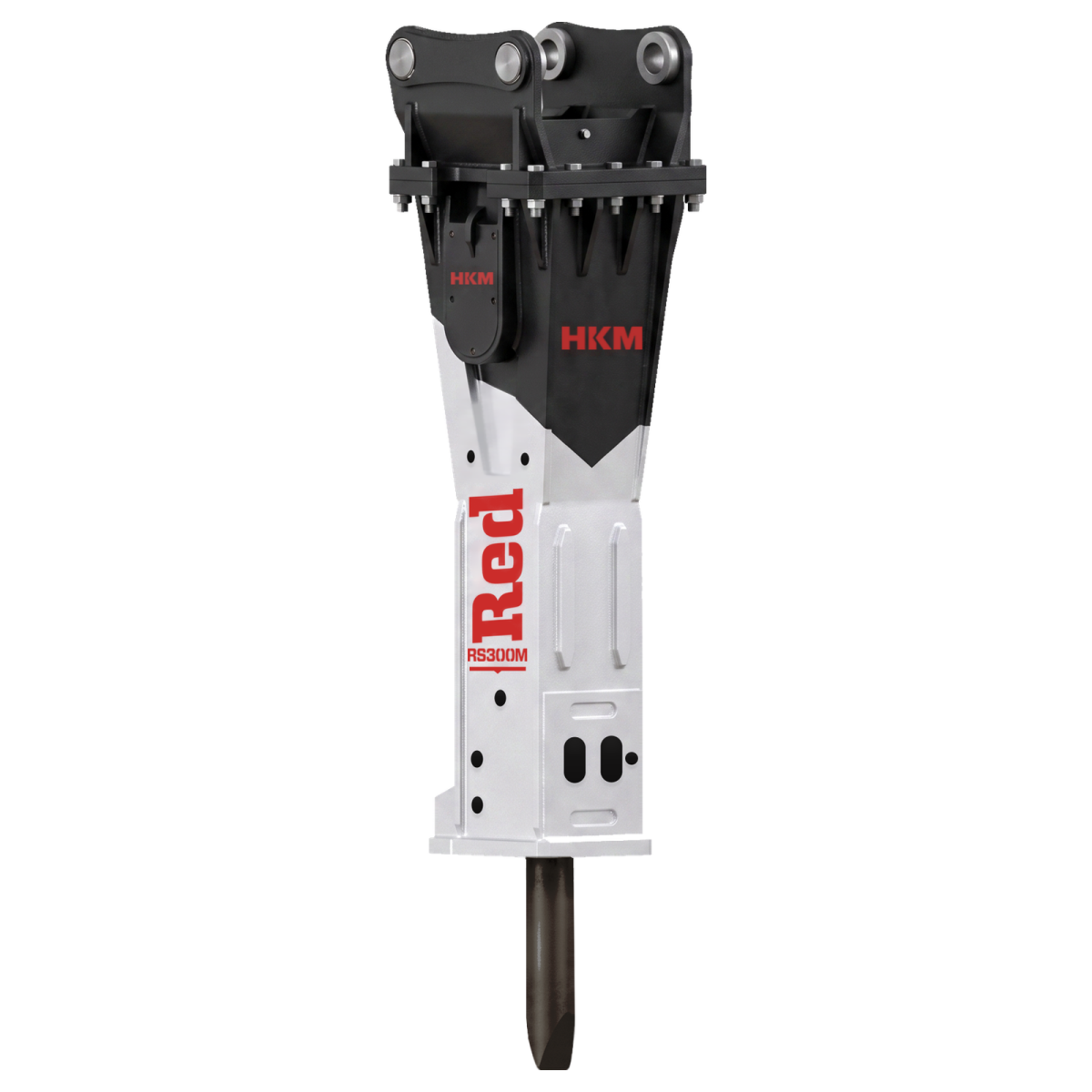

HKM RS300M Mining Series Hydraulic Breaker

HKM RS300M Mining Series Hydraulic Breaker

HKM RED LINE - RS300M: HARD ROCK BENCHES, DAY AFTER DAY

The HKM Red Line RS300M is a mining-dedicated powerhouse designed to dominate in the most abrasive and demanding excavation environments.
Compatible with 33-45 ton class excavators, it features a reinforced white-red housing, a high-pressure accumulator, and a nut-free tie rod system, making it a top-tier choice for mining operations that require nonstop demolition performance.

RS300M: ARMOR WHERE THE ROCK BITES

Operating at 130-150 bar with an oil flow of 170-250 l/min, RS300M maintains relentless power under extreme loads.
Its 2,960 kg weight and 160 mm tool diameter are engineered to break through the toughest rock and mineral layers with surgical precision.

Equipped with a high-pressure diaphragm accumulator, mounted directly on the main valve body, RS300M guarantees consistent power delivery even during prolonged use.
The shortened nut-free tie rods, directly connected to the front head, effectively absorb early-stage vibrations - reducing structural fatigue and extending part life.

For mining-specific reliability, it includes a solid dust-sealed housing, noise and vibration dampening systems, and is optionally equipped with automatic lubrication, underwater kit, and a Flow Secure Valve for extreme fluid control.

The white and red color identity signals its place in the Mining Series, built to outperform and outlast under constant high-impact demands.

KEY FEATURES

• Mining Series design with reinforced white-red housing
• Reliable power delivery for long hours in abrasive conditions
• Nut-free tie rods for minimized vibration and maintenance
• Solid housing with dust, noise, and vibration protection
• Customizable for tunnel, underwater, and mining applications

INCLUDED IN THE SET

• Hydraulic Breaker Machine
• Mounting Bracket
• Breaker Tools (1 pcs Chisel Tool, 1 pcs Moil Point Tool)
• Hydraulic Connection Hoses
• Carrier Connection Pins
• Tool Box

STANDARD EQUIPMENTS

• High Pressure Accumulator
• High Efficiency & Performance
• Dust Protection
• Solid Housing Design
• Vibration Absorption
• Noise Absorption
• Nut-Free Tie Rod Design

OPTIONAL EQUIPMENTS

• Automatic Lubrication
• Underwater Equipment
• Reinforced Housing
• Fast Attachment Replacement Device
• Flow Secure Valve
• Impact Clock - Preventative Maintenance

TECHNICAL SPECIFICATIONS

Frequently Asked Questions (FAQ)

Q: Why choose the RS300M Mining Series?
A: The RS300M is specifically designed for abrasive environments like quarries and mines. It features a reinforced housing in white and red, offering superior durability against external wear compared to standard models.

Q: Is it suitable for 40-ton excavators?
A: Yes, the RS300M is compatible with excavators ranging from 33 to 45 tons, making it a perfect match for a 40-ton carrier.

Q: How does the nut-free design help?
A: The nut-free tie rod design eliminates the common issue of loosening nuts due to heavy vibration. This results in less downtime for maintenance and a longer lifespan for the breaker's internal components.

Q: We run an R300M. Do RS300M spare parts still fit it?
A: They do. RS300M is the R300M under its new name, with the same 2960 kg operating weight, Ø160 mm tool diameter and breaking mechanism. Mining Series models use the standard RS300 spare parts list, so you order chisels, seal kits and tie rods exactly as before.
