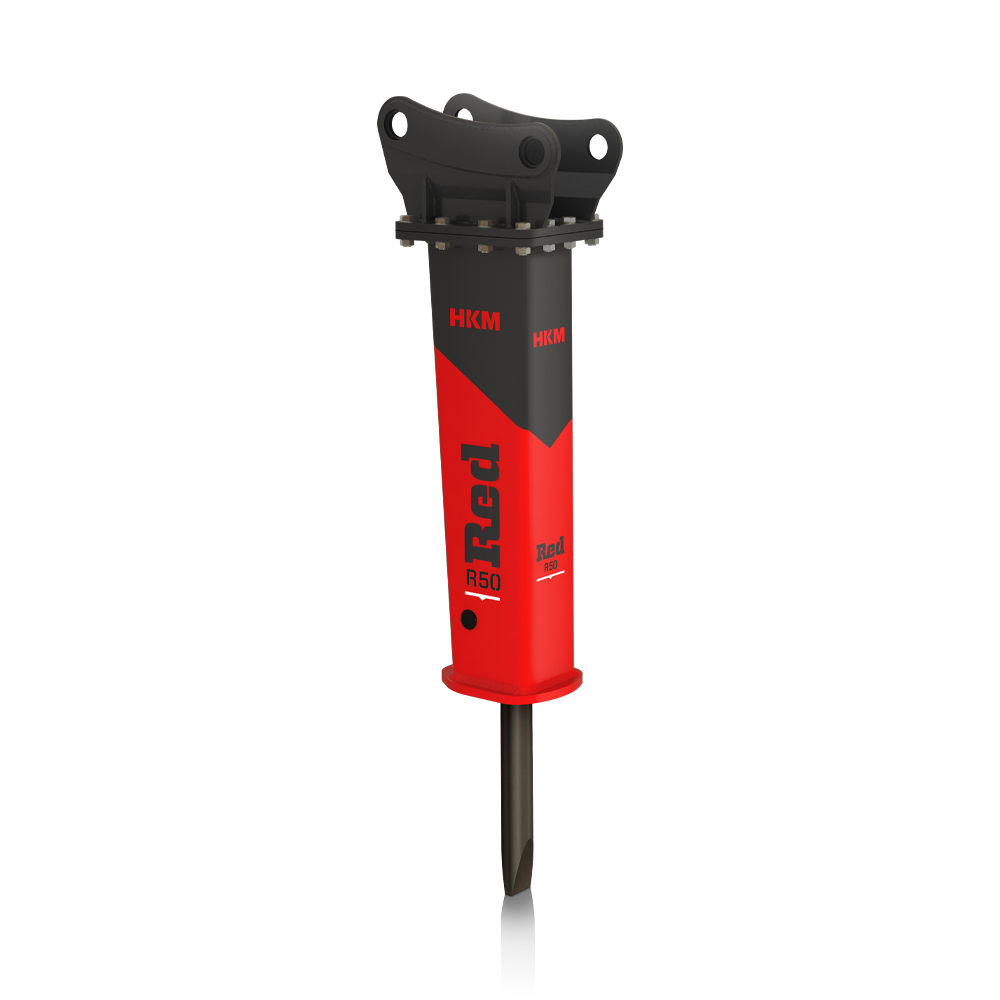

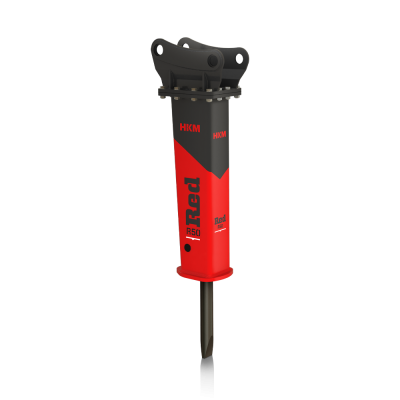

HKM RED LINE BREAKERS – R 50

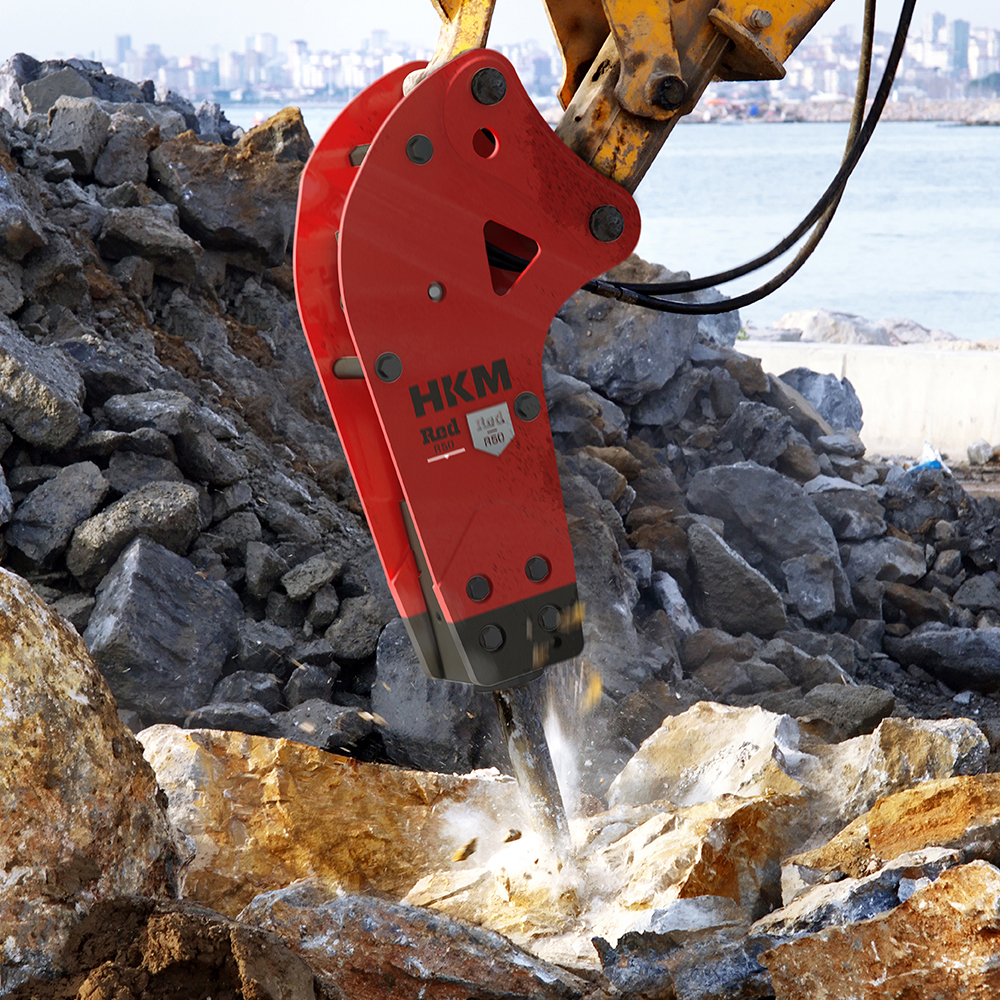

HKM Red Line R 50 is engineered to deliver continuous impact power in trenching, asphalt breaking, and light demolition jobs — especially in urban environments.
Fully compatible with 3–9 ton mini excavators and backhoe loaders, R 50 combines a high-pressure diaphragm accumulator with a fully hydraulic system to provide maximum efficiency, fuel savings, and long-term durability in a compact structure.
R 50: UNINTERRUPTED POWER, OPTIMAL EFFICIENCY
Operating at 110–130 bar pressure and requiring only 50–100 l/min oil flow, the R 50 ensures strong and stable performance even at low flow rates.
With an operating weight of 370 kg and a tool diameter of 75 mm, it offers reliable breaking force without compromising maneuverability in tight spaces.
Its 40-bar diaphragm-type accumulator prevents power loss between operations by eliminating pressure drops due to gas loss — ensuring consistent power delivery and fuel savings.

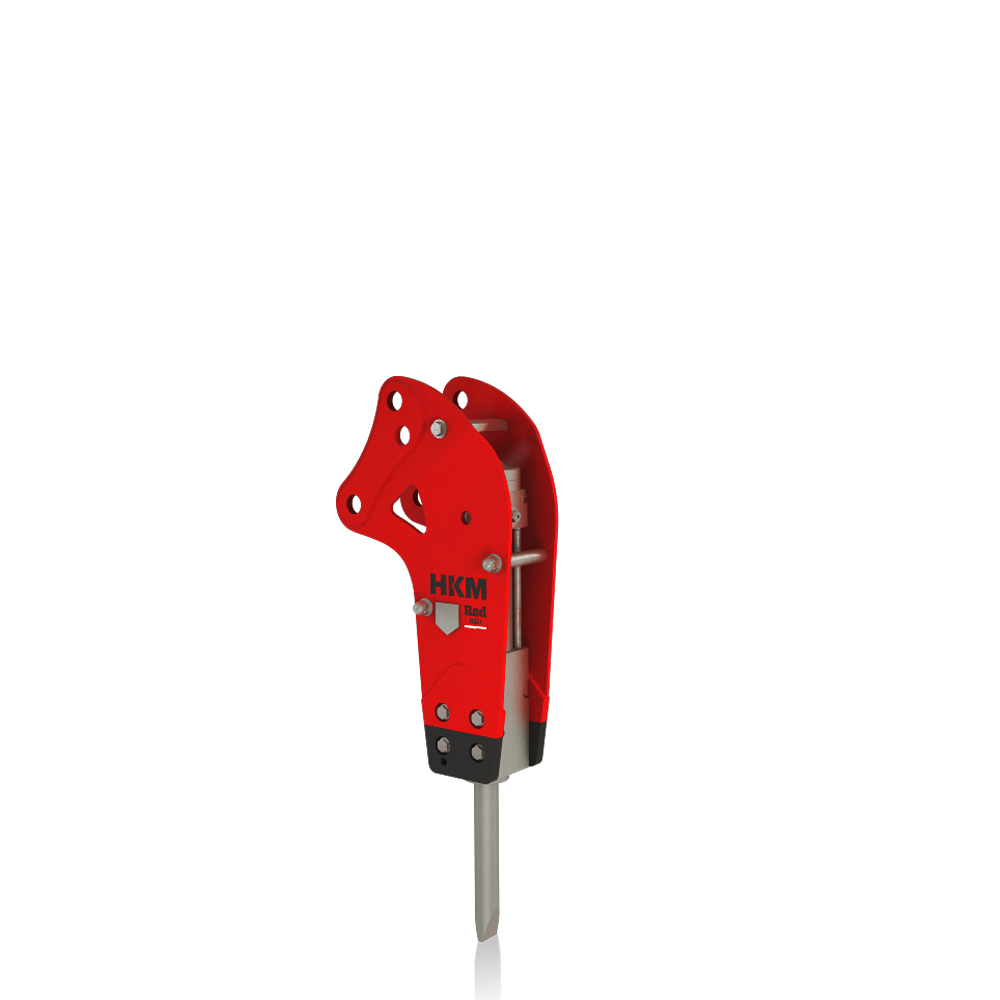

The fully foldable housing design minimizes stress on the carrier boom during transport, especially when used with backhoe loaders.
In addition, the optimized piston stroke length protects both the breaker and the carrier, while extending spare part life and reducing maintenance intervals.
Whether on urban construction sites or confined areas, R 50 is a smart, compact solution that delivers professional performance.
KEY FEATURES
- Strong impact force with time and fuel savings
- High efficiency even at low oil flow
- Perfect compatibility with 3–9 ton carrier machines
- Fully hydraulic system with high-pressure accumulator
- Compact body for easy access in tight working zones
STANDARD EQUIPMENTS
- High-Pressure Diaphragm Accumulator
- High Efficiency & Performance
- Easy Spare Part Replacement & Service
OPTIONAL EQUIPMENTS
- Noise Reduction Housing
- Underwater Kit
- Reinforced Outer Casing
- Quick Coupler
TECHNICAL SPECIFICATIONS
| Operational Weight (kg) | 370 |
| Carrier Weight (ton) | 3-9 |
| Tool Diameter (mm) | 75 |
| Operating Pressure (bar) | 110-130 |
| Oil Flow (lt/min) | 50-100 |
| Impact Rate (bpm) | 500-900 |
