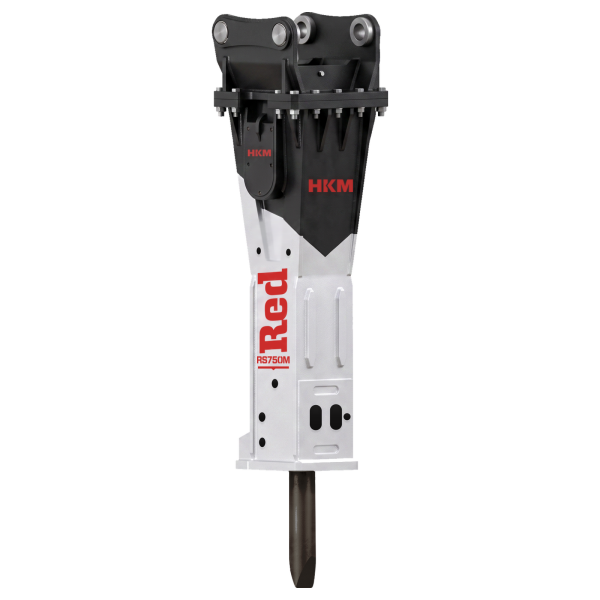

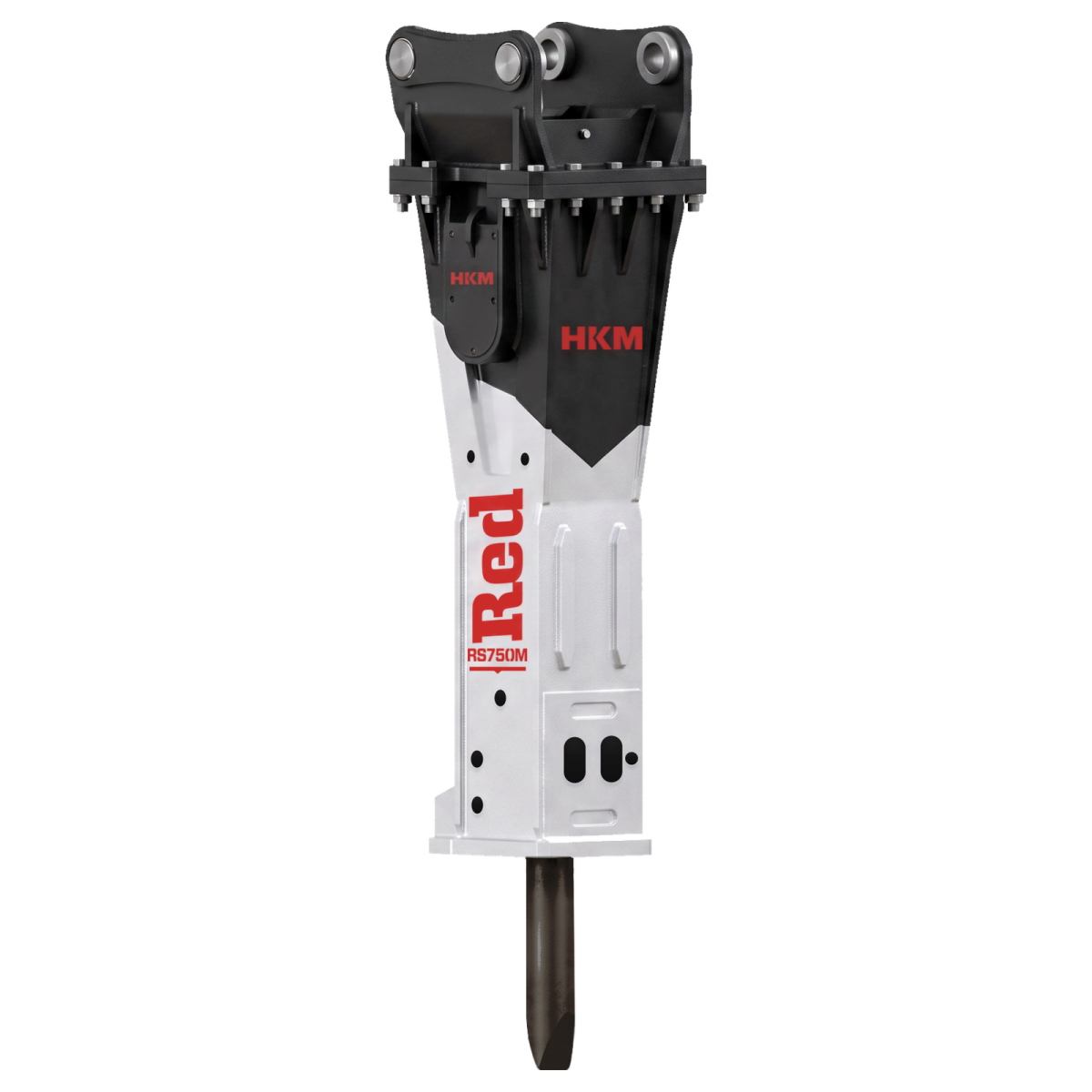

HKM RS750M Mining Series Hydraulic Breaker

HKM RS750M Mining Series Hydraulic Breaker

HKM RED LINE – RS750M (Mining Series – The Armored Titan)

HKM Red Line RS750M is a mining legend built to withstand the harshest conditions on earth, empowering 70–100 ton class machines.
Unlike the standard model, its white-red extra reinforced armored housing provides maximum protection against constant friction, impact, and abrasion found in mining sites.

RS750M: THE INVINCIBLE FORTRESS OF MINING SITES

Fed by 140–160 bar pressure and 300–400 l/min oil flow, the RS750M lands on rocks with its massive 7,800 kg mass.
Being approximately 300 kg heavier than the standard model, this armored structure, combined with a 205 mm tool diameter, creates a demolition force capable of shattering even the hardest veins in mines.

The high-pressure diaphragm accumulator integrated onto the main valve prevents performance drops during continuous impact.
The nut-free short tie rod technology guarantees business continuity on the field by preventing tie rods from loosening or breaking under the vibration of such immense power.

The solid cabin with increased dust sealing and noise/vibration absorption is specially optimized for tunnel works and underground mining operations.
RS750M is the peak of durability, preferred by mining professionals who say "the work must not stop".

KEY FEATURES

• White-Red Armored Housing Design specific to mining sites
• 7800 kg weight for extra stability and impact power
• Nut-free short tie rod system for minimum maintenance
• High-pressure accumulator for uninterrupted power
• Superior protection against abrasive and dusty environments

INCLUDED IN THE SET

• Hydraulic Breaker Machine
• Mounting Bracket
• Breaker Tools (1 pcs Chisel Tool, 1 pcs Moil Point Tool)
• Hydraulic Connection Hoses
• Carrier Connection Pins
• Tool Box

STANDARD EQUIPMENTS

• High Pressure Diaphragm Accumulator
• High Efficiency & Performance
• Dust Protection
• Reinforced Solid Housing Design
• Vibration Damping Structure
• Noise Suppression System
• Nut-Free Tie Rod Design

OPTIONAL EQUIPMENTS

• Automatic Lubrication
• Underwater Equipment
• Extra Reinforced Wear Plates
• Fast Attachment Replacement Device
• Impact Clock

TECHNICAL SPECIFICATIONS

Frequently Asked Questions (FAQ)

Q: Why is the RS750M heavier than the standard model?
A: Because it is the "Mining Series", the RS750M contains 300 kg more steel and armor than the standard RS750. This weight difference comes from reinforcement plates that protect the breaker body against the friction of abrasive rocks.

Q: Is it suitable for my 90-ton excavator?
A: Absolutely. The RS750M is an ideal attachment for all excavators in the 70-100 ton range (including the 90-ton class). Thanks to its high tonnage, it establishes perfect balance with your machine.

Q: On which grounds should it be used?
A: The RS750M is the right choice for use in quarries and mining sites on grounds with high hardness and abrasiveness, such as granite, basalt, and andesite.
