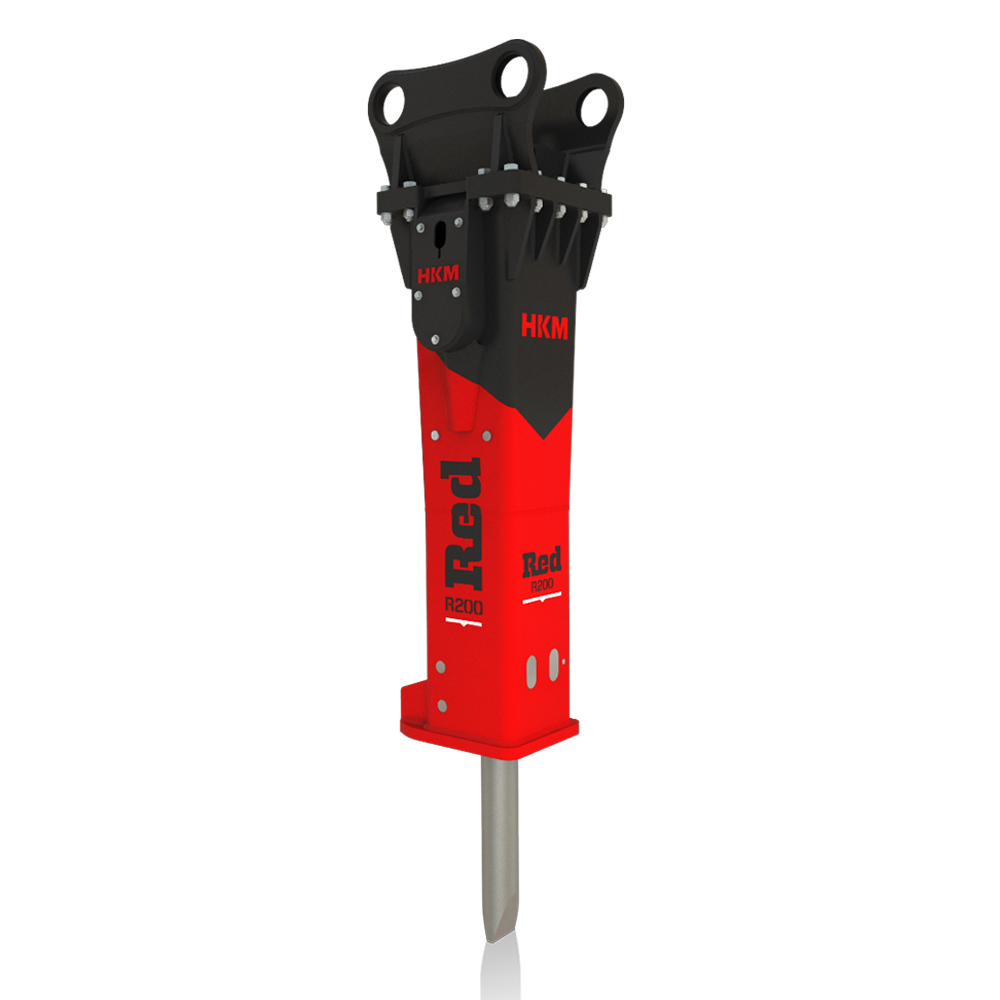

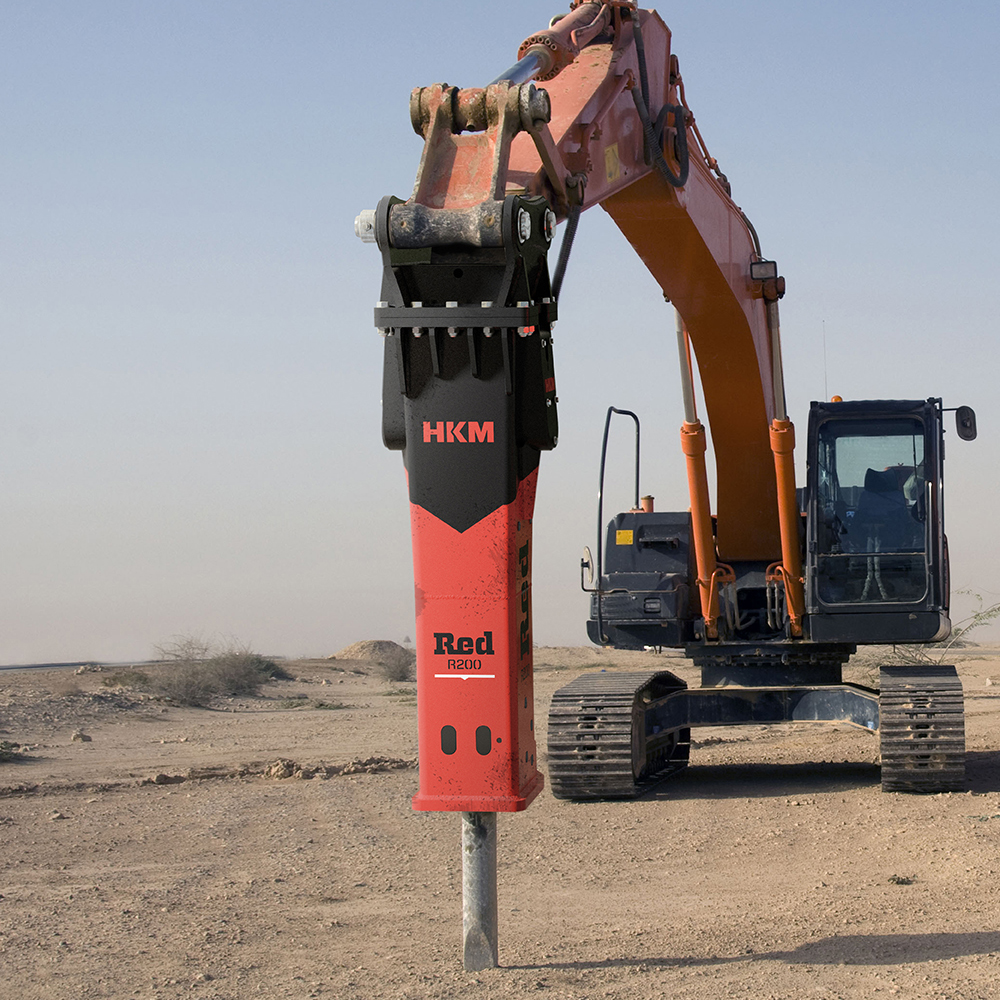

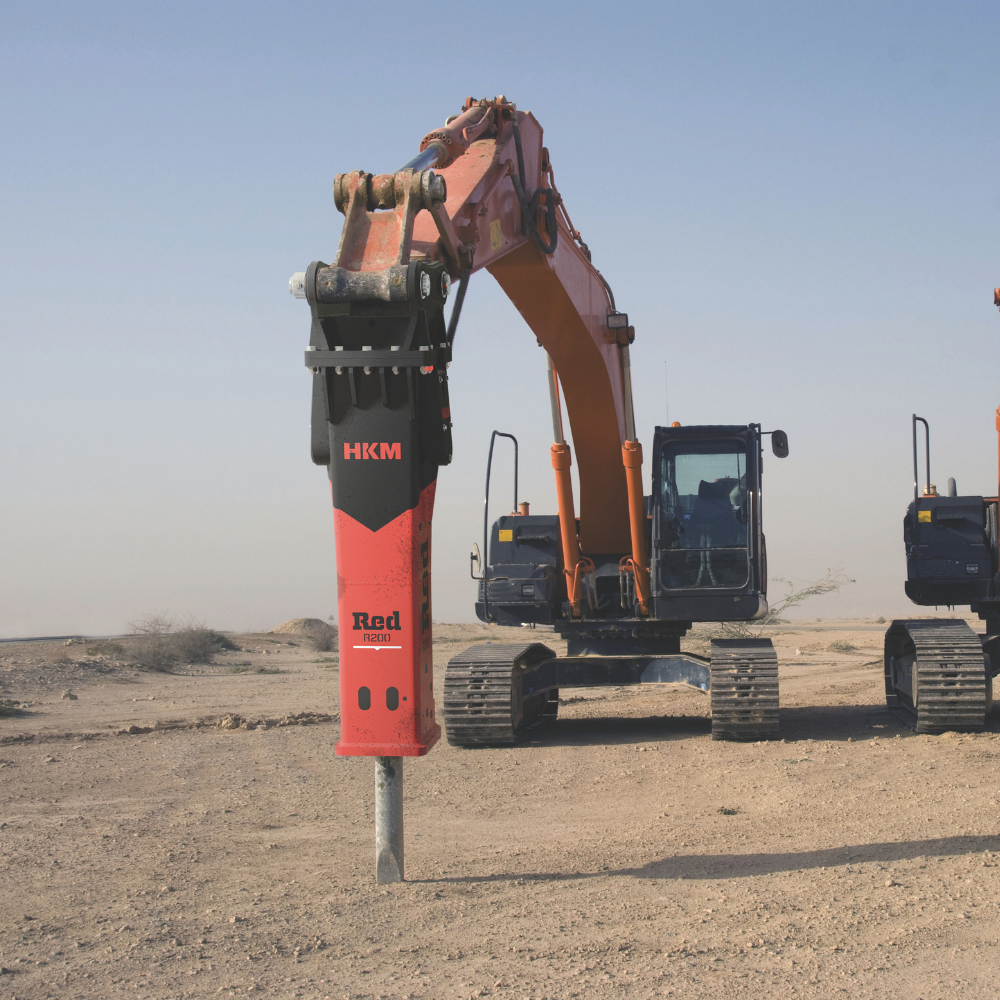

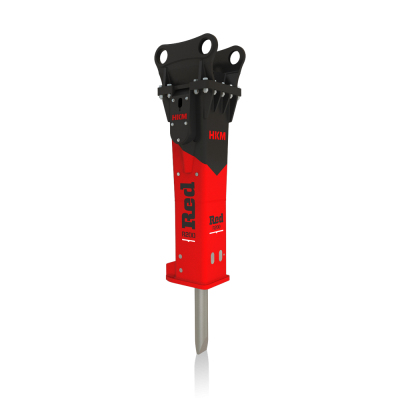

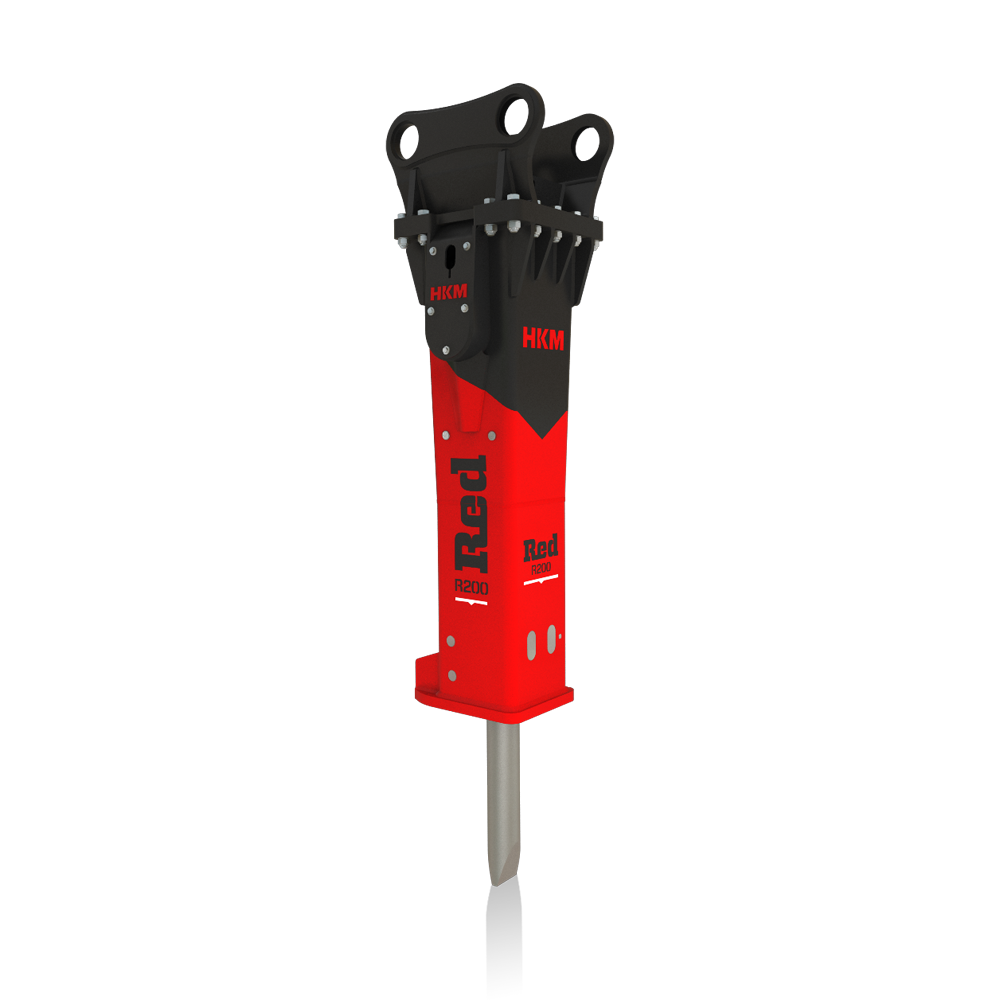

HKM RED LINE BREAKERS – R 200
HKM Red Line R 200 is built to deliver continuous, high-performance breaking power in demanding jobsite conditions.
Compatible with 22–29 ton class carriers, the R 200 features a high-pressure accumulator, nut-free tie rod design, and a solid, dust-protected cabin structure, ensuring maximum durability with reduced maintenance needs.
R 200: SUSTAINED POWER, SERVICE-FRIENDLY STRUCTURE
Operating at 120–140 bar pressure with 120–180 l/min oil flow, the R 200 delivers strong, reliable impact energy.

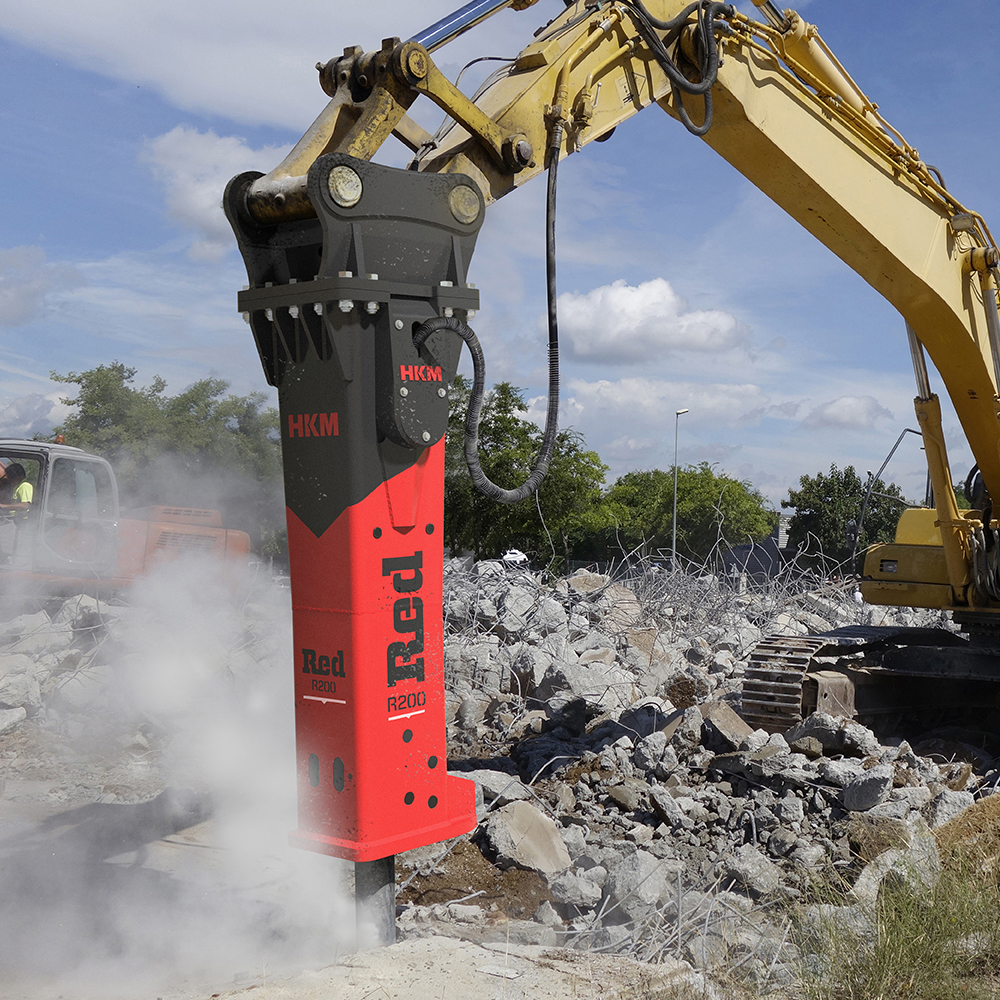

With its 1,842 kg operating weight and 130 mm tool diameter, it is ideal for heavy-duty demolition, foundation work, and large-scale trenching.
The high-pressure accumulator, mounted directly on top of the main valve body, ensures consistent performance throughout long working hours.
Thanks to its short and nut-free tie rod system, internal stresses are absorbed more efficiently, reducing the likelihood of loosening and dramatically extending spare part life.
Optional features such as a long single-piece bushing for extended wear in tunneling, a reinforced outer housing for extreme mining conditions, and an underwater kit for submerged applications make R 200 a versatile and powerful solution for every challenge.
R 200 combines durability, field adaptability, and ease of maintenance — making it a top choice for professionals seeking strength and reliability in every strike.
KEY FEATURES
- Continuous demolition power with high-pressure accumulator
- Nut-free tie rod system minimizes maintenance and loosening
- Solid cabin and dust protection for extended durability
- Optional long bushing ideal for vertical applications like tunneling
- Configurable for mining, underwater, and abrasive environments
STANDARD EQUIPMENTS
- High-Pressure Accumulator
- High Efficiency & Performance
- Dust Protection
- Solid Cabin Design
- Vibration Absorption
- Noise Absorption
- Nut-Free Tie Rod Design
OPTIONAL EQUIPMENTS
- Automatic Lubrication System
- Underwater Equipment
- Reinforced Outer Cabin
- Fast Attachment Replacement Device
TECHNICAL SPECIFICATIONS
| Operational Weight (kg) | 1842 |
| Carrier Weight (ton) | 22-29 |
| Tool Diameter (mm) | 130 |
| Operating Pressure (bar) | 120-140 |
| Oil Flow (lt/min) | 120-180 |
| Impact Rate (bpm) | 400-550 |
