Pulverizer

Fixed-type pulverizer for 20–30 t carriers; 1,700 kg operating weight, 95 t crushing force and 810 mm jaw opening deliver fast secondary reduction and clean rebar separation on piles.

HKM Pulverizers Catalogue.pdf

HKM Beton Yigin Eziciler_Pulverizatorler_Katalog.pdf

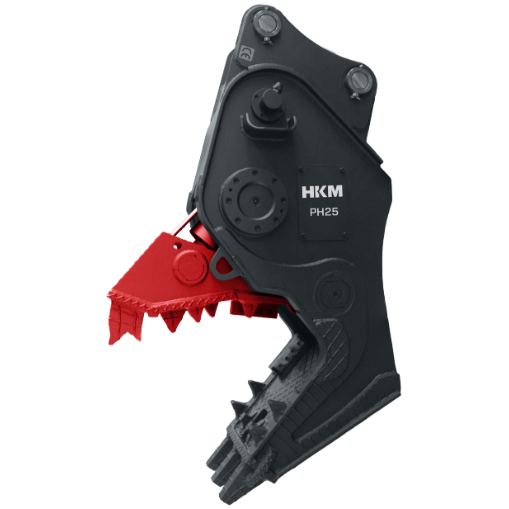

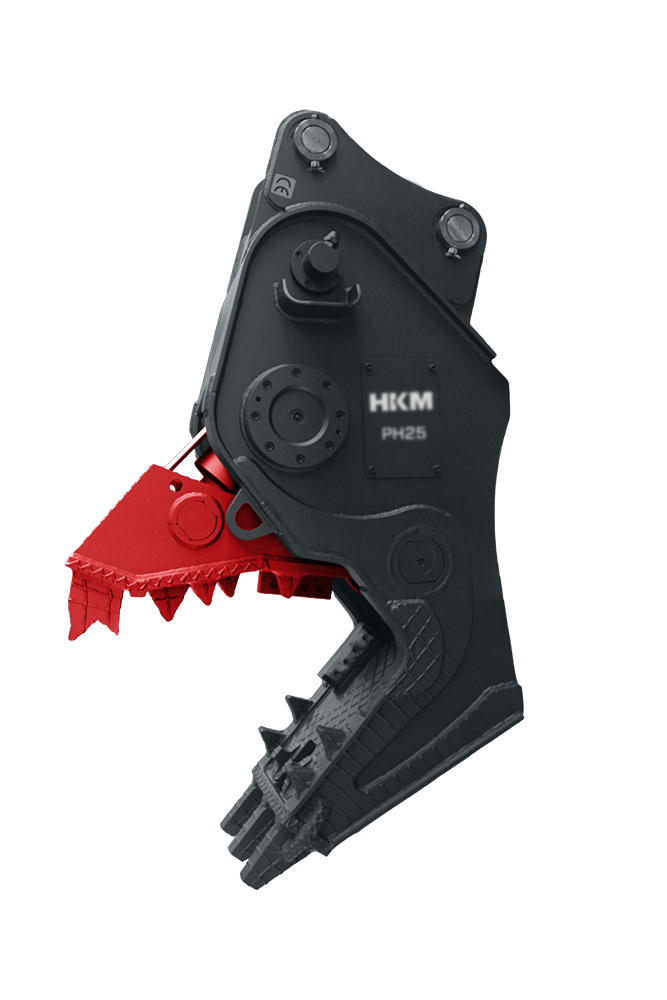

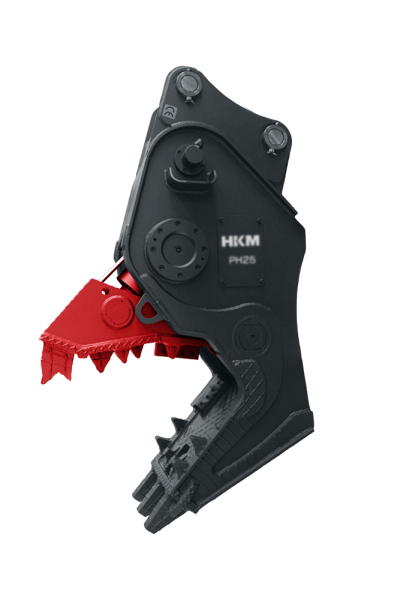

Pulverizer | HKM PH25

HKM PH25 is a fixed secondary pulverizer optimized for pile work. Its angled, extra-wide jaws bite firmly into the pile to downsize concrete fast while retaining rebar between the jaws for clean separation. Short, replaceable cutter blades help cut long bars and wires, and the compact overall length provides precise control in tight spaces.

With simple plumbing, strong closing force and low service time, PH25 increases productivity on recycling yards, site cleanup and pre-haul size reduction tasks.

Key Features

Non-rotating, large-bore cylinder for high closing force
Angled, extra-wide jaws for maximum grabbing power from the pile
Tooth pattern for rebar retention and quick separation
Replaceable short blades to assist cutting long bars and wires
Compact overall length for precise machine control
Bolt-on teeth & wear plates for fast field service and lower operating cost

Application Areas

Pile processing and secondary reduction
Material downsizing before hauling
Site cleanup; loading and recycling speed-up

Benefits

Short cycle times – high tons/hour
Lighter setup than rotating types – simple plumbing
Clean rebar separation to improve loading and recycling throughput

Optional Equipment

High-Wear Protection Kit: Hardox™/AR400 body liners, bolt-on cheek plates
Dust-Suppression Plumbing: stub for mist nozzles

Technical Specifications

Carrier Weight (t)	20–30
Operating Weight (kg)	1700
Operating Pressure (bar)	320
Oil Flow (L/min)	200
Crushing Force (t)	95
Opening A (mm)	810
Blade Length B (mm)	230
Height C (mm)	2267
Width D (mm)	590
