Pulverizer

Magnet secondary pulverizer for 20–24 t carriers; 2,000 kg weight, 80 t crushing force and 800 mm opening collect rebar/scrap while crushing—one-pass workflow that speeds cleanup.

HKM Pulverizers Catalogue.pdf

HKM Beton Yigin Eziciler_Pulverizatorler_Katalog.pdf

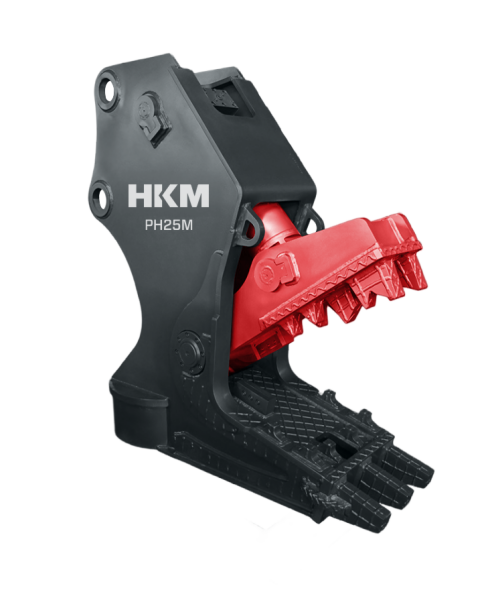

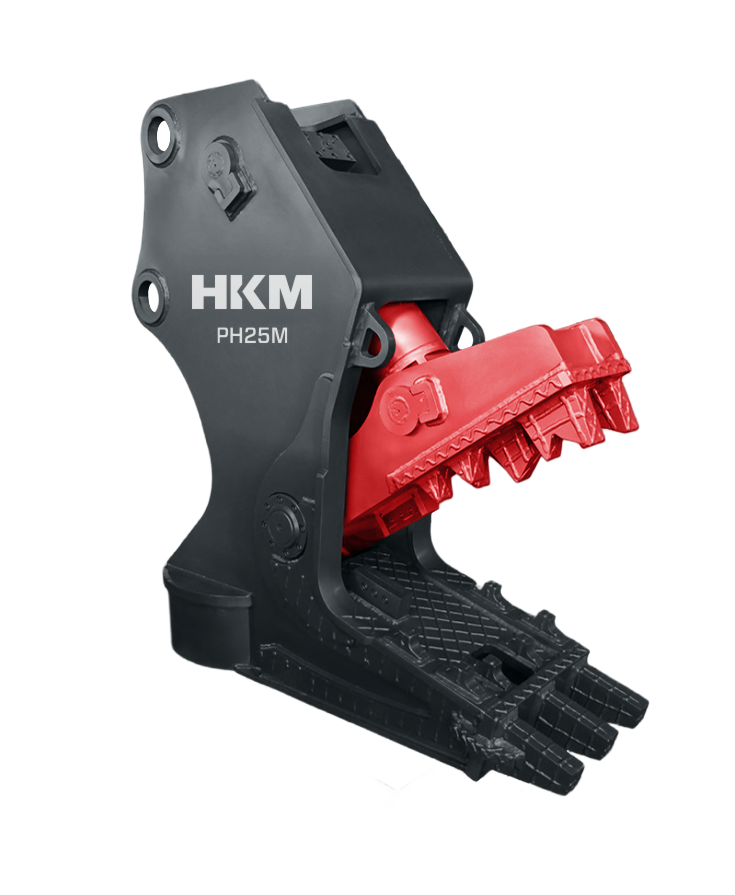

Pulverizer | HKM PH25M (Magnet Secondary)

HKM PH25M is a secondary pulverizer with an integrated magnet plate that automatically lifts and collects rebar and scrap while crushing concrete. This enables a one-pass crush-and-separate workflow, cutting tool changes, sorting effort and cleanup time. It shares the same wear-part concept as PH25 for easy field service, and features guarded hydraulics and cable routing.

Key Features

Built-in magnet plate with controller (power per carrier spec)
Crush & separate in one pass; fewer attachment swaps
Common wear-part architecture with PH25 for quick maintenance
Guarded hydraulics/cabling for reliability and safety

Benefits

Collect steel while you crush – shorter handling and cleanup
Fewer attachments needed on tight jobsites
Reduced service time and operating cost

Application Areas

Recycling yards
Demolition with heavy rebar content
Cleanup acceleration

Technical Specifications

Carrier Weight (t)	20–24
Operating Weight (kg)	2000
Operating Pressure (bar)	300
Oil Flow (L/min)	200
Crushing Force (t)	80
Opening A (mm)	800
Blade Length B (mm)	180
Height C (mm)	2275
Width D (mm)	600
Outer Diameter E (mm)	600
