Pulverizer

360° rotating primary pulverizer for 20–30 t carriers; 2,250 kg, 150 t crushing force and 765 mm opening enable fast first-break on walls/beams with precise positioning and low downtime.

HKM Pulverizers Catalogue.pdf

HKM Beton Yigin Eziciler_Pulverizatorler_Katalog.pdf

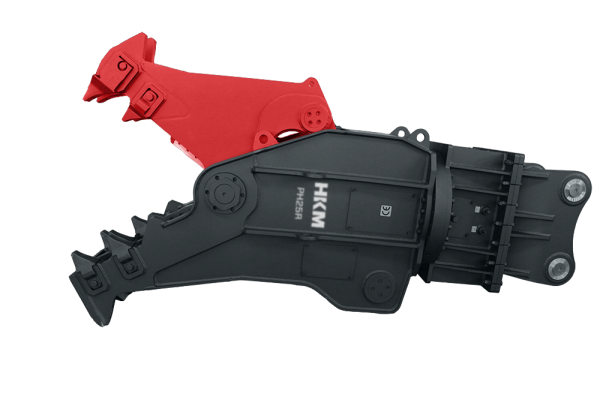

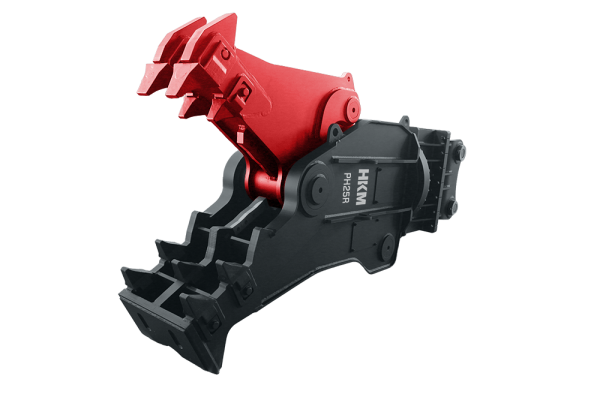

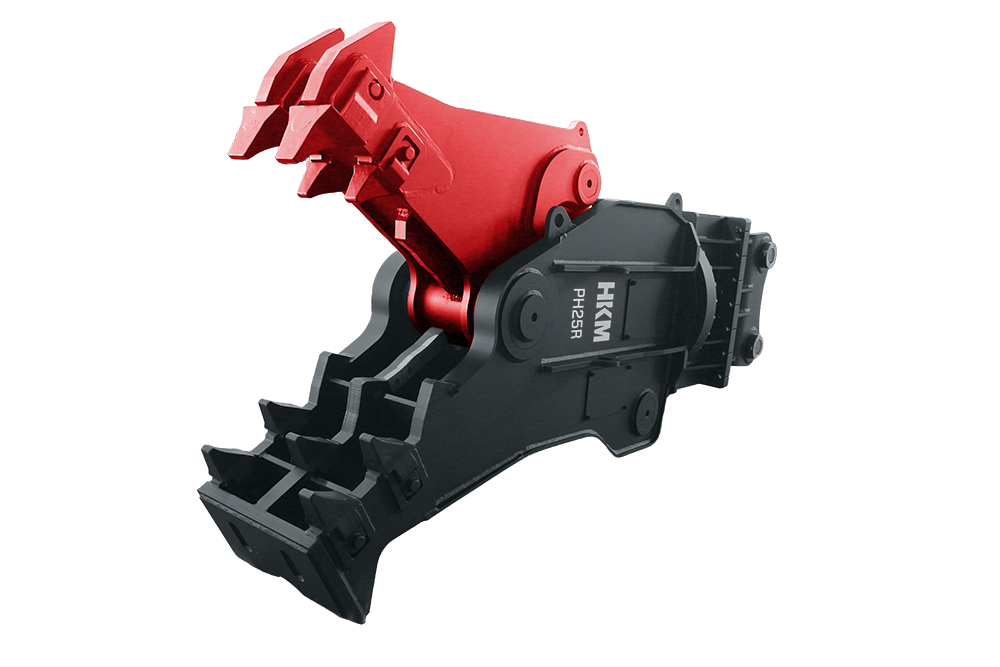

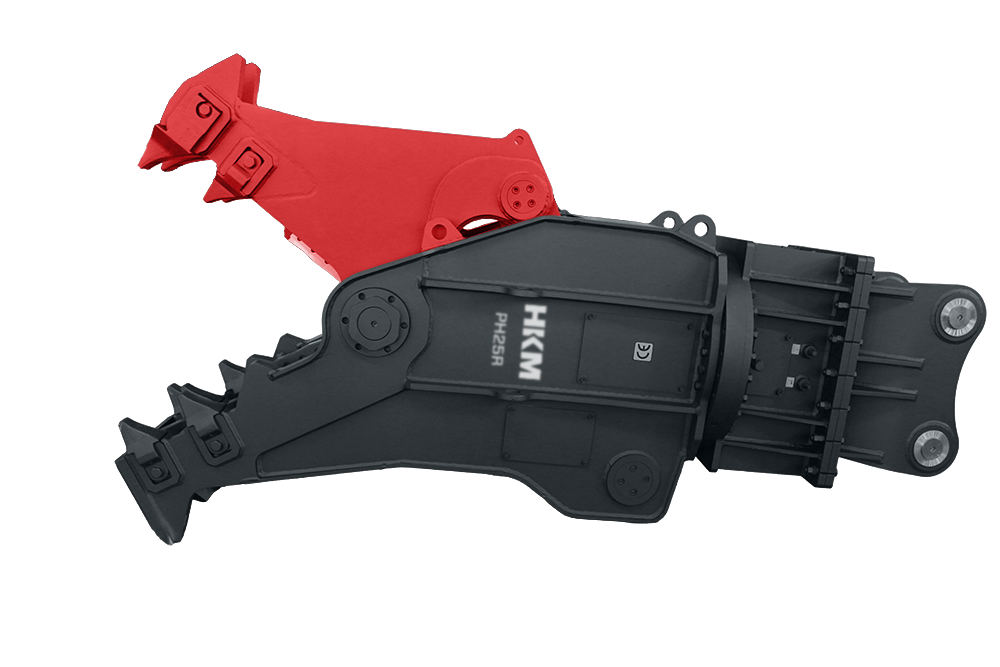

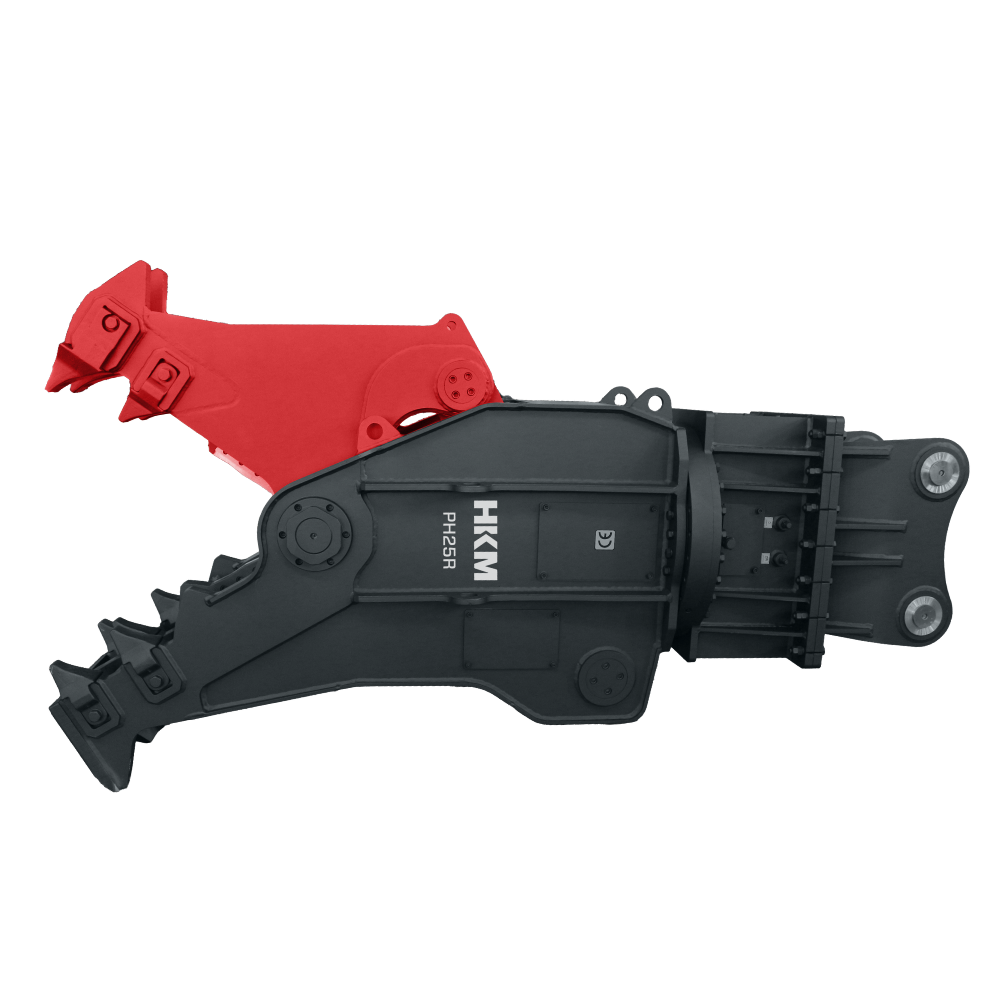

Pulverizer | HKM PH25R (Rotating Primary)

HKM PH25R is a primary demolition pulverizer engineered to crush concrete and capture rebar straight from the structure. The high-torque 360° hydraulic rotator lets you set the exact approach angle for accurate biting, faster cycles and safer operation. Deep, wide jaws with a piercing tooth layout accelerate first break-out, while bolt-on teeth and cheek wear plates enable quick field service with no on-site welding.

Key Features

360° hydraulic rotator with high holding torque for stable positioning
Deep, wide jaws with piercing tooth layout for fast break-out
Optimized hydraulic circuit for short cycle times
Bolt-on teeth & cheek wear plates – quick replacement, lower service time
Protected cylinder rods and a guarded working area

Benefits

Faster primary demolition with precise bites
Less collateral damage on renovations and tight jobsites
Reduced downtime thanks to easy field service

Application Areas

Walls, beams, slabs
Façade removal and surface cleanup
Selective deconstruction

Technical Specifications

Carrier Weight (t)	20–30
Operating Weight (kg)	2250
Operating Pressure (bar)	300
Oil Flow (L/min)	200
Crushing Force (t)	150
Opening A (mm)	765
Blade Length B (mm)	180
Height C (mm)	2300
Width D (mm)	550
Rotator Pressure (bar)	120
Rotator Oil Flow (L/min)	40–60
