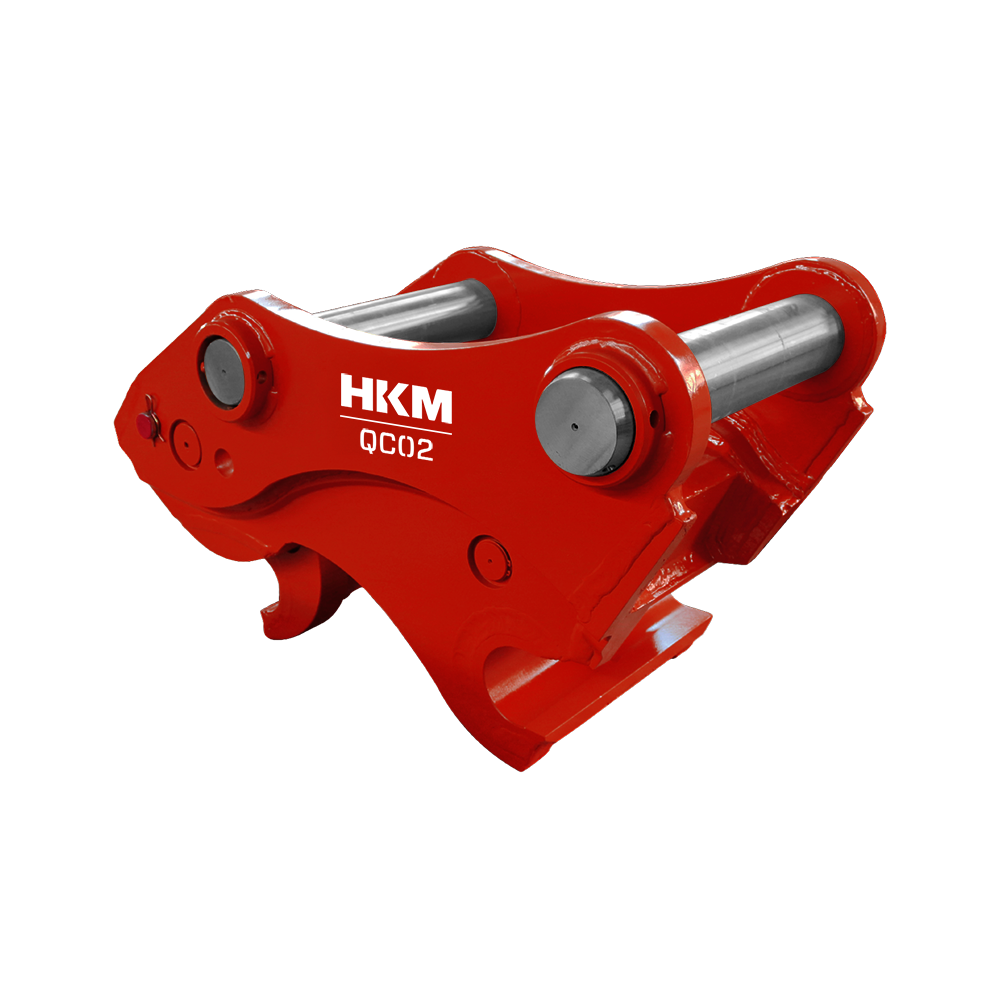

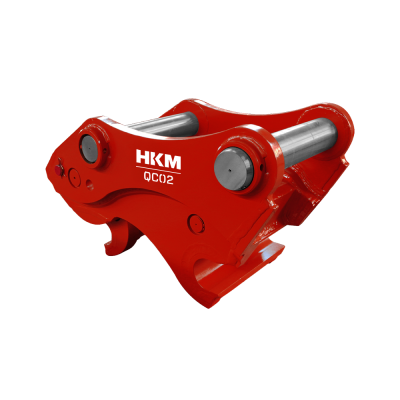

QC02 Quick Coupler

The QC02 model Quick Coupler is specially designed for mini excavators in the 1.5 to 2.5 ton class. With a body weight of 30 kg, it offers an excellent balance of durability and lightness. Its compact structure—400–430 mm in length, 250–280 mm in height, and 220–250 mm in width—makes it ideal for use in tight spaces. The pin diameter is 25–30 mm, while the pin center spacing is 165–170 mm, ensuring wide compatibility with many excavator arms. The coupler operates at a hydraulic pressure of 30–40 bar and requires an oil flow rate of 10–20 L/min, providing safe and efficient attachment transitions in the field.

Benefits

• Minimized Downtime: Instant, single-operator attachment changes keep your workflow uninterrupted.
• Lower Operating Costs: Reduce equipment fleet size and labor requirements to save on project expenses.
• Improved Safety: Dual-lock pins and spring-loaded circlip system provide redundant security against accidental release.
• Maximum Versatility: One coupler handles breakers, buckets, rippers, cutters and more. No adapter kits needed.
• Low Maintenance: Sealed bearings and consolidated grease points cut daily upkeep to minutes.
• Extended Service Life: Premium steel and precision machining enhance both coupler and attachment longevity.

Application Areas

• Multi-Attachment Workflow: Rapidly switch between buckets, breakers, rippers, drum cutters, crushers and grapples without leaving the cab.
• General Construction & Earthworks: From utility trenching to site grading—keeps operators productive on mixed-attachment jobs.
• Demolition & Recycling: Quick changes between breaker and crusher attachments accelerate debris removal and on-site crushing.
• Landscaping & Utilities: Seamlessly move from trenchers to augers to grading buckets for pipeline, irrigation and hard-scape work.
• Civil & Road Maintenance: Ideal for municipal crews needing fast transitions between pavement saws, planers and sweepers.

Key Features

• Premium Manganese Steel Body: High strength and wear resistance withstands heavy impact and abrasion.
• Spring-Loaded Circlip & Dual-Lock Pin: Redundant safety system locks the attachment under pressure, preventing accidental release.
• Universal Compatibility: Engineered to fit all major excavator makes and models via adjustable pin centers and separation fits.
• Lean Maintenance: Sealed bearings and consolidated greasing points slash daily upkeep to minutes.

Technical Specifications
