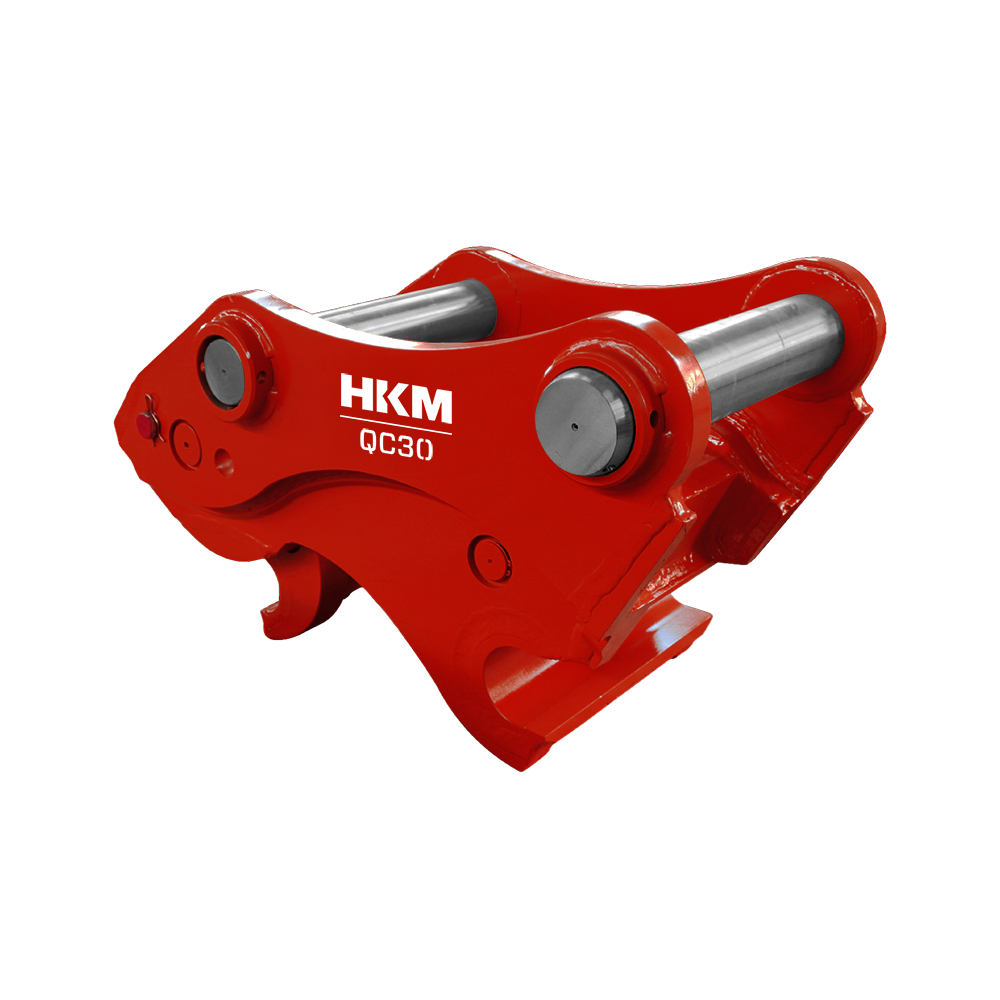

HKM QC30
Quick Coupler
The QC30 Quick Coupler is specifically designed for carrier machines ranging from 30-35 tons. With an operating weight of 550 kg, it features a pin center distance of 390-420 mm and a pin diameter of 90-100 mm. Measuring 1100-1200 mm in length, 630-640 mm in height, and 530-570 mm in width, it ensures agility and safety on the field. Its robust structure guarantees high performance even under tough conditions.
Campaign

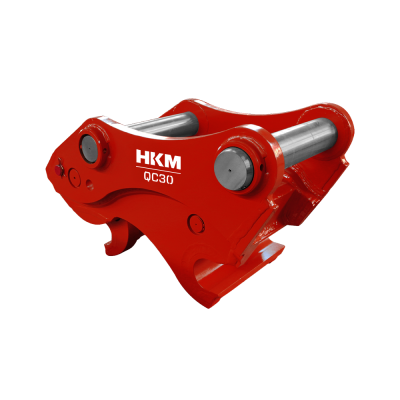

QC30 Quick Coupler
The QC30 model Quick Coupler is engineered for excavators in the 30 to 35 ton range. With a working weight of 550 kg, it provides a solid and safe coupling solution for heavy-duty equipment. The coupler's body dimensions: 1100–1200 mm in length, 630–640 mm in height, and 530–570 mm in width enable it to handle large attachments with confidence. With a pin diameter of 90–100 mm and a pin center axis distance of 390–420 mm, QC30 ensures compatibility with a broad range of heavy-class machines. Operating at 30–40 bar pressure and requiring 10–20 L/min oil flow, it supports high-performance, field-proven operation.
Benefits
- Minimized Downtime: Instant, single-operator attachment changes keep your workflow uninterrupted.
- Lower Operating Costs: Reduce equipment fleet size and labor requirements to save on project expenses.
- Improved Safety: Dual-lock pins and spring-loaded circlip system provide redundant security against accidental release.
- Maximum Versatility: One coupler handles breakers, buckets, rippers, cutters and more. No adapter kits needed.
- Low Maintenance: Sealed bearings and consolidated grease points cut daily upkeep to minutes.
- Extended Service Life: Premium steel and precision machining enhance both coupler and attachment longevity.
Application Areas
- Multi-Attachment Workflow: Rapidly switch between buckets, breakers, rippers, drum cutters, crushers and grapples without leaving the cab.
- General Construction & Earthworks: From utility trenching to site grading—keeps operators productive on mixed-attachment jobs.
- Demolition & Recycling: Quick changes between breaker and crusher attachments accelerate debris removal and on-site crushing.
- Landscaping & Utilities: Seamlessly move from trenchers to augers to grading buckets for pipeline, irrigation and hard-scape work.
- Civil & Road Maintenance: Ideal for municipal crews needing fast transitions between pavement saws, planers and sweepers.
Key Features
- Premium Manganese Steel Body: High strength and wear resistance withstands heavy impact and abrasion.
- Spring-Loaded Circlip & Dual-Lock Pin: Redundant safety system locks the attachment under pressure, preventing accidental release.
- Universal Compatibility: Engineered to fit all major excavator makes and models via adjustable pin centers and separation fits.
- Lean Maintenance: Sealed bearings and consolidated greasing points slash daily upkeep to minutes.
Technical Specifications
| Carrier Weight (ton) | 30–35 |
| Operating Weight (kg) | 550 |
| Length A (mm) | 1100–1200 |
| Height B (mm) | 630–640 |
| Width C (mm) | 530–570 |
| Pin Center Axis Distance D (mm) | 390–420 |
| Pin Diameter E (mm) | 90–100 |
| Working Pressure (bar) | 30–40 |
| Oil Flow (l/min) | 10–20 |
