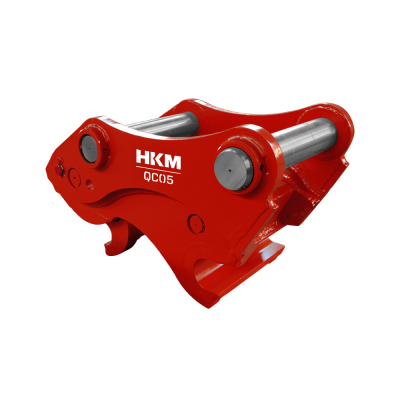

HKM QC05
Quick Coupler
The QC05 Quick Coupler is specifically designed for carrier machines ranging from 4-5 tons. With an operating weight of 60 kg, it features a pin center distance of 200-210 mm and a pin diameter of 40-50 mm. Measuring 540-550 mm in length, 300-310 mm in height, and 290-325 mm in width, it ensures agility and safety on the field. Its robust structure guarantees high performance even under tough conditions.
Campaign

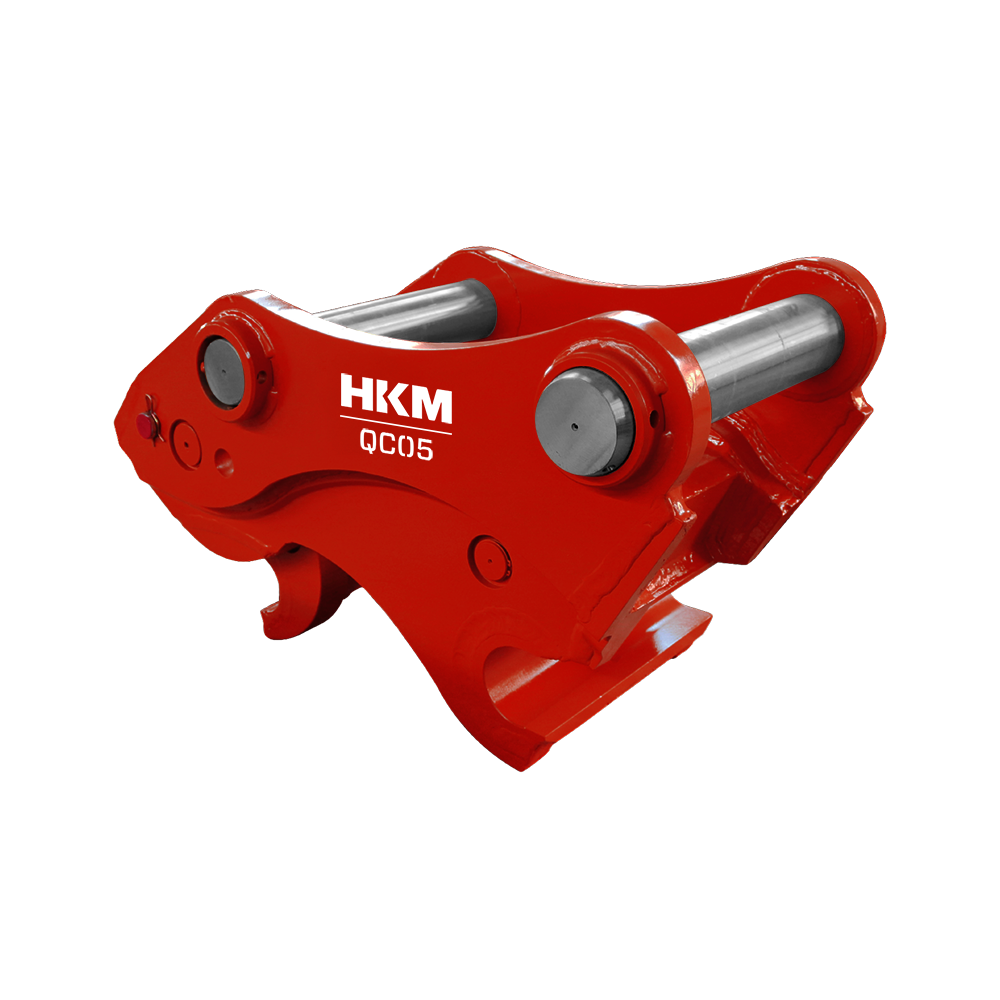

QC05 Quick Coupler
The QC05 model Quick Coupler is designed for excavators in the 4 to 5 ton class. Weighing 60 kg, it delivers both durability and ease of use, making it ideal for medium-duty work. The body dimensions—540–550 mm in length, 300–310 mm in height, and 290–325 mm in width—make it compact enough for confined environments while offering stable coupling. The pin diameter is 40–50 mm and the pin center axis distance is 200–210 mm, allowing full compatibility with leading excavator brands. Operating at 30–40 bar hydraulic pressure and requiring 10–20 L/min oil flow, QC05 ensures safe, quick and efficient attachment switching.
Benefits
- Minimized Downtime: Instant, single-operator attachment changes keep your workflow uninterrupted.
- Lower Operating Costs: Reduce equipment fleet size and labor requirements to save on project expenses.
- Improved Safety: Dual-lock pins and spring-loaded circlip system provide redundant security against accidental release.
- Maximum Versatility: One coupler handles breakers, buckets, rippers, cutters and more. No adapter kits needed.
- Low Maintenance: Sealed bearings and consolidated grease points cut daily upkeep to minutes.
- Extended Service Life: Premium steel and precision machining enhance both coupler and attachment longevity.
Application Areas
- Multi-Attachment Workflow: Rapidly switch between buckets, breakers, rippers, drum cutters, crushers and grapples without leaving the cab.
- General Construction & Earthworks: From utility trenching to site grading—keeps operators productive on mixed-attachment jobs.
- Demolition & Recycling: Quick changes between breaker and crusher attachments accelerate debris removal and on-site crushing.
- Landscaping & Utilities: Seamlessly move from trenchers to augers to grading buckets for pipeline, irrigation and hard-scape work.
- Civil & Road Maintenance: Ideal for municipal crews needing fast transitions between pavement saws, planers and sweepers.
Key Features
- Premium Manganese Steel Body: High strength and wear resistance withstands heavy impact and abrasion.
- Spring-Loaded Circlip & Dual-Lock Pin: Redundant safety system locks the attachment under pressure, preventing accidental release.
- Universal Compatibility: Engineered to fit all major excavator makes and models via adjustable pin centers and separation fits.
- Lean Maintenance: Sealed bearings and consolidated greasing points slash daily upkeep to minutes.
Technical Specifications
| Carrier Weight (ton) | 4–5 |
| Operating Weight (kg) | 60 |
| Length A (mm) | 540–550 |
| Height B (mm) | 300–310 |
| Width C (mm) | 290–325 |
| Pin Center Axis Distance D (mm) | 200–210 |
| Pin Diameter E (mm) | 40–50 |
| Working Pressure (bar) | 30–40 |
| Oil Flow (l/min) | 10–20 |
