HKM DC03 Drum Cutter

HKM DRUM CUTTERS – DC03

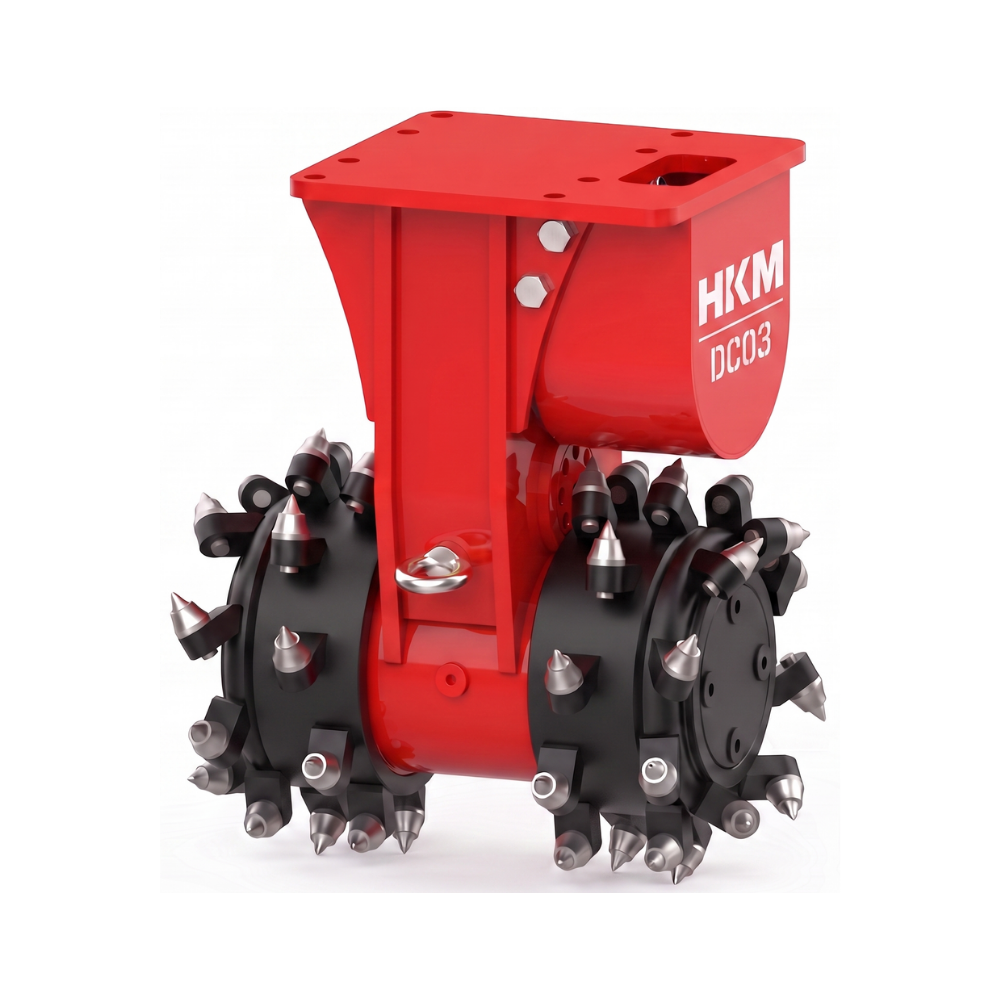

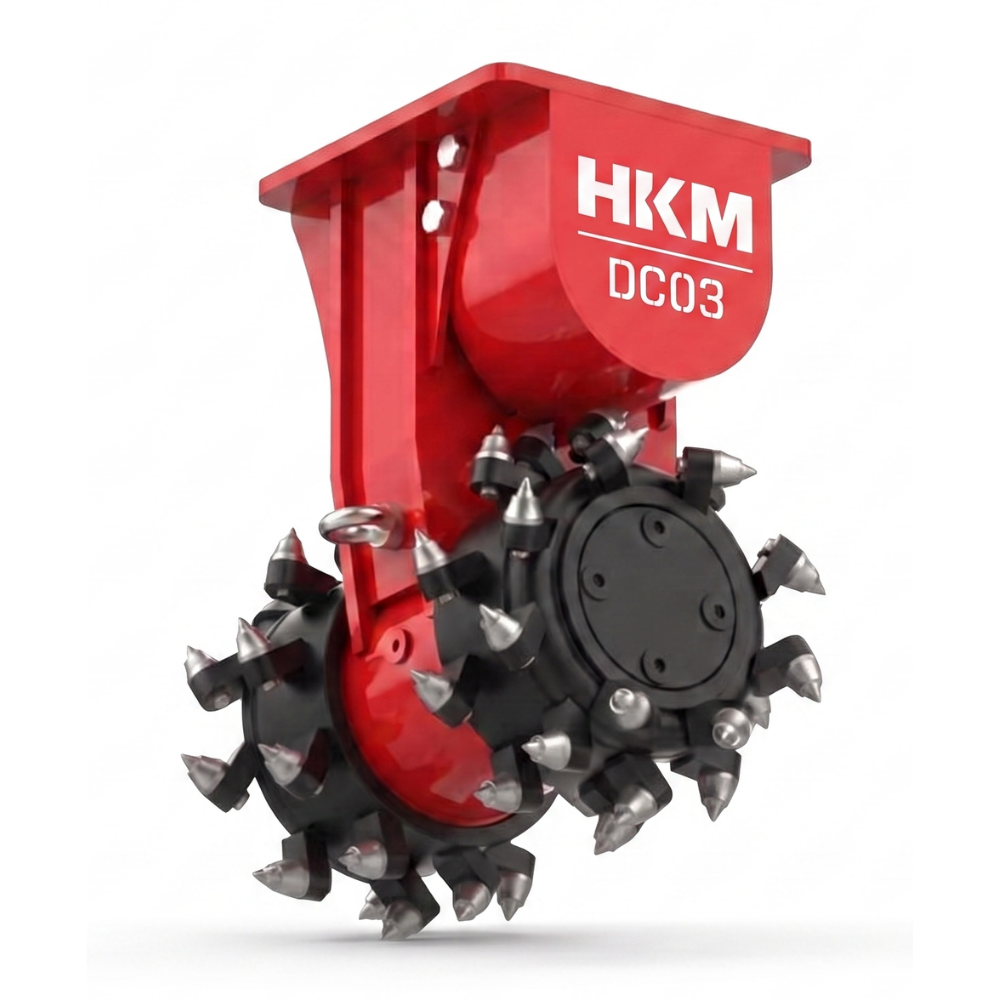

HKM DC03 Drum Cutter is a compact yet powerful cutting attachment engineered for carriers in the 0.7–4 ton class. Its low-vibration operation supports precise cutting and excavation in confined spaces, while the high-torque drive and optimized pick arrangement provide efficient performance in concrete, soft rock and similar materials.

With an operating weight of 160 kg and a required power of 22 kW, DC03 combines compact dimensions with efficient hydraulic performance. Its 44 picks and 1,500 Nm output torque enable controlled material removal for light infrastructure, trenching and profiling work.

The compact body and low-noise operating characteristics make DC03 especially suitable for urban worksites, landscaping and applications where access, precision and limited disturbance are important.

A 360 mm drum diameter, 160 mm single drum width and 450 mm cutting width make it well suited to controlled cutting, trenching and precise surface profiling in restricted areas. Its compact cutting geometry also improves maneuverability in urban infrastructure and landscaping projects with limited access.

KEY FEATURES

• Fast and efficient cutting with a high-torque motor
• Comfortable operation with low vibration and noise
• Precise drum control for effective work in confined spaces
• Maintenance-free design with no need for grease or nitrogen
• Produces homogeneous material suitable for backfill

APPLICATION AREAS

• Infrastructure and utility trenching
• Curb profiling and landscaping
• Surface preparation and light demolition
• Roadside excavation and foundation shaping

OPTIONAL FEATURES

• Underwater Kit: Insulated electrical/hydraulic connections with corrosion-resistant components
• High Abrasion Protection Kit: Hardox™/AR400 wear liners and zirconium-coated picks
• Extended Reach Module: +500 mm extension tube for maximum reach in deep trenches

TECHNICAL SPECIFICATIONS

Frequently Asked Questions (FAQ)

Q: Which excavators is the HKM DC03 Drum Cutter compatible with?
A: The DC03 is designed for excavators and suitable hydraulic carriers in the 0.7–4 ton operating class. Final compatibility should also be verified against the carrier’s hydraulic flow, operating pressure and mounting dimensions.

Q: What hydraulic flow and operating pressure are required for the DC03?
A: The DC03 operates with an oil-flow range of 25–38 l/min and a maximum operating pressure of 315 bar. Required power is 22 kW. For optimum performance, the carrier’s hydraulic specifications should fall within these operating requirements.

Q: What are the single drum width and cutting width of the DC03?
A: The DC03 has a single drum width of 160 mm and a total cutting width of 450 mm. These dimensions are important when selecting the right model for the available working width and required surface profile.

Q: What applications can the HKM DC03 Drum Cutter be used for?
A: The DC03 can be used for infrastructure and utility trenching, curb profiling, landscaping, surface preparation, light demolition, roadside excavation and foundation shaping. It provides controlled, low-vibration cutting and excavation; final suitability should be assessed according to material properties and site conditions.
