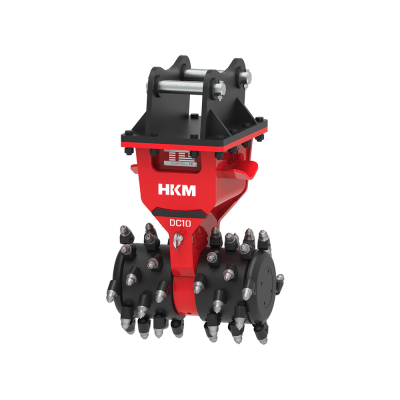

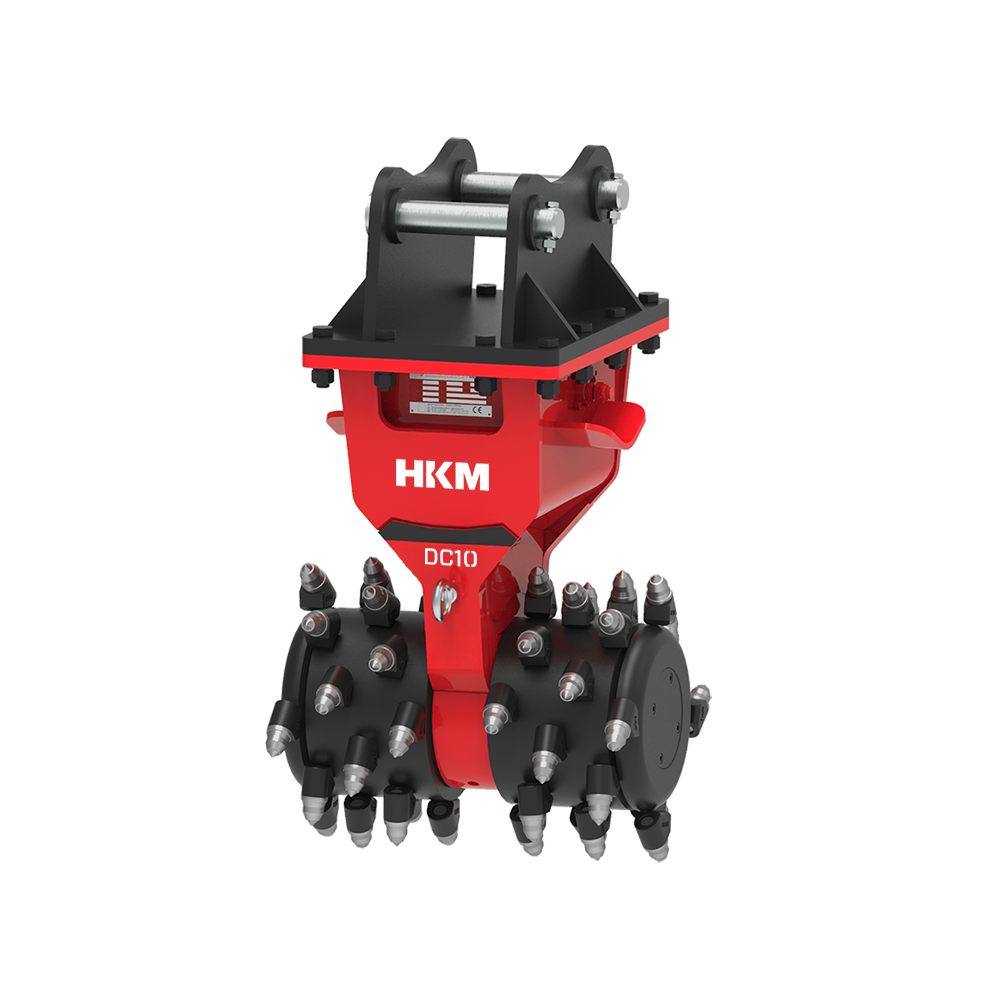

HKM DRUM CUTTERS – DC10
HKM DC10 Drum Cutter is engineered for 7–12 ton excavators, combining high torque with low-vibration cutting for controlled excavation. With an operating weight of 650 kg and maximum torque of 6,000 Nm, it delivers reliable performance in urban worksites and projects that demand accurate material removal.
Operating with 60–100 l/min oil flow and requiring 36 kW of power, DC10 provides strong cutting capability with efficient hydraulic utilization. Its 52 picks break material quickly and consistently, producing a homogeneous granular output suitable for reuse as backfill.
Its compact construction and low noise level make DC10 an effective solution for urban infrastructure, concrete surface work and excavation in compacted or hardened ground where precision is essential.
A 440 mm drum diameter, 255 mm single drum width and 600 mm cutting width support controlled and efficient material removal in infrastructure, concrete surface preparation and profiling work. The drum geometry provides useful surface coverage while retaining accuracy in confined working areas.
KEY FEATURES
- High performance with up to 6,000 Nm of torque
- Fast and precise material removal with 52 picks
- Low-vibration design for improved operator comfort
- Maintenance-free design for minimum downtime
- Effective solution for urban infrastructure and curb profiling work
APPLICATION AREAS
- Excavation and trenching projects
- Surface leveling and asphalt removal
- Shaping and profiling concrete surfaces
- Curb and landscaping applications
OPTIONAL FEATURES
- Underwater Kit: Fully insulated construction for high-humidity and wet environments
- High Abrasion Protection Kit: Hardox™ wear liners and zirconium-coated picks for extended service life
- Extended Reach Module: +500 mm extension tube with an adjustable bracket system
TECHNICAL SPECIFICATIONS
| Carrier Weight (ton) | 7–12 |
| Operating Weight (kg) | 650 |
| Max Operating Pressure (bar) | 315 |
| Oil Flow (l/min) | 60–100 |
| Required Power (kW) | 36 |
| Max Torque @320 Bar (Nm) | 6000 |
| Rotation Speed @40 l/min (rpm) | 80 |
| Output Torque @320 Bar (Nm) | 6440 |
| Number of Picks | 52 |
| Drum Diameter (mm) | 440 |
| Single Drum Width (mm) | 255 |
| Cutting Width (mm) | 600 |
Frequently Asked Questions (FAQ)
Q: Which excavators is the HKM DC10 Drum Cutter compatible with?
A: The DC10 is designed for excavators and suitable hydraulic carriers in the 7–12 ton operating class. Final compatibility should also be verified against the carrier’s hydraulic flow, operating pressure and mounting dimensions.
Q: What hydraulic flow and operating pressure are required for the DC10?
A: The DC10 operates with an oil-flow range of 60–100 l/min and a maximum operating pressure of 315 bar. Required power is 36 kW. For optimum performance, the carrier’s hydraulic specifications should fall within these operating requirements.
Q: What are the single drum width and cutting width of the DC10?
A: The DC10 has a single drum width of 255 mm and a total cutting width of 600 mm. These dimensions are important when selecting the right model for the available working width and required surface profile.
Q: What applications can the HKM DC10 Drum Cutter be used for?
A: The DC10 can be used for excavation and trenching, surface leveling, asphalt removal, concrete surface shaping, curb work and landscaping. It provides controlled, low-vibration cutting and excavation; final suitability should be assessed according to material properties and site conditions.
🤔 Not Sure Which Drum Cutter to Choose?
Send us your excavator make/model and working conditions to identify the most suitable drum cutter for your application. Our sales team can help you select the right model based on carrier weight, hydraulic flow and application requirements.
